2016 LEXUS RX450H Owners Manual

5697-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U
Remove the engine cover.
Connect the jumper cables according to the following procedure:
Connect a positive jumper cable clamp to the exclusive jump starting ter-
minal on your vehicle.
Connect the clamp on the other end of the positive cable to the positive (+)
battery terminal on the second vehicle.
Connect a negative cable clamp to the negative (-) battery terminal on the
second vehicle.
Connect the clamp at the other end of th e negative cable to a solid, station-
ary, unpainted meta llic point away from the excl usive jump starting terminal
and any moving parts, as shown in the illustration.4
5
1
2
3
4

5707-2. Steps to take in an emergency
RX450h_U_OM0E013U
Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximatel y 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the seco nd vehicle and start the hybrid system
of your vehicle by turning th e power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator light does not
come on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Close the exclusive jump starting termin al cover, and reinstall the fuse box
cover to its original position.
Once the hybrid system starts, have th e vehicle inspected at your Lexus dealer
as soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period , such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery w ill discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
■When the 12-volt battery is removed or discharged
●In some cases, it may not be possible to un lock the doors using the smart access system
with push-button start when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will retu rn to the mode it was in before the 12-volt battery was
discharged. Before disconnect ing the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
●The power back door must be initialized. ( P. 150)
6
7
8
9
10
11

5717-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U

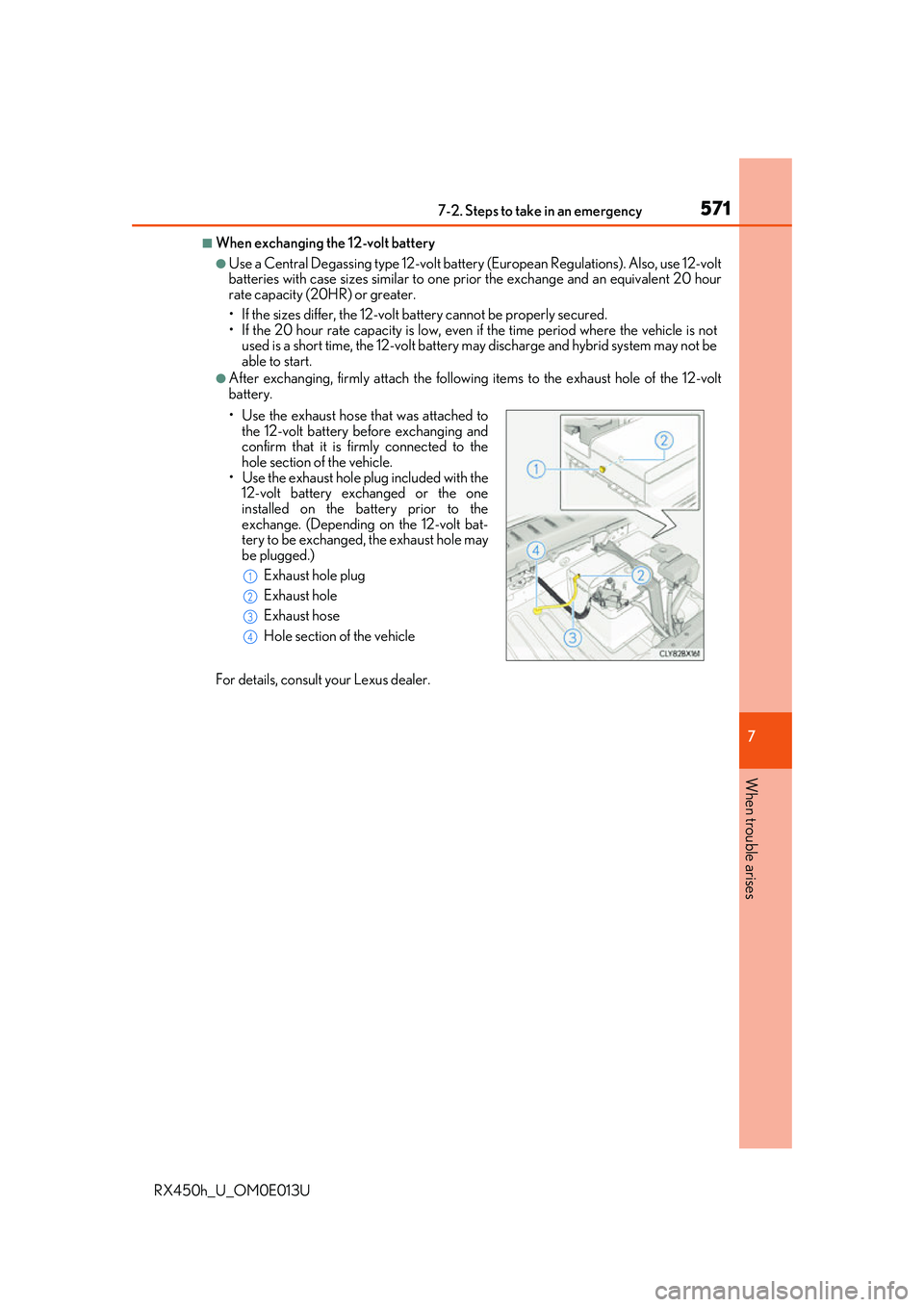

■When exchanging the 12-volt battery
●Use a Central Degassing type 12-volt battery (European Regulations). Also, use 12-volt
batteries with case sizes similar to one prior the exchange and an equivalent 20 hour
rate capacity (20HR) or greater.
• If the sizes differ, the 12-volt battery cannot be properly secured.
• If the 20 hour rate capacity is low, even if the time period where the vehicle is not used is a short time, the 12-volt battery may discharge and hybrid system may not be
able to start.
●After exchanging, firmly attach the following items to the exhaust hole of the 12-volt
battery.
For details, consult your Lexus dealer. • Use the exhaust hose that was attached to
the 12-volt battery before exchanging and
confirm that it is firmly connected to the
hole section of the vehicle.
• Use the exhaust hole plug included with the 12-volt battery exchanged or the one
installed on the battery prior to the
exchange. (Depending on the 12-volt bat-
tery to be exchanged, the exhaust hole may
be plugged.)
Exhaust hole plug
Exhaust hole
Exhaust hose
Hole section of the vehicle
1
2
3
4

5727-2. Steps to take in an emergency
RX450h_U_OM0E013U

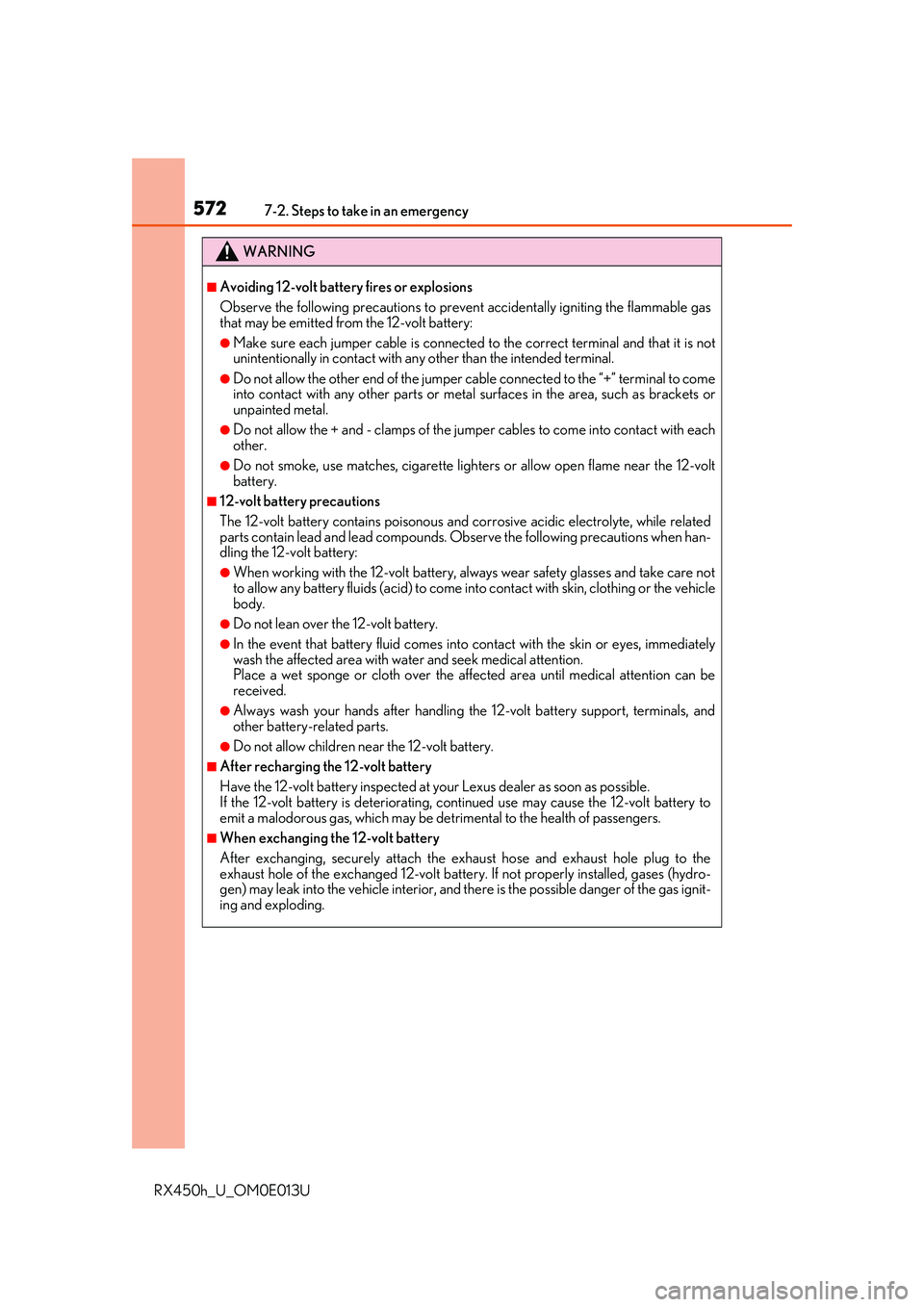

WARNING
■Avoiding 12-volt battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable gas
that may be emitted from the 12-volt battery:
●Make sure each jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any other than the intended terminal.
●Do not allow the other end of the jumper cab le connected to the “+” terminal to come
into contact with any other parts or metal surfaces in the area, such as brackets or
unpainted metal.
●Do not allow the + and - clamps of the jumper cables to come in to contact with each
other.
●Do not smoke, use matches, cigarette light ers or allow open flame near the 12-volt
battery.
■12-volt battery precautions
The 12-volt battery contains poisonous and co rrosive acidic electrolyte, while related
parts contain lead and lead compounds. Ob serve the following precautions when han-
dling the 12-volt battery:
●When working with the 12-volt battery, always wear safety glasses and take care not
to allow any battery fluids (acid) to come in to contact with skin, clothing or the vehicle
body.
●Do not lean over the 12-volt battery.
●In the event that battery fluid comes into contact with the skin or eyes, immediately
wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
●Always wash your hands after handling the 12-volt battery support, terminals, and
other battery-related parts.
●Do not allow children near the 12-volt battery.
■After recharging the 12-volt battery
Have the 12-volt battery inspected at yo ur Lexus dealer as soon as possible.
If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to
emit a malodorous gas, which may be de trimental to the health of passengers.
■When exchanging the 12-volt battery
After exchanging, securely attach the exhaust hose and exhaust hole plug to the
exhaust hole of the exchanged 12-volt batter y. If not properly installed, gases (hydro-
gen) may leak into the vehicle interior, and there is the possible danger of the gas ignit-
ing and exploding.

5737-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U
NOTICE
■When handling jumper cables
When connecting the jumper cables, ensure that they do not become entangled in the
cooling fans or belt.
■To prevent damaging the vehicle
The exclusive jump starting terminal is to be used when charging the 12-volt battery
from another vehicle in an emergency. It cannot be used to jump start another vehicle.

5747-2. Steps to take in an emergency
RX450h_U_OM0E013U
■“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information displayStop the vehicle in a safe place and turn off the air conditioning system, and
then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently, inspect
the hoses and radiator core (radi-
ator) for any leaks.Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.Reservoir
“FULL” line
“LOW” line
Radiator cap
If your vehicle overheats
The following may indicate that your vehicle is overheating.
●The needle of the engine coolant temperature gauge ( P. 97) enters the
red zone, or a loss of hybrid system power is experienced. (For example, the
vehicle speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” or
“Hybrid System Overheated Reduced Output Power” is shown on the
multi-information display.
●Steam comes out from under the hood.
Correction procedures
1
2
3
1
2
4
1
2
3
4

5757-2. Steps to take in an emergency
7
When trouble arises
RX450h_U_OM0E013U
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
Start the hybrid system and turn the air conditioning system on to check
that the radiator cooling fans operate and to check for coolant leaks from
the radiator or hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air
flow. If it is difficult to check these, tu rn the air conditioning system on and off
repeatedly. (The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the hybrid system immediately and contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High Stop in a Safe Place See Owner’s
Manual” is shown on the multi-information display.
If the message does not disappear:
Stop the hybrid system and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
5
6
7
8

5767-2. Steps to take in an emergency
RX450h_U_OM0E013U
■If “Hybrid System Overheated Reduced Output Power” is shown on the
multi-information displayStop the vehicle in a safe place.
Stop the hybrid system an d carefully lift the hood.
After the hybrid system has
cooled down, inspect the hoses
and radiator core (radiator) for
any leaks. Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The coolant level is satisfactory if
it is between the “FULL” and
“LOW” lines on the reservoir.Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emergency
if coolant is unavailable.
1
2
3
1
2
4
1
2
3
5
