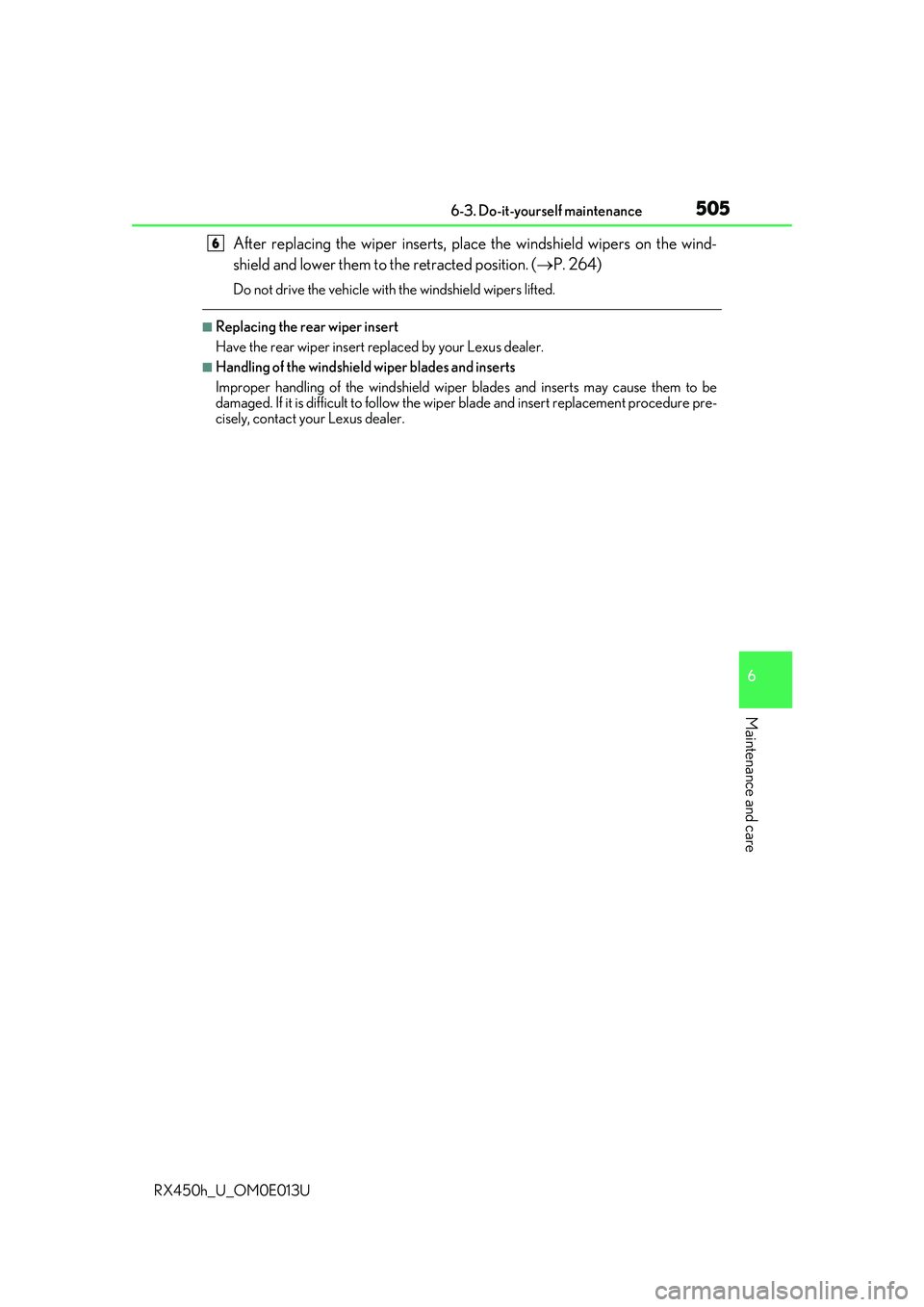

2016 LEXUS RX450H Owners Manual

5056-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U
After replacing the wiper inserts, place the windshield wipers on the wind-
shield and lower them to the retracted position. (P. 264)
Do not drive the vehicle with the windshield wipers lifted.
■Replacing the rear wiper insert
Have the rear wiper insert replaced by your Lexus dealer.
■Handling of the windshield wiper blades and inserts
Improper handling of the windshield wiper blades and inserts may cause them to be
damaged. If it is difficult to follow the wiper blade and insert replacement procedure pre-
cisely, contact your Lexus dealer.
6

5066-3. Do-it-yourself maintenance
RX450h_U_OM0E013U
●Flathead screwdriver
●Lithium battery CR2032
Take out the mechanical key.
Remove the cover.
To prevent damage to the key, cover the
tip of the flathead screwdriver with a
tape.
Remove the depleted battery.
Insert a new battery with the “+” termi-
nal facing up.
Electronic key battery
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

5076-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U
■Use a CR2032 lithium battery
●Batteries can be purchased at your Lexus dealer, local electrical appliance shops or
camera stores.
●Replace only with the same or equivalent type recommended by the manufacturer.
●Dispose of used batteries according to the local laws.
■If the electronic key battery is depleted
The following symptoms may occur:
●The smart access system with push-button start and wireless remote control will not
function properly.
●The operational range will be reduced.
WARNING
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep away
from children. Failure to do so coul d result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other co mponent inside the remote control.
●Do not bend either of the battery terminals.

5086-3. Do-it-yourself maintenance
RX450h_U_OM0E013U
Turn the power switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

5096-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U
Luggage compartment (type A fuse box)
Remove the 12-volt battery cover.
( P. 483)
Luggage compartment (type B fuse box)
Remove the terminal cover.
Remove the fuse with the pullout
tool.
Only some fuses can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new
fuse of an appropriate amperage rat-
ing. The amperage rating can be
found on the fuse box lid.
Many types of fuse are used on this
vehicle. This illustration shows a com-
mon type of fuse used on this vehicle.
3
4
1
2

5106-3. Do-it-yourself maintenance
RX450h_U_OM0E013U
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 513)
●If the replaced fuse blows again, have th e vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to th e vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high volt age parts and wiring near the
fuse box.
Doing so may cause electric shock, re sulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.

5116-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U
Adjustment bolt A
Adjustment bolt B
Make sure the vehicle has a full tank of gasoline and the area around the
headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
Headlight aim (vehicles with single-beam head-
lights)
Vertical movement adjusting bolts
1
2
Before checking the headlight aim
1
2
3
4

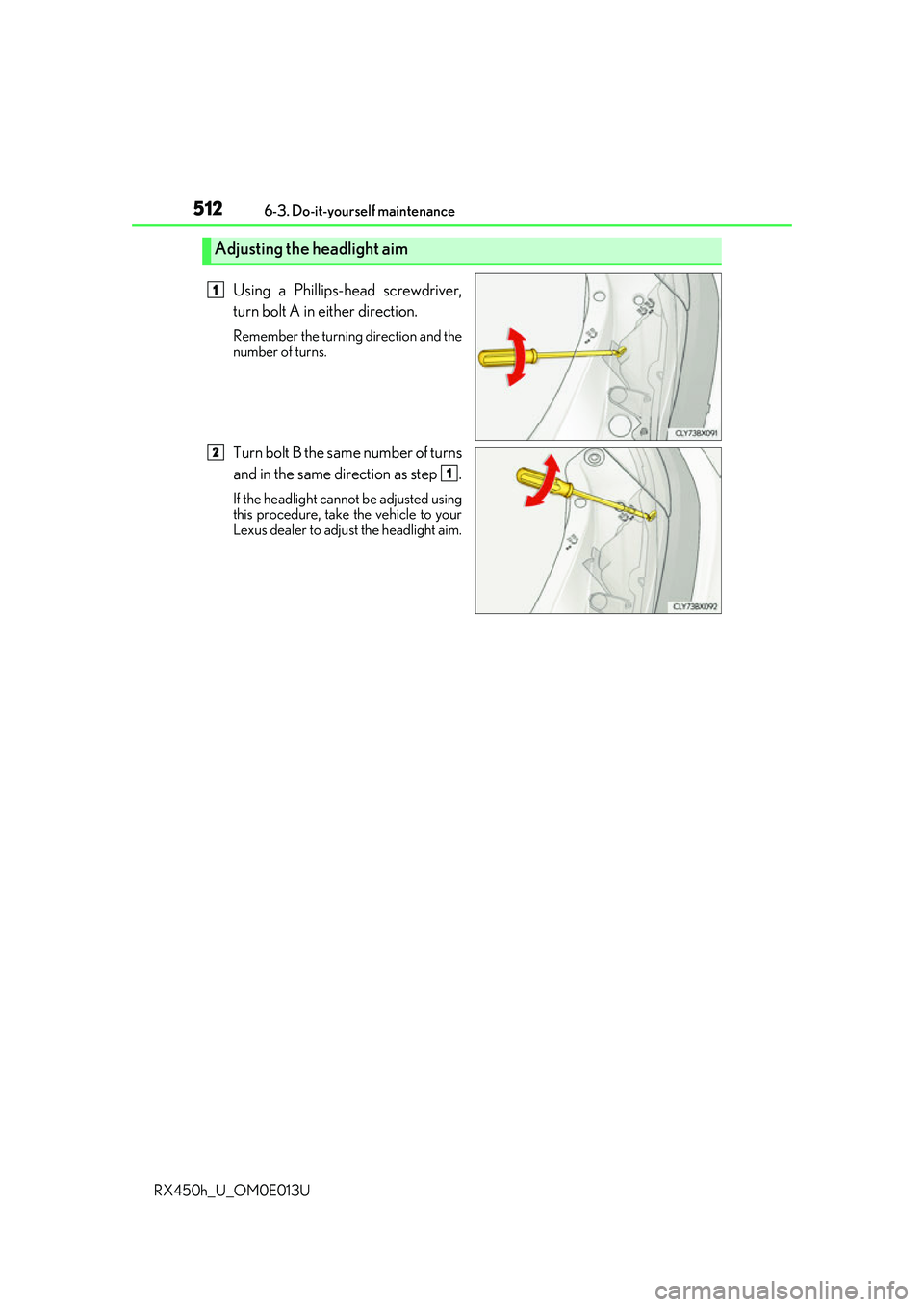

5126-3. Do-it-yourself maintenance
RX450h_U_OM0E013U
Using a Phillips-head screwdriver,
turn bolt A in either direction.
Remember the turning direction and the
number of turns.
Turn bolt B the same number of turns
and in the same direction as step .
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Adjusting the headlight aim
1
2
1
