2016 LEXUS RX450H Owners Manual

4255-4. Using the storage features
5
Interior features
RX450h_U_OM0E013U

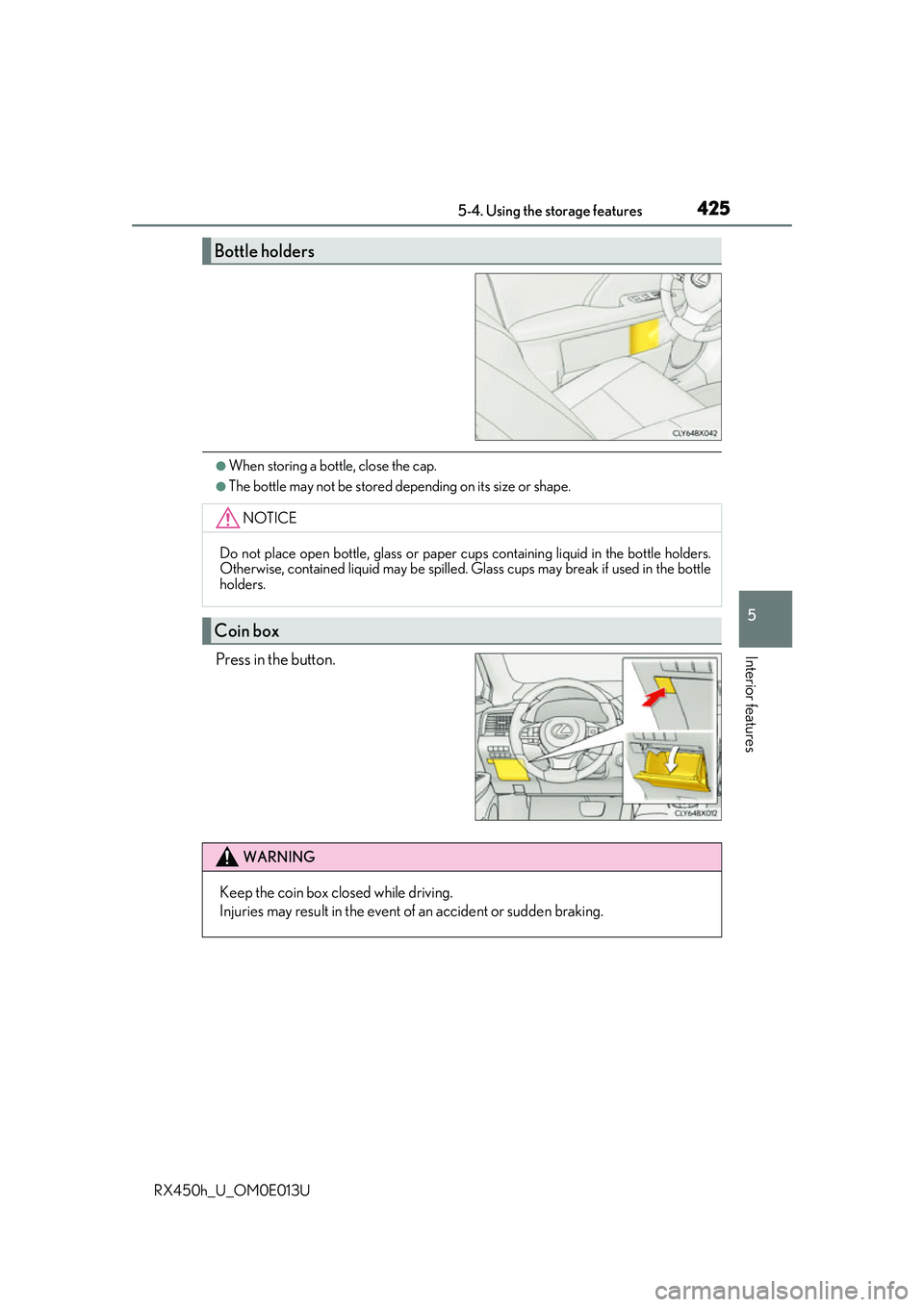

●When storing a bottle, close the cap.
●The bottle may not be stored depending on its size or shape.
Press in the button.
Bottle holders
NOTICE
Do not place open bottle, glass or paper cups containing liquid in the bottle holders.
Otherwise, contained liquid may be spilled. Glass cups may break if used in the bottle
holders.
Coin box
WARNING
Keep the coin box closed while driving.
Injuries may result in the event of an accident or sudden braking.

4265-4. Using the storage features
RX450h_U_OM0E013U

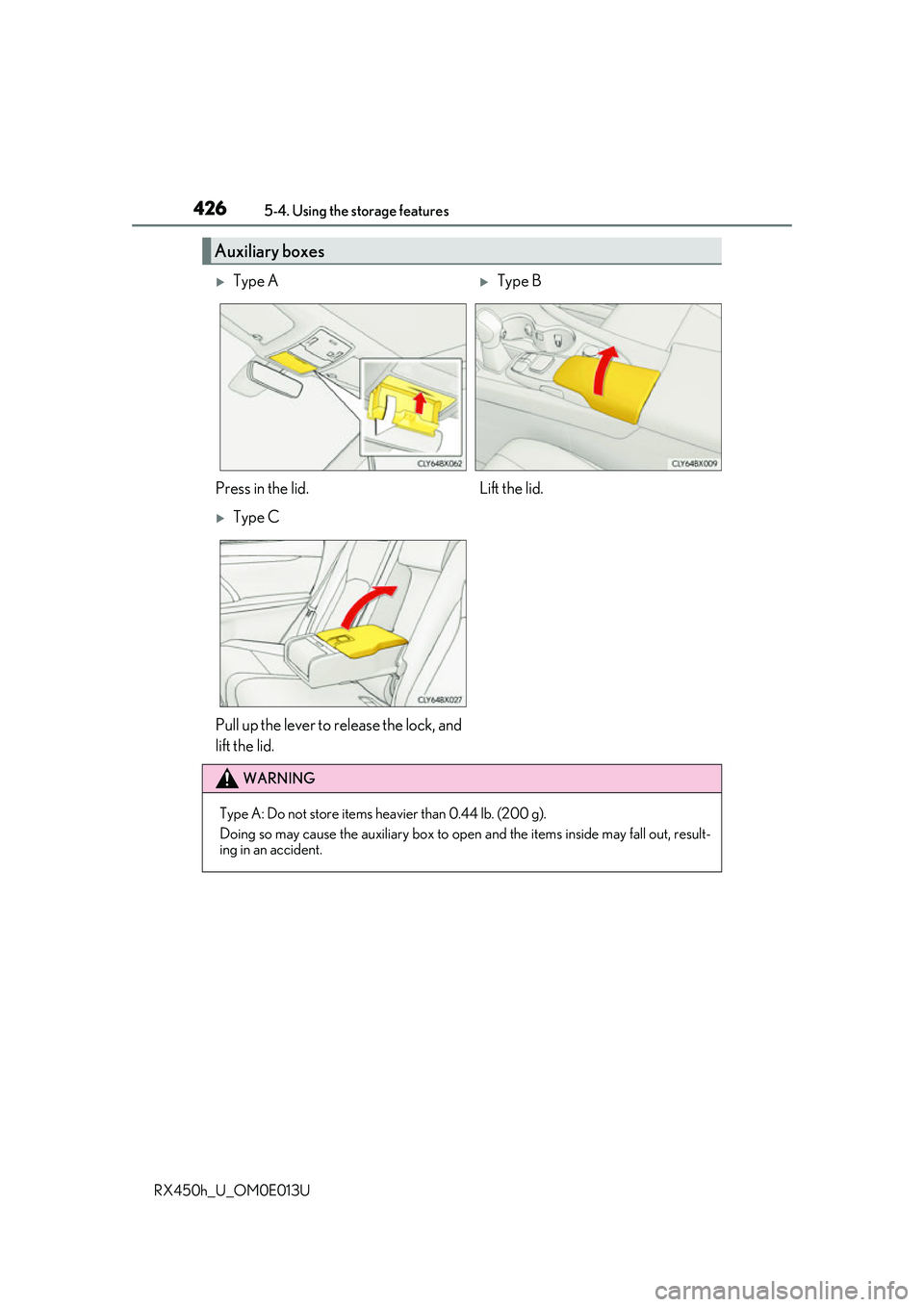

Auxiliary boxes
Type AType B
Press in the lid. Lift the lid.
Type C
Pull up the lever to release the lock, and
lift the lid.
WARNING
Type A: Do not store items heavier than 0.44 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall out, result-
ing in an accident.

4275-4. Using the storage features
5
Interior features
RX450h_U_OM0E013U

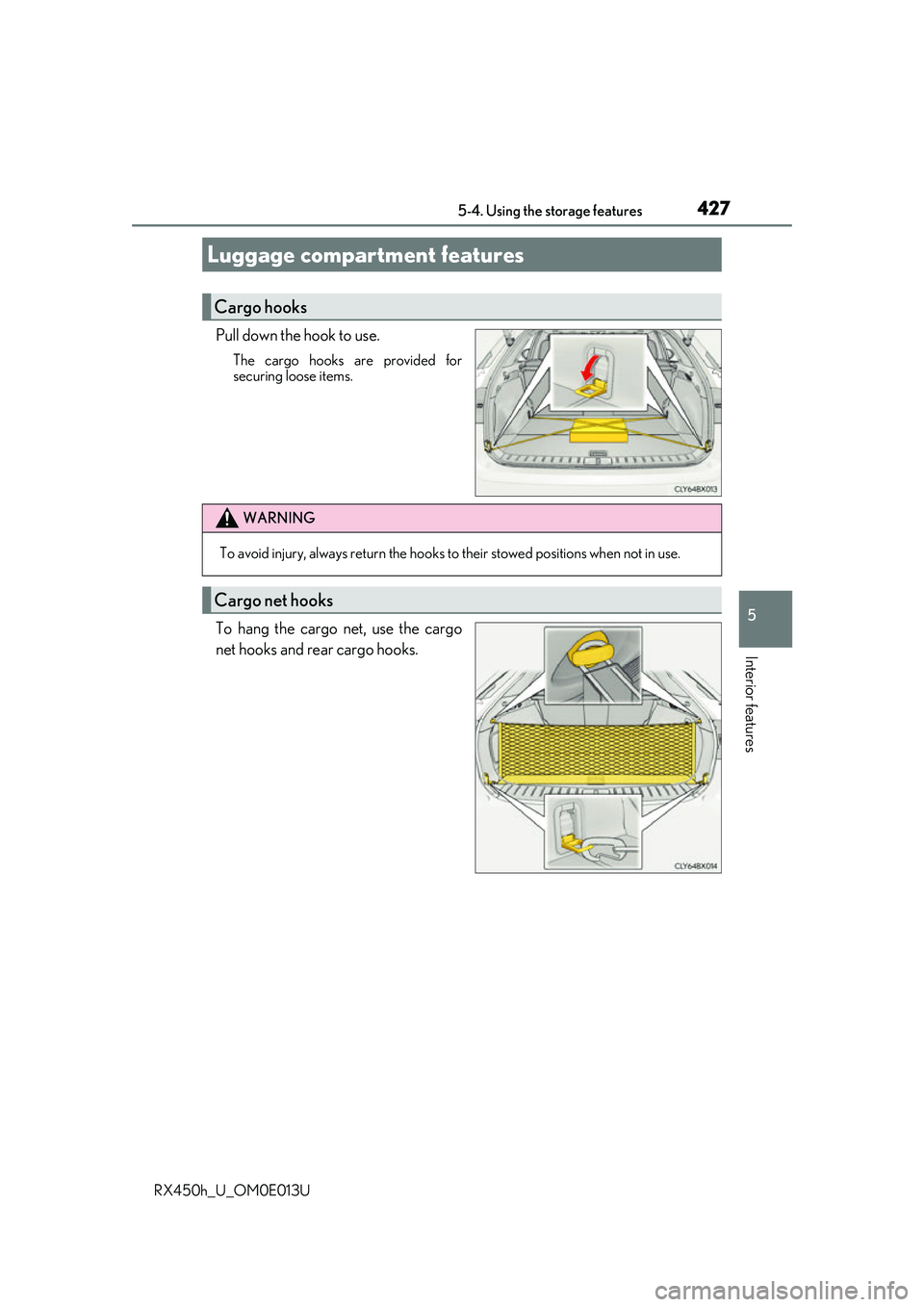

Pull down the hook to use.
The cargo hooks are provided for
securing loose items.
To hang the cargo net, use the cargo
net hooks and rear cargo hooks.
Luggage compartment features
Cargo hooks
WARNING
To avoid injury, always return the hooks to their stowed positions when not in use.
Cargo net hooks

4285-4. Using the storage features
RX450h_U_OM0E013U

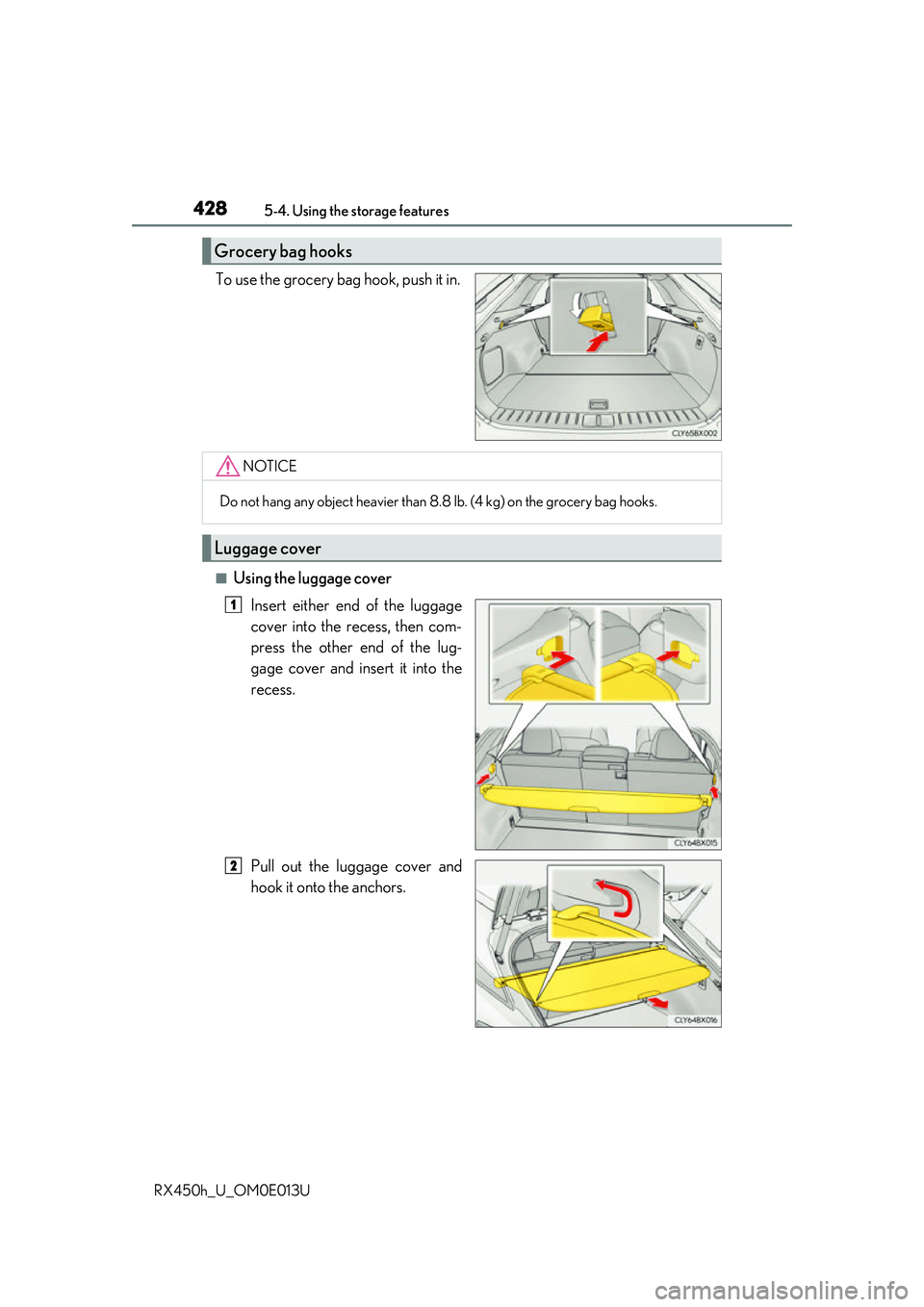

To use the grocery bag hook, push it in.
■Using the luggage cover Insert either end of the luggage
cover into the recess, then com-
press the other end of the lug-
gage cover and insert it into the
recess.
Pull out the luggage cover and
hook it onto the anchors.
Grocery bag hooks
NOTICE
Do not hang any object heavier than 8. 8 lb. (4 kg) on the grocery bag hooks.
Luggage cover
1
2

4295-4. Using the storage features
5
Interior features
RX450h_U_OM0E013U

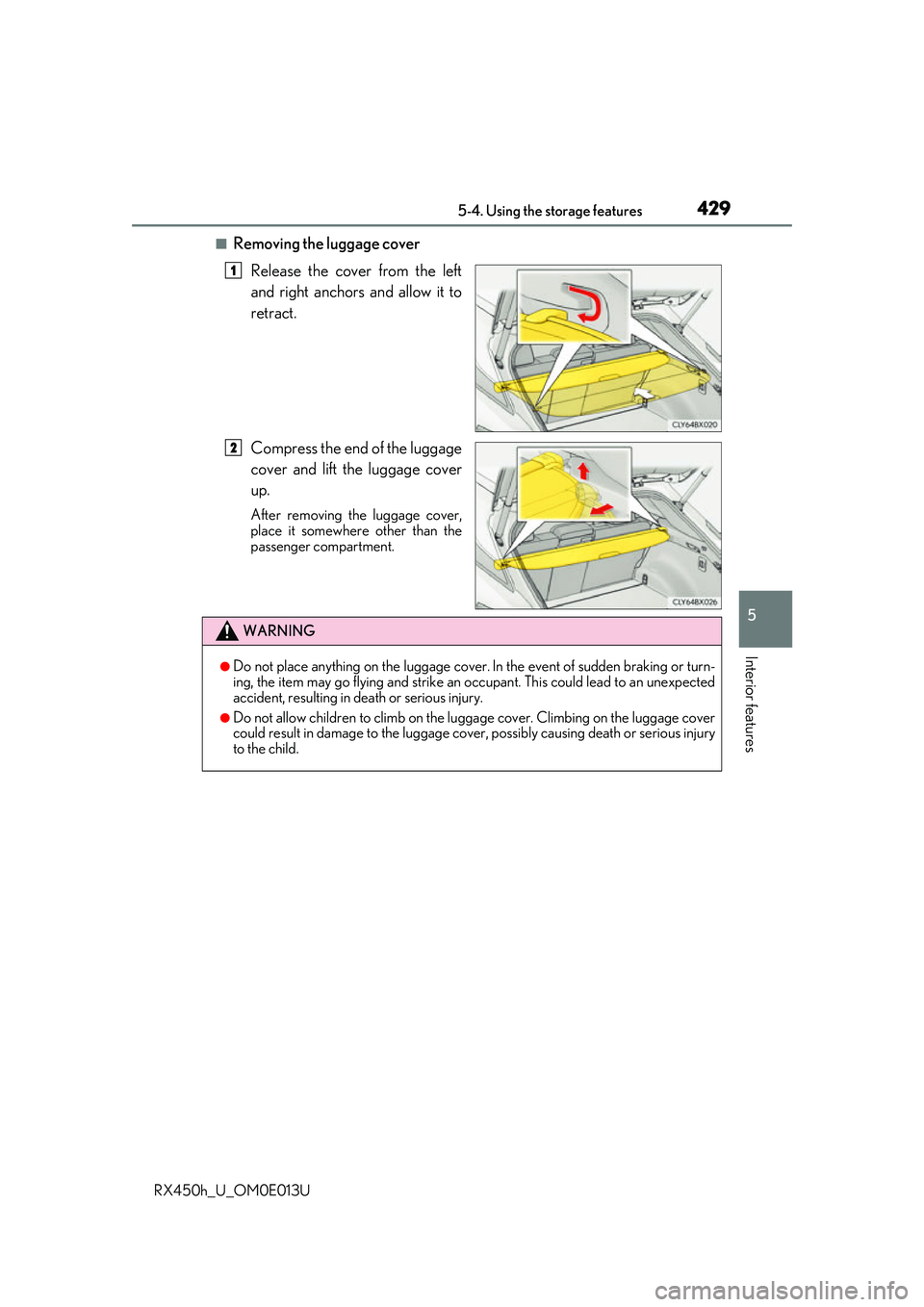

■Removing the luggage coverRelease the cover from the left
and right anchors and allow it to
retract.
Compress the end of the luggage
cover and lift the luggage cover
up.
After removing the luggage cover,
place it somewhere other than the
passenger compartment.
1
2
WARNING
●Do not place anything on the luggage cover. In the event of sudden braking or turn-
ing, the item may go flying and strike an occupant. This could lead to an unexpected
accident, resulting in death or serious injury.
●Do not allow children to climb on the lugg age cover. Climbing on the luggage cover
could result in damage to the luggage cove r, possibly causing death or serious injury
to the child.

4305-4. Using the storage features
RX450h_U_OM0E013U

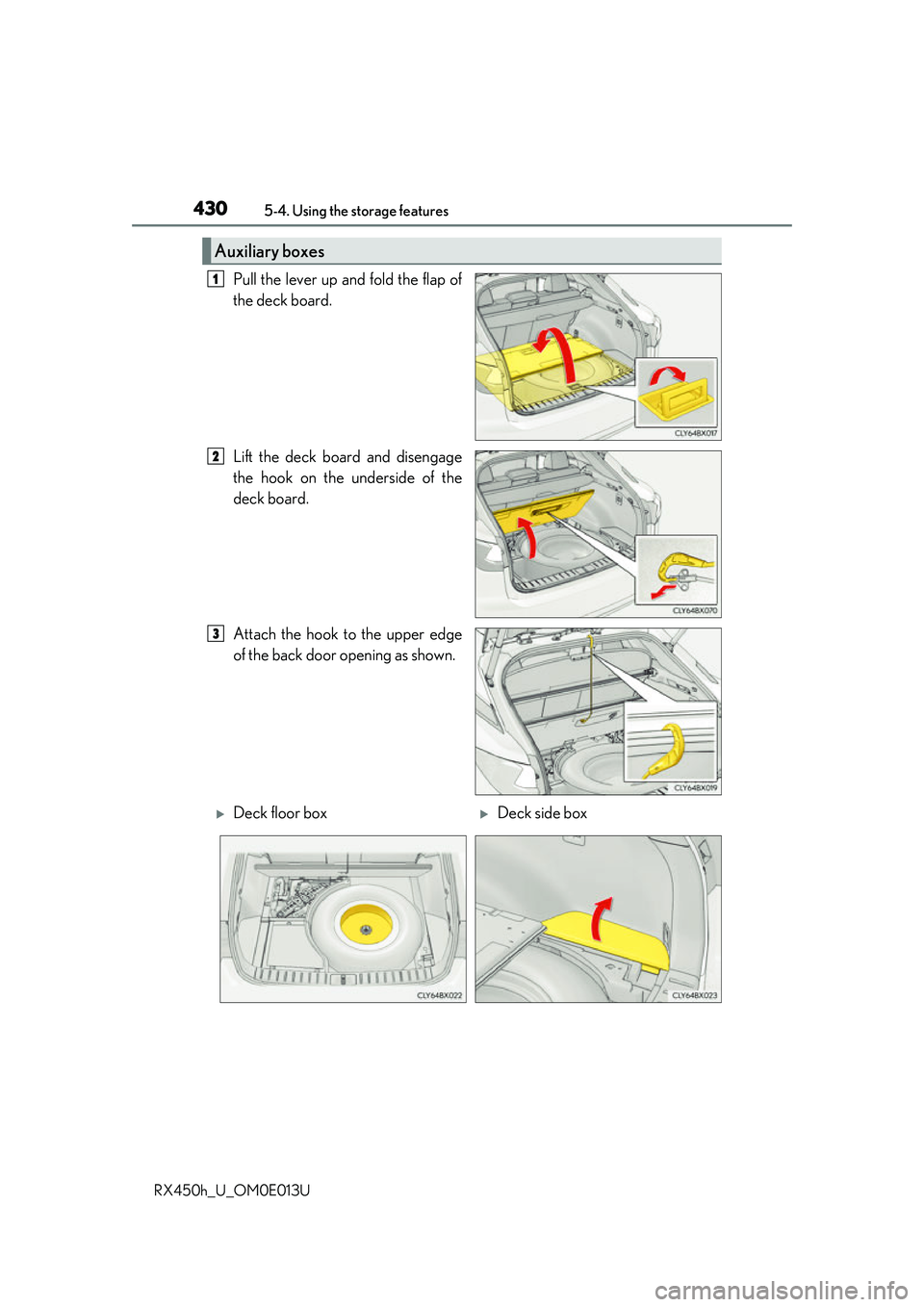

Pull the lever up and fold the flap of
the deck board.
Lift the deck board and disengage
the hook on the underside of the
deck board.
Attach the hook to the upper edge
of the back door opening as shown.
Auxiliary boxes
1
2
3
Deck floor boxDeck side box

4315-4. Using the storage features
5
Interior features
RX450h_U_OM0E013U

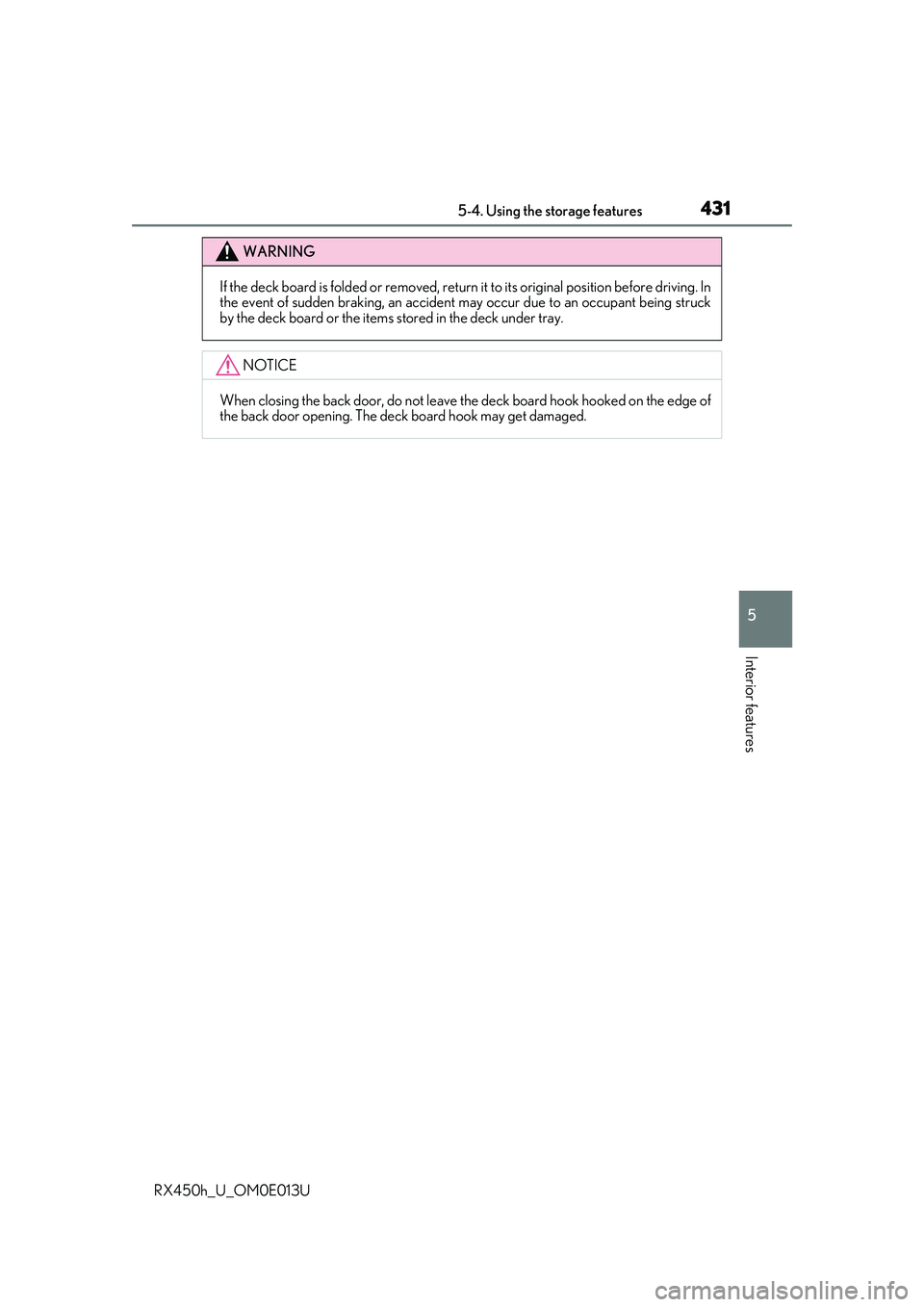

WARNING
If the deck board is folded or removed, return it to its original position before driving. In
the event of sudden braking, an accident may occur due to an occupant being struck
by the deck board or the items stored in the deck under tray.
NOTICE
When closing the back door, do not leave th e deck board hook hooked on the edge of
the back door opening. The deck board hook may get damaged.

432
RX450h_U_OM0E013U5-5. Using the other interior features

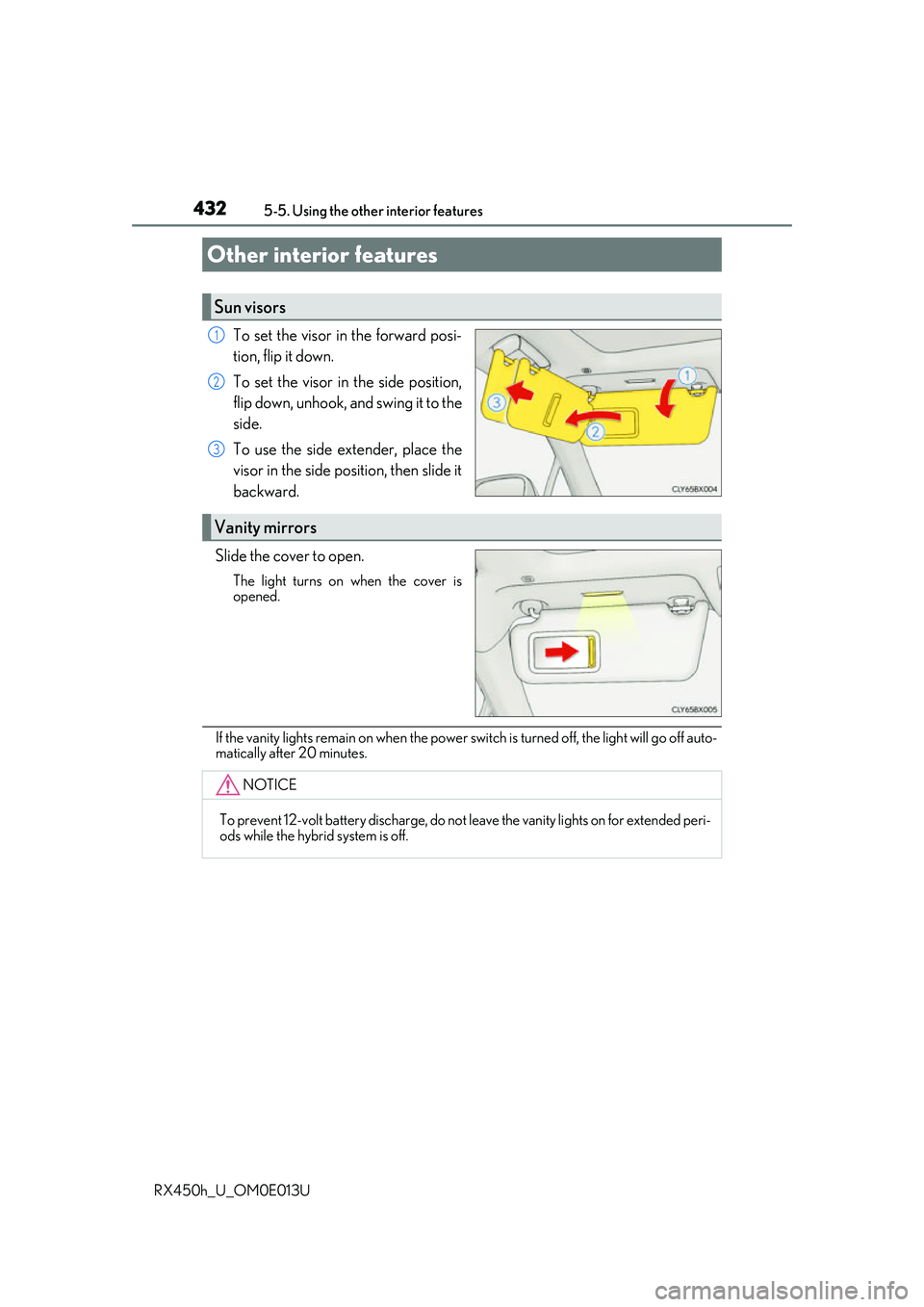

To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the power switch is turned off, the light will go off auto-
matically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for extended peri-
ods while the hybrid system is off.
