2016 LEXUS RX450H Owners Manual

1453-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U
■Using the power back door switch to close the power back door
Press the switch.
A buzzer will sound and the power
back door will automatically close.
Pressing the switch while the power
back door is closing will stop the
operation. Pressing the switch again
will open the power back door auto-
matically.
Close & lock function
Press the switch twice.
A different buzzer than the normal one will sound and the power back door will
begin closing automatically. When the power back door is closed, all of the doors
will lock simultaneously and operation signal s will indicate that all of the doors have
been locked.
If the switch is pressed wh ile the power back door is closing, the operation will
stop.
Pressing the switch again will open the power back door automatically.
■Using the back door handle to close the power back door
Lower the power back door using
the back door handle.
A buzzer will sound and the power
back door will automatically close.
Closing the power back door from the outside

1463-2. Opening, closing and locking the doors
RX450h_U_OM0E013U
The power back door settings can be ch anged on the multi-information display.
( P. 109)
The position at which the power back door will stop when opened automatically
can be changed.
When setting using the switch
Stop the power back door at the desired position. ( P. 143, 145)
Press and hold the switch on
the lower part of the power back
door for 2 seconds. • When setting is complete, a buzzer will sound 4 times.
• The next time the power back door is opened, it will stop at that
position.
When setting using the multi-information display
The open position can be set usin g the multi-information display. (P. 102)
When setting on the audio system screen
The open position can be set on the audio system screen. ( P. 609)
Priority for the open position is give n to the last position set using the
switch, multi-information display, or navigation system.
To return the adjusted open posi tion to the default position (P. 150)
Changing the setting of the power back door system
Adjusting the open position of the power back door
1
2

1473-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U
■Power back door operating conditions
If the following conditions are met with the power back door operation enabled ( P. 112),
the power back door can be opened and closed automatically.
●When an electronic key is being carried an d the back door opener switch is pressed*
●When the wireless remote control is used*
●When the power switch is in ON mode, the vehicle speed must be lower than 2 mph (3
km/h) and one of the following conditions mu st be met in addition to the above condi-
tions:
• The parking brake is engaged.
• The brake pedal is depressed.
• The shift lever is in P.
*: When the operation of the power back door when it is locked has been disabled by a
customized setting, operate the power back door after it has been unlocked.
( P. 611)
Touchless sensor (vehicles with a touchless power back door)
The power back door will open automatically when the touchless sensor operation is
enabled ( P. 112) and the following conditions are met:
●The power back door is fully closed.
●The electronic key is within the operational range ( P. 158)
■Security feature
If the power back door is not opened within approximately 60 seconds after the vehicle
is unlocked, the security feature will automatically lock the doors again.
●A hand is held over the upper part of the rear
emblem with fingers closed. (The upper part of
the rear emblem can also be touched.)
The power back door may also be operated
by holding either of the following over the
upper part of the rear emblem. Make sure to
hold it close enough to the rear emblem.
•A gloved hand
•An elbow

1483-2. Opening, closing and locking the doors
RX450h_U_OM0E013U
■Luggage compartment lights
■If the power back door opener is inoperative
The power back door can be unlocked from the inside. The luggage compartment lights turn on when
the power back door is opened with the respec-
tive luggage compartment light switch on. When the power switch is turned off, the
lights will go off automatically after 20 min-
utes.
Remove the cover.
To protect the cover, place a rag between the
flathead screwdriver and cover as shown in
the illustration.
Move the lever.
1
2

1493-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U
■Back door closer
In the event that the power back door is left slightly open, the back door closer will auto-
matically close it to the fully closed position.
●The back door closer can function wh en the power switch is in any mode.
●The power back door can be opened using the back door opener switch even if the
back door closer is operating.
■Operation of the power back door
●When the power back door begins to operate, the emergency flashers will flash twice
and a buzzer will sound.
●When the power back door is disabled ( P. 112), the power back door will not operate
but can be opened and closed manually.
●The power back door turns to manual operat ion when the back door opener switch is
pressed while the power back door is in an automatic opening/closing operation.
●If anything obstructs the power back door while opening, a buzzer will sound and the
power back door will stop immediately. If anything obstructs the power back door while
closing, a buzzer will sound and the power back door will automatically move slightly in
the opposite direction and then stop.
■Back door reserve lock function
This function reserves the locking of the power back door when the power back door is
open. If the following operations are perfor med, all of the doors except the power back
door will lock and then the power back door will lock when it is completely closed.
Close all of the doors, ex cept the power back door.
Perform an automatic closing operation of the power back door and lock the doors
using the wireless remote control ( P. 136) or smart access system with push-button
start ( P. 136, 142) while the power back door is closing.
1
2

1503-2. Opening, closing and locking the doors
RX450h_U_OM0E013U
■Close & lock function
When the power back door is open, this fu nction closes the power back door and then
locks all of the doors simultaneously.
Performing the following procedure will lock all of the doors when the power back door
is completely closed.
Close all of the doors except the power back door.
While carrying an electronic key, press the
switch on the lower part of the
power back door ( P. 145) twice.
A different buzzer than the normal one will sound and then the power back door will
begin closing automatically. When the power back door is closed, all of the doors will
lock simultaneously and operation signals w ill indicate that all of the doors have been
locked.
To enable this function, the fo llowing conditions must be met:
●The most recent power back door operation was an automatic opening operation and
the power back door is stopped.
●No electronic keys for your vehicle are in the vehicle.
■When reconnecting the 12-volt battery
To enable the power back door to operate pr operly, close the power back door manually.
■Jam protection function
■Returning the power back door opening position to the default setting
Sensors are installed in the right and left sides of
the power back door. When the door is auto-
matically closing and the sensors are pushed
due to an object being caught, etc., the jam pro-
tection function will operate.
From that position the door will automatically
move a little in the opposite direction and then
the function will stop.
Press and hold the switch on the lower
part of the power back door for 7 seconds.
A buzzer will sound twice. The next time the
power back door is opened, it will open to the
default position.
1
2

1513-2. Opening, closing and locking the doors
3
Operation of each component
RX450h_U_OM0E013U
■Situations in which the close & lock function may not operate properly
In the following situations, the close & lock function may not operate properly:
●If the switch on the lower part of the power back door ( P. 145) is pressed by a
hand which is holding an electronic key
●If the switch on the lower pa rt of the power back door (P. 145) is pressed
when the electronic key is in a bag, etc. that is placed on the ground
●If the switch on the lower pa rt of the power back door (P. 145) is pressed with
the electronic key not near the vehicle.
■Situations in which the touchless sensor may malfunction (vehicles with a touchless
power back door)
In the following situations, the touchless sensor may operate unintentionally.
To prevent unintentional operat ion, keep the electronic key out of the operational range
or disable the touchless sensor operation. ( P. 112)
●When a large amount of water is applied to the rear emblem, such as in heavy rain
●When the vehicle is being washed and water is applied to the rear emblem
●When dirt is wiped off the rear emblem
●If someone leans toward or against the rear emblem
●When a metal object is brought near the rear emblem
●When a vehicle cover is installed or removed near the rear emblem
■Situations in which the touchless sensor may not operate properly (vehicles with a
touchless power back door)
If the touchless sensor does not operate in the following situations, use the back door
opener switch to open the power back door. (P. 145)
●In the following situations, the sensitivity of the touchless sensor may be temporarily
reduced and the touchless sensor may not operate:
• When a large amount of water is applied to the rear emblem, such as in heavy rain
• When the vehicle is being washed and water is applied to the rear emblem
• For several seconds after dirt is wiped off the rear emblem
• When the rear emblem is covered with mud, snow, ice, etc.
• When the vehicle has been parked for a wh ile near objects that may move and con-
tact the rear emblem, such as tall grass or trees
• When an external radio wave source is near the touchless sensor
●The touchless sensor may not operate in the following situations:
• When an electronic ke y is not being carried
• When an electronic key is not within the operational range
• When an external radio wave source in terferes with the communication between
the vehicle and electronic key ( P. 160)
• When the power back door is not fully closed
• When a hand is held pa rallel to the rear emblem
*
*
: The detection settings can be changed by your Lexus dealer. ( P. 609)
■Customization
Some functions can be customized. ( P. 109, 607)

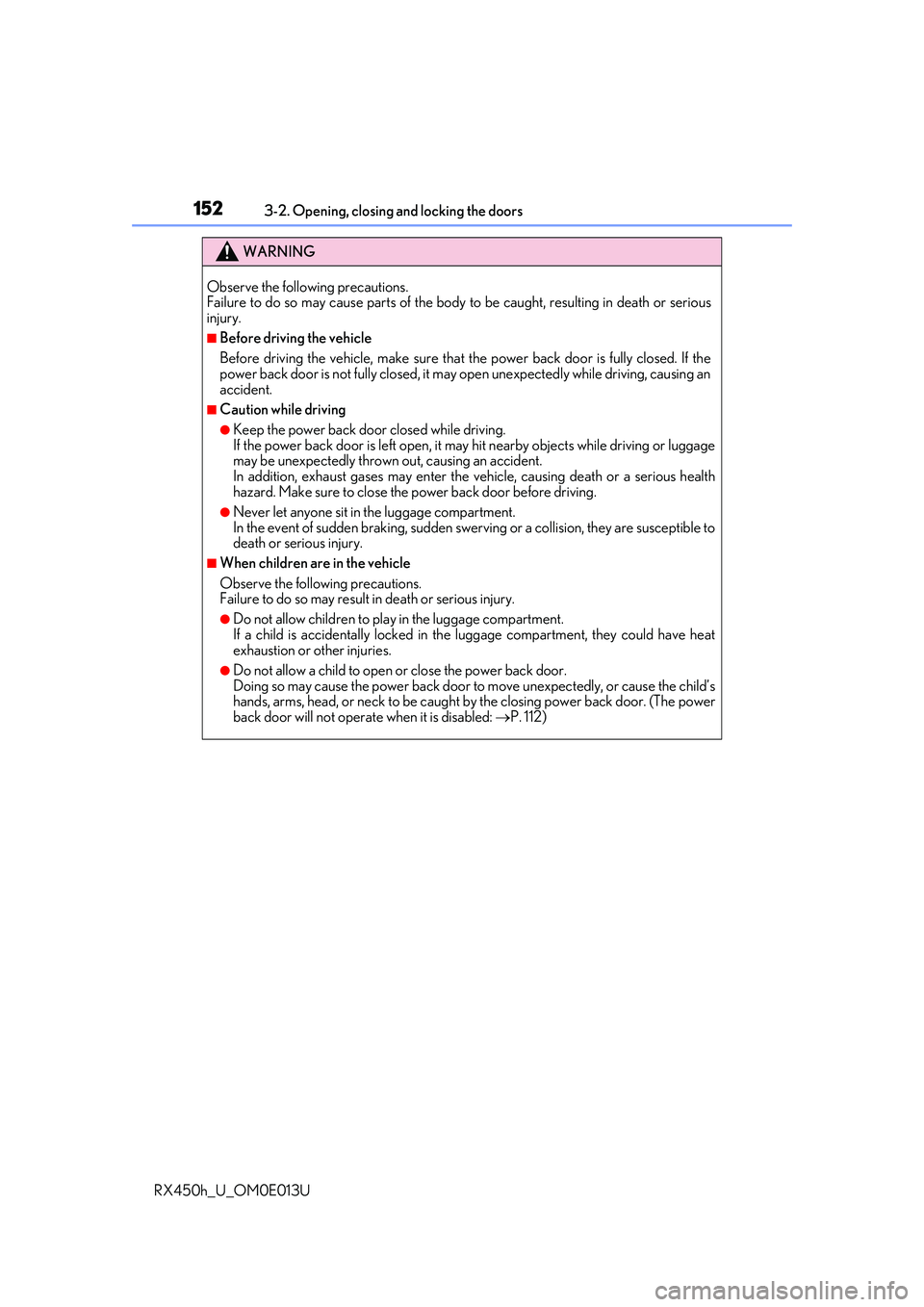

1523-2. Opening, closing and locking the doors
RX450h_U_OM0E013U
WARNING
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or serious
injury.
■Before driving the vehicle
Before driving the vehicle, ma ke sure that the power back door is fully closed. If the
power back door is not fully closed, it may open unexpectedly while driving, causing an
accident.
■Caution while driving
●Keep the power back door closed while driving.
If the power back door is left open, it ma y hit nearby objects while driving or luggage
may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the ve hicle, causing death or a serious health
hazard. Make sure to close the power back door before driving.
●Never let anyone sit in the luggage compartment.
In the event of sudden braking, sudden swerving or a collision, they are susceptible to
death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to play in the luggage compartment.
If a child is accidentally lo cked in the luggage compartment, they could have heat
exhaustion or other injuries.
●Do not allow a child to open or close the power back door.
Doing so may cause the power back door to move unexpectedly, or cause the child’s
hands, arms, head, or neck to be caught by the closing power back door. (The power
back door will not operate when it is disabled: P. 112)
