RX450h_U_OM0E013UThe SRS airbag and seat belt pretensioner
devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with th e airbags and seat belt pretensioners left as
they are, this may cause an accident such as fire. Be sure to have the systems of the SRS
airbag and seat belt pretensioner removed and disposed of by a qualified service shop or
by your Lexus dealer befo re you scrap your vehicle.
Special handling may apply, See www.dt sc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
Scrapping of your Lexus
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that could result in death or serious injury.
Defensive driving: Always driv e defensively. Anticipate mistakes that other drivers or
pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to drivin g. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a
collision with resulting death or serious in jury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicl e, and never allow children to have or use
the key.
Children may be able to start the vehicle or sh ift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
or panoramic moon roof, or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

361-1. For safe use
RX450h_U_OM0E013U
WARNING
■People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 32)
■When children are in the vehicle
 P. 70
■Seat belt pretensioners
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the seat belt pretensioner for the front passen-
ger’s seat may not activate in the event of a collision.
●If the pretensioner has activated, the SRS wa rning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer.
■Adjustable shoulder anchor
Always make sure the shoulder belt is posi tioned across the center of your shoulder.
The belt should be kept away from your neck, but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( P. 33)
■Seat belt damage and wear
●Do not damage the seat belts by allowing th e belt, plate, or buckle to be jammed in
the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
●Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus dealer.
●Replace the seat assembly, incl uding the belts, if your vehicle has been involved in a
serious accident, even if there’s no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to inco rrect operation.
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the extender.
●Do not use the seat belt extender when in stalling a child restraint system because the
belt will not securely hold the child restraint system, increasing the risk of death or
serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by another
person, or at a different seating position other than the one originally intended.

441-1. For safe use
RX450h_U_OM0E013U
WARNING
■SRS airbag precautions
●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur-
tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags and
SRS seat cushion airbag inflate as they may interfere with inflatio n of the SRS airbags.
Such accessories may prevent the side airbags and SRS seat cushion airbag from
activating correctly, disable the system or cause the side airbags and SRS seat cush-
ion airbag to inflate accidentally, re sulting in death or serious injury.
●Do not strike or apply significant levels of force to the areas around the SRS airbag
components or the front doors.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component part s immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower po rtion of the instru-
ment panel.
These items can become projectiles when the
SRS driver, front passeng er and knee airbags
deploy.
●Do not attach anything to areas such as a
door, windshield, side windows, front or rear
pillar, roof side rail and assist grip.

561-1. For safe use
RX450h_U_OM0E013U
WARNING
■Front passenger occupant classification system precautions
●Do not recline the front passenger seatback so far that it touches a rear seat. This may
cause the “AIR BAG OFF” indicator light to be illuminated, which indicates that the
SRS airbags for the front passenger will no t activate in the event of a severe accident.
If the seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the effec-
tiveness of the seat belt system.
●If an adult sits in the fron t passenger seat, the “AIR BAG ON” indicator light is illumi-
nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If
the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the front passenger seat fully
rearward.
●When it is unavoidable to in stall a forward-facing child re straint system on the front
passenger seat, install the ch ild restraint system on the front passenger seat in the
proper order. ( P. 61)
●Do not modify or remove the front seats.
●Do not kick the front passenger seat or subject it to severe impact. Otherwise, the
SRS warning light may come on to indicate a malfunction of the front passenger
occupant classification system. In this cas e, contact your Lexus dealer immediately.
●Child restraint systems installed on the rear seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cushion and seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.

601-2. Child safety
RX450h_U_OM0E013U
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
●For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system which is correctly
installed. For installation details, refer to the operation manual enclosed with the child
restraint system. General installation instruction is provided in this manual.
●Lexus strongly urges the use of a proper ch ild restraint system that conforms to the
weight and size of the child, installed on the rear seat. According to accident statistics,
the child is safer when properly restrained in the rear se at than in the front seat.
●Holding a child in your or someone else’s arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield or between
the holder and the interior of the vehicle.
■Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers
may be seriously injured or even killed in th e event of sudden braking, sudden swerv-
ing, or an accident.
●If the vehicle were to receive a strong impact from an accident, etc., it is possible that
the child restraint system has damage that is not readily visible. In such cases, do not
reuse the restraint system.
●Make sure you have complied with all installa tion instructions provided with the child
restraint system manufacturer and th at the system is properly secured.
●Keep the child restraint system properly secure d on the seat even if it is not in use. Do
not store the child restraint system un secured in the passenger compartment.
●If it is necessary to detach the child rest raint system, remove it from the vehicle or
store it securely in the luggage compartment.

621-2. Child safety
RX450h_U_OM0E013U

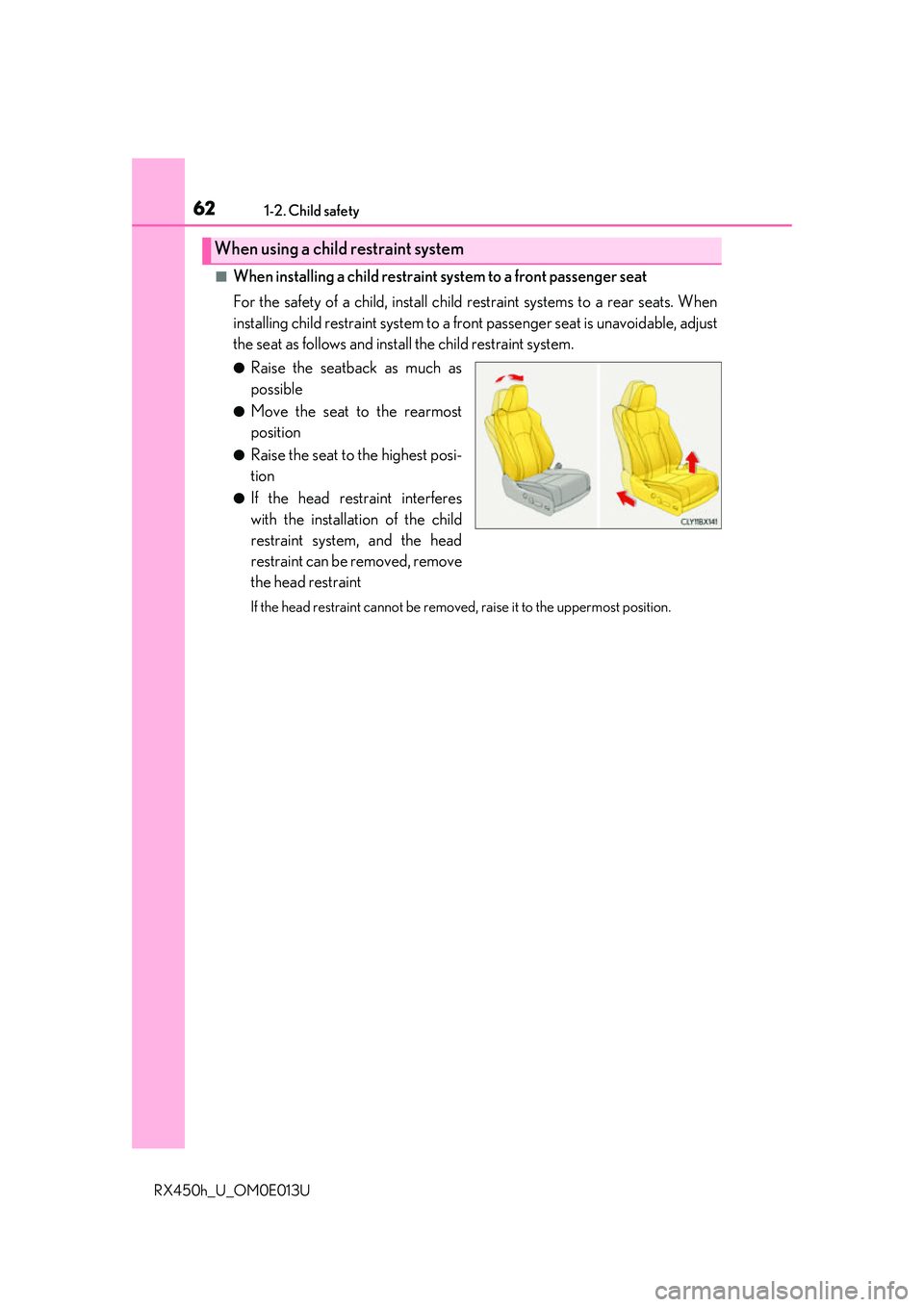

■When installing a child restraint system to a front passenger seat
For the safety of a child, install child restraint systems to a rear seats. When
installing child restraint system to a fron t passenger seat is unavoidable, adjust
the seat as follows and install the child restraint system.
●Raise the seatback as much as
possible
●Move the seat to the rearmost
position
●Raise the seat to the highest posi-
tion
●If the head restraint interferes
with the installation of the child
restraint system, and the head
restraint can be removed, remove
the head restraint
If the head restraint cannot be removed, raise it to the uppermost position.
When using a child restraint system

631-2. Child safety
1
For safety and security
RX450h_U_OM0E013U
WARNING
■When using a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Never install a rear-facing child restraint system on the front passenger seat even if
the “AIR BAG OFF” indicator light is illuminated. In the even t of an accident, the force
of the rapid inflation of the front passenger airbag can cause death or serious injury to
the child if the rear-facing ch ild restraint system is installed on the front passenger
seat.
●A forward-facing child restraint system ma y be installed on the front passenger seat
only when it is unavoidable. A child restraint system that requires a top tether strap
should not be used in the front passenger seat since there is no top tether strap
anchor for the front passenger seat.
●A forward-facing child restraint system may
be installed on the front passenger seat only
when it is unavoidable. When installing a for-
ward-facing child restraint system on the front
passenger seat, raise the seatback as much as
possible, move the seat to the rearmost posi-
tion, and raise the seat to the highest position,
even if the “AIR BAG OFF” indicator light is
illuminated.
If the head restraint interferes with the instal-
lation of the child restraint system, and the
head restraint can be removed, remove the
head restraint.
If the head restraint cannot be removed, raise
it to the uppermost position.
●Do not allow the child to lean his/her head or
any part of his/her body against the door or
the area of the seat, front or rear pillars, or
roof side rails from which the SRS side air-
bags or SRS curtain shield airbags deploy
even if the child is seat ed in the child restraint
system. It is dangerous if the SRS side airbags
and curtain shield airbags inflate, and the
impact could cause death or serious injury to
the child.

661-2. Child safety
RX450h_U_OM0E013U
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has retracted
to a point where there is no slack in
the belt, pull the belt to check that it
cannot be extended.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely. (P. 70)
■Forward-facing — Convertible seat
Adjust the seat
When using the front passenger seat
If installing the child restraint system to the front passenger seat is unavoid-
able, refer to P. 62 for the fr ont passenger seat adjustment.
When using the rear seat
If there is a gap between the child se at and the seatback, adjust the seat-
back angle until good contact is achieved.
Remove the head restraint if it
interferes with your child restraint
system. ( P. 179)
If the head restraint cannot be
removed, raise it to the uppermost
position.
Place the child restraint system
on the seat facing the front of the
vehicle.
5
6
1
2
3
