2016 LEXUS RX450H Owners Manual

417
RX450h_U_OM0E013U
5

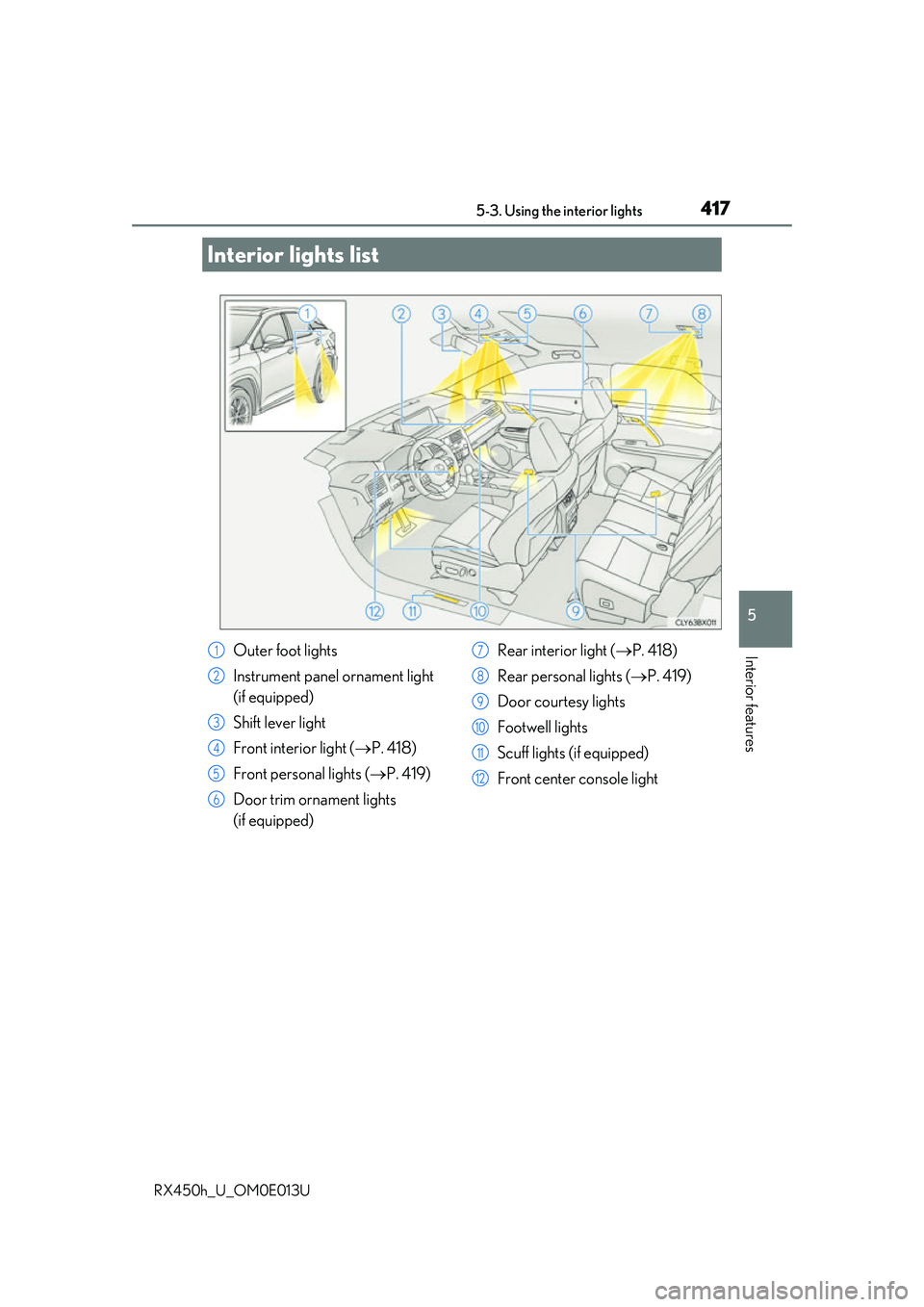

Interior features
5-3. Using the interior lights
Interior lights list
Outer foot lights
Instrument panel ornament light
(if equipped)
Shift lever light
Front interior light (P. 418)
Front personal lights ( P. 419)
Door trim ornament lights
(if equipped) Rear interior light (
P. 418)
Rear personal lights ( P. 419)
Door courtesy lights
Footwell lights
Scuff lights (if equipped)
Front center console light1
2
3
4
5
6
7
8
9
10
11
12

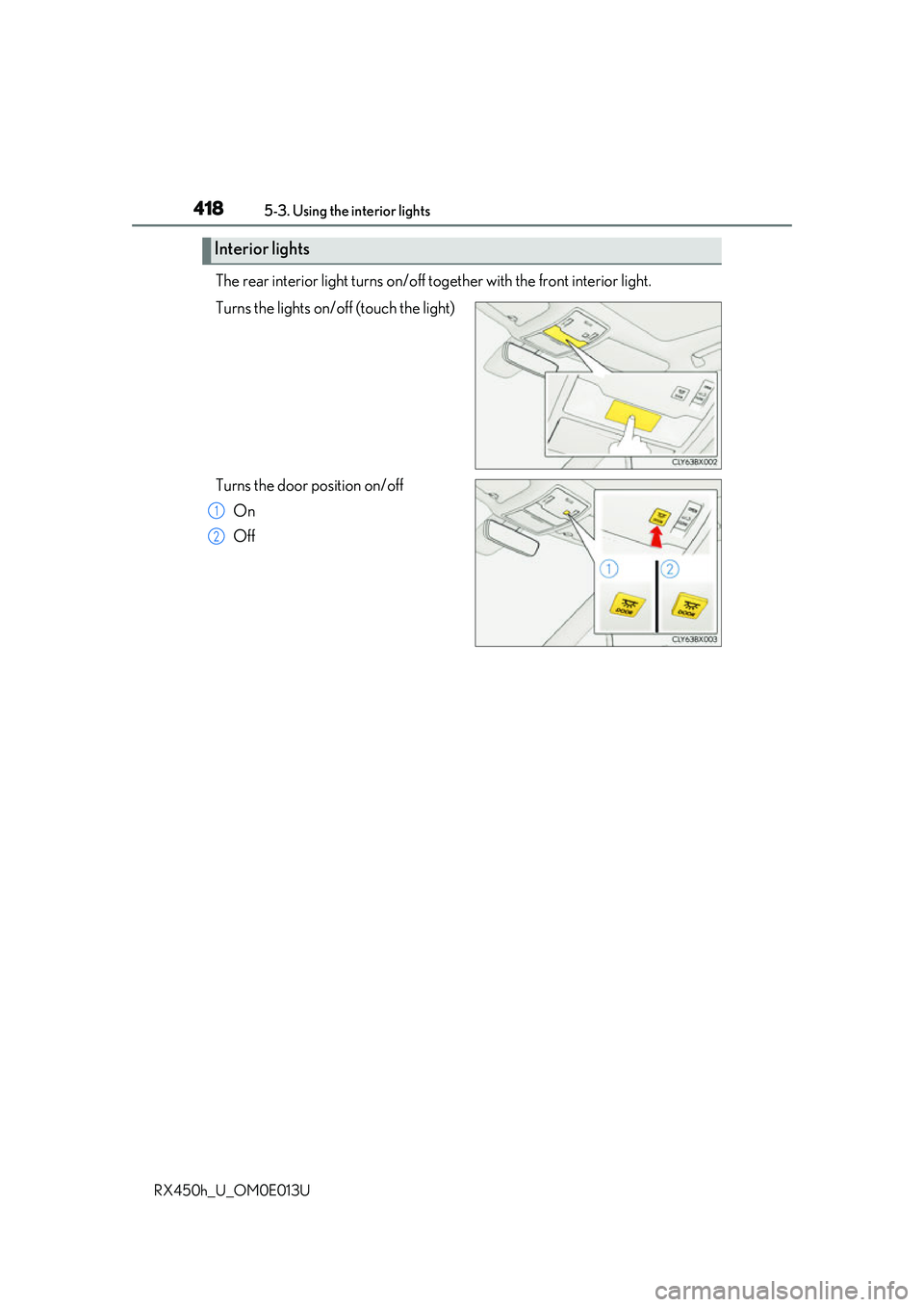

4185-3. Using the interior lights
RX450h_U_OM0E013U
The rear interior light turns on/off to gether with the front interior light.
Turns the lights on/off (touch the light)
Turns the door position on/off On
Off
Interior lights
1
2

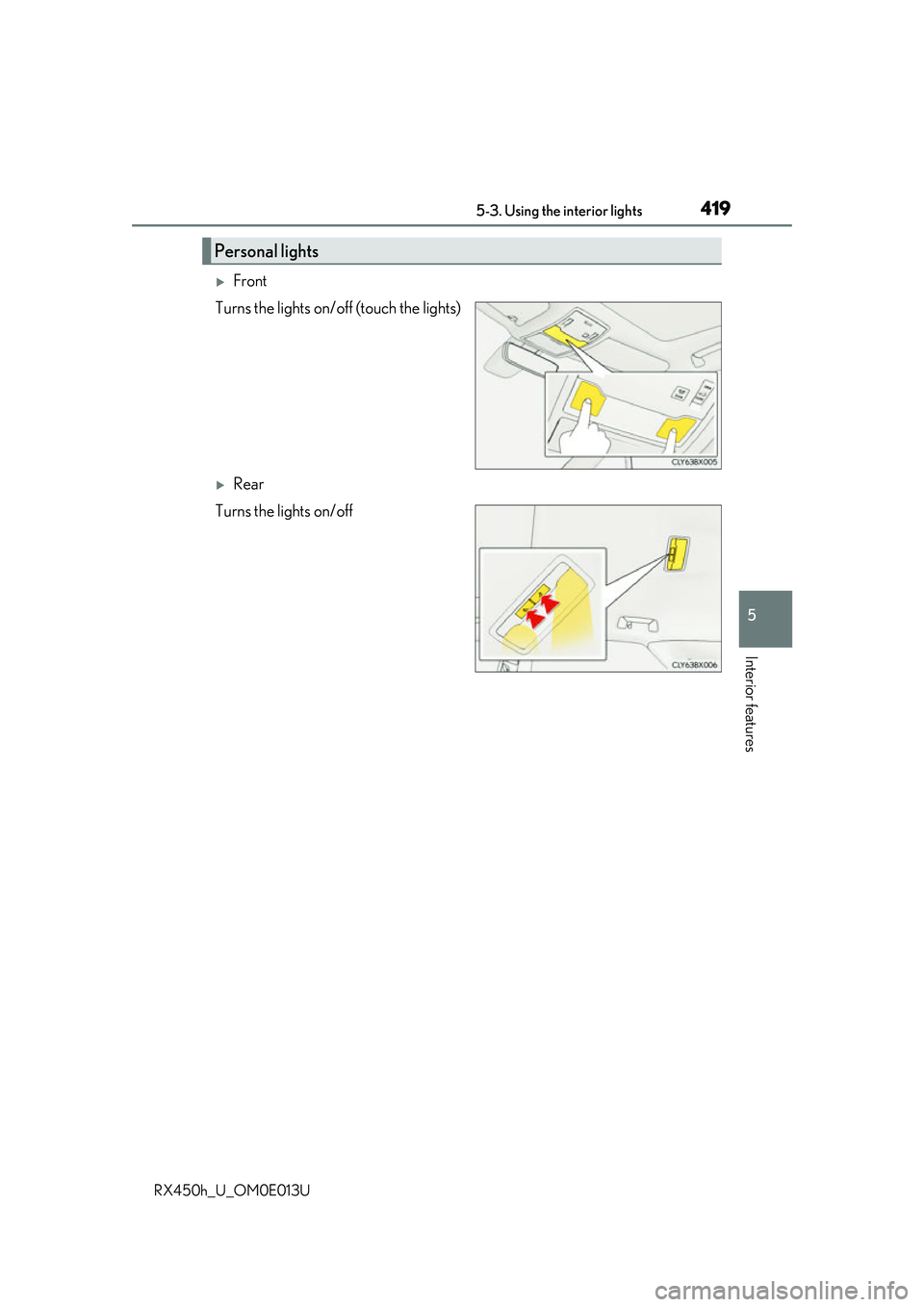

4195-3. Using the interior lights
5
Interior features
RX450h_U_OM0E013U
Front
Turns the lights on/off (touch the lights)
Rear
Turns the lights on/off
Personal lights

4205-3. Using the interior lights
RX450h_U_OM0E013U
●Illuminated entry system: The lights automatically turn on/off according to power switch
mode, the presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are opened/closed.
●If the interior lights remain on when the power switch is turned off, the lights will go off
automatically after 20 minutes.
●In the following cases, the interior lights and front personal lights may not respond as
normal.
• When water, dirt, etc., have adhered to the lens surface
• When operated with a wet hand
• When wearing gloves, etc.
●Some functions can be customized ( P. 607)
NOTICE
●Never remove the lens for the front interior light and front personal lights. Otherwise,
the lights will be damaged. If the lens need to remove, contact your Lexus dealer.
●To prevent 12-volt battery discharge, do not leave the lights on longer than necessary
when the hybrid system is off.

421
RX450h_U_OM0E013U
5
Interior features

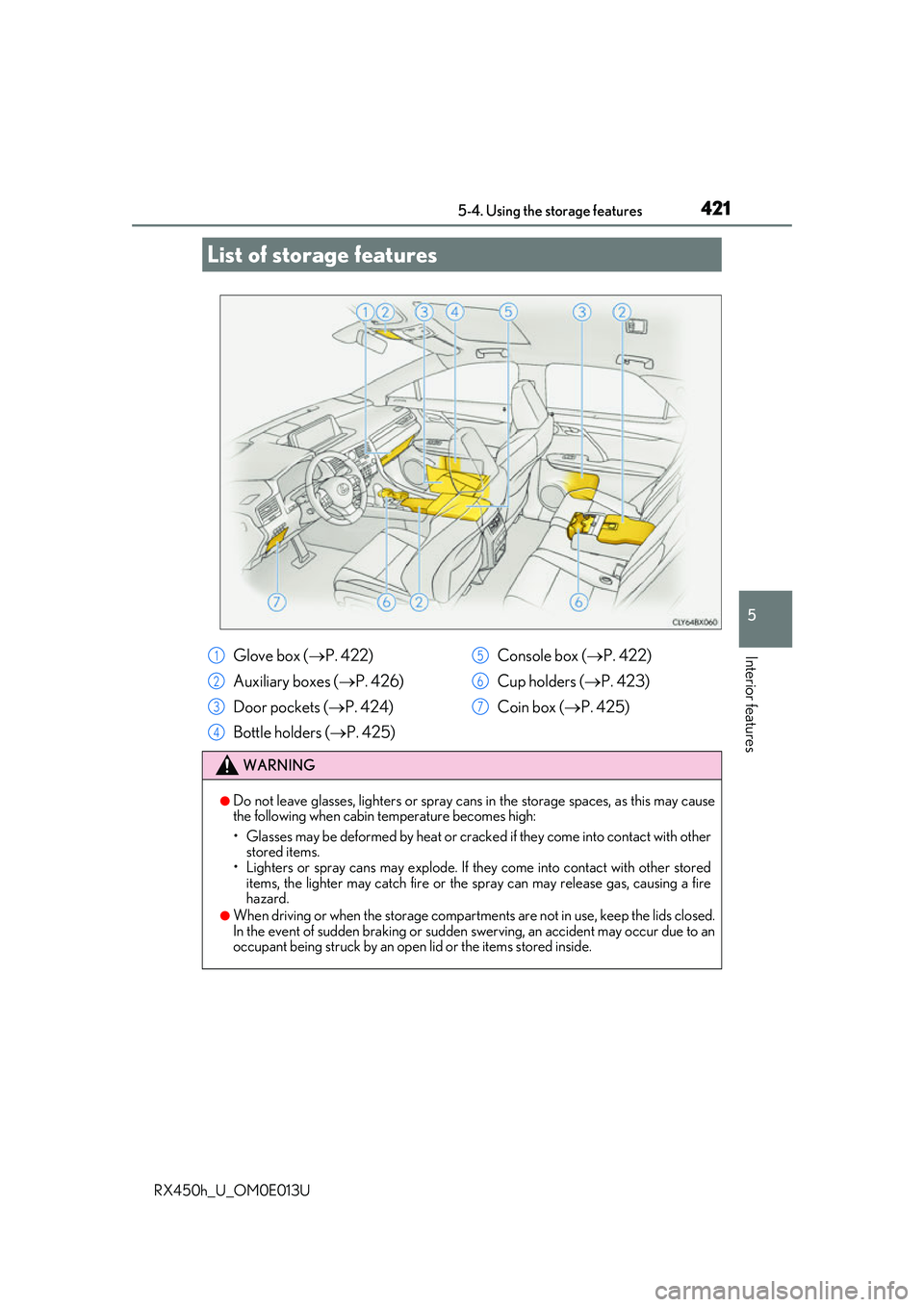

5-4. Using the storage features
List of storage features
Glove box (P. 422)
Auxiliary boxes ( P. 426)
Door pockets ( P. 424)
Bottle holders ( P. 425) Console box (
P. 422)
Cup holders ( P. 423)
Coin box ( P. 425)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause
the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracke d if they come into contact with other
stored items.
• Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release gas, causing a fire
hazard.
●When driving or when the storage compartments are not in use, keep the lids closed.
In the event of sudden braking or sudden swerving, an accident may occur due to an
occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
6
7

4225-4. Using the storage features
RX450h_U_OM0E013U
Open (press the button)
Unlock with the mechanical key
Lock with the mechanical key
The glove box light turns on when the tail lights are on.
Push the knob.
Lift by hand to fully open the console
box.
●The console box light turns on when the tail lights are on.
Glove box
1
2
3
Console box
●A pen can be stored in the pen holder on the
underside of the lid.
●Remove the tray to access a storage space
under the tray.

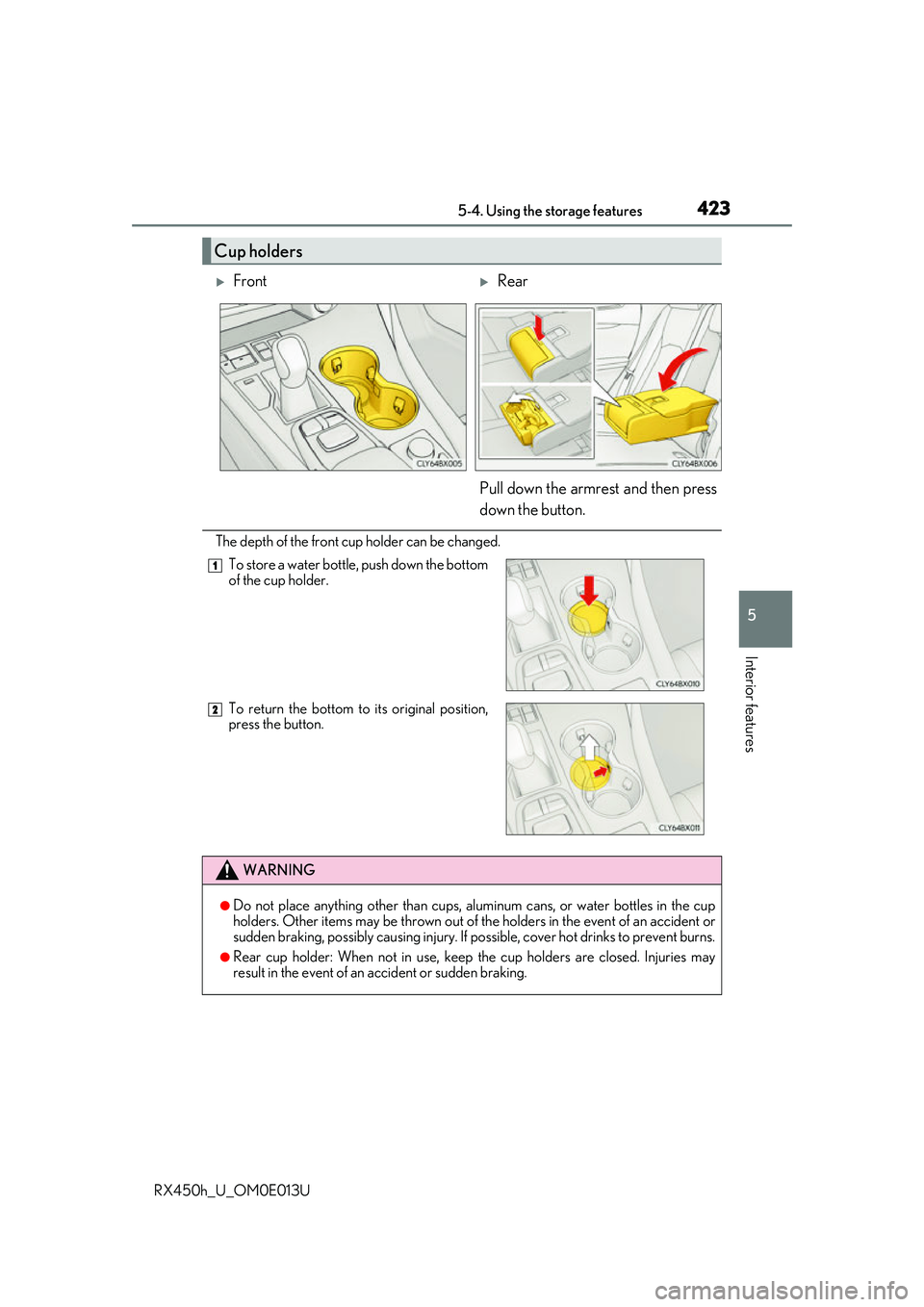

4235-4. Using the storage features
5
Interior features
RX450h_U_OM0E013U
The depth of the front cup holder can be changed.
Cup holders
FrontRear
Pull down the armrest and then press
down the button.
To store a water bottle, push down the bottom
of the cup holder.
To return the bottom to its original position,
press the button.
WARNING
●Do not place anything other than cups, aluminum cans, or water bottles in the cup
holders. Other items may be thrown out of the holders in the event of an accident or
sudden braking, possibly causing injury. If possible, cover hot drinks to prevent burns.
●Rear cup holder: When not in use, keep the cup holders are closed. Injuries may
result in the event of an accident or sudden braking.
1
2

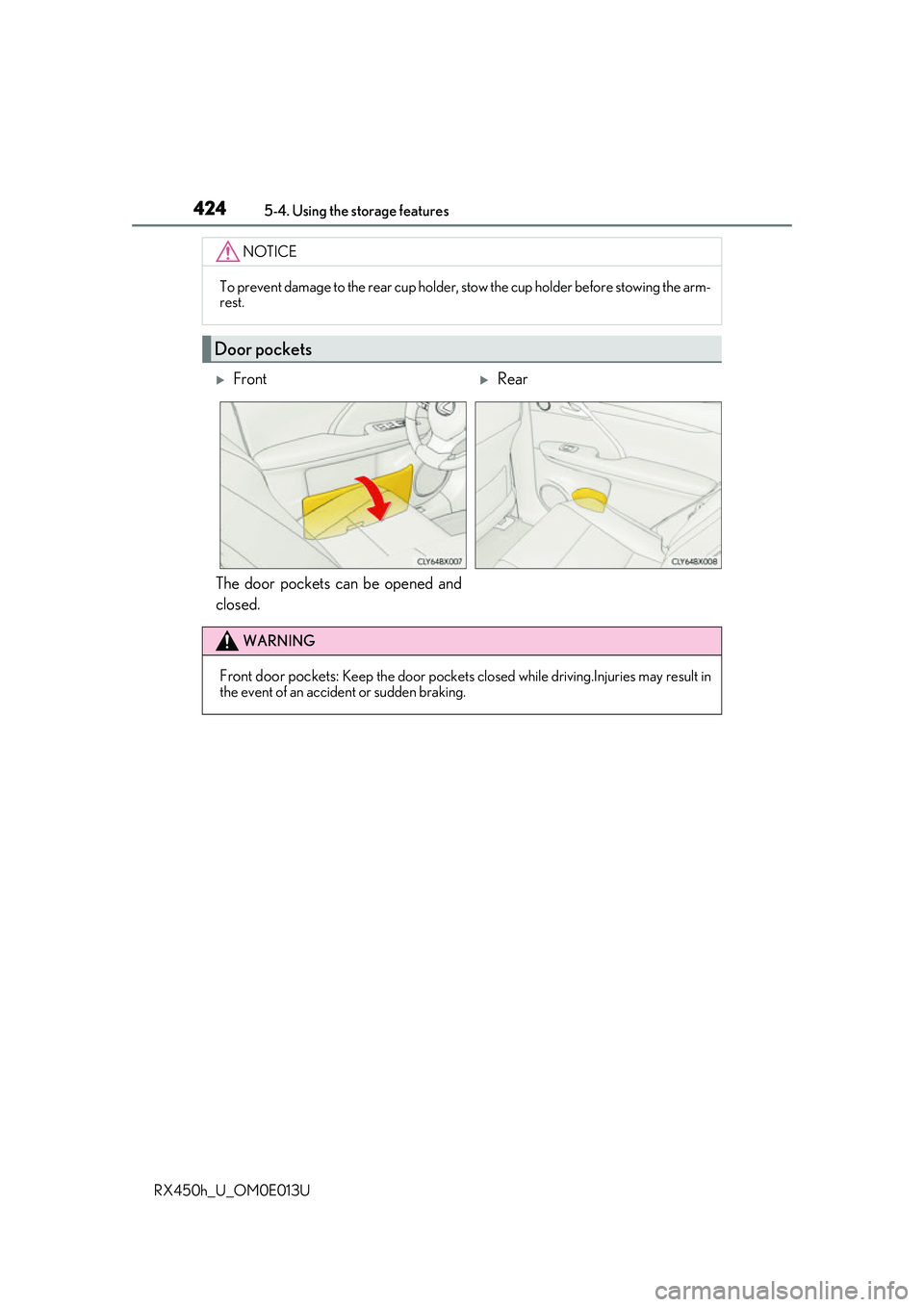

4245-4. Using the storage features
RX450h_U_OM0E013U
The door pockets can be opened and
closed.
NOTICE
To prevent damage to the rear cup holder, stow the cup holder before stowing the arm-
rest.
Door pockets
FrontRear
WARNING
Front door pockets: Keep the door pockets closed whil e driving.Injuries may result in
the event of an accident or sudden braking.
