2016 Hyundai Sonata Car Multimedia System Manual

Basic Features I 5-3
05
Changing Map View
Touch the compass arrow icon to toggle
between a map oriented to the North, or
oriented parallel to the vehicle’s heading.
Voice Guidance Volume On/Off
Press the NAVI sound button to turn the
volume on and off.
Zoom In /Zoom Out
Zoom the map view screen in and out.
Zoom In and Zoom Out

Press
+ or - to set the zoom level
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




5-4 I Navigation
Map Scale
Sets the zoom level automatically accord-
ing to the road class
NameDescription

Scale Fix Manually adjust the map
scale.

Auto Scale Change the map scale
automatically depending
on the road class
Menu
Route
Press Menu button on the bottom left of
the screen ▶
Press
Route button
Press the Route button to set Route Options
or
Detour .
Route Option
Name Description
Calculates the fastest time of
arrival
Calculates the shortest distance
to destination.

Save the option. Route will be
calculated based on the selected
option when setting a destination.

Set more route options.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Basic Features I 5-5
05
Detour
The Detour button is active only when the
route is planned.
Selected distance is detoured from the
current location.
Press the Using Map button to select the
distance ahead to avoid. (Highlighted grey
indicates distance to avoid)
Navigation Volume
Press the Navi Volume button to adjust the
volume.
Press the Navi Volume button.Name Description
ShorterReduce the length of the
section to avoid.
LongerIncrease the length of the
section to avoid.
DetourConfirm detour

)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




5-6 I Navigation
Nearby POIs
Display nearby POIs on the map.
View Nearby POIs
Select the Menu on the bottom of the left
screen ▶
Select the
POI button.
Press ON, OFF button to set whether to
show nearby POIs or not.
When categories are selected, they will
appear on the map. (ex. Gas Station) The lists of nearby gas station are dis-
played.
Display in order of distance and name.
Name
Description
Set the volume to mute.
Turn the volume down
Turn the volume up
Slide to set the volume
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Basic Features I 5-7
05
NameDescription
Call to the selected loca-
tion (Phone needs to be
connected via Bluetooth)
Set asDestinationSet the place as a desti-
nation.
Add WaypointSet the location as a way-
point.
Add to Address Book
Save the location
POISearch nearby POIs.

!Ÿ
Editing
Change the shortcut POIs to display for
your shortcuts(ex. Gas Station)
Select the desired category to change. (ex.
Restaurants)
Select new category to display (ex.
American)
Gas Stations is changed to American .
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




5-8 I Navigation

!Ÿ
Searching POI categories
Select the Menu button on the bottom
left of the screen. ▶
Select the
POI but-
ton. ▶
Select the
POI Categories button. ▶

Select the desired item.
Select the item to search.
Press the
History button to check the pre-
vious search result.
Press the Search button to search the
POI category by name.
Select the desired POI to check the loca-
tion and for detailed information.
Name Description
Search POI around the current
position.
Search POI around the destina-
tion.
Active only when a route’s
planned
Search POI along route.
Active only when a route’s
planned
Search POI around the current
cursor when the map scrolled.
Active only when the cursor
position is different from the
vehicle position
Search POI around the city
selected
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE





Basic Features I 5-9
05

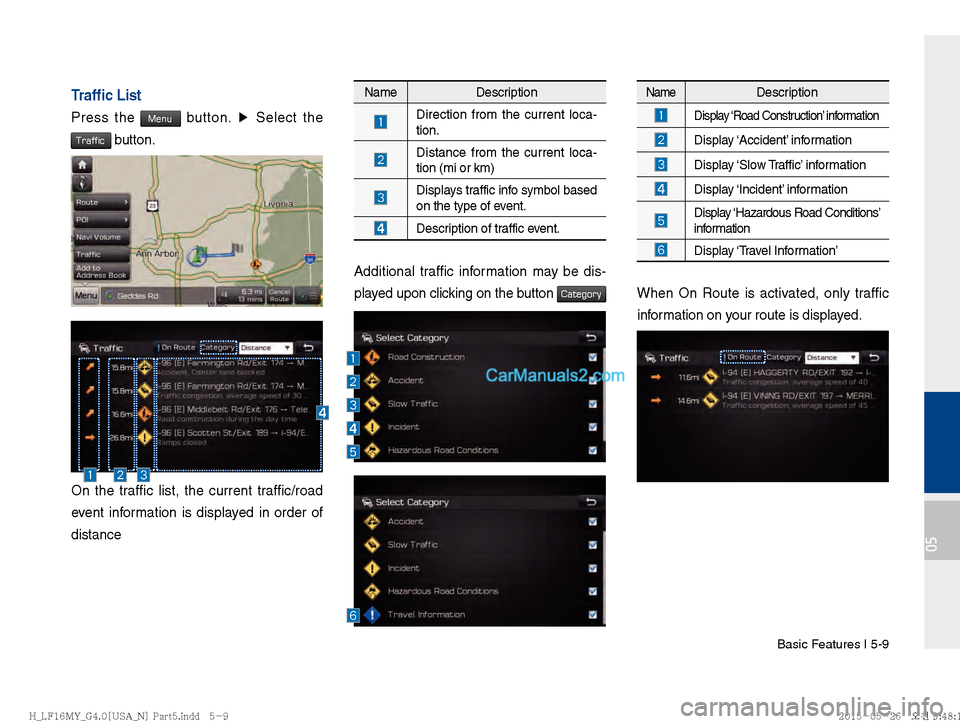

Traffi c List
Press the Menu button. ▶
Select the
Traffic button.
On the traffic list, the current traffic/road
event information is displayed in order of
distance Additional traffic information may be dis-
played upon clicking on the button
CategoryWhen On Route is activated, only traffic
information on your route is displayed.
Name
Description
Direction from the current loca-
tion.
Distance from the current loca-
tion (mi or km)
Displays traffic info symbol based
on the type of event.

Description of traffic event.
NameDescription
Display ‘Road Construction’ information
Display ‘Accident’ information
Display ‘Slow Traffic’ information
Display ‘Incident’ information
Display ‘Hazardous Road Conditions’
information
Display ‘Travel Information’
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




5-10 I Navigation
On the traffic list, the current basic traf-
fic/road event information is displayed in
order of distance.
Select the combo box to change the
arrangement in order of distance/cate-
gory.
Traffi c detail
Press the Menu button on the bottom left
of the screen. ▶
Select the
Traffic button.
Select the traffic information on the traffic
list to display the detailed screen as shown
in the screen.
Display the symbol of traffic event and
arrow which indicates the road from start
to end of the traffic event. Detailed infor-
mation is available on the right screen.
Name Description

Select the combo box to arrange.
Arrangement by category
: Display traffic information
arranged in order of traffic infor-
mation event type.
Arrangement by distance :
Display the traffic information in
order of distance closer to the
current location.
Name
Description
Symbol of traffic event
Event name of traffic information
Road name / road number includ-
ing direction
Direction and distance from the
current location
Intersection where traffic event
starts
Intersection where traffic event
ends
Total distance of traffic event
Estimated delay time
Check the previous traffic infor-
mation
Check the next traffic information
Detour the route based on the
traffic information
