2016 Hyundai Sonata set clock

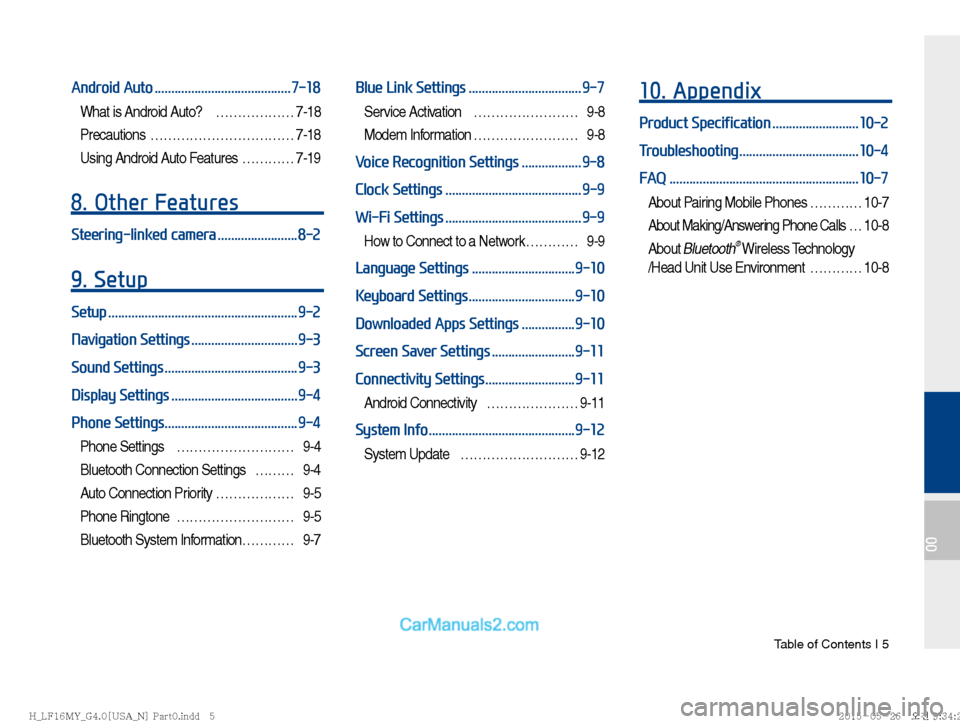

Table of Contents I 5
00
Android Auto .........................................7-18
What is Android Auto? ……………… 7-18
Precautions …………………………… 7-18
Using Android Auto Features ………… 7-19
8. Other Features
Steering-linked camera ........................ 8-2
9. Setup
Setup ......................................................... 9-2
Navigation Settings ................................ 9-3
Sound Settings ........................................ 9-3
Display Settings ...................................... 9-4
Phone Settings ........................................ 9-4
Phone Settings ……………………… 9-4
Bluetooth Connection Settings ……… 9-4
Auto Connection Priority ……………… 9-5
Phone Ringtone ……………………… 9-5
Bluetooth System Information………… 9-7
Blue Link Settings .................................. 9-7
Service Activation …………………… 9-8
Modem Information …………………… 9-8
Voice Recognition Settings .................. 9-8
Clock Settings ......................................... 9-9
Wi-Fi Settings ......................................... 9-9
How to Connect to a Network ………… 9-9
Language Settings ...............................9-10
Keyboard Settings ................................9-10
Downloaded Apps Settings ................9-10
Screen Saver Settings .........................9-11
Connectivity Settings ...........................9-11
Android Connectivity ………………… 9-11
System Info ............................................9-12
System Update ……………………… 9-12
10. Appendix
Product Specification ..........................10-2
Troubleshooting ....................................10-4
FAQ .........................................................10-7
About Pairing Mobile Phones ………… 10-7
About Making/Answering Phone Calls …10-8
About
Bluetooth® Wireless Technology
/Head Unit Use Environment ………… 10-8
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Starting the System for the First Time I 1-9
01
Starting the System for the
First Time
Turning the System On/Off
Press the engine start button or set the
ignition key to On or ACC. Each time you
turn on the system, a boot logo and safety
warning will appear.
Pressing the power key on the head unit
will display the user confirm screen. To
change the system language between
English, French, Spanish and Korean
press the Change
Language button.
NOTICE
Cannot operate the system while it is booting
up. It ma
y take some time for all of features of
the system, particularly the voice recognition
system, to be ready for use.
Pressing and holding the power key on the
head unit will turn off the system.
You can change Screen Saver Settings in
Setup to display a clock or another chosen
image on the Screen Saver.
i Information
If you turn off the system during a phone call
using the Hands-free feature, then the call will

automatically switch to your mobile phone.
NOTICE
Check the volume when turning on the
system. Before tur
ning on the system, adjust
the volume to a reasonable level.
System Reset
The System Reset function restores the
system when it is not operating correctly.
Press and hold the RESET
key f
or a sec-
ond or longer. (It is recommended that you
press the RESET
key using a tool, such as
a pin or a clip.)
NOTICE
Resetting the system restores all existing
settings and configurations (e.g.
volume,
display, etc.) back to their factory defaults.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE

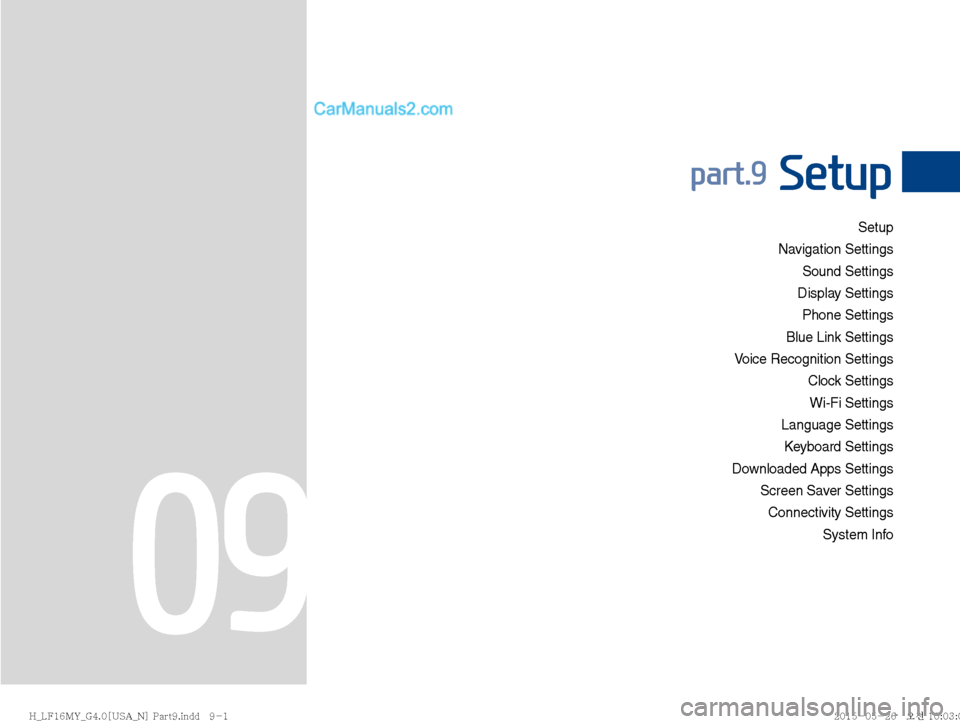

Setup
Navigation Settings Sound Settings
Display Settings Phone Settings
Blue Link Settings
Voice Recognition Settings Clock Settings Wi-Fi Settings
Language Settings Keyboard Settings
Downloaded Apps Settings Screen Saver SettingsConnectivity Settings System Info
part.9 Setup
09
)@-'.:@(<64"@/>
1BSUJOEE



)@-'.:@(<64"@/>
1BSUJOEE




9-2 I Setup
Setup
Setup
Setup is the screen to control system set-
tings of the AVN.
To enter the screen, select the
SETUP
key of the device or the
Setup button in
All Menus.
Features Description
NavigationProvides Normal/Screen/
Guidance/Route/Safety
Setting.
SoundProvides the sound control
options for Position, Bass,
Mid, Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Mode/Brightness/
Adjust settings.
PhoneProvides the Bluetooth
Connection/Auto Connection
Priority/Ringtone/System
Bluetooth Information settings.
Blue Link
Provides the Activation/
Modem Information settings.
Voice RecognitionProvides the time and date
settings.
ClockProvides the time and date
settings.
Features
Description
Wi-FiProvides the Wi-Fi On and
Network Connection set-
tings.
Language
Provides the Change
Language settings.
Keyboard
Provides settings to switch
keyboard layouts.
Downloaded
Apps Provides the removal set-
tings for downloaded and
installed apps.
Screen
Saver Provides the Clock/None
settings.
Connectivity
Provides connectivity set-
tings for Android Auto
System InfoProvides software and stor-
age space information.
Display OffProvides the Display Off
(touch activation) function.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE





Setup I 9-9
09
Clock Settings
Provides the time and date settings.
FeaturesDescription
Date/Time
Settings Provides the GPS Time,
Date/Time Settings,
Daylight Saving Time,
Time Zone, and 24 Hours
options
Wi-Fi Settings
You can share a digital-device network
with the vehicle device through Wi-Fi.
Features
Description
Wi-Fi
Turn on/off Wi-Fi.
MAC
Address Displays the MAC address.
Refresh
Searches available net-
works near the vehicle.
Network
Name Displays available network
AP (Access Point) names.

Add Wi-Fi
Network Enter the network ID/
password to connect to a
hidden network AP (Access
Point).
How to Connect to a Network
1.
In the Wi-Fi settings of a digital device,
activate Internet sharing (hot spot).
2. In the vehicle network list, select the
desired device to connect to. Enter the
password to connect, if any.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Setup I 9-11
09
Screen Saver Settings
You can select any of the following screen
formats to be displayed when the screen
or power is turned off.
!Ÿ
Digital clock and date

!Ÿ
Analog clock and date

!Ÿ
No display
Connectivity Settings
You can select the mode to run when
an Android device is connected. If not
selected, the mode does not run exclu-
sively.
Android Connectivity
If Android Auto is checked, you can use
the functions of your Android phone with
a USB cable and Bluetooth connected. It
enables and activates the Android Auto
functions with user agreement in case of
good network connectivity. For this, the
latest version of Android must have been
installed. While Android Auto is running,
you cannot use any of Pandora and
Bluetooth audio.
i Information
OS system of the phone should be 5.x or
more and can be used by installing through
Google pla
y
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Index I 10-9
10
A
About Bluetooth® Wireless Technology/
Head Unit Use Environment …………10-8
About Disc ……………………………2-11
About Making/Answering
Phone Calls ……………………………10-8
About Pairing Mobile Phones …………10-7
About Transmission and
Reception of Radio Waves …………… 4-3
Accept/Reject Call …………………… 3-7
Accessing FM/AM Mode …………… 2-2
Accessing Pandora Radio Mode …… 7-2
Accessing SiriusXM™ Data …………7-10
Accessing SoundHound ……………… 7-5
Address ………………………………5-15
Adjusting Voice Recognition Volume … 6-5
Android Auto …………………………7-18
App List ……………………………… 7-8
Auto Connection Priority ……………… 9-5
AUX ……………………………………2-37
Avoid Street ……………………………5-34
B
Basic Features ………………………… 5-2
Basic Mode Screen ………… 2-16, 2-19
Basic Mode Screen
(HD Radio™ reception ON) ………… 2-5
Battery Warning Message ……………1-10
Before Playing a USB MP3 ……………2-22
Before Playing an MP3 Disc …………2-14
Before Use …………………………… 4-3
Before Using the Bluetooth
® Handsfree 3-2
Blue Link Settings ……………… 4-7, 9-7
Blue Link Voice Local Search ………… 4-8
Blue Link
® Safety and
Security Service ……………………… 4-5
Bluetooth Audio Mode …………………2-38
Bluetooth Connection Settings ……… 9-4
Bluetooth Connection ………………… 3-4
Bluetooth Connections Settings ………2-39
Bluetooth Phone ……………………… 3-6
Bluetooth System Information………… 9-7
Bluetooth
® Audio ………………………2-38
C
Call Commands ……………………… 6-8
Call History …………………………… 3-9
Canceling Route ………………………5-31
CAUTIONS upon Connecting
Bluetooth
® Phone …………………… 3-3
CD ……………………………………2-16
Changing Map View ………………… 5-3
Clock Settings ………………………… 9-9
Component Names and Functions … 1-5
Connecting an External Device ………2-37
Connecting Bluetooth Devices ……… 3-4
Connecting with the Blue Link Center … 4-4
Connectivity Settings …………………9-11
Connectivity Settings …………………9-11
Contacts ………………………………3-10
Index
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




8
Setup
Setup is the screen to control sys-
tem settings of the AVN.
To enter the screen, select the
SETUP key of the device or the
Setup button in All Menus.
Features Description
NavigationProvides Normal/Screen/
Guidance/Route/Safety
Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume, Ratio
and Advanced settings.
Display
Provides the Mode/
Brightness/Adjust set-
tings.
PhoneProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/System
Bluetooth Infor
mation
settings.
Blue Link Provides the Activation/
Modem Information
settings.
Voice
RecognitionProvides the Guidance
and Priority settings.
Clock Provides the time and
date settings.
Wi-FiProvides the Wi-Fi On
and Network Connection
settings.
Features Description
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.
Downloaded
AppsProvides the removal
settings for down-
loaded and installed
apps.
Screen Saver Provides the Clock/
None settings.
ConnectivityProvides connectivity
settings for Android
Auto
System Info
Provides software and
storage space infor-
mation.
Display OffProvides the Display
Off (touch activation)
function.
