2016 Hyundai Sonata Car Multimedia System Manual

37
Starting/Ending
and Setting Voice
Recognition
Starting Voice
Recognition
Press the key briefly (less
than 0.8 seconds) on the steering
wheel control to activate voice rec-
ognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bot- tom to end voice recognition.
2. Press and hold (over 0.8 sec- onds) the
key on the
steering wheel control to end
voice recognition.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


38
Skipping Prompt
Messages
When you hear the prompt mes-
sage, the voice recognition icon on
the steering wheel remote control
to skip the message and go directly
to listening mode to say your com-
mand.
This results in faster operation when
y

ou feel the message is too long or
you already know the command to
use.
Quick Run of
Voice Recognition
(Manual Mode)
Usually, you are supposed to say
a command to execute the desired
operation after the voice guidance.
However, it takes a little time to wait
for the voice guidance. If you would
like to activate the desired operation
more quickly, you can just touch the
commands displayed on the screen.
This feature is useful when you feel
the voice guidance is too long or
voice commands do not work as you
desired.
Voice Recognition
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


39

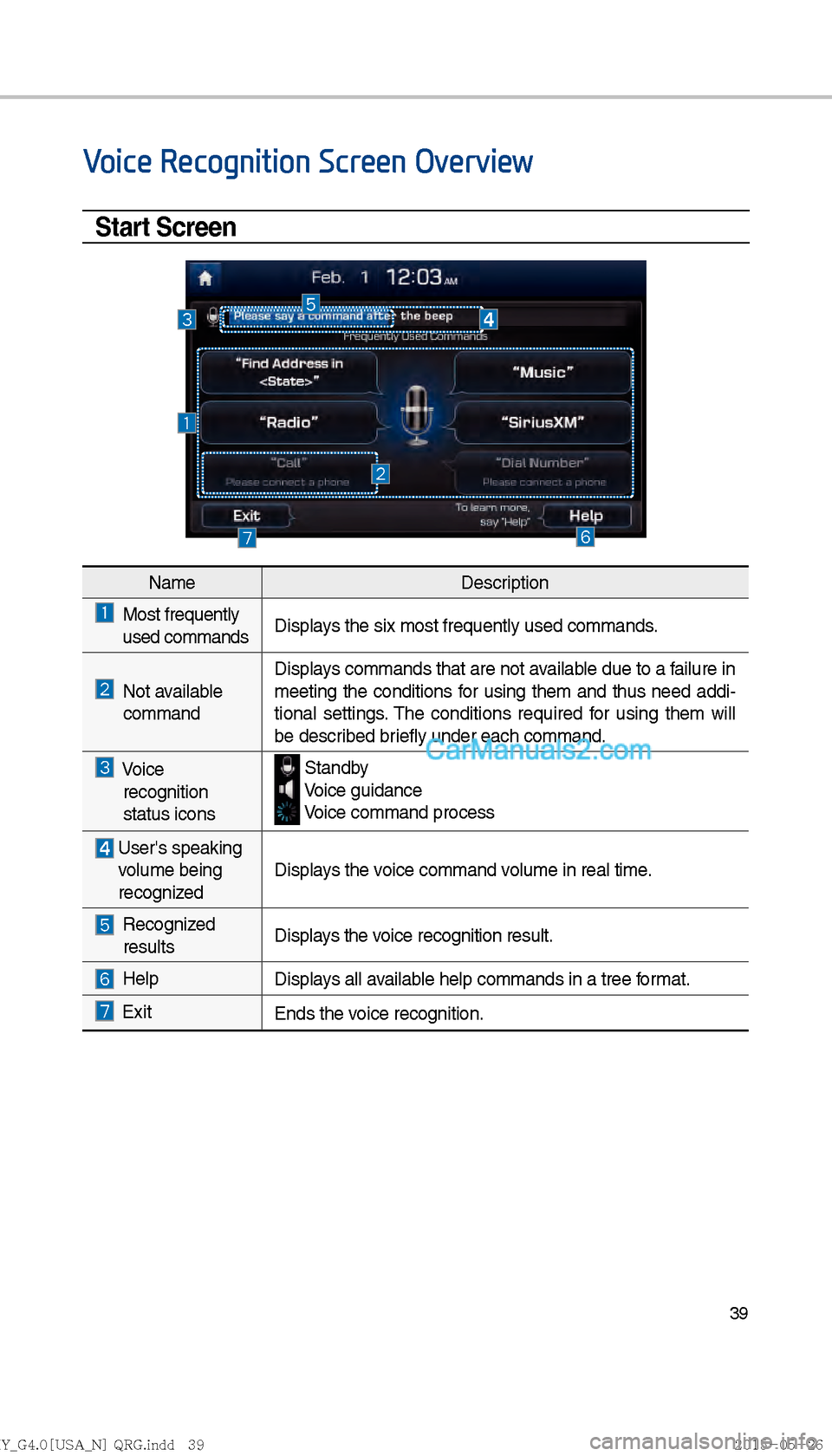

Voice Recognition Screen Overview
Start Screen
NameDescription
Most frequently
used commands Displays the six most frequently used commands.
Not available
command Displays commands that are not available due to a failure in
meeting the conditions for using them and thus need addi-
tional settings. The conditions required for using them will
be described briefly under each command.

Voice
recognition
status icons Standby Voice guidance Voice command process
User's speaking
volume being
recognized Displays the voice command volume in real time.
Recognized
results Displays the voice recognition result.
Help
Displays all available help commands in a tree format.
Exit
Ends the voice recognition.
)@-'.:@(<64"@/>
23(JOEE


.:@(<64"@/>
23(JOEE





ß
y


40
Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands” and “Local
Commands.”
1. Global Commands ("J
): Commands that can be used immediately after acti-
vating voice recognition.
2. Local Commands (
!¹): Commands that can be used when a multimedia,
navigation, or Bluetooth call is running, or displayed on the screen, after
activating voice recognition.
Call Commands
* Check the following before using call commands :
1. Voice commands related to phone calls can be used after connecting a
Bluetooth device.
2. T

o call a person, for example “Call ” whose name is listed in
Contacts, you must first download the Contacts list. For details on down-
loading contacts, see “Part 3. Using Bluetooth > Chapter 3. Bluetooth Phone
> 3.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert the Contacts into voice data during which time you cannot make a call by
name yet. The time it takes to convert voice data may vary depending on
the number of Contacts do

wnloaded on the phone.
Voice Recognition
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


41
CommandOperation
"J Call Displays downloaded Contacts, after this you can make
a call by saying the name.
"J Call You can directly call a person by in the down-
loaded Contacts.
"J Call on
Mobile You can call a person directly
to the number
that is sa v
ed as

“Mobile” in the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
"J Call in
Office You can call a person directly
to the number
that is sa v
ed as

“Office” in the downloaded Contacts.
e.g.) Call “John Smith” in Office
"J Call at
Home You can call a person directly
to the number
that is sa ved as

“Home” in the downloaded Contacts.
e.g.) Call “John Smith” at Home
"J Call on
Other You can call a person directly
to the number
that is sa v
ed as

“Other” than “Mobile, Home, or Office”
in the downloaded Contacts.
e.g.) Call “John Smith” on Other
"J Dial Number Displays a screen where you can say a phone number
to dial.
"J Dial You can directly say the number to call.
e.g.) Dial 111 555 1234
"J Redial Directly calls at the number that you last dialed.
"J Call History Displays your Call History, where you can say the list
number to make a call.
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y


42
Navigation Commands
* Check the following before you use navigation commands :
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster ser- vice.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Voice Recognition
Command Operation
"J Find Address
in
!Ÿ
Finds the address in and sets it as the destina-
tion.
e.g.) Find Address in California
!Ÿ
To find an address, you should say “House Number ª

Street ª
City” (in order, excluding the state).
e.g.) 300 (Three Zero Zero) Main Street, Almond
"J Find Address Finds the address and sets it as the destination.
"J Find the
Nearest POI Find the nearest points of interest from your current location.
After this command, you can find the name of a location
step-by-step.
"J Find the
Nearest
Immediately finds nearest to your location.
For details of , see “Find the Nearest
list”.
e.g.) Find the Nearest “Banks”
"J POIs Near
Destination Finds POIs near the destination.
After this command, you can find the name of a location
step-by-step.
"J
Near
Destination Find near the destination.
For details of , see Owner’s Manual “Find the
Nearest list”.
e.g.) “Banks” Near Destination
"J Map Moves to the current position on the navigation map
"J Previous
Points Displays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
"J Previous
Destinations Displays a list of recent destinations that you can return to
by saying the number in the list.
"J Previous
Searches Displays a list of recent searches, where you can set a des-
tination by saying the number in the list.
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y


43
CommandOperation
"J Previous Starting
Points Displays a list of recent starting points that you can return to
by saying the number in the list.
"J Traffic Information Moves to the Traffic Information menu screen.
"J Go Home Set the destination to your home.
Your home must first be set in the Navigation system.
"J Go to Office Set the destination to your office/work.
Your office/work must first be set in the Navigation system.
"J Turn Guidance On Turns on the voice guidance system.
"J Turn Guidance Off Turns off the voice guidance system.
"J Zoom All the Way
Out Zooms out from the navigation map to the fullest.
"J Zoom All the Way
In Zooms in on the navigation map to the fullest.
"J Cancel Route Cancels the route to the fixed destination and exits guid-
ance.
"J Destination
Information Tells you the remaining distance and time to your destina-
tion.
"J Route Options Restarts the route to your destination.You can then select
either “Faster Time” or “Shorter Distance”.
"J Find Faster Time
Route Starts a new route to your destination that will take the
least amount of time.
"J Find Shorter
Distance Route Starts a new route to your destination that will use the
shortest distance.
"J Emergency
Services Displays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
"J Police Station Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
"J Hospital Displays a list of the nearest hospitals.
You can then set a destination by saying the list number.
"J Dealership Displays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
"J Road Assistance Displays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
"J Show Route Displays a map overview of the entire route to your desti-
nation.
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y


44
Radio Commands
CommandOperation
"J Radio Plays the most recent radio channels from FM, AM, and
SiriusXM™.
"J FM Plays FM radio.
"J FM
<87.5~107.9> Tunes to FM according to what you say.
e.g.) FM 87.5: FM eighty seven point five
"J SiriusXM Plays SiriusXM radio.
"J SiriusXM
Channel
<0~999> Tunes to SiriusXM™ Channel accord-
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
"J AM Plays AM radio.
"J AM
<530~1710> Tunes to AM according to what you say.
e.g.) AM 530: AM five thirty
!¹ Preset <1~18> Tunes to your preset stations (1 to 18).
!¹ Channel
<0~999> In SiriusXM™ Radio mode, turns on the Number> that you say.
Voice Recognition
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y
