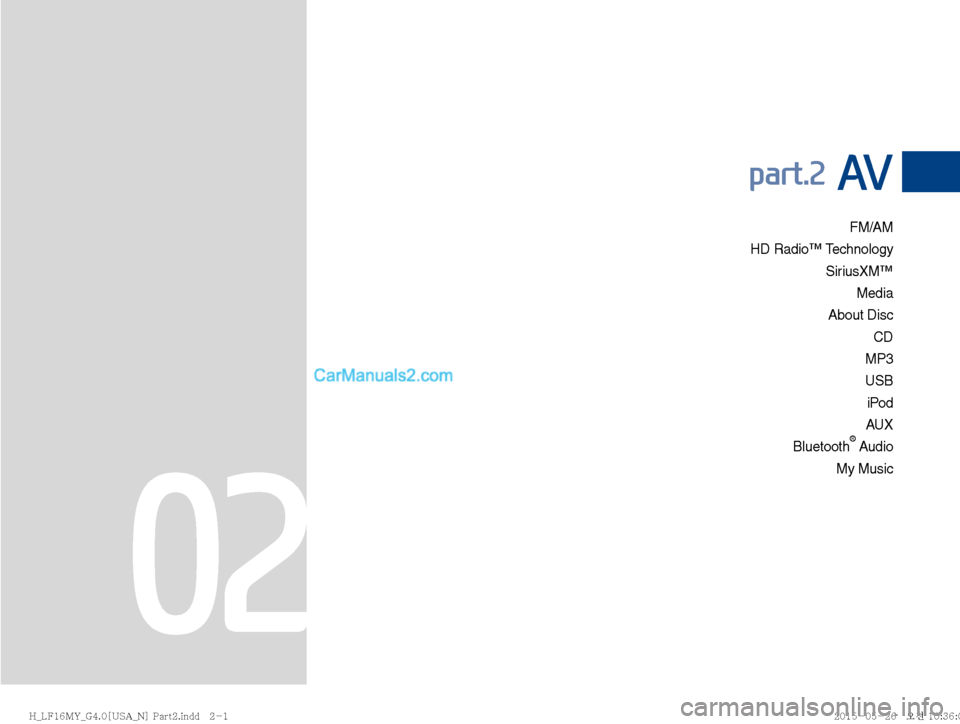

2016 Hyundai Sonata Car Multimedia System Manual

FM/AM
HD Radio™ Technology SiriusXM™ Media
About Disc CD
MP3
USB
iPod AUX
Bluetooth
® Audio
My Music
part.2 AV
02
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-2 I AV
FeaturesDescription
Mode Display
!Ÿ
Displays current operating mode

!Ÿ
If select wanted mode tap, it will change to
selected mode in Radio.
Preset
!Ÿ
Shows saved presets for user selection

!Ÿ
After selecting frequency →
press and hold
(over 0.8 seconds) the preset button. A 'beep'
will sound and the frequency is saved to the
selected preset button.
A total of 24 frequencies with 12 preset
frequencies each for FM/AM modes can be
saved.
Frequency Bar
!Ÿ
Flick the frequency bar left/right to search for
available radio channels to the left or right of
the current channel.

!Ÿ
Dragging: Drag the frequency bar to the left/
right to find the radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for
5 seconds each
HD RadioUsed to set whether to turn HD Radio™ recep-
tion On/Off.
AV
FM/AM
Accessing FM/AM Mode
You can access the radio player either by pressing the RADIO
hard key or by selecting the Radio menu option from All Menus on
the Home screen.
i Information
If you press the RADIO hard key when the power is off, then the power
will turn on and a radio broadcast will be tuned up.
If you are in the FM/AM mode, select the FM/AM radio widget from the
Home screen to access the radio pla y

er.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE

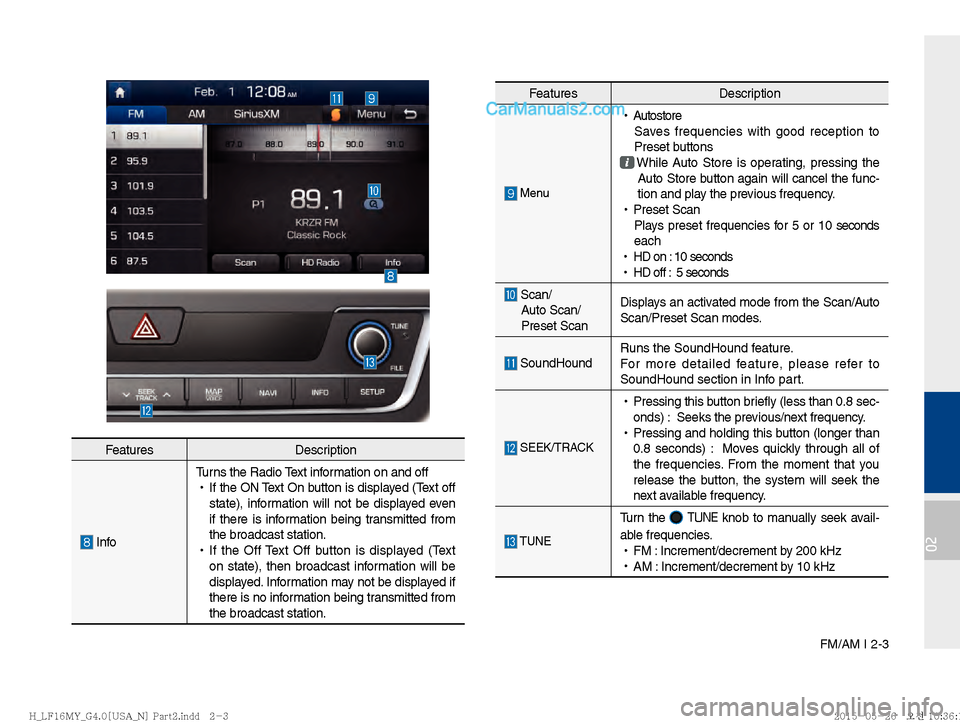

FM/AM I 2-3
02
FeaturesDescription
InfoTurns the Radio Text information on and off

!Ÿ
If the ON Text On button is displayed (Text off
state), information will not be displayed even
if there is information being transmitted from
the broadcast station.

!Ÿ
If the Off Text Off button is displayed (Text
on state), then broadcast information will be
displayed. Information may not be displayed if
there is no information being transmitted from
the broadcast station.
Features Description
Menu

!Ÿ
Autostore
Saves frequencies with good reception to
Preset buttons
While Auto Store is operating, pressing the
Auto Store button again will cancel the func-
tion and play the previous frequency.

!Ÿ
Preset Scan
Plays preset frequencies for 5 or 10 seconds
each

!Ÿ
HD on : 10 seconds

!Ÿ
HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto
Scan/Preset Scan modes.
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.

SEEK/TRACK

!Ÿ
Pressing this button briefly (less than 0.8 sec-
onds) : Seeks the previous/next frequency.

!Ÿ
Pressing and holding this button (longer than
0.8 seconds) : Moves quickly through all of
the frequencies. From the moment that you
release the button, the system will seek the
next available frequency.
TUNE
Turn the
TUNE knob to manually seek avail-
able frequencies.
!Ÿ
FM : Increment/decrement by 200 kHz

!Ÿ
AM : Increment/decrement by 10 kHz
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-4 I AV
If an HD Radio™ broadcast is received,
the radio mode will switch from analog
broadcast to HD Radio™ broadcast.
i Information
The HD Radio™ screen is displayed only
when a HD Radio™ broadcast is being
received
Program Service Data :
Contributes to the superior user experience of HD
Radio™ Technology. Presents song name, artist, station IDs, HD2/HD3
Channel Guide, and other relevant data streams.
Adjacent traditional main stations are extra local FM
channels. These HD2/HD3 Channels provide new, origi-
nal music as well as deep cuts into traditional genre.
Digital, CD-quality sound. HD Radio™ Technology
enables local radio stations to broadcast a clean digital
signal. AM sounds like today’s FM and FM sounds like a CD.
HD Radio™ Technology
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




SiriusXM™ I 2-5
02
Basic Mode Screen
(HD Radio™ reception ON)SiriusXM™
SiriusXM™ Mode
Hard Key Controls
You can access the radio player either by
pressing the
RADIO hard key or by
selecting the Radio menu option from All
Menus on the Home screen. Select the
SiriusXM™ tab from the radio player.
i Information
If you press the RADIO hard key when the
power is off, then the power will turn on and a
radio broadcast will be tuned up.
If you are in the SiriusXM™ mode, select
the SiriusXM™ r adio widget from the Home


screen to access the radio player.
When the power is off, pressing the
RADIO
key will turn the power on and play a
SiriusXM™ Radio broadcast.
Name Description
HD Radio™


Reception

&Channel
buttons Displays main HD Radio™
channels and used to directly
select the current available
channels

As HD Radio™ reception
is included within Radio
mode, the methods of
moving between chan-
nels, saving presets,
searching, or methods
of searching frequencies
are identical. However,
while the HD Radio™
related icon display will
become active when
within regions where an
HD Radio™ signal can
be received.
Name Description
HD
Channel
Number HD Channel number
saved in preset
Broadcast
Info Displays detailed infor-
mation about the current
broadcast
HD Radio
Used to set whether to
turn HD Radio™ recep-
tion On/Off.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE





2-6 I AV
SiriusXM™ Mode Display Controls


FeaturesDescription
Mode DisplayDisplays current operating mode.
If you press FM, AM or SiriusXM, mode will
change to selected one in Radio
PresetShows saved presets for user selection
After selecting frequency
→
press and hold
(over 0.8 seconds) the preset button. A 'beep'
will sound and the frequency is saved to the
selected preset button.
A total of 18 frequencies for SiriusXM™
modes can be saved.
Channel Logo Displays the current channel logo
Channel InfoDisplays the current channel number and name
Contents InfoDisplays the artist, title and other information
about the current playing song
Category Info
Displays the current playing category
ScanPlays all receivable channels for 10 seconds each
Direct TuneUsed to search for channels by entering chan-
nel numbers
CategoryIf you press Category, when search channels
through SEEK, Tune and Scan, search it in the
current category.

Category
Selection
Buttons
Used to select the previous/next category
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




SiriusXM™ I 2-7
02
FeaturesDescription
Play Live
It will change to listening live broadcast mode.
Skip BackwardRepeats the previously broadcasted program.

!Ÿ
Holding for less than 0.8 seconds : Moves to
the previous segment

!Ÿ
Holding for longer than 0.8 seconds: Moves
to the previous 5 seconds
Play Pause Pauses/plays the current broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel
Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For
more details, see Section 2.5. Viewing Menu.)

!Ÿ
Featured Favorite
Theme channels recommended by SiriusXM™ .
(For more details, see Section 2.5. Viewing
Menu.)
!Ÿ
Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACKWhen key is pressed quickly.(under 0.8 seconds)
Plays the previous/next channel
When key is pressed and held.(over 0.8 seconds)
Continuously changes the channel until the key
is released and plays the current channel
TUNE
Changes the channel
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-8 I AV

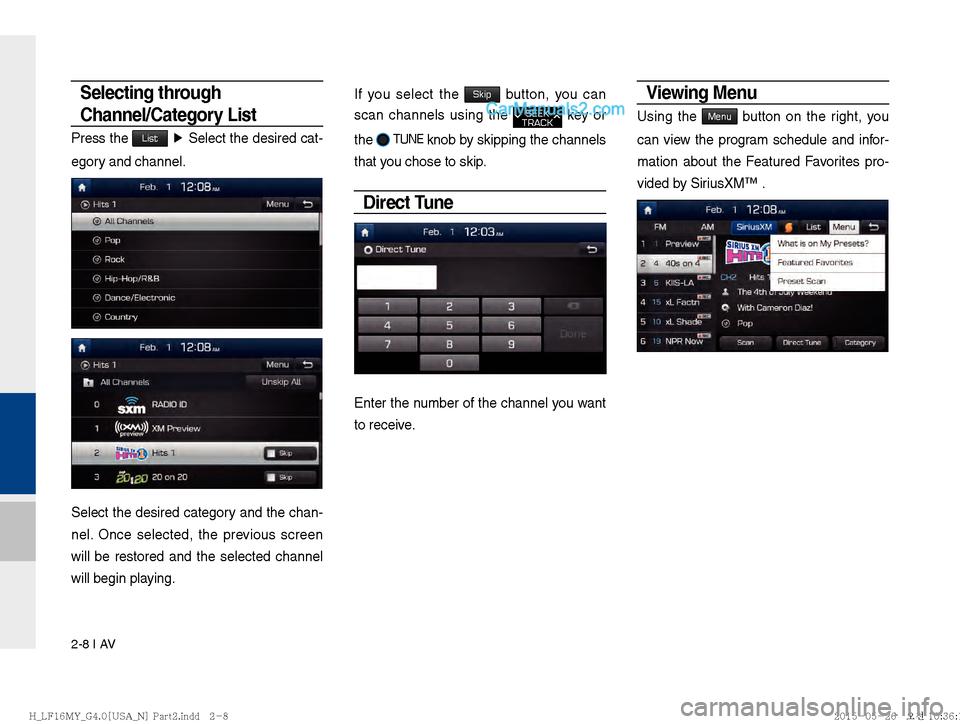

Selecting through
Channel/Category List
Press the List Ü
Select the desired cat-
egory and channel.
Select the desired category and the chan-
nel. Once selected, the previous screen
will be restored and the selected channel
will begin playing.
If you select the Skip button, you can
scan channels using the
SEEK
TRACK key or
the

TUNE
knob by skipping the channels
that you chose to skip.
Direct Tune
Enter the number of the channel you want
to receive.
Viewing Menu
Using the Menu button on the right, you
can view the program schedule and infor-
mation about the Featured Favorites pro-
vided by SiriusXM™ .
