2016 Hyundai Sonata Car Multimedia System Manual

USB I 2-25
02
FeaturesDescription
Previous FileIf button is pressed (less than 0.8 seconds) :
Moves to the previous file or play the current file
from the beginning (Depends on the play time)

!Ÿ
If play time is less than 3 seconds, moves to
previous file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds) :
Moves to the next file

!Ÿ
If button is pressed (over than 0.8 seconds) :
It fast-forwards the track
Repeat Repeats the current file

!Ÿ
If select the song in the file tab on the list
screen : Press the
Repeat button to switch
between repeating one song , repeating
folder , and turning repeat off

!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen
: Press the
Repeat button to switch between
repeating one song and turning repeat
off
Back Button Converts to basic mode screen
ShufflePlays files in random order

!Ÿ
If select the song in the file tab on the list
screen : Press the
Shuffle button to switch
between Shuffle Folder , Shuffle All , and turning shuffle off

!Ÿ
If select the song in the other tabs (Playlist, Artist,
Song, Album, Genre) on the list screen : Press
the
Shuffle button to switch between Shuffle
Category and turning shuffle off
USB Music
Features Description
Mode
Displays current operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track

!Ÿ
When a track in the file tab on the list screen
is selected : Displays folder, file, title, artist,
album info

!Ÿ
When a track in the other tabs on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-26 I AV
FeaturesDescription
Menu
!Ÿ
Add to Playlist : Add the current track to the
Playlist Playlist is placed on the left tab in the
list

!Ÿ
Save to My Music : You can save the current
track to My Music. You can play saved track
from My Music without USB. Access to My
Music in the Media mode.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACKIf button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
track from the beginning

!Ÿ
If play time is less than 3 seconds, moves to
previous/next file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
will rewind/fast-forward the track
TUNE Turn the


TUNE knob to search a desired
track. If the desired track is displayed, press the

TUNE knob to play the track.
If the

TUNE knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.

Features Description
ScanScans the beginning parts of USB files (approx.
10 seconds per file)

!Ÿ
If select the song in the file tab on the list
screen : Press the
Scan button to switch
between Scan Folder
, Scan All ,
and turning scan off

!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen :
Press the
Scan button to switch between
Scan category and turning scan off
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




USB I 2-27
02
FeaturesDescription
Menu
!Ÿ
Add to Playlist : Adds the current track to the
Playlist: Playlist is placed on the left tab in the
list (Maximum 100 files) Select a desired track
and press “Add to Playlist” to add the track in
the playlist.

!Ÿ
Delete from Playlist : Select a track you want to
delete from the playlist and press “Delete from
Playlist” to delete the track in the playlist

!Ÿ
Now Playing : When moving to a different list
screen, moves to the list page where the cur-
rent file is located (Becomes disabled when
the current list includes the current file)
Search Menu Search tracks by the list type. Search songs accord-
ing to Playlist, Artist, Song, Album, and Genre.
If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK If button is pressed (less than 0.8 seconds):
Plays previous/next track

!Ÿ
If play time is less than 3 seconds, moves to
previous/next file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds):
Moves to play screen, and then it will rewind or
fast-forward the track. It will play the track nor-
mally if button released.
TUNE Turn the


TUNE knob to move the focus to the
previous/next list. If the desired track is displayed,
press

TUNE knob to play the track.
If you do not anything with the knob for
5 seconds, the
TUNE knob search will be
terminated.
Features Description
Folder/
Category Name Displays folder/category name in the list
Current Song
Displays current playing file name
Back ButtonConverts to basic mode screen
Upper Folder/
Category Moves to Upper Folder
)@-'.:@(<64"@/>
1BSUJOEE



)@-'.:@(<64"@/>
1BSUJOEE





2-28 I AV

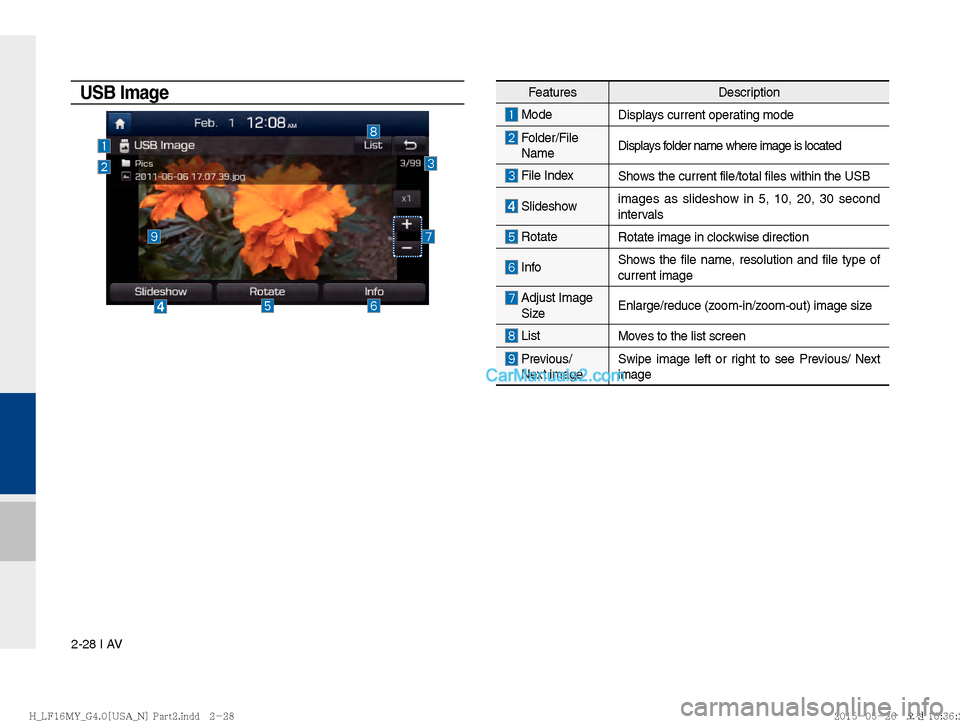

USB ImageFeaturesDescription
Mode
Displays current operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow images as slideshow in 5, 10, 20, 30 second
intervals
Rotate
Rotate image in clockwise direction
InfoShows the file name, resolution and file type of
current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next image Swipe image left or right to see Previous/ Next
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE





USB I 2-29
02
FeaturesDescription
Current File
Displays current playing file name
Back ButtonConverts to basic mode screen
MenuNow Playing : When moving to a different list
screen, moves to the list page where the current
file is located (Becomes disabled when the cur-
rent list includes the current file)
SEEK/TRACK Controls background mode

!Ÿ
Radio mode : Changes Frequency and
Channel

!Ÿ
Media mode : Changes Track (excluding AUX)
TUNE
Controls background mode

!Ÿ
Radio mode : Changes Frequency and
Channel

!Ÿ
Media mode : Changes track (excluding AUX,
Bluetooth Audio).

!Ÿ
If a desired track is displayed, press the knob
to move to the track.
If the

TUNE knob is not pressed within 5
seconds of searching tracks, the track info for
the current track is restored.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-30 I AV
iPod
Using iPod Devices

!Ÿ
iPod is a registered trademark of Apple Inc.

!Ÿ
iPod mode will not operate if the con-
nected iPod cannot be recognized due
to operation of unsupported versions
that do not support related protocols,
iPod abnormalities, or iPod device
defects. Some iPods with unsupported
communication protocols may not prop-
erly operate with the Multimedia system.

!Ÿ
For fifth generation iPod Nano devices,
the iPod may not be recognized when
the battery level is low. Please charge
the iPod for use.

!Ÿ
Search/play orders shown within the
iPod device may differ with the orders
shown within the Multimedia system.

!Ÿ
If the iPod malfunctions due to an iPod
device defect, reset the iPod and try
again. (To learn more, refer to your iPod
manual)
!Ÿ
If repeatedly connect and disconnect
iPod/iPhone to the Multimedia system
with USB cable in short time, it may
cause abnormal operation.

!Ÿ
The time for recognition of iPod/iPhone
may vary depending on device type,
firmware version and iOS version.

!Ÿ
For some iPod Touch and iPhone
devices, connecting Bluetooth
® while the
iPod is operating may result in discon-
tinued iPod sound. When such devices
with Bluetooth
® support are connected,
this problem occurs as the sound source
is changed from the Dock Connector
(USB connector cable) to Bluetooth.

!Ÿ
To prevent this symptom, Bluetooth
Audio function in the Multimedia system
is limited if iPod/iPhone is connected
to the system through both cable and
Bluetooth. To listen to the iPod sound,
use either iPod menu with USB connec-
tion or Bluetooth Audio with Bluetooth
connection.
!Ÿ
To listen to the iPod sound, reconnect
the USB cable or change the audio out-
put settings in iPod/iPhone to Dock.

!Ÿ
In order to use the iPod while operating
the keys, you must use a dedicated iPod
cable. (the cable that is supplied when
purchasing iPod/ iPhone products)
œ During ACC ON state, connecting the
iPod through the iPod cable (The cable
that is supplied when purchasing iPod/
iPhone product.) will charge the iPod
through the head unit.
œ
The use of genuine iPod cables sup- The use of genuine iPod cables sup-
plied by Apple is recommended. (The plied by Apple is recommended. (The
use of other products may result in use of other products may result in
noise or abnormal operation.)noise or abnormal operation.)
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE

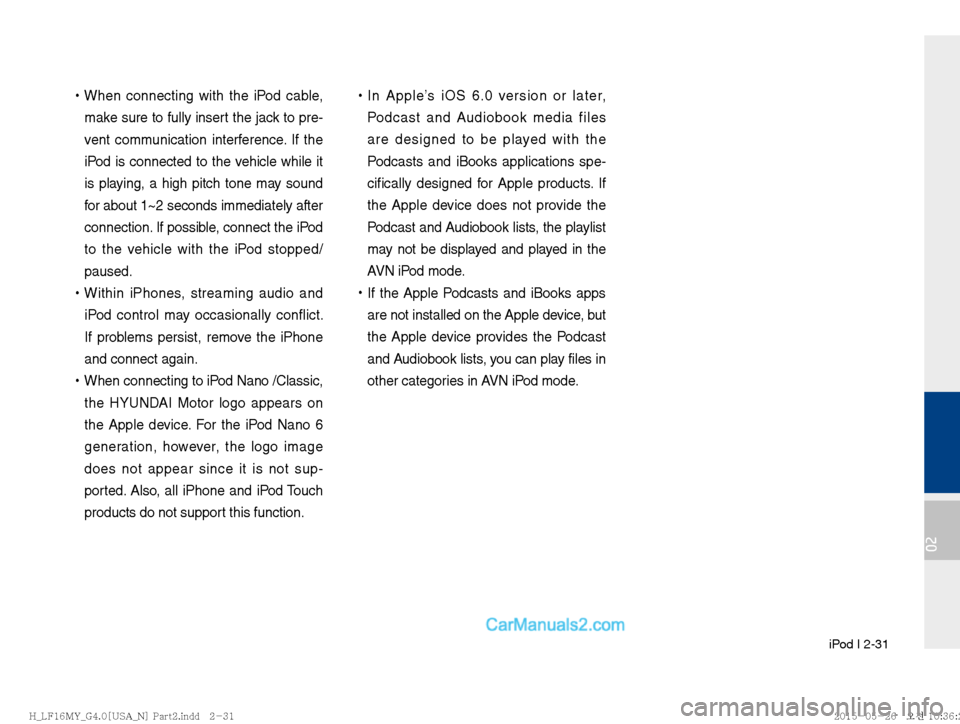

iPod I 2-31
02

!Ÿ
When connecting with the iPod cable,
make sure to fully insert the jack to pre-
vent communication interference. If the
iPod is connected to the vehicle while it
is playing, a high pitch tone may sound
for about 1~2 seconds immediately after
connection. If possible, connect the iPod
to the vehicle with the iPod stopped/
paused.

!Ÿ
Within iPhones, streaming audio and
iPod control may occasionally conflict.
If problems persist, remove the iPhone
and connect again.

!Ÿ
When connecting to iPod Nano /Classic,
the HYUNDAI Motor logo appears on
the Apple device. For the iPod Nano 6
generation, however, the logo image
does not appear since it is not sup-
ported. Also, all iPhone and iPod Touch
products do not support this function.
!Ÿ
In Apple’s iOS 6.0 version or later,
Podcast and Audiobook media files
are designed to be played with the
Podcasts and iBooks applications spe-
cifically designed for Apple products. If
the Apple device does not provide the
Podcast and Audiobook lists, the playlist
may not be displayed and played in the
AVN iPod mode.

!Ÿ
If the Apple Podcasts and iBooks apps
are not installed on the Apple device, but
the Apple device provides the Podcast
and Audiobook lists, you can play files in
other categories in AVN iPod mode.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-32 I AV
Caution

!Ÿ
While using a connected iPhone/iPod
Touch device, it may not operate nor-
mally if the user changed some func-
tions in the device.

!Ÿ
When calling with an iPhone connec-
tion, song may stop playing due to an
Apple device feature. If sound does
not resume after the call is terminated,
check the device status.

!Ÿ
If lots of songs have the same informa-
tion, skipping may occur when previous/
next song is executed due to an Apple
device feature. Also problems may
occur depending on device type or iOS
version.

!Ÿ
If lots of songs have the same informa-
tion, it may occur difference of playing
songs between the Multimedia system
and Apple device. Reset the device or
delete the same songs in the Apple
device using iTunes.
!Ÿ
If you control pause, repeat, shuffle, or
seek songs when the play time is when
the play time is less than 3s before fin-
ished playing, it may occur difference of
playing song between the Multimedia
system and Apple device. Access to
iPod music from another mode or pause
a song and then play a song again in
Apple device.
!Ÿ
We recommend that your Apple device
uses the latest firmware since some
problems may occur due to an outdated
firmware or other software related
issues.
Type 1G 2G 3G 4G 5G 6G 6.5G 7G
iPod Mini Not Supported
iPod Shuffle Not Supported
iPod Nano !¹!¹!¹!¹!¹!¹
Not
released!¹
iPod Touch !¹
(iOS 1.1 not
supported)!¹!¹!¹ !¹ Not released
iPad !¹

(Unable to charge, Not verified, Normal working not guaranteed)
iPad Mini !¹

(Unable to charge, Not verified, Normal working not guaranteed)
iPod Classic Not Supported !¹
(iPod with
Video)!¹(iPod
Classic)!¹(iPod
Classic) Not
released
Type 3G3GS 4G 4GS 5G
iPhone Not verified,
Normal working not guaranteed !¹!¹!¹!¹
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE
