2016 Hyundai Sonata Car Multimedia System Manual

61
CAUTIONS WHEN USINGANDROID AUTO
When Android Auto is activated, you
can use only phone features among
all Bluetooth f
eatures. You cannot use
Bluetooth Media features such as
Bluetooth Audio and Pandora. If you
want to use such features, remove the
USB cable before use.
Android Auto mode does not support
the f eature that enab
les y

ou to search
for music fi les by controlling the
TUNE key.
In case Android Auto is not activated
even after a connection has been made
successfully

, check the following:
– Check the status of Phone Application(Check if an error has
occurred)
– Terminate the Android Auto process and attempt a reconnection
– Check whether Android Auto is set to be used in Setup > Connectivity
Settings.
If Android Auto does not work normally
ev
en after a reconnection has been


made, see the manual provided by
Google or visit our website.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


62
About Pairing Mobile Phones
QI cannot pair my mobile phone, what is the cause?
A
Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the AVN and cell phone and then regis-
ter the cell phone again.
Q
What is the difference between pairing a mobile phone and connecting a mobile phone?
A
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing
Contacts, are supported only in mobile phones connected with the head
unit.
Q
What is a Passkey?
A
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. You can change it with

SETUP Ü
Phone Ü
Bluetooth System Info Ü
Passkey

menu options.
FAQ
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


63

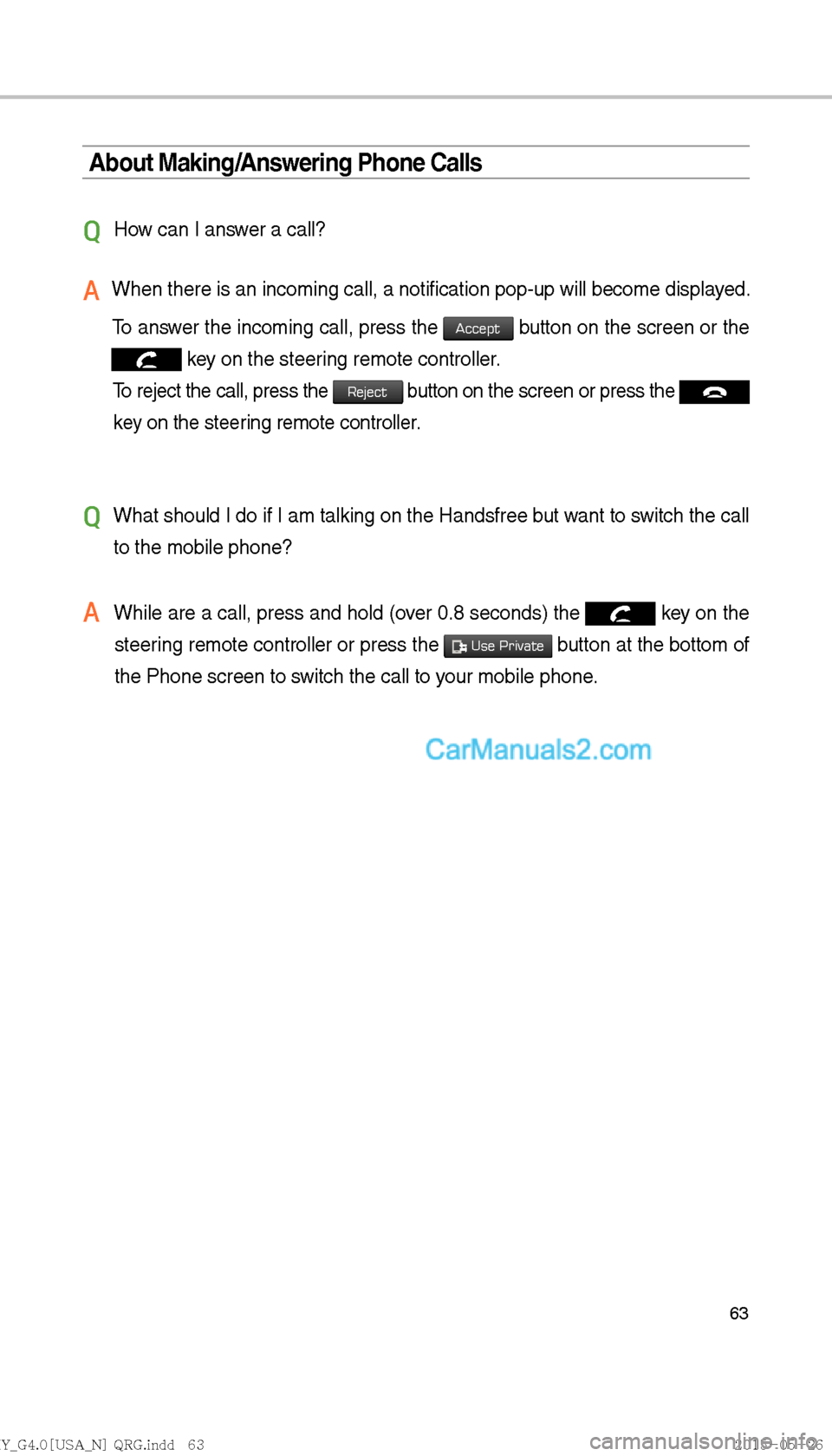

About Making/Answering Phone Calls
Q
How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed.
To answer the incoming call, press the
Accept button on the screen or the
key on the steering remote controller.

To reject the call, press the Reject button on the screen or press the
key on the steering remote controller.

Q What should I do if I am talking on the Handsfree but want to switch the call
to the mobile phone?
A
While are a call, press and hold (over 0.8 seconds) the key on the
steering remote controller or press the
Use Private button at the bottom of
the Phone screen to switch the call to your mobile phone.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


64
About Bluetooth® Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bever-
age cans, are placed near the mobile phone

. Check to see if there are metal
objects in the vicinity of the mobile phone.
The call sound and quality may
differ depending on the type of mobile phone.
FAQ
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


65
Navigation
Basic Features
Operating Navigation
Screen
Basic features on the map screen.

Name Description
Set as Destination
Quick and easy
selection of a desti-
nation from the map
screen.
Add WaypointSet a waypoint to
the current route.
Add toAddress Book
Save frequently
used address to
address book.
POI
Find a POI(Point
Of Interest) around
the current posi-
tion.
View the vehicle’s
current position on
the map screen.
Name Description
Move to the Home
Screen
Change the map view
mode.
Voice Guidance On/Off
Zoom in the map.
Set the zoom level auto-
matically according to
the guidance.
Zoom out the map.
MenuQuick and easy selec-
tion of a destination and
options.
Touch to scroll the map.
)@-'.:@(<64"@/>
23(JOEE


.:@(<64"@/>
23(JOEE





ß
y


66
Changing Map View
Touch the compass arrow icon to
toggle between a map oriented to
the North, or oriented parallel to the
vehicle’s heading.
Voice Guidance
Volum e O n /O f f
Press the NAVI sound button to turn
the volume on and off.

Zoom In /Zoom Out
Zoom the map view screen in and
out.
Zoom In and Zoom Out
Press + or - to set the zoom
level.
Map Scale
Sets the zoom level automatically
according to the road class.
Name Description

Scale Fix Manually adjust
the map scale.

Auto Scale Change the map
scale automatically
depending on the
road class
Navigation
)@-'.:@(<64"@/>
23(JOEE



.:@(<64"@/>
23(JOEE





ß
y


67

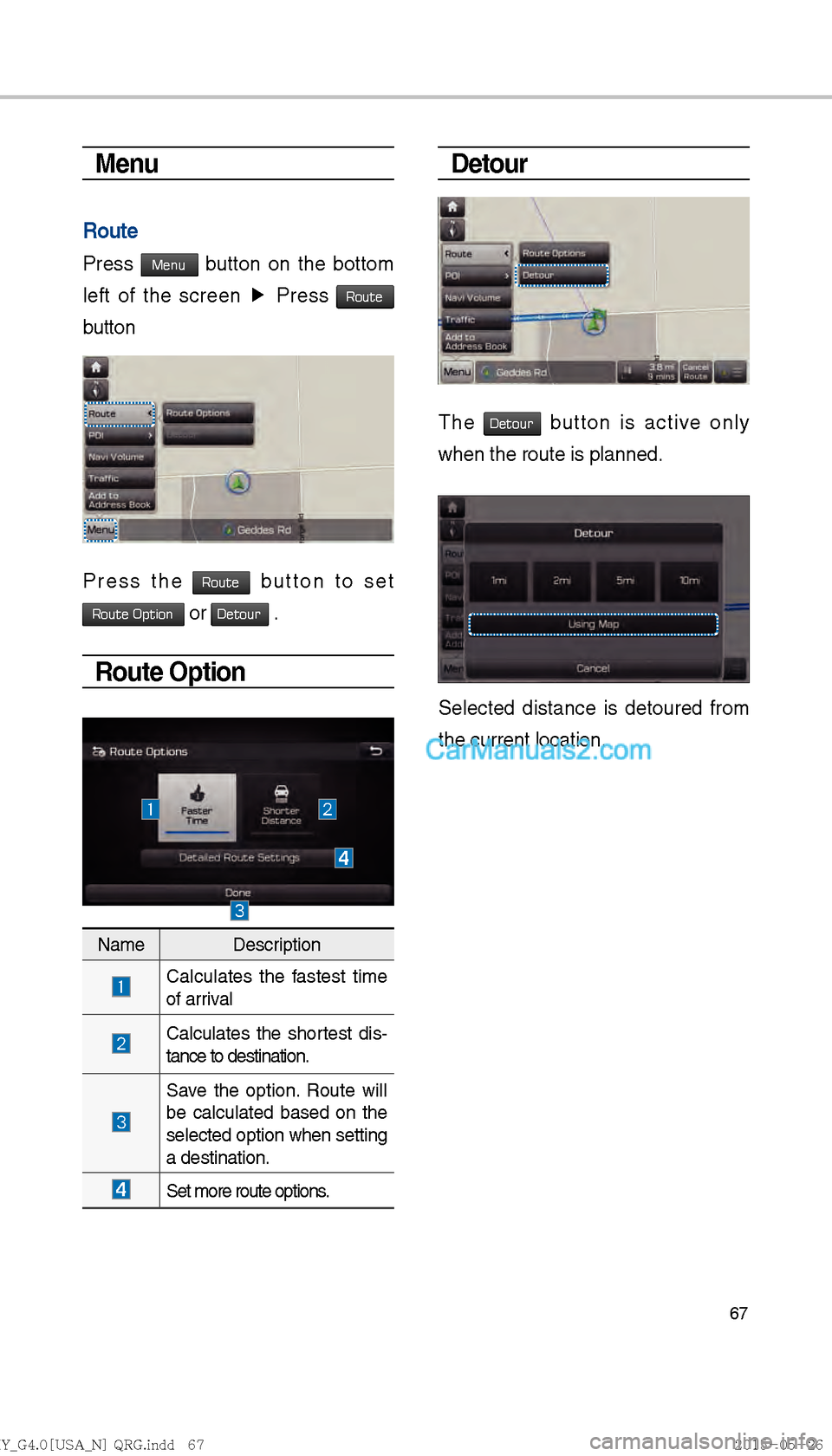

Menu
Route
Press Menu button on the bottom
left of the screen ▶
Press
Route
button
Press the Route button to set
Route Option or Detour .
Route Option
Detour
The Detour button is active only
when the route is planned.
Selected distance is detoured from
the current location.
Name Description
Calculates the fastest time
of arrival
Calculates the shortest dis-
tance to destination.

Save the option. Route will
be calculated based on the
selected option when setting
a destination.
Set more route options.
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y


68
Press the Using Map button to
select the distance ahead to avoid.
(Highlighted grey indicates distance
to avoid)
Navigation Volume
Press the Navi Volume button to
adjust the volume.
Press the Navi Volume button.
Nearby POIs
Display nearby POIs on the map.
View Nearby POIs
Select the Menu on the bottom of
the left screen ▶
Select the
POI
button.
Press ON, OFF button to set
whether to show nearby POIs or not.
When categories are selected, they
will appear on the map. (ex. Gas sta-
tion)
Name Description
Reduce the length of the
section to avoid.
Increase the length of the
section to avoid.

Confirm detour
Name Description
Set the volume to mute.
Turn the volume down
Turn the volume up
Slide to set the volume
Navigation
)@-'.:@(<64"@/>
23(JOEE


 .:@(<64"@/>
23(JOEE





ß
y
