2016 Hyundai Sonata Car Multimedia System Manual

iPod I 2-33
02
Caution

!Ÿ
If the iPhone/iPod Touch supports
Bluetooth, it is unable to use Bluetooth
Audio if the Apple device that is con-
nected to the Multimedia system
through both USB connection and
Bluetooth. Disconnect the USB connec-
tion then use Bluetooth Audio

!Ÿ
If iPod/iPhone connected to the
Multimedia system through both USB
and AUX. iPod/iPhone keeps output
sound via AUX, thus it may occur sound
will not output in iPod mode.

!Ÿ
If AUX cable connected to iPod/iPhone
but not connect to the Multimedia sys-
tem, it may occur sound will not output
in iPod mode due to iPod/iPhone’s fea-
ture. Especially, if you use AUX cable
like pictures, this problem may occur.

!Ÿ
Disconnect AUX cable from iPod/iPhone
first, then connect to the Multimedia
system via USB. Or change settings to
“Dock” in iPod/iPhone.
!Ÿ
If connect to the Multimedia system
while podcast or iTunes music down-
loading to iPod/iPhone, it may occur
some problems when you select song
in the list. Reconnect iPod/iPhone to the
Multimedia system when downloading
is finished or the file deleted.

!Ÿ
If connect to the Multimedia system
while sync, it may occur some problems.
Try to use iPod/iPhone connection after
sync complete. (To learn more, refer to
your iPod manual)

!Ÿ
iPhone and iPod Touch devices are
guaranteed to work normally on iOS
7.0.6 or below. However, they may not
work normally on future iOS versions
as their operations have not yet been
tested.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-34 I AV
iPodFeaturesDescription
Previous FileIf button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)

!Ÿ
If play time is less than 3 seconds, moves to
previous file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track.
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds),
Moves to the next file

!Ÿ
If button is pressed (over than 0.8 seconds), it
does fast-forward the track.
Repeat Repeats the current file
Press the Repeat button to switch between repeat-
ing 1 track , and turning repeat off
Shuffle Plays files in random order
When pressing
Shuffle button, it changes to
shuffle category →
deactivate shuffle then
repeat

!Ÿ
Shuffle Category: Shuffle song in the current
category
Back Button Move to home/previous mode screen
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
Features
Description
Mode
Displays current operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the current oper-
ating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE

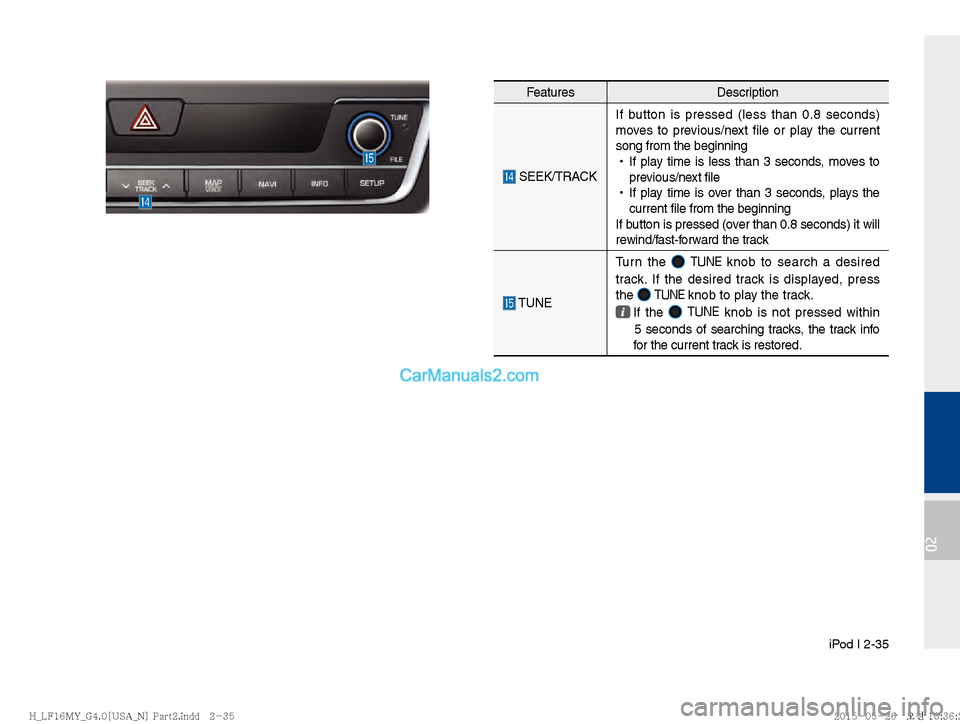

iPod I 2-35
02
FeaturesDescription
SEEK/TRACKIf button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning

!Ÿ
If play time is less than 3 seconds, moves to
previous/next file

!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track
TUNE Turn the


TUNE knob to search a desired
track. If the desired track is displayed, press
the

TUNE knob to play the track.
If the

TUNE knob is not pressed within
5 seconds of searching tracks, the track info
for the current track is restored.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-36 I AV
FeaturesDescription
Category Name
Displays the category name
Category ListDisplays the contents of selected category
If there are many items in the list, items are
added in order and the scroll bar on the right
is adjusted accordingly.
Back Button Converts to basic mode screen
Upper FolderMoves to Upper Folder
Search MenuSearch tracks by the list type. Search songs
according to Playlist, Artist, Song, Album, and
Genre. If access the search menu while playing a
track, it moves to the previous search mode.
SEEK/TRACK If button is pressed (less than 0.8 seconds)
moves to previous/next file or play the current
song from the beginning

!Ÿ
If play time is less than 3 seconds, moves to
previous/next file

!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
If button is pressed (over than 0.8 seconds) it will
rewind/fast-forward the track.
TUNE Turn the


TUNE knob to search a desired
track. If the desired track is displayed, press
the

TUNE knob to play the track.
If you do not anything with the knob for 5 sec-
onds, the
TUNE knob search will be termi-
nated.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




AUX I 2-37
02
AUX
Connecting an External Device
If an external device connector is connected with the AUX termi-
nal, then AUX mode will automatically operate. Once the connec-
tor is disconnected, the previous mode will be restored.
!Ÿ
AUX mode can be used only when an external audio player has
been connected.

!Ÿ
The AUX volume can also be controlled separately through the
connected device.
Features Description
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
Back Button
Move to home/previous mode screen
i Information
SEEK
TRACK key, TUNE
is not supported.
NOTICE
If only a cable is connected to the AUX without an external device, the
mode will be changed to AUX, but noise ma
y occur. When an external
device is not being used, remove the connector jack.
When the external device power is connected to the power jack, playing
the e xter
nal de

vice may output noise. In such cases, disconnect the
power connection before use.
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE

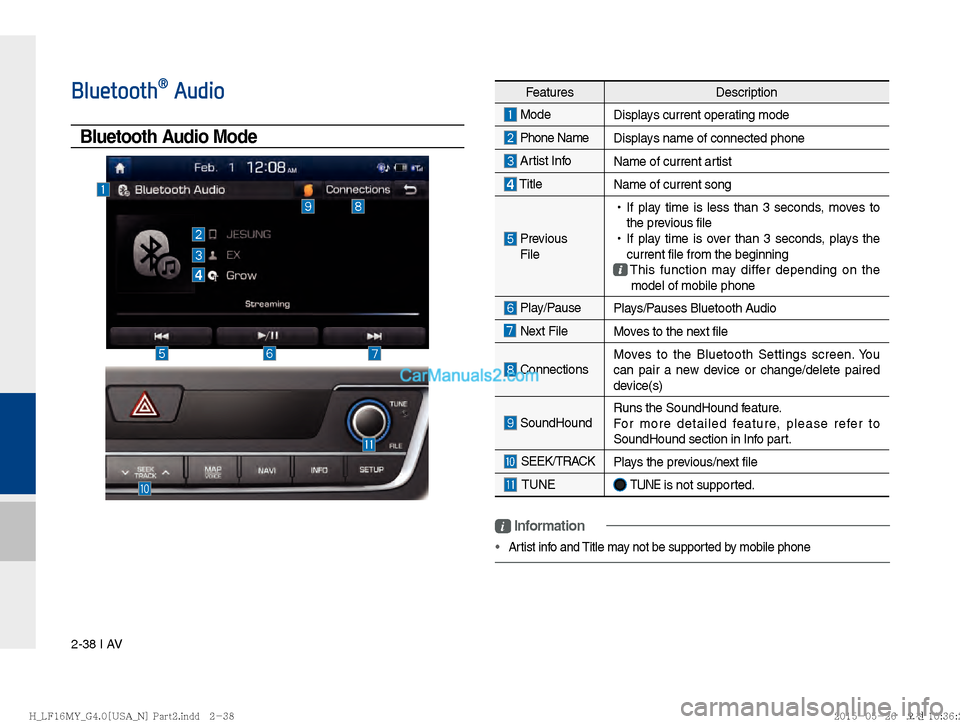

2-38 I AV
FeaturesDescription
Mode
Displays current operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous
File
!Ÿ
If play time is less than 3 seconds, moves to
the previous file

!Ÿ
If play time is over than 3 seconds, plays the
current file from the beginning
This function may differ depending on the
model of mobile phone
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
ConnectionsMoves to the Bluetooth Settings screen. You
can pair a new device or change/delete paired
device(s)
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to
SoundHound section in Info part.
SEEK/TRACK
Plays the previous/next file
TUNE
TUNE is not supported.
Bluetooth® Audio
Bluetooth Audio Mode
i Information
Artist info and Title may not be supported by mobile phone
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




Bluetooth Õ Audio I 2-39
02
Bluetooth Connections
Settings
Settings for pairing, connection and dis-
connection of a Bluetooth device

!Ÿ
In Bluetooth Audio play screen, Select
Connections

!Ÿ
Select SETUP key in the head unit. ▶

Select
Phone. ▶
Select Bluetooth connection
i Information
If the music in the mobile phone is not played
after changing to audio streaming mode,
press the pla
y button. Thus check if the
music is playing in the Bluetooth device after
changing to audio streaming mode. Audio
streaming may not be supported for some
mobile phones.
Please check the Bluetooth compatibility in
belo w w
ebsite :

HYUNDAI Motor America
https://www.hyundaiusa.com/bluetooth
)@-'.:@(<64"@/>
1BSUJOEE


 )@-'.:@(<64"@/>
1BSUJOEE




2-40 I AV
My MusicFeaturesDescription
Previous FileIf button is pressed (less than 0.8 seconds):
Moves to the previous file or play the current file
from the beginning (Depends on the play time)

!Ÿ
If play time is less than 3 seconds, moves to
previous file

!Ÿ
If play time is over than 3 seconds, play the
current file from the beginning
If button is pressed (over than 0.8 seconds) it
rewinds the track
Play/Pause Plays/pauses the current file
Next File
!Ÿ
If button is pressed (less than 0.8 seconds):
Moves to the next file

!Ÿ
If button is pressed (over than 0.8 seconds) it
will fast-forward the file
Repeat Repeats the current file

!Ÿ
If select the song in the file tab on the list
screen : Press the
Repeat button to switch
between repeating one song and turn-
ing repeat off.

!Ÿ
If select the song in the other tabs (Playlist,
Artist, Song, Album, Genre) on the list screen
: Press the
Repeat button to switch between
repeating one song and turning repeat
off
Features Description
Mode
Displays current operating mode
File IndexShows the current file/total files
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the current
operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information about the current track

!Ÿ
When a track in the file tab on the list screen
is selected : Displays file, artist, title, album
info

!Ÿ
When a track in the other tab on the list
screen is selected : Displays artist, title, album
info
List Moves to the list screen
