2016 Hyundai Creta Owner's Manual

3-35
Convenient features of your vehicle
3
Outside rearview mirror
Your vehicle is equipped with both
lefthand and righthand outside
rearview mirrors.
•Do not scrape ice off the mirror
face; this may damage the surface
of the glass.
•If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved spray deicer (not
radiator antifreeze) spray, or a
sponge or soft cloth with very
warm water, or move the vehicle to
a warm place and allow the ice to
melt.
M a n u a l t y p e ( i f e q u i p p e d )
To adjust an outside mirror, move the
control lever.
NOTICE
Do not adjust or fold the outside
rearview mirrors while the vehicle is
moving. This could result in loss of
control, and an accident which
could cause death, serious injury or
property damage.
WARNING
Rearview mirrors
•Both right and left outside rear
view mirror are convex.
Objects seen in the mirror are
closer than they appear.
•Use your interior rearview mirror
or turn your head and look to
determine the actual distance of
following vehicles when chang
ing lanes.
WARNING
OIB034041

3-36
Convenient features of your vehicle
E l e c t r i c t y p e ( i f e q u i p p e d )
Adjusting the rearview mirrors:
Move the lever (1) to the L (Left) or R
(Right) to select the rearview mirror
you would like to adjust.
Use the mirror adjustment control (2)
to position the selected mirror up,
down, left or right.
After adjustment, move the lever (1)
to the middle to prevent inadvertentadjustment.
•The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is
pressed. Do not press the switch
longer than necessary, the motor
may be damaged.
•Do not attempt to adjust the out
side rearview mirror by hand or the
motor may be damaged.
Folding the outside rearview mir
ror
M a n u a l t y p e
To fold the outside rearview mirror,
grasp the housing of the mirror and
then fold it toward the rear of the
vehicle.
NOTICE
OGC044024
OGS045151L

3-37
Convenient features of your vehicle
3
E l e c t r i c t y p e ( i f e q u i p p e d )
To fold the outside rearview mirror,
press the button (1).
To unfold outside rearview mirror,
press the button again.
If the button is pressed, the mirror
will fold or unfold automatically.
The electric type outside rearview
mirror operates even though the igni
tion switch is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while
the engine is not running.
Do not fold the electric type outside
rearview mirror by hand. It could
cause motor failure.
NOTICE
NOTICE
OGS045152L

3-38
Convenient features of your vehicle
INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer)OGS046165/OGS046146
■Type A
The actual cluster in the vehicle may dif
fer from the illustration.
For more details, refer to the "Gauges" in
this chapter.
■Type B

3-39
Convenient features of your vehicle
3

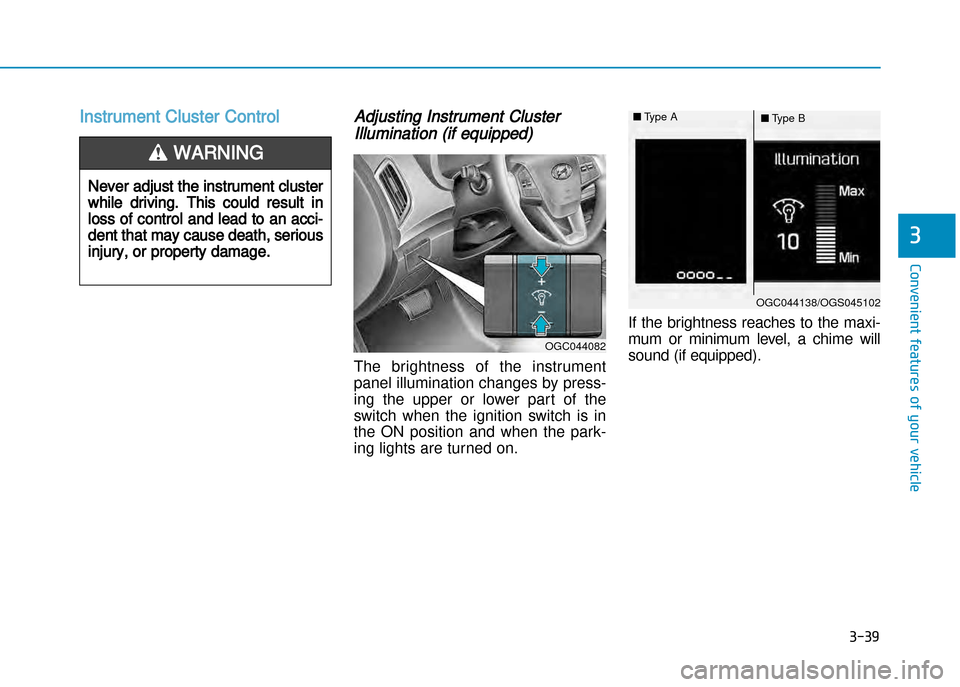

Instrument Cluster ControlAdjusting Instrument Cluster
Illumination (if equipped)
The brightness of the instrument
panel illumination changes by press
ing the upper or lower part of the
switch when the ignition switch is in
the ON position and when the park
ing lights are turned on. If the brightness reaches to the maxi
mum or minimum level, a chime will
sound (if equipped).
Never adjust the instrument cluster
while driving. This could result in
loss of control and lead to an acci
dent that may cause death, serious
injury, or property damage.
WARNING
OGC044082
OGC044138/OGS045102
■
Type A
■Type B

3-40
Convenient features of your vehicle
Gauges
Speedometer
The speedometer indicates the speed
of the vehicle and is calibrated in kilo
meters per hour (km/h).
Tachometer
The tachometer indicates the
approximate number of engine revo
lutions per minute (rpm).
Use the tachometer to select the cor
rect shift points and to prevent lug
ging and/or overrevving the engine.
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
NOTICE
OGC044142/OGS045054■
Diesel
■ Gasoline
OGC044140/OGS046155■
MPH, km/h
■km/h

3-41
Convenient features of your vehicle
3
Engine Coolant Temperature
Gauge
This gauge shows the temperature
of the engine coolant when the igni
tion switch is in the ON position.
If the gauge pointer moves beyond
the normal range area toward the “H
or 130” position, it indicates over
heating that may damage the
engine.
Do not continue driving with an over
heated engine. If your vehicle over
heats, refer to “If the Engine
Overheats” in chapter 6.
NOTICE
Never remove the radiator cap and
reservoir cap when the engine is
hot. The engine coolant is under
pressure and could cause severe
burns. Wait until the engine is cool
before adding coolant to the reser
voir.
WARNING
OGC044145/OGS045147
■Type A
■Type BOGC044144/OGS045144

3-42
Convenient features of your vehicle
Fuel Gauge
This gauge indicates the approxi
mate amount of fuel remaining in the
fuel tank.
Information
• T h e f u e l t a n k c a p a c i t y i s g i v e n i n c h a p t e r 8 .
• T h e f u e l g a u g e i s s u p p l e m e n t e d b y a l o w f u e l w a r n i n g l i g h t , w h i c h w i l l
i l l u m i n a t e w h e n t h e f u e l t a n k i s
n e a r l y e m p t y .
• O n i n c l i n e s o r c u r v e s , t h e f u e l g a u g e p o i n t e r m a y f l u c t u a t e o r t h e l o w f u e l
w a r n i n g l i g h t m a y c o m e o n e a r l i e r
t h a n u s u a l d u e t o t h e m o v e m e n t o f
f u e l i n t h e t a n k .
Avoid driving with a very low fuel
level. Running out of fuel could
cause the engine to misfire damag
ing the catalytic converter.
Odometer
The odometer indicates the total dis
tance that the vehicle has been driv
en and should be used to determine
when periodic maintenance should
be performed.
Information
I t i s f o r b i d d e n t o a l t e r t h e o d o m e t e r o f
a l l v e h i c l e s w i t h t h e i n t e n t t o c h a n g e
t h e m i l e a g e r e g i s t e r e d o n t h e o d o m e
t e r . T h e a l t e r a t i o n m a y v o i d y o u r w a r
r a n t y c o v e r a g e .i
i
NOTICE
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi
tional fuel as soon as possible
after the warning light comes on or
when the gauge indicator comes
close to the “E (Empty) or 0” level.
WARNING
OGC044147/OGS045148
■ Type A
■Type BOGC044146/OGS045145
OGC044148/OGC044149■
Type B
■Type A
