2016 Hyundai Creta Owner's Manual

2-19
Safety system of your vehicle
2
SEAT BELTS
•For maximum restraint system
protection, the seat belts must
always be used whenever the
car is moving.
•Seat belts are most effective
when seatbacks are in the
upright position.
•Children age 12 and under must
always be properly restrained in
the rear seat. Never allow chil
dren to ride in the front passen
ger seat. If a child over 12 must
be seated in the front seat,
he/she must be properly belted
and the seat should be moved
as far back as possible.
(Continued)
WARNING (Continued)
•Never wear the shoulder belt
under your arm or behind your
back. An improperly positioned
shoulder belt can cause serious
injuries in a crash. The shoulder
belt should be positioned mid
way over your shoulder across
your collarbone.
•Never wear a seat belt over
fragile objects. If there is a sud
den stop or impact, the seat belt
can damage it.
•Avoid wearing twisted seat
belts. A twisted belt can't do its
job as well. In a collision, it could
even cut into you. Be sure the
belt webbing is straight and not
twisted.
•Be careful not to damage the
belt webbing or hardware. If the
belt webbing or hardware is
damaged, replace it.
Seat belts are designed to bear
upon the bony structure of the
body, and should be worn low
across the front of the pelvis or the
pelvis, chest and shoulders, as
applicable; wearing the lap section
of the belt across the abdominal
area must be avoided.
Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
Care should be taken to avoid con
tamination of the webbing with pol
ishes, oils and chemicals, and par
ticularly battery acid. Cleaning may
safely be carried out using mild
soap and water. The belt should be
replaced if webbing becomes
frayed, contaminated or damaged.
(Continued)
WARNING

2-20
Safety system of your vehicle
(Continued)
It is essential to replace the entire
assembly after it has been worn in
a severe impact even if damage to
the assembly is not obvious. Belts
should not be worn with straps
twisted. Each belt assembly must
only be used by one occupant; it is
dangerous to put a belt around a
child being carried on the occu
pant's lap.
•No modifications or additions
should be made by the user
which will either prevent the seat
belt adjusting devices from oper
ating to remove slack, or prevent
the seat belt assembly from being
adjusted to remove slack.
•When you fasten the seat belt, be
careful not to latch the seat belt in
buckles of other seat. It's very dan
gerous and you may not be pro
tected by the seat belt properly.
•Do not unfasten the seat belt and
do not fasten and unfasten the
seat belt repeatedly while driving.
This could result in loss of control,
and an accident causing death,
serious injury, or property dam
age.
(Continued)
WARNING (Continued)
•When fastening the seat belt,
make sure that the seat belt does
not pass over objects that are
hard or can break easily.
•Make sure there is nothing in the
buckle. The seat belt may not be
fastened securely.

2-21
Safety system of your vehicle
2
Seat belt warning
As a r eminder to the driver and front
passenger seat belt warning lights will
illuminate for approximately 6 s econds
each time you tur n t he ignition switch
ON regardless of belt fastening.
If the driver’s seat belt or the front
passenger’s seat belt is not fastened
when the ignition switch is turned ON
or if it is disconnected after the igni
tion switch is turned ON, the seat
belt warning light will illuminate until
the belt is fastened. If you continue not to fasten the seat
belt and you drive over 9 km/h, the
illuminated warning light will start to
blink until you drive under 6 km/h.
If you continue not to fasten the seat
belt and you drive over 20 km/h (12
mph) the seat belt warning chime will
sound for approximately 100 sec
onds and the corresponding warning
light will blink.
Information
• You can find the front passenger’s seat belt warning light on the clus
ter.
• Although the front passenger seat is not occupied, the seat belt warning
light will blink or illuminate for 6seconds.
• The front passenger's seat belt warning may operate when luggage
is placed on the front passenger seat.i
OGC034042

2-22
Safety system of your vehicle
Lap/shoulder belt
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud
den stop or impact, however, the belt
will lock into position. It will also lock
if you try to lean forward too quickly.
Information
If you are not able to pull out the safe
ty belt from the retractor, firmly pull
the belt out and release it. After
release, you will be able to pull the belt
out smoothly.
Height adjustment (if equipped)
You can adjust the height of the shoul
der belt anchor to one of 3 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
You will not be getting the most effec
tive protection. The shoulder portion
should be adjusted so that it lies
across your chest and midway over
your shoulder near the door and not
your neck.
i
ODH033055
OGC034026
■ Front seat

2-23
Safety system of your vehicle
2
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button(2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
To release the seat belt:
The seat belt is released by pressing
the release button (1) in the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.
If this does not happen, check the
belt to be sure it is not twisted, then
try again.
OLMB033025
You should place the lap belt por
tion as low as possible and snugly
across your hips, not on your waist.
If the lap belt is located too high on
your waist, it may increase the
chance of injury in the event of a
collision. Both arms should not be
under or over the belt. Rather, one
should be over and the other
under, as shown in the illustration.
Never wear the seat belt under the
arm nearest the door.
WARNING
OLMB033088

2-24
Safety system of your vehicle
Lap belt (if equipped)
To fasten your seat belt:
To fasten a 2point static type belt,
insert the metal tab into the locking
buckle. There will be an audible
"click" when the tab locks into the
buckle. Check to make sure the belt
is properly locked and that the belt is
not twisted. With a 2point static type seat belt, the
length must be adjusted manually so
it fits snugly around your body. Fasten
the belt and pull on the loose end to
tighten. The belt should be placed as
low as possible on your hips, not on
your waist. If the belt is too high, it
could increase the possibility of your
being injured in an accident.
When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used.
OLMB033089
OLMB033090
Too high
ShortenCorrect
OGS035045

2-25
Safety system of your vehicle
2

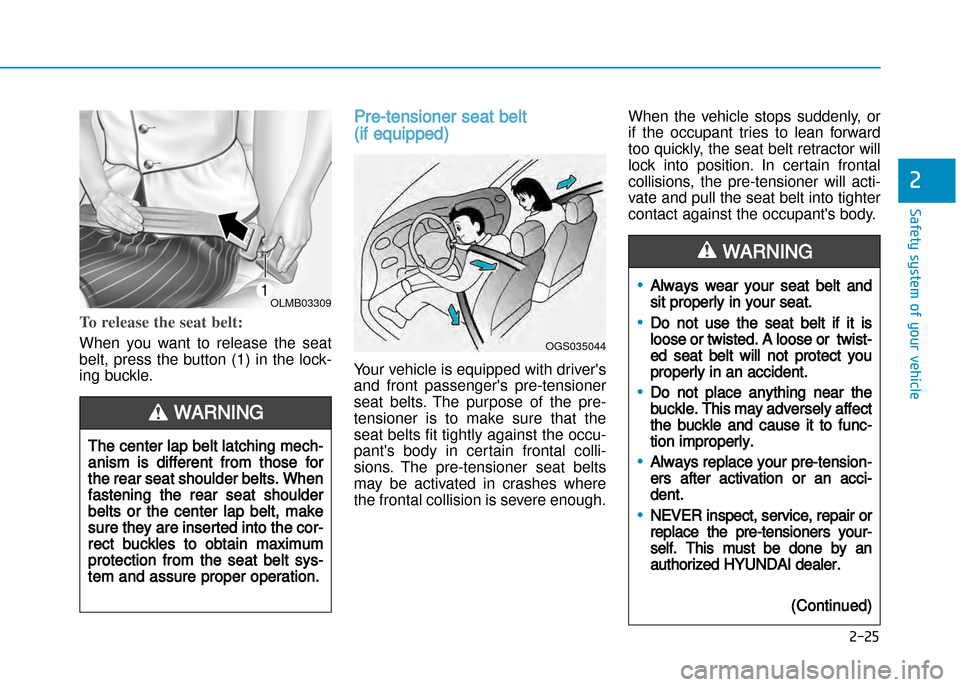

To release the seat belt:
When you want to release the seat
belt, press the button (1) in the lock
ing buckle.
Pretensioner seat belt
(if equipped)
Your vehicle is equipped with driver's
and front passenger's pretensioner
seat belts. The purpose of the pre
tensioner is to make sure that the
seat belts fit tightly against the occu
pant's body in certain frontal colli
sions. The pretensioner seat belts
may be activated in crashes where
the frontal collision is severe enough. When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor will
lock into position. In certain frontal
collisions, the pretensioner will acti
vate and pull the seat belt into tighter
contact against the occupant's body.
OGS035044
The center lap belt latching mech
anism is different from those for
the rear seat shoulder belts. When
fastening the rear seat shoulder
belts or the center lap belt, make
sure they are inserted into the cor
rect buckles to obtain maximum
protection from the seat belt sys
tem and assure proper operation.
WARNING
OLMB03309
•Always wear your seat belt and
sit properly in your seat.
•Do not use the seat belt if it is
loose or twisted. A loose or twist
ed seat belt will not protect you
properly in an accident.
•Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to func
tion improperly.
•Always replace your pretension
ers after activation or an acci
dent.
•NEVER inspect, service, repair or
replace the pretensioners your
self. This must be done by an
authorized HYUNDAI dealer.
(Continued)
WARNING

2-26
Safety system of your vehicle
The seat belt pretensioner system
consists mainly of the following com
ponents. Their locations are shown in
the illustration:
(1) SRS air bag warning light
(2) Retractor pretensioner assembly
(3) SRS control module
The sensor that activates the SRS air
bag is connected with the pre–ten
sioner seat belts. The SRS air bag
warning light on the instrument panel
will illuminate for approximately 6 sec
onds after the ignition switch is placed
to the ON position, and then it should
turn off.
If the pretensioner is not working
properly, the warning light will illumi
nate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, we recommend the pre
tensioner seat belts and/or SRS air
bags be inspected by an authorized
HYUNDAI dealer as soon as possible.
NOTICE(Continued)
•Do not hit the seat belt assem
blies.
Do not touch the pretensioner
seat belt assemblies for several
minutes after they have been acti
vated. When the pretensioner
seat belt mechanism deploys dur
ing a collision, the pretensioner
can become hot and can burn
you.
WARNING
Body work on the front area of the
vehicle may damage the preten
sioner seat belt system.
Therefore, we recommend that
the system be serviced by an
authorized HYUNDAI dealer.
CAUTION
OLMB033040/Q
