2016 Hyundai Creta Owner's Manual

2-27
Safety system of your vehicle
2
Information
• Both the driver's and front passen ger's pretensioner seat belts may be
activated in certain frontal or sidecollisions.
• The pretensioners will be activated even if the seat belts are not worn at
the time of the collision.
• When the pretensioner seat belts are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi
tions and are not hazardous.
• Although it is nontoxic, the fine dust may cause skin irritation and
should not be breathed for pro
longed periods. Wash all exposed
skin areas thoroughly after an acci
dent in which the pretensioner seat
belts were activated.Additional seat belt safety pre
cautions
Seat belt use during pregnancy
The seat belt should always be us ed
during pregnancy. The best way to
prot ect your u nborn child is to prot ect
yourself by always wearing the seat
belt.
Pregnant women should always wear
a lapshoulder seat belt. Place the
shoulder belt across your chest, rout
ed between your breasts and away
from your neck. Place the lap belt
below your belly so that it fits SNUGLY
across your hips and pelvic bone,
under the rou nded part of t he belly.
Seat belt use and children
Infant and small children
Most countries have Child Restraint
System laws which require children to
tr av el in approved Child Restraint
System devices, including booster
seats. The age at which seat belts can
be used instead of Child Restraint
System differs among countries, so
you should be aware of the specific
requirements in your country, and
where you are travelling. Infant and
Child Restraint System must be prop
erly placed and installed in a rear seat.
For more information refer to the “Child
Restraint Systems” in this chapter.
i
To reduce the risk of serious injury
or death to an unborn child during
an accident, pregnant women
should NEVER place the lap por
tion of the seat belt above or over
the area of the abdomen where
the unborn child is located.
WARNING

2-28
Safety system of your vehicle
Small children are best prot ected from
injury in an accident when prop erly
restrained in the rear seat by a Child
Restraint System that meets the
requirements of t he Safety Standards
of your country. Before buying any Child
Restraint System, make sure that it has
a label certifying that it meets Safety
Standard of your country. The restraint
must be appropriate for your child's
height and weight. Check the label on
the Child Restraint System for this
information. Refer to “Child Restraint
Systems” in this chapter.
Larger children
Children under age 13 and who are
too large for a booster seat must
always occupy the rear seat and use
the available lap/shoulder belts. A
seat belt should lie across the upper
thighs and be snug across the shoul
der and chest to restrain the child
safely. Check belt fit periodically. A
child's squirming could put the belt
out of position. Children are afforded
the most safety in the event of an
accident when they are restrained by
a proper restraint system and/or seat
belts in the rear seat.
If a larger child over age 13 must be
seated in the front seat, the child
must be securely restrained by the
available lap/shoulder belt and the
seat should be placed in the rear
most position.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck, they need
to be returned to an appropriate booster seat in the rear seat.
ALWAYS properly restrain infants
and small children in a Child Restraint
System appropriate for the child’s
height and weight.
To reduce the risk of serious injury or
death to a child and other passen
gers, NEVER hold a child in your lapor arms when the vehicle is moving.
The violent forces created during an
accident will tear the child from your
arms and throw the child against the
interior of the vehicle.
WARNING
•Always make sure larger chil
dren’s seat belts are worn and
properly adjusted.
•NEVER allow the shoulder belt
to contact the child’s neck or
face.
•Do not allow more than one
child to use a single seat belt.
WARNING

2-29
Safety system of your vehicle
2
Seat belt use and injured people
A seat belt should be used when an
injured person is being transported.
Consult a physician for specific rec
ommendations.
One person per belt
Two people (including children) should
never attempt to use a single seat belt.
This could increase the severity of
injuries in case of an accident.
Do not lie down
Sitting in a reclined position when
the vehicle is in motion can be dan
gerous. Even when buckled up, the
protections of your restraint system
(seat belts and/or air bags) is greatly
reduced by reclining your seatback.
Seat belts must be snug against your hips and chest to work properly. Duringan accident, you could be thrown into the seat belt, causing neck or other
injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
the passenger’s neck will strike the
shoulder belt.
Care of seat belts
Seat belt systems should never be
disassembled or modified. In addi
tion, care should be taken to assure
that seat belts and belt hardware are
not damaged by seat hinges, doors
or other abuse.
•NEVER ride with a reclined seat
back when the vehicle is moving.
•Riding with a reclined seatback
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.
•Driver and passengers should
always sit well back in their seats,
properly belted, and with the seat
backs upright.
WARNING
When you return the rear seat
back to its upright position after
the rear seatback has been folded
down, be careful not to damage
the seat belt webbing or buckle.
Be sure that the webbing or buck
le does not get caught or pinched
in the rear seat. A seat belt with
damaged webbing or buckle could
possibly fail during a collision or
sudden stop, resulting in serious
injury. If the webbing or buckles
are damaged, get them replaced
immediately.
WARNING

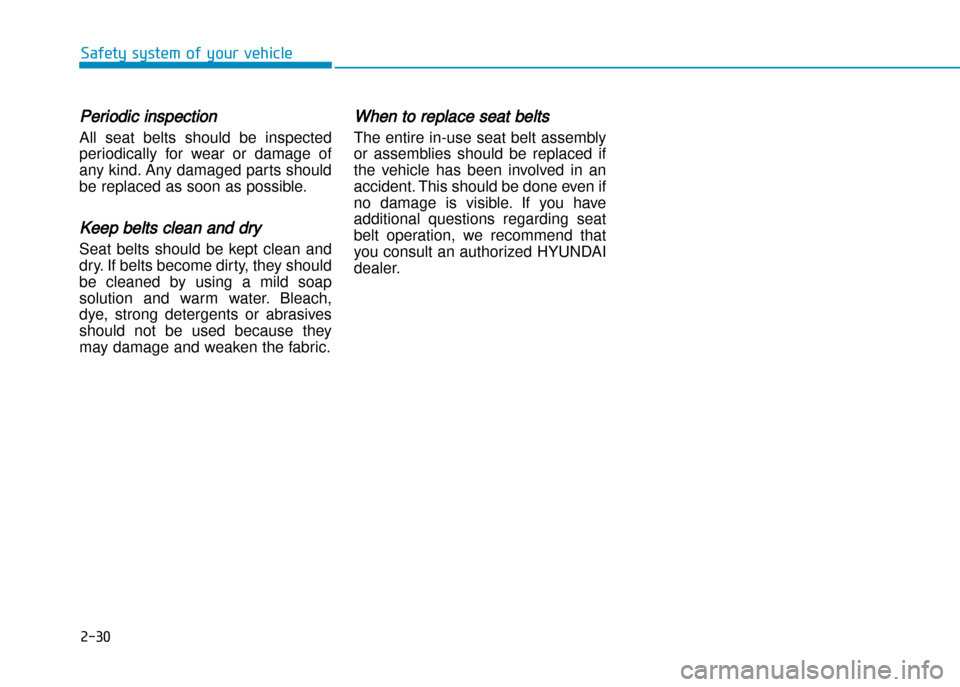

2-30
Safety system of your vehicle
Periodic inspection
All seat belts should be inspected
periodically for wear or damage of
any kind. Any damaged parts should
be replaced as soon as possible.
Keep belts clean and dry
Seat belts should be kept clean and
dry. If belts become dirty, they should
be cleaned by using a mild soap
solution and warm water. Bleach,
dye, strong detergents or abrasives
should not be used because they
may damage and weaken the fabric.
When to replace seat belts
The entire inuse seat belt assembly
or assemblies should be replaced if
the vehicle has been involved in an
accident. This should be done even if
no damage is visible. If you have
additional questions regarding seat
belt operation, we recommend that
you consult an authorized HYUNDAI
dealer.

2-31
Safety system of your vehicle
2
Children always in the rear
Children under age 13 must always
ride in the rear seats and must
always be properly restrained to min
imize the risk of injury in an accident,
sudden stop or sudden maneuver.
According to accident statistics, chil
dren are safer when properly
restrained in the rear seats than in
the front seat. Children too large for a
Child Restraint System must use the
seat belts provided.Most countries have Child Restraint
Systems which require children to
travel in approved Child Restraint
Systems. The laws governing the
age or height/weight restrictions at
which seat belts can be used instead
of Child Restraint System differs
among countries, so you should be
aware of the specific requirements in
your country, and where you are travelling.
Child Restraint Systems must be
properly placed and installed in the
rear seat. You must use a commer
cially available Child Restraint System
that meets the requirements of the
Safety Standards of your country.
Child Restraint Systems are general
ly designed to be secured in a vehi
cle seat by lap belt or the lap belt
portion of a lap/shoulder belt, or by a
toptether and/or ISOFIX anchorage
in the rear seats of the vehicle.
Child Restraint System (CRS)
always in the rear
Infants and younger children must be
restrained in an appropriate rearward
facing or forwardfacing CRS that has
first been properly secured to the rear
seat of the vehicle. Read and comply
with the instructions for installation
and use provided by the manufacturer
of the Child Restraint System.
CHILD RESTRAINT SYSTEM
•Always follow the Child Restraint
System manufacturer’s instructions
for installation and use.
•Always properly restrain your child
in the Child Restraint System.
•Do not use an infant carrier or a
child safety seat that “hooks” over a
seatback, it may not provide ade
quate protection in an accident.
•After an accident, we recommend a
HYUNDAI dealer check the Child
Restraint System, seat belts,
ISOFIX anchorages and toptether
anchorages.
WARNING
Always properly restrain children
in the rear seats of the vehicle,
unless the air bag on the front
passenger seat is deactivated.
Children of all ages are safer
when restrained in the rear seat. A
child riding in the front passenger
seat can be forcefully struck by an
inflating air bag resulting in SERI
OUS INJURY or DEATH.
WARNING

2-32
Safety system of your vehicle
To reduce the chance of serious or
fatal injuries:
•Children of all ages are safer
when restrained in the rear seat.
A child riding in the front passen
ger seat can be forcefully struck
by an inflating air bag resulting in
serious or fatal injuries.
•Always follow the instructions for
installation and use of the child
restraint maker.
•Always make sure the child seat
is secured properly in the car and
your child is securely restrained
in the child seat.
•Never hold a child in your arms or
lap when riding in a vehicle. The
violent forces created during a
crash will tear the child from your
arms and throw the child against
the car’s interior.
(Continued)
WARNING (Continued)
•Never put a seat belt over yourself
and a child. During a crash, the
belt could press deep into the
child causing serious internal
injuries.
•Never leave children unattended
in a vehicle – not even for a short
time. The car can heat up very
quickly, resulting in serious
injuries to children inside. Even
very young children may inadver
tently cause the vehicle to move,
entangle themselves in the win
dows, or lock themselves or oth
ers inside the vehicle.
•Never allow two children, or any
two persons, to use the same seat
belt.
•Children often squirm and reposi
tion themselves improperly.
Never let a child ride with the
shoulder belt under their arm or
behind their back. Always proper
ly position and secure children in
rear seat.
(Continued)
(Continued)
•Never allow a child to standup or
kneel on the seat or floorboard of
a moving vehicle. During a colli
sion or sudden stop, the child can
be violently thrown against the
vehicles interior, resulting in seri
ous injury.
•Never use an infant carrier or a
child safety seat that "hooks"
over a seatback, it may not pro
vide adequate security in an acci
dent.
•Seat belts can become very hot,
especially when the car is parked
in direct sunlight. Always check
seat belt buckles before fasten
ing them over a child.
•After an accident, we recom
mend that the system be
checked by an authorized
HYUNDAI dealer.
•If there is not enough space to
place the child restraint system
because of the driver's seat,
install the child restraint system
in the rear right seat.

2-33
Safety system of your vehicle
2
Installing a Child Restraint
System (CRS)
After selecting a proper Child Restraint
System and checking that the Child
Restraint System fits properly in the
rear of this vehicle, you are ready to
install the Child Restraint System
according to the manufacturer’s
instruction. There are three general
steps in installing the Child Restraint
Systems properly: •
Properly secure the Child Restraint
System to the vehicle.All Child
Restraint System must be secured
to the vehicle with the lap belt or
lap part of a lap/shoulder belt or
with the ISOFIX toptether and/or
ISOFIX anchorage.
•
Make sure the Child Restraint
System is firmly secured. After
installing a Child Restraint System
to the vehicle, push and pull the
seat forward and from sidetoside
to verify that it is securely attached
to the seat. A Child Restraint
System secured with a seat belt
should be installed as firmly as
possible. However, some sideto
side movement can be expected. When installing a Child Restraint
System, adjust the vehicle seat (up
and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.
•
Secure the child in the Child
Restraint System. Make sure the
child is properly strapped in the
Child Restraint System according
to the Child Restraint System man
ufacturer’s instructions.
Before installing your Child
Restraint System always:
Read and follow the instructions
provided by the manufacturer of
the Child Restraint System.
Failure to follow all warnings and
instructions could increase the risk
of the SERIOUS INJURY or
DEATH if an accident occurs.
WARNING
If the vehicle headrest prevents
proper installation of a Child
Restraint System, the headrest of
the respective seating position
shall be readjusted or entirely
removed.
WARNING
A Child Restraint System in a
closed vehicle can become very
hot. To prevent burns, check the
seating surface and buckles
before placing your child in the
Child Restraint System.
CAUTION

2-34
Safety system of your vehicle
ISOFIX anchorage and toptether
anchorage (ISOFIX anchorages
system) for children
The ISOFIX system holds a Child
Restraint System during driving and
in an accident. This system is
designed to make installation of the
Child Restraint System easier and
reduce the possibility of improperly
installing your Child Restraint
System. The ISOFIX system uses
anchors in the vehicle and attach
ments on the Child Restraint System.
The ISOFIX system eliminates the
need to use seat belts to secure the
Child Restraint System to the rear
seats.
ISOFIX anchorages are metal bars
built into the vehicle. There are twolower anchors for each ISOFIX seat
ing position that will accommodate a
Child Restraint System with lower
attachments. To use the ISOFIX system in your
vehicle, you must have a Child
Restraint System with ISOFIX attach
ments. (An ISOFIX Child Restraint
System may only be installed if it has
vehiclespecific or universal approval
in accordance with the requirements
of ECER44 or ECER129.)
The Child Restraint System manu
facturer will provide you with instruc
tions on how to use the Child
Restraint System with its attach
ments for the ISOFIX anchorages.
ISOFIX anchorages have been pro
vided in the left and right outboard
rear seating positions. Their locations
are shown in the illustration. There
are no ISOFIX anchorages provided
for the center rear seating position.
OLM039035
