7-70
Maintenance

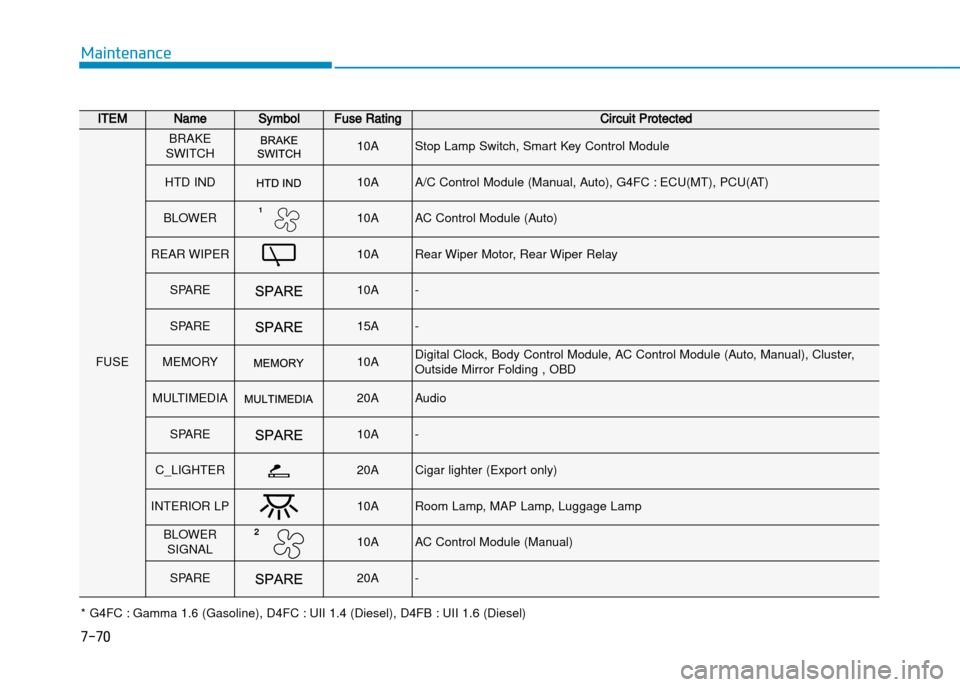

ITEMNameSymbolFuse RatingCircuit Protected
FUSE
BRAKE
SWITCH10AStop Lamp Switch, Smart Key Control Module
HTD IND10AA/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT)
BLOWER110AAC Control Module (Auto)
REAR WIPER10ARear Wiper Motor, Rear Wiper Relay
SPARE10A
SPARE15A
MEMORY10ADigital Clock, Body Control Module, AC Control Module (Auto, Manual), Cluster,
Outside Mirror Folding , OBD
MULTIMEDIA20AAudio
SPARE10A
C_LIGHTER20ACigar lighter (Export only)
INTERIOR LP 10ARoom Lamp, MAP Lamp, Luggage Lamp
BLOWER SIGNAL210AAC Control Module (Manual)
SPARE20A
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)
