2016 FIAT 500X Owners Manual

Remote Start Windshield Wiper De–Icer
Activation — If Equipped
When Remote Start is active and the outside ambient
temperature is less than 40° F (4.4° C), the Windshield
Wiper De-Icer will be enabled. Exiting Remote Start will
resume previous operation, except if the Windshield
Wiper De-Icer is active. The Windshield Wiper De-Icer
timer and operation will continue.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthor-
ized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses a Key Fob with a factory-mated Remote
Keyless Entry (RKE) transmitter, a Keyless Push Button
Ignition, and a RF receiver to prevent unauthorizedvehicle operation. Therefore, only Key Fobs that are
programmed to the vehicle can be used to start and
operate the vehicle. The system will not allow the engine
to crank if an invalid Key Fob tries to start the engine.
After placing the ignition to the ON/RUN position, if
there is a problem with the system, the Vehicle Security
Light will turn on. This condition will result in the engine
being shut off after two seconds.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
CAUTION!
•
Do not make modifications or alterations to the
immobilizer system. Modifications or alterations to
the immobilization system may result in a loss of
security protection.
(Continued)
4
GETTING TO KNOW YOUR VEHICLE 47

CAUTION!(Continued)
•The Sentry Key Immobilizer system is not compat-
ible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle
starting problems and loss of security protection.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and 2. This device must accept any interference received,
including interference that may cause undesired op-
eration.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.VEHICLE SECURITY ALARM
The Vehicle Security Alarm monitors the vehicle doors
for unauthorized entry and if the ignition switch is cycled
to the ON/RUN position without a valid key. While the
Vehicle Security Alarm is armed, interior switches for
door locks and liftgate release are disabled.
48 GETTING TO KNOW YOUR VEHICLE

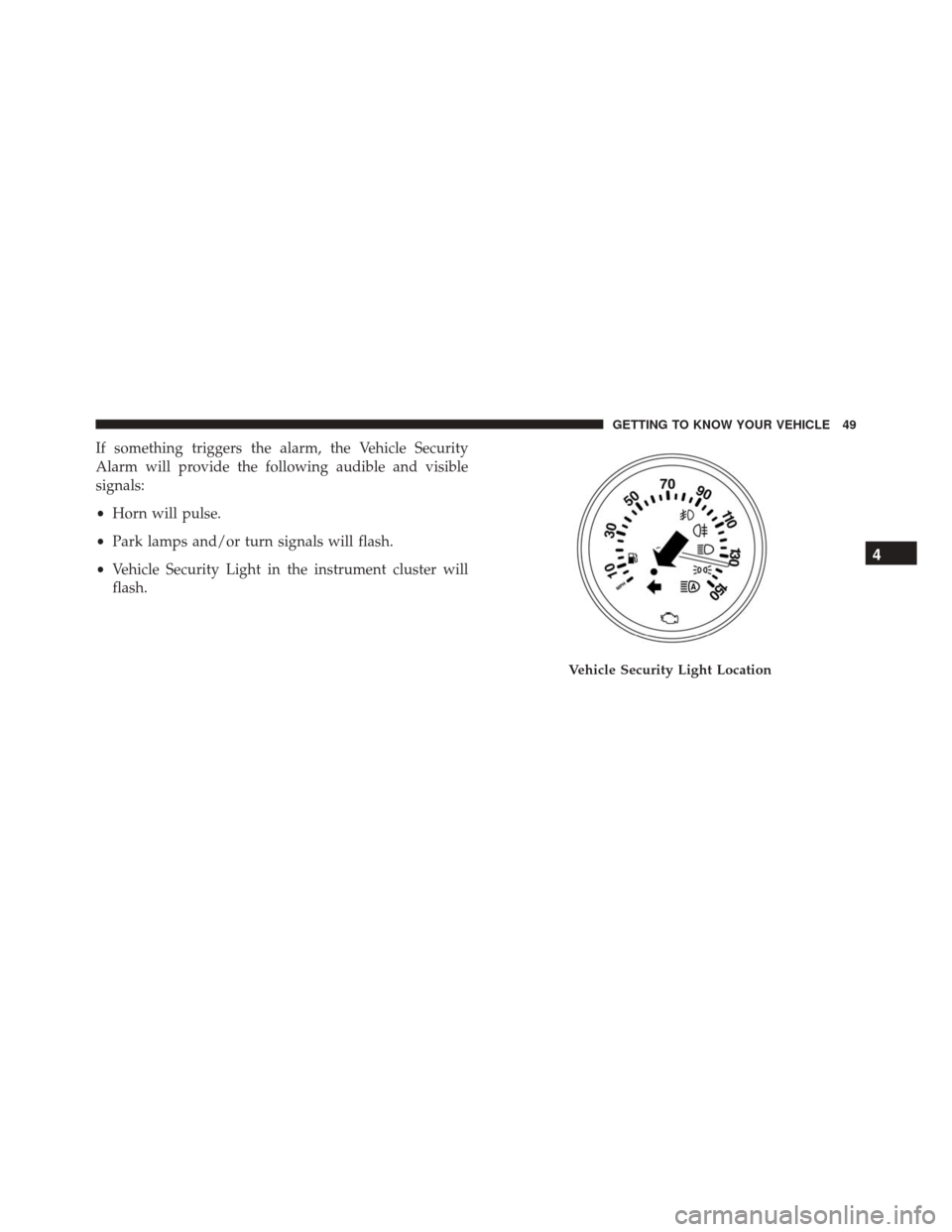

If something triggers the alarm, the Vehicle Security
Alarm will provide the following audible and visible
signals:
•Horn will pulse.
• Park lamps and/or turn signals will flash.
• Vehicle Security Light in the instrument cluster will
flash.
Vehicle Security Light Location
4
GETTING TO KNOW YOUR VEHICLE 49

To Arm The System
Follow these steps to arm the Vehicle Security Alarm:
1. Make sure the vehicles ignition is cycled to the STOP/OFF position (refer to Starting The EngineinStart-
ing And Operating for further information).
• For vehicles equipped with Keyless Enter-N-Go,
make sure the vehicle ignition system is OFF.
• For vehicles not equipped with Keyless Enter-N-Go,
make sure the vehicle ignition system is STOP/OFF,
and the key is physically removed from the ignition.
2. Perform one of the following methods to lock the vehicle:
• Push LOCK on the interior power door lock switch
with the driver and/or passenger door open.
• Push the LOCK button on the exterior Passive Entry
Door Handle with a valid Key Fob available in the same exterior zone (for further information, refer to
Keyless Enter-N-Go
inGetting To Know Your
Vehicle”).
• Push the LOCK button on the Remote Keyless Entry
(RKE) transmitter.
3. If any doors are open, close them.
NOTE: •If a second chime is heard after approximately four
seconds from arming the alarm, disarm the alarm by
pushing the UNLOCK button. Check for the correct
closure of doors and Liftgate, then reactivate the
system by following steps 1 and 2.
• If a second chime is heard after approximately four
seconds from arming the alarm, even with the doors
and Liftgate properly closed, a fault may have oc-
curred during the arming operation. If this occurs,
contact your authorized dealer.
50 GETTING TO KNOW YOUR VEHICLE

To Disarm The System
The Vehicle Security Alarm can be disarmed using any of
the following methods:
•Push the UNLOCK button on the Remote Keyless
Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle with a
valid Key Fob available in the same exterior zone (if
equipped). Refer to Keyless Enter-N-Go inGetting
To Know Your Vehicle for further information.
• Cycle the vehicle ignition system out of the STOP/OFF
position.
– For vehicles equipped with Keyless Enter-N-Go, push the Keyless Enter-N-Go START/STOP button
(requires at least one valid Key Fob in the vehicle).
– For vehicles not equipped with Keyless Enter-N-Go, insert a valid key into the ignition switch and turn
the key to the MAR/RUN position. NOTE:
•
The driver’s door key cylinder cannot arm or disarm
the Vehicle Security Alarm.
• When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previ-
ously described arming sequences has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the vehicle
and open a door, the alarm will sound. If this occurs,
disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected, the Vehicle Security Alarm will
remain armed when the battery is reconnected.
4
GETTING TO KNOW YOUR VEHICLE 51

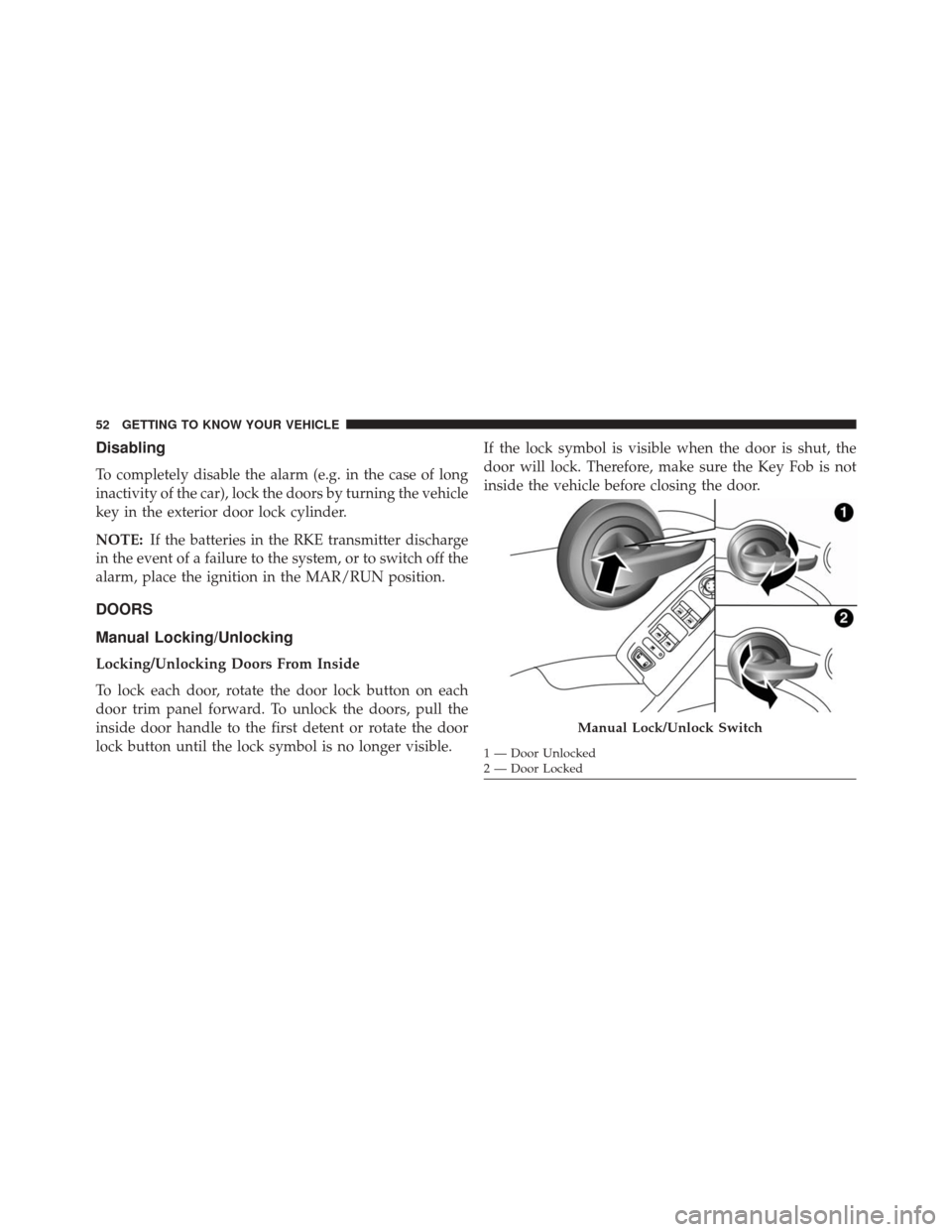

Disabling
To completely disable the alarm (e.g. in the case of long
inactivity of the car), lock the doors by turning the vehicle
key in the exterior door lock cylinder.
NOTE:If the batteries in the RKE transmitter discharge
in the event of a failure to the system, or to switch off the
alarm, place the ignition in the MAR/RUN position.
DOORS
Manual Locking/Unlocking
Locking/Unlocking Doors From Inside
To lock each door, rotate the door lock button on each
door trim panel forward. To unlock the doors, pull the
inside door handle to the first detent or rotate the door
lock button until the lock symbol is no longer visible. If the lock symbol is visible when the door is shut, the
door will lock. Therefore, make sure the Key Fob is not
inside the vehicle before closing the door.
Manual Lock/Unlock Switch
1 — Door Unlocked
2 — Door Locked
52 GETTING TO KNOW YOUR VEHICLE

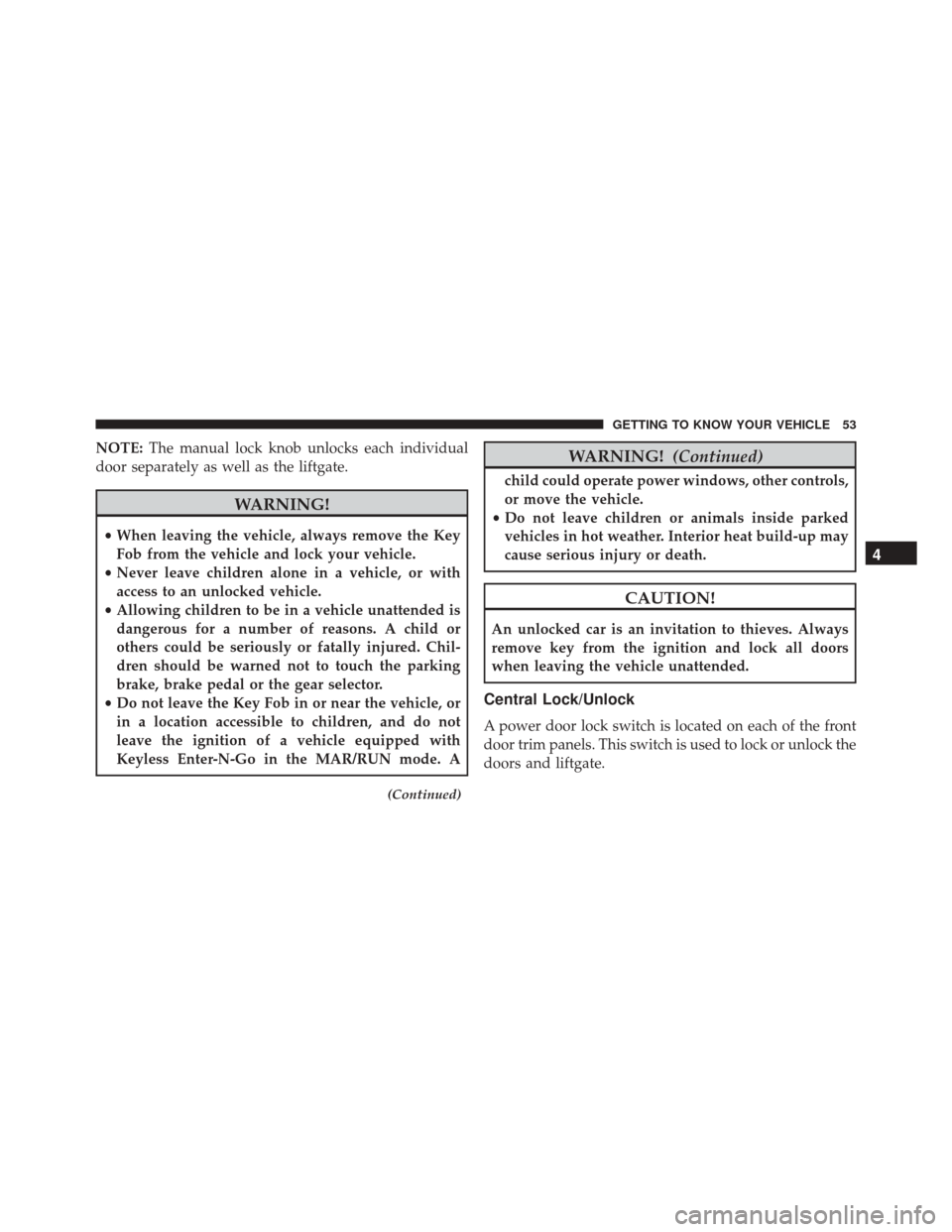

NOTE:The manual lock knob unlocks each individual
door separately as well as the liftgate.
WARNING!
• When leaving the vehicle, always remove the Key
Fob from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or
others could be seriously or fatally injured. Chil-
dren should be warned not to touch the parking
brake, brake pedal or the gear selector.
• Do not leave the Key Fob in or near the vehicle, or
in a location accessible to children, and do not
leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the MAR/RUN mode. A
(Continued)
WARNING! (Continued)
child could operate power windows, other controls,
or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Central Lock/Unlock
A power door lock switch is located on each of the front
door trim panels. This switch is used to lock or unlock the
doors and liftgate.
4
GETTING TO KNOW YOUR VEHICLE 53

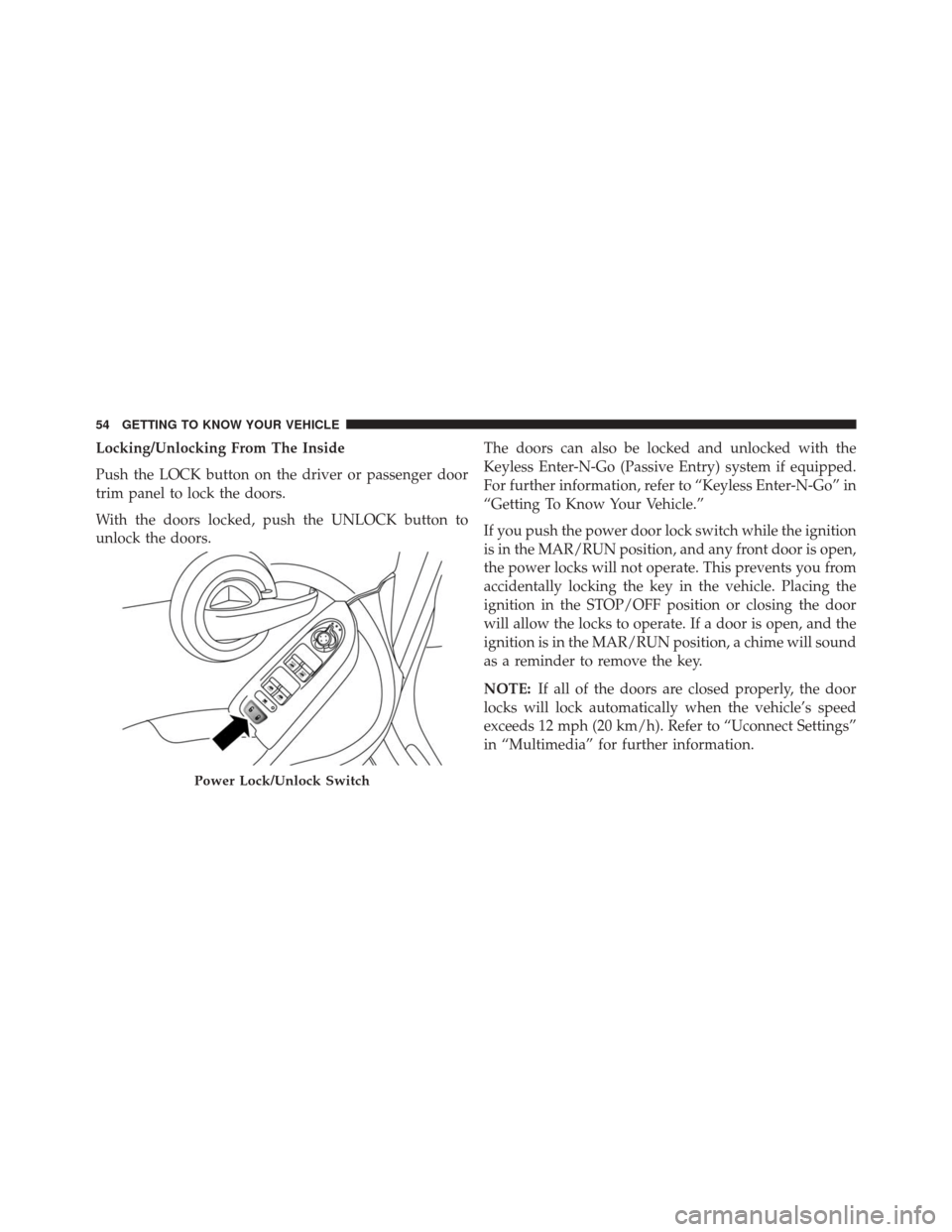

Locking/Unlocking From The Inside
Push the LOCK button on the driver or passenger door
trim panel to lock the doors.
With the doors locked, push the UNLOCK button to
unlock the doors.The doors can also be locked and unlocked with the
Keyless Enter-N-Go (Passive Entry) system if equipped.
For further information, refer to “Keyless Enter-N-Go” in
“Getting To Know Your Vehicle.”
If you push the power door lock switch while the ignition
is in the MAR/RUN position, and any front door is open,
the power locks will not operate. This prevents you from
accidentally locking the key in the vehicle. Placing the
ignition in the STOP/OFF position or closing the door
will allow the locks to operate. If a door is open, and the
ignition is in the MAR/RUN position, a chime will sound
as a reminder to remove the key.
NOTE:
If all of the doors are closed properly, the door
locks will lock automatically when the vehicle’s speed
exceeds 12 mph (20 km/h). Refer to “Uconnect Settings”
in “Multimedia” for further information.
Power Lock/Unlock Switch
