Ashtray — If Equipped
NOTE:Ashtrays can be purchased at an authorized
dealer through MOPAR parts.
The ashtray is a plastic container that can be placed into
one of the cup holders.
Front Armrest
The front armrest is located between the front seats.
The armrest can be adjusted by moving it in the direction
indicated by the arrows.
Ashtray Location
Front Armrest Handle
4
GETTING TO KNOW YOUR VEHICLE 151

Push the storage handle and lift up the armrest to access
the storage compartment.
WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Storage Compartment
152 GETTING TO KNOW YOUR VEHICLE

Cupholders
There are two cupholders for the front seat passengers,
located in the center console.
Grab Handles
The Grab Handles are located immediately above the
doors. The rear handles are equipped with hooks for
dress hangers.
Front CupholdersRear Grab Handle Assembly1 — Grab Handle
2 — Hook
4
GETTING TO KNOW YOUR VEHICLE 153

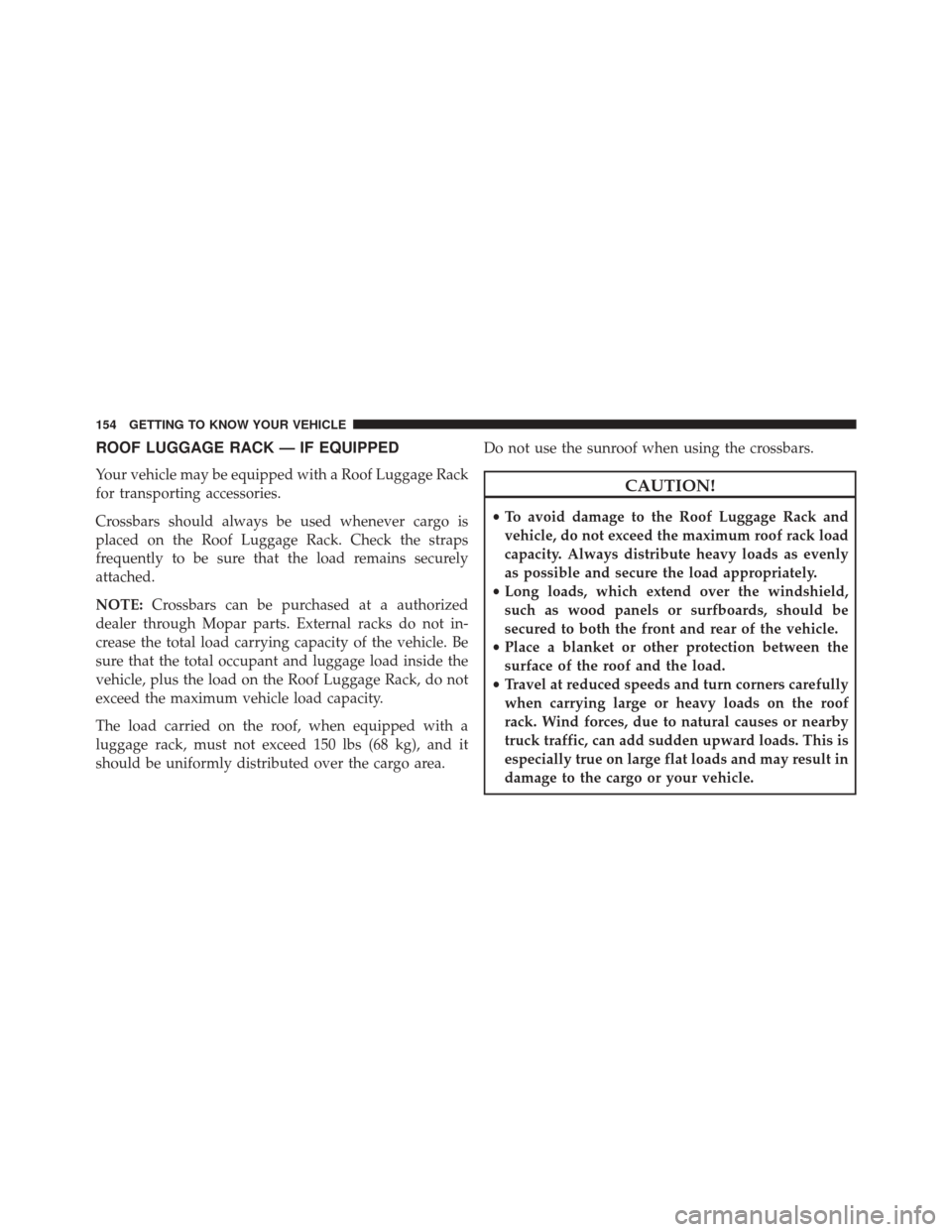

ROOF LUGGAGE RACK — IF EQUIPPED
Your vehicle may be equipped with a Roof Luggage Rack
for transporting accessories.
Crossbars should always be used whenever cargo is
placed on the Roof Luggage Rack. Check the straps
frequently to be sure that the load remains securely
attached.
NOTE:Crossbars can be purchased at a authorized
dealer through Mopar parts. External racks do not in-
crease the total load carrying capacity of the vehicle. Be
sure that the total occupant and luggage load inside the
vehicle, plus the load on the Roof Luggage Rack, do not
exceed the maximum vehicle load capacity.
The load carried on the roof, when equipped with a
luggage rack, must not exceed 150 lbs (68 kg), and it
should be uniformly distributed over the cargo area. Do not use the sunroof when using the crossbars.CAUTION!
•
To avoid damage to the Roof Luggage Rack and
vehicle, do not exceed the maximum roof rack load
capacity. Always distribute heavy loads as evenly
as possible and secure the load appropriately.
• Long loads, which extend over the windshield,
such as wood panels or surfboards, should be
secured to both the front and rear of the vehicle.
• Place a blanket or other protection between the
surface of the roof and the load.
• Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof
rack. Wind forces, due to natural causes or nearby
truck traffic, can add sudden upward loads. This is
especially true on large flat loads and may result in
damage to the cargo or your vehicle.
154 GETTING TO KNOW YOUR VEHICLE

WARNING!
Roof rack cargo must be securely tied down before
driving your vehicle. Improperly secured loads may
fall off the vehicle, particularly at high speeds, re-
sulting in personal injury or property damage. Fol-
low the Roof Luggage Rack warnings and cautions
when carrying cargo on your roof rack.
