2016 FIAT 500X Owners Manual

WARNING!
Leaving the Electronic Speed Control system on
when not in use is dangerous. You could accidentally
set the system or cause it to go faster than you want.
You could lose control and have an accident. Always
leave the system OFF when you are not using it.
Setting A Desired Speed
Turn the Speed Control ON.
NOTE:The vehicle should be traveling at a steady speed
and on level ground before pushing the SET (+) or SET (-)
button.
When the vehicle has reached the desired speed, push the
SET (+) or SET (-) button and release. Release the
accelerator and the vehicle will operate at the selected
speed.
Deactivation
A soft tap on the brake pedal, pushing the CANCEL
button, ESC intervention, Forward collision mitigation,
Electronic Park Brake Intervention, or normal brake
pressure while slowing the vehicle will deactivate the
Speed Control without erasing the set speed from
memory.
Pushing the ON/OFF button or turning the ignition
switch OFF erases the set speed from memory.
Resume Speed
To resume a previously set speed, push the RES button
and release. Resume can be used at any speed above
20 mph (32 km/h).
7
STARTING AND OPERATING 303

Varying The Speed
To Increase Speed
When the Speed Control is set, you can increase speed by
pushing the SET+button.
The drivers preferred units can be selected through the
Uconnect system if equipped. Refer to ”Uconnect Set-
tings” in “Multimedia” for more information. The speed
increment shown is dependant on the chosen speed unit
of U.S. (mph) or Metric (km/h):
U.S. Speed (mph)
• Pushing the SET +button once will result ina1mph
increase in set speed. Each subsequent tap of the
button results in an increase of 1 mph.
• If the button is continually pushed, the speed will
continue to increase until the button is released, then
the new set speed will be established. Metric Speed (km/h)
•
Pushing the SET +button once will result in a 1 km/h
increase in set speed. Each subsequent tap of the
button results in an increase of 1 km/h.
• If the button is continually pushed, the speed will
continue to increase until the button is released, then
the new set speed will be established.
To Decrease Speed
When the Speed Control is set, you can decrease speed by
pushing the SET -button.
304 STARTING AND OPERATING

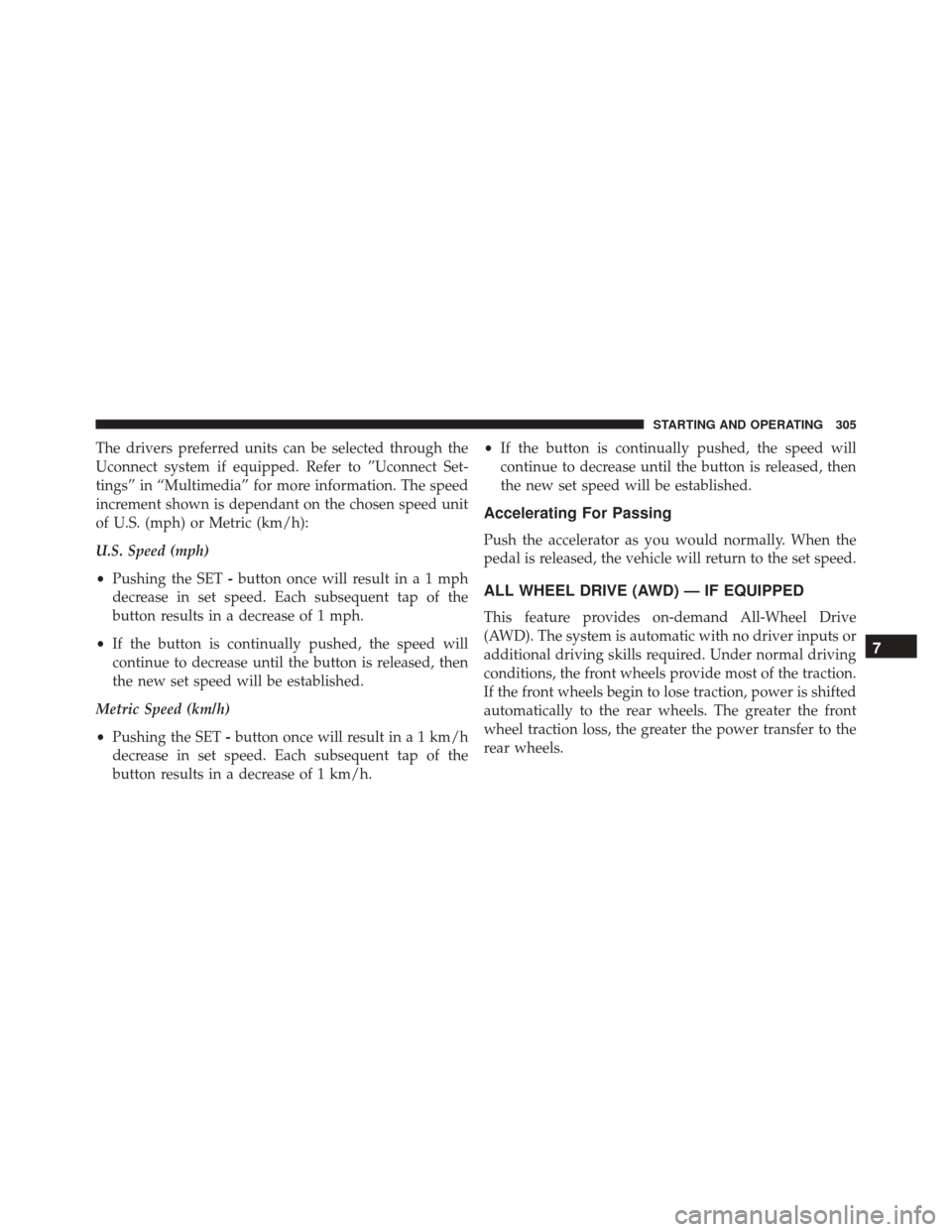

The drivers preferred units can be selected through the
Uconnect system if equipped. Refer to ”Uconnect Set-
tings” in “Multimedia” for more information. The speed
increment shown is dependant on the chosen speed unit
of U.S. (mph) or Metric (km/h):
U.S. Speed (mph)
•Pushing the SET -button once will result ina1mph
decrease in set speed. Each subsequent tap of the
button results in a decrease of 1 mph.
• If the button is continually pushed, the speed will
continue to decrease until the button is released, then
the new set speed will be established.
Metric Speed (km/h)
• Pushing the SET -button once will result in a 1 km/h
decrease in set speed. Each subsequent tap of the
button results in a decrease of 1 km/h. •
If the button is continually pushed, the speed will
continue to decrease until the button is released, then
the new set speed will be established.
Accelerating For Passing
Push the accelerator as you would normally. When the
pedal is released, the vehicle will return to the set speed.
ALL WHEEL DRIVE (AWD) — IF EQUIPPED
This feature provides on-demand All-Wheel Drive
(AWD). The system is automatic with no driver inputs or
additional driving skills required. Under normal driving
conditions, the front wheels provide most of the traction.
If the front wheels begin to lose traction, power is shifted
automatically to the rear wheels. The greater the front
wheel traction loss, the greater the power transfer to the
rear wheels.
7
STARTING AND OPERATING 305

Additionally, on dry pavement under heavy throttle
input (where one may have no wheel spin), torque will be
sent to the rear in a pre-emptive effort to improve vehicle
launch and performance characteristics.
CAUTION!
All wheels must have the same size and type tires.
Unequal tire sizes must not be used. Unequal tire
size may cause failure of the power transfer unit.
DYNAMIC SELECTOR — IF EQUIPPED
The Dynamic Selector combines the capabilities of the
vehicle control systems, along with driver input, to
provide the best performance in all driving conditions.The Dynamic Selector consists of the following positions:
Auto Mode –
This mode is designed for comfort and
safety in normal driving conditions. In versions equipped
with all-wheel drive this mode also reduces fuel con-
sumption, as automatically alters the distribution of
torque between the front and rear axle.Dynamic Selector Switch
306 STARTING AND OPERATING

All Weather Mode –This mode offers increased traction
control and stability control for low traction conditions
such as driving in snow or rain.
Sport Mode – This mode is designed to increase steering
feedback to the driver with a slight increase in effort and
changes the transmission shift schedules for more aggres-
sive shifting. This driving mode is useful while driving
on twisty roads where more steering precision is desired
in spirited cornering.
Warning Messages
In the event of a system fault, the system automatically
defaults to Automode and a message will appear in the
EVIC display.
Refer to “Electronic Vehicle Information Center (EVIC)”
in “Getting To Know Your Instrument Cluster” for fur-
ther information.
BRAKE CONTROL — IF EQUIPPED
Brake Control
The Brake Control system with mitigation provides the
driver with audible warnings, visual warnings (within
the EVIC), and may apply a brake jerk to warn the driver
when it detects a potential frontal collision. The warnings
and limited braking are intended to provide the driver
with enough time to react, avoid or mitigate the potential
collision.
NOTE:
• Brake Control monitors the information from the for-
ward looking sensors as well as the Electronic Brake
Controller (EBC), to calculate the probability of a
forward collision. When the system determines that a
forward collision is probable, the driver will be pro-
vided with audible and visual warnings and may
provide a brake jerk warning.
7
STARTING AND OPERATING 307

•If the driver does not take action based upon these
progressive warnings, then the system will provide a
limited level of active braking to help slow the vehicle
and mitigate the potential forward collision. If the
driver reacts to the warnings by braking and the
system determines that the driver intends to avoid the
collision by braking but has not applied sufficient
brake force, the system will compensate and provide
additional brake force as required.
Vehicles With A Manual Transmission: After the end of
the intervention of automatic braking, the engine could
stall, unless the driver can depress the clutch pedal.
Vehicles With Automatic Transmission: After the end of
the intervention of automatic braking, the transmission
may remain in last gear stored: therefore the car could
lurch forward, once the brakes release a few seconds
later. If the Brake Control event stops the vehicle com-
pletely, the system will hold the vehicle at standstill for
two seconds and then release the brakes. If a Brake Control event begins at a speed below 20 mph
(32 km/h), the system may provide the maximum brak-
ing possible to mitigate the potential forward collision. If
the Brake Control event stops the vehicle completely, the
system will hold the vehicle at standstill for two seconds
and then release the brakes.
Brake Control Message
308 STARTING AND OPERATING

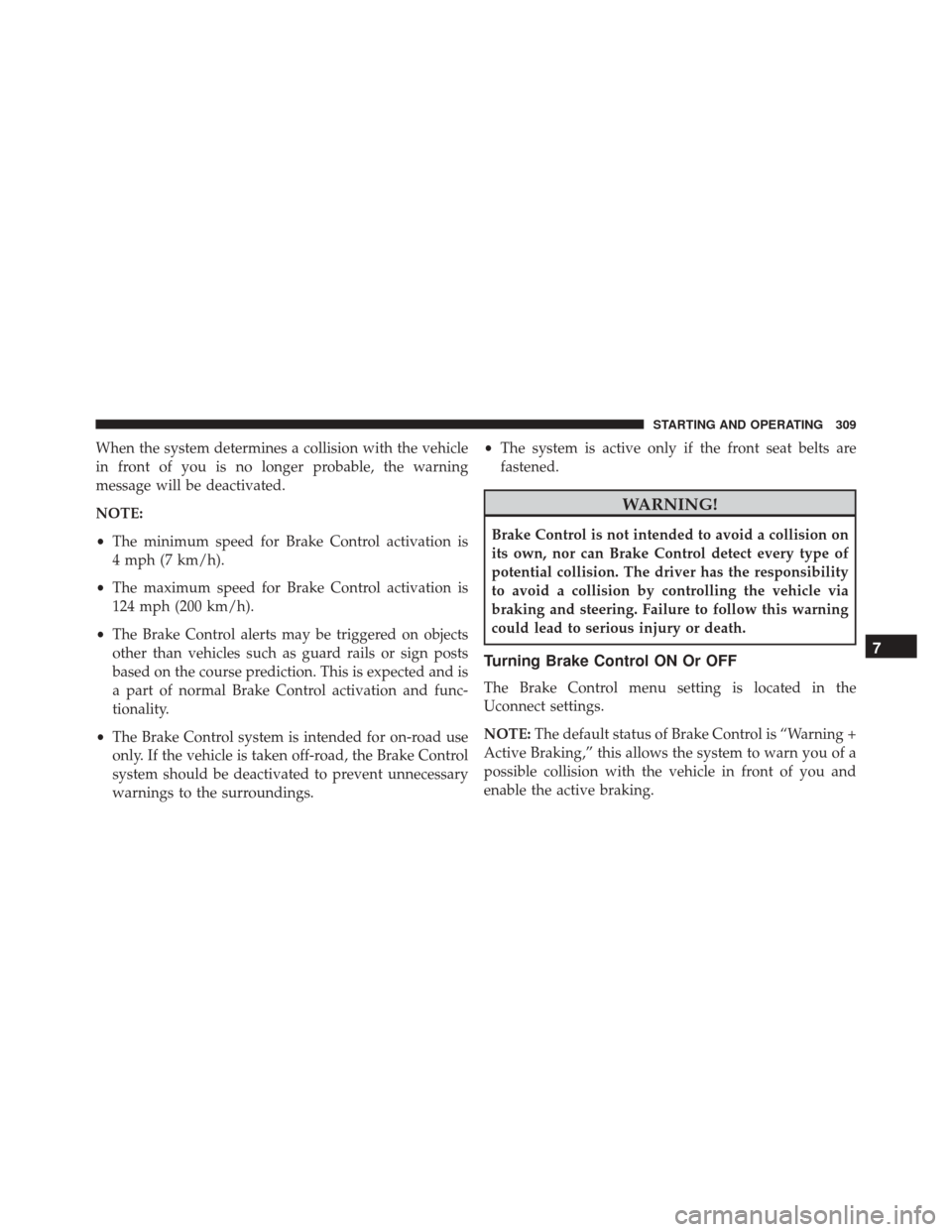

When the system determines a collision with the vehicle
in front of you is no longer probable, the warning
message will be deactivated.
NOTE:
•The minimum speed for Brake Control activation is
4 mph (7 km/h).
• The maximum speed for Brake Control activation is
124 mph (200 km/h).
• The Brake Control alerts may be triggered on objects
other than vehicles such as guard rails or sign posts
based on the course prediction. This is expected and is
a part of normal Brake Control activation and func-
tionality.
• The Brake Control system is intended for on-road use
only. If the vehicle is taken off-road, the Brake Control
system should be deactivated to prevent unnecessary
warnings to the surroundings. •
The system is active only if the front seat belts are
fastened.
WARNING!
Brake Control is not intended to avoid a collision on
its own, nor can Brake Control detect every type of
potential collision. The driver has the responsibility
to avoid a collision by controlling the vehicle via
braking and steering. Failure to follow this warning
could lead to serious injury or death.
Turning Brake Control ON Or OFF
The Brake Control menu setting is located in the
Uconnect settings.
NOTE: The default status of Brake Control is “Warning +
Active Braking,” this allows the system to warn you of a
possible collision with the vehicle in front of you and
enable the active braking.
7
STARTING AND OPERATING 309

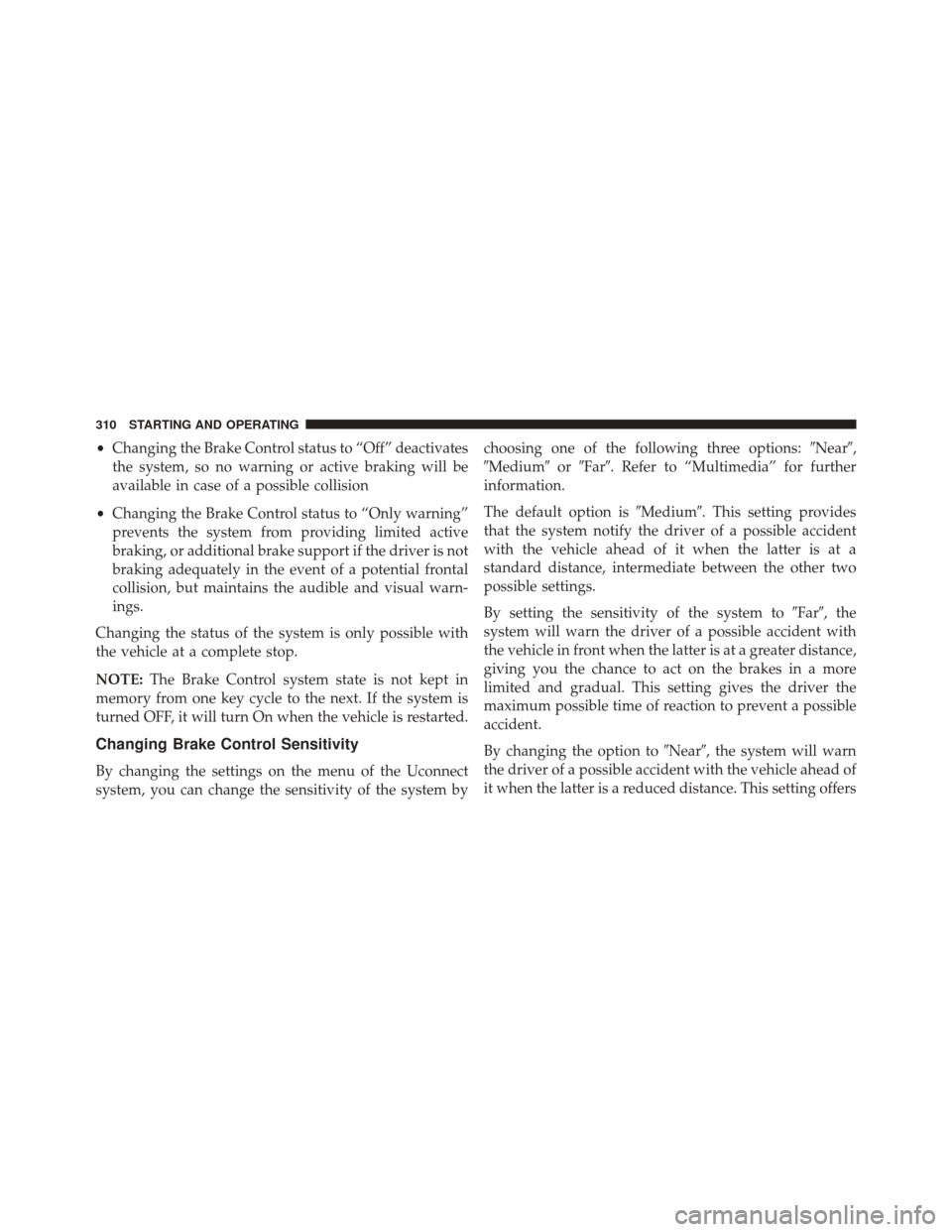

•Changing the Brake Control status to “Off” deactivates
the system, so no warning or active braking will be
available in case of a possible collision
• Changing the Brake Control status to “Only warning”
prevents the system from providing limited active
braking, or additional brake support if the driver is not
braking adequately in the event of a potential frontal
collision, but maintains the audible and visual warn-
ings.
Changing the status of the system is only possible with
the vehicle at a complete stop.
NOTE: The Brake Control system state is not kept in
memory from one key cycle to the next. If the system is
turned OFF, it will turn On when the vehicle is restarted.
Changing Brake Control Sensitivity
By changing the settings on the menu of the Uconnect
system, you can change the sensitivity of the system by choosing one of the following three options:
Near,
Medium orFar. Refer to “Multimedia” for further
information.
The default option is Medium. This setting provides
that the system notify the driver of a possible accident
with the vehicle ahead of it when the latter is at a
standard distance, intermediate between the other two
possible settings.
By setting the sensitivity of the system to Far, the
system will warn the driver of a possible accident with
the vehicle in front when the latter is at a greater distance,
giving you the chance to act on the brakes in a more
limited and gradual. This setting gives the driver the
maximum possible time of reaction to prevent a possible
accident.
By changing the option to Near, the system will warn
the driver of a possible accident with the vehicle ahead of
it when the latter is a reduced distance. This setting offers
