2016 FIAT 500X Owners Manual

When using a tow eye be sure to follow the “Tow Eye
Usage Precautions” and the “Towing A Disabled Vehicle”
instructions in this section.Tow Eye Usage Precautions
NOTE:
•
Ensure that the tow eye is properly seated and secure
in the mounting receptacle.
• The tow eye is recommended for use with an approved
tow bar and or rope.
• Do not use the tow eye to pull the vehicle onto a
flatbed truck.
• Do not use the tow eye to free a stuck vehicle. Refer to
“Freeing A Stuck Vehicle” in this section for further
information.
Tow Eye
8
IN CASE OF EMERGENCY 423

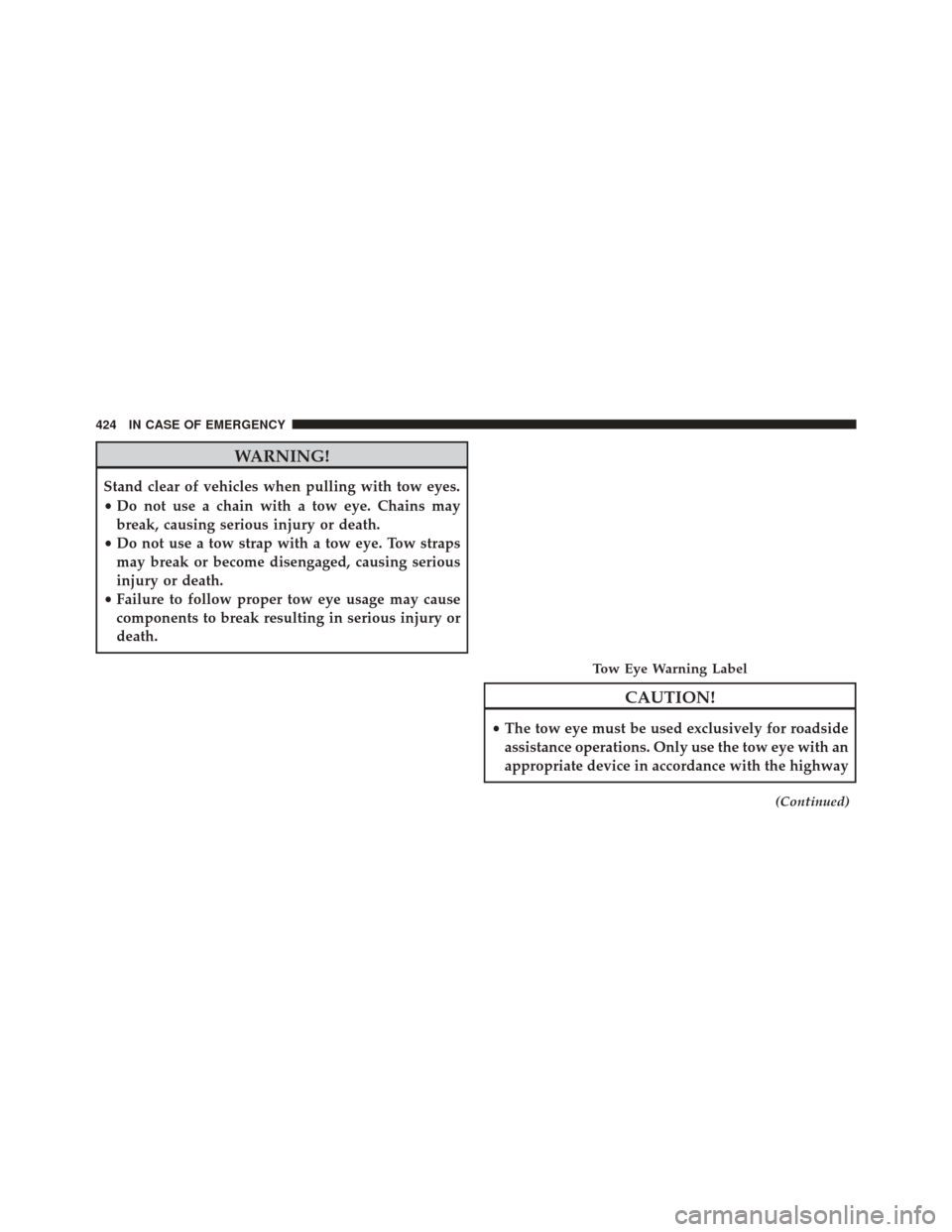

WARNING!
Stand clear of vehicles when pulling with tow eyes.
•Do not use a chain with a tow eye. Chains may
break, causing serious injury or death.
• Do not use a tow strap with a tow eye. Tow straps
may break or become disengaged, causing serious
injury or death.
• Failure to follow proper tow eye usage may cause
components to break resulting in serious injury or
death.
CAUTION!
• The tow eye must be used exclusively for roadside
assistance operations. Only use the tow eye with an
appropriate device in accordance with the highway
(Continued)
Tow Eye Warning Label
424 IN CASE OF EMERGENCY

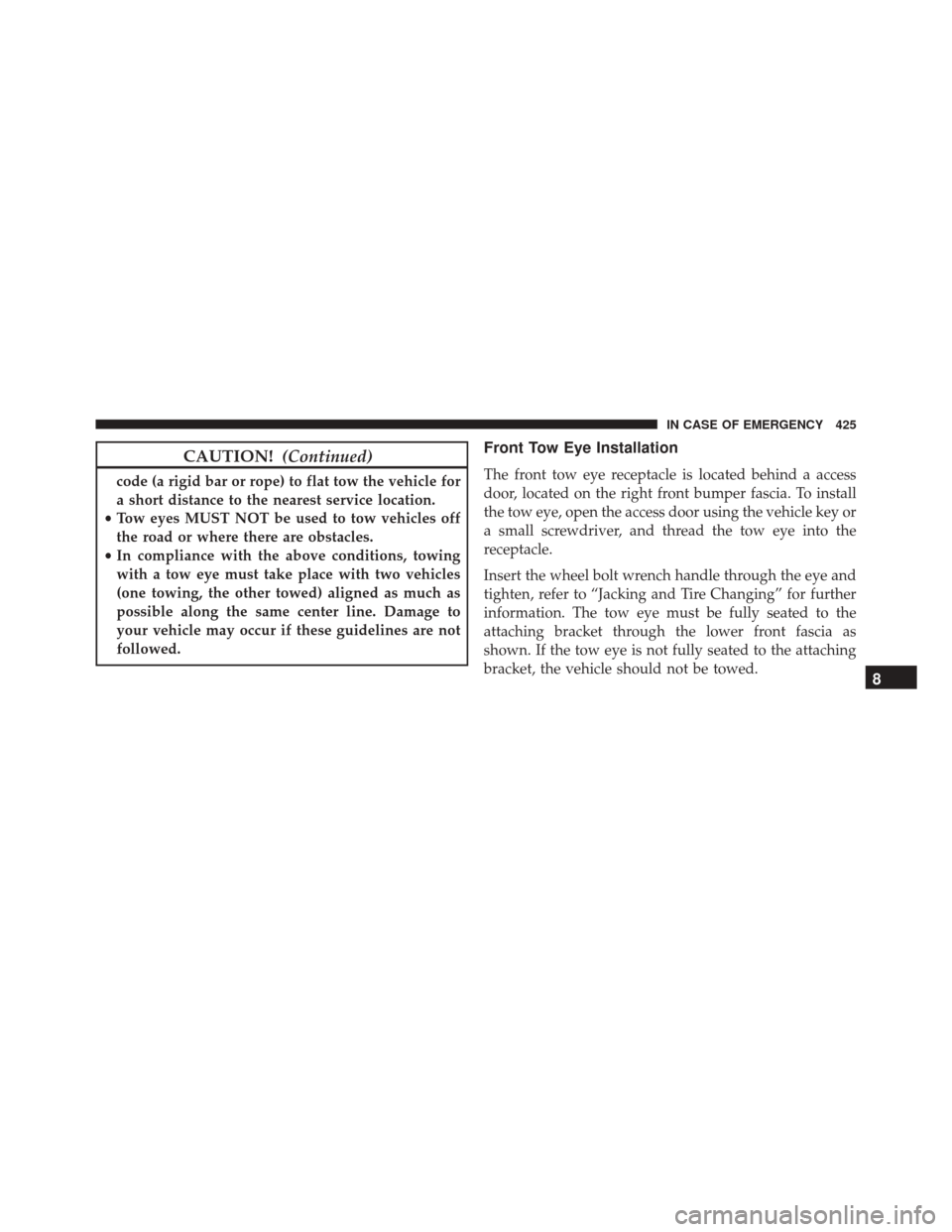

CAUTION!(Continued)
code (a rigid bar or rope) to flat tow the vehicle for
a short distance to the nearest service location.
• Tow eyes MUST NOT be used to tow vehicles off
the road or where there are obstacles.
• In compliance with the above conditions, towing
with a tow eye must take place with two vehicles
(one towing, the other towed) aligned as much as
possible along the same center line. Damage to
your vehicle may occur if these guidelines are not
followed.
Front Tow Eye Installation
The front tow eye receptacle is located behind a access
door, located on the right front bumper fascia. To install
the tow eye, open the access door using the vehicle key or
a small screwdriver, and thread the tow eye into the
receptacle.
Insert the wheel bolt wrench handle through the eye and
tighten, refer to “Jacking and Tire Changing” for further
information. The tow eye must be fully seated to the
attaching bracket through the lower front fascia as
shown. If the tow eye is not fully seated to the attaching
bracket, the vehicle should not be towed.
8
IN CASE OF EMERGENCY 425

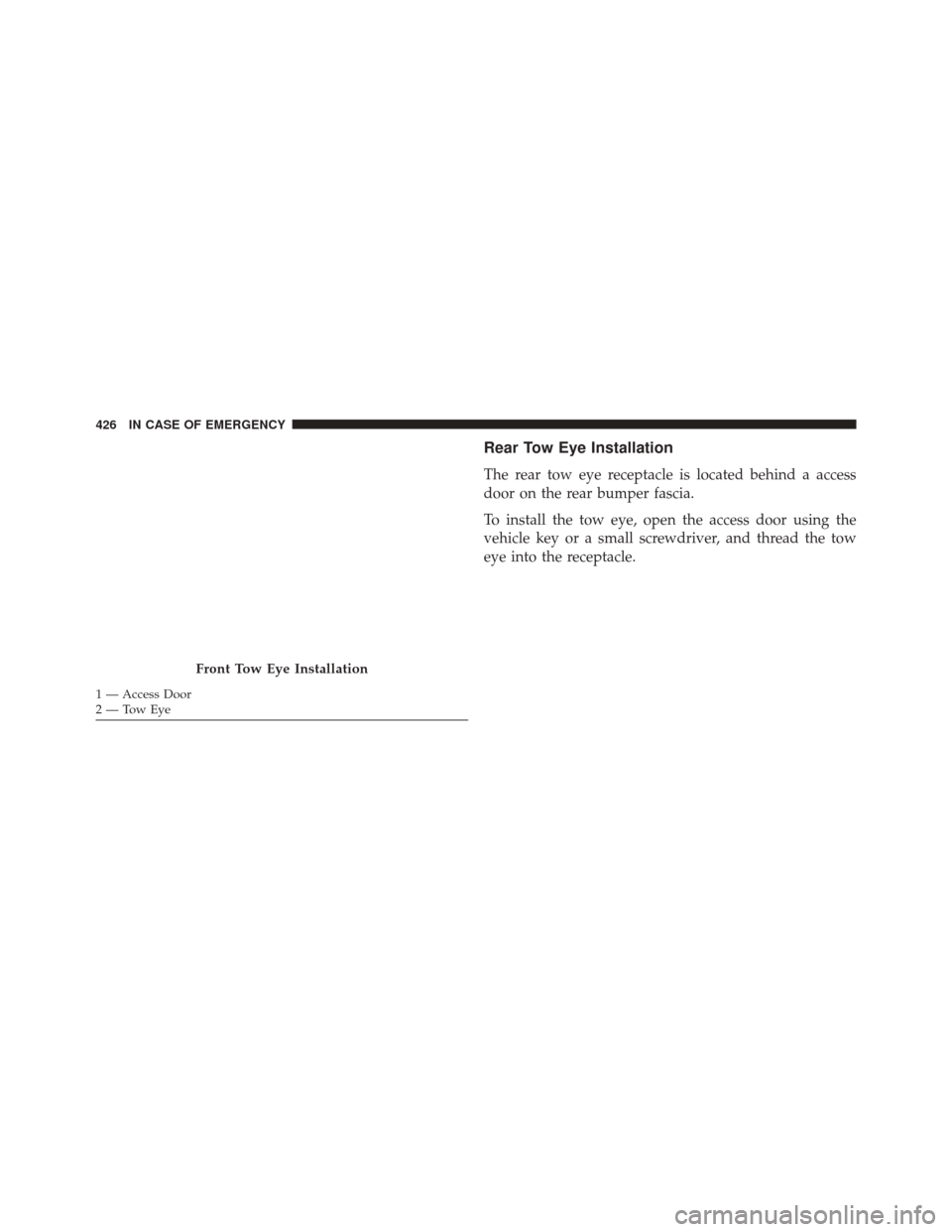

Rear Tow Eye Installation
The rear tow eye receptacle is located behind a access
door on the rear bumper fascia.
To install the tow eye, open the access door using the
vehicle key or a small screwdriver, and thread the tow
eye into the receptacle.
Front Tow Eye Installation
1 — Access Door
2—TowEye 426 IN CASE OF EMERGENCY

Insert the wheel bolt wrench handle through the eye and
tighten, refer to “Jacking and Tire Changing” for further
information. The tow eye must be fully seated to the
attaching bracket through the lower rear fascia. If the tow
eye is not fully seated to the attaching bracket, the vehicle
should not be towed.
Rear Tow Eye Installation
1 — Access Door
2—TowEye8
IN CASE OF EMERGENCY 427

MAINTAINING AND CARING FOR YOUR VEHICLE
CONTENTS
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS ......................... .431
 REPLACEMENT PARTS ..................432
 DEALER SERVICE ..................... .432
 MAINTENANCE SCHEDULE ..............433
▫ Maintenance Chart .....................435
 ENGINE COMPARTMENT — 1.4L TURBO
ENGINE ............................ .444
 ENGINE COMPARTMENT — 2.4L ENGINE . . . .445
 MAINTENANCE PROCEDURES ...........446▫
Engine Oil ......................... .446
▫ Engine Oil Filter ..................... .449
▫ Engine Air Cleaner Filter ................449
▫ Maintenance-Free Battery ...............450
▫ Air Conditioner Maintenance .............451
▫ Body Lubrication .....................452
▫ Wiper Blades ....................... .453
▫ Adding Washer Fluid ..................455
▫ Exhaust System ..................... .456
▫ Cooling System ..................... .458
9

▫Brake System ....................... .464
▫ Manual Transmission — If Equipped .......466
▫ Automatic Transmission — If Equipped .....467
▫ Appearance Care And Protection From
Corrosion .......................... .469
 RAISING THE VEHICLE .................476
 TIRE SAFETY INFORMATION .............478
▫ Tire Markings ....................... .478
▫ Tire Identification Number (TIN) ...........481
▫ Tire Terminology And Definitions ..........483
▫ Tire Loading And Tire Pressure ...........484
 TIRES — GENERAL INFORMATION ........489
▫ Tire Pressure ....................... .489▫
Tire Inflation Pressures .................490
▫ Tire Pressures For High Speed Operation . . . .492
▫ Radial Ply Tires ..................... .492
▫ Tire Types .......................... .493
▫ Run Flat Tires — If Equipped .............495
▫ Spare Tires — If Equipped ...............495
▫ Tire Spinning ....................... .496
▫ Tread Wear Indicators ..................496
▫ Life Of Tire ........................ .497
▫ Replacement Tires .....................497
 TIRE CHAINS (TRACTION DEVICES) .......499
 TIRE ROTATION RECOMMENDATIONS .....500
 STORING THE VEHICLE .................502
430 MAINTAINING AND CARING FOR YOUR VEHICLE
