2016 FIAT 500X Owners Manual

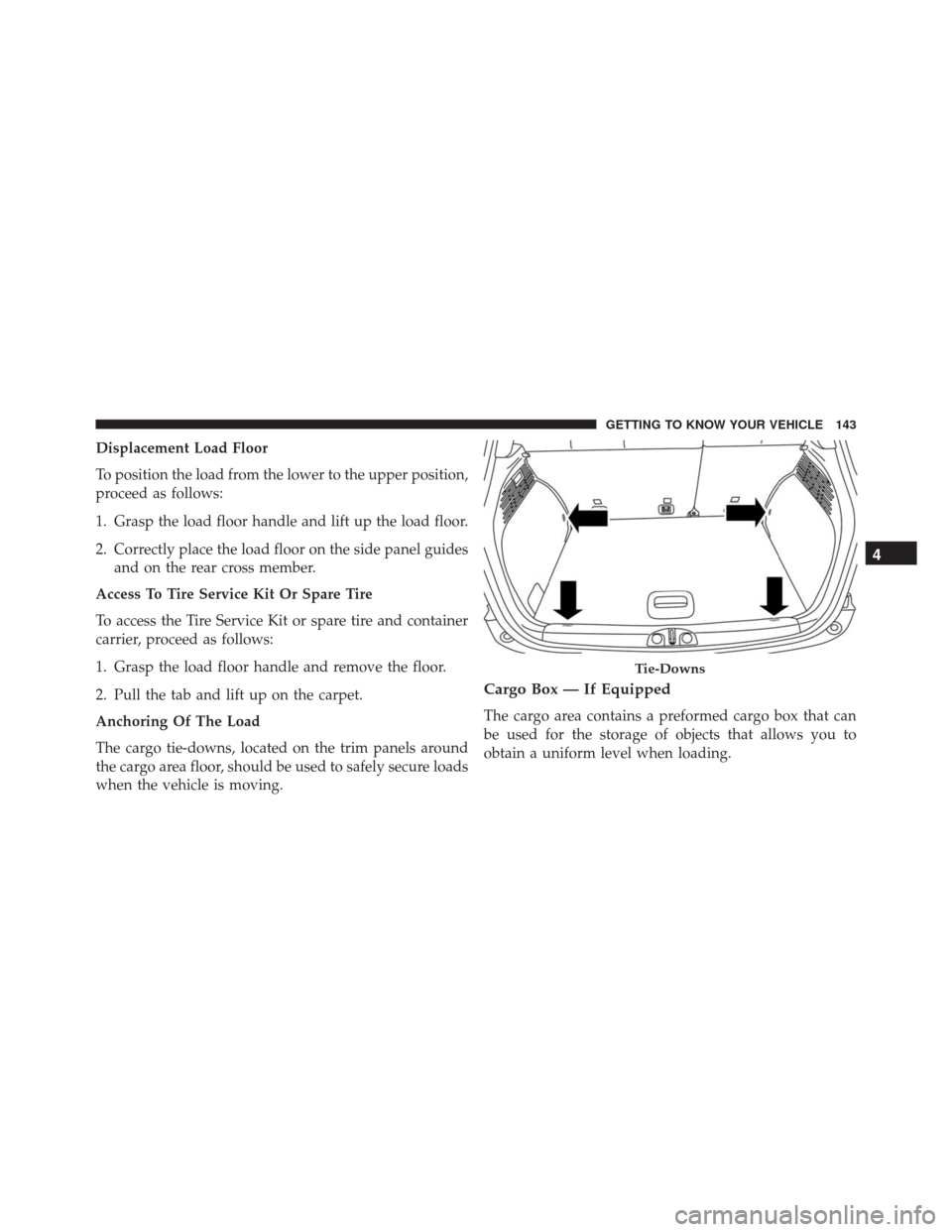

Displacement Load Floor
To position the load from the lower to the upper position,
proceed as follows:
1. Grasp the load floor handle and lift up the load floor.
2. Correctly place the load floor on the side panel guidesand on the rear cross member.
Access To Tire Service Kit Or Spare Tire
To access the Tire Service Kit or spare tire and container
carrier, proceed as follows:
1. Grasp the load floor handle and remove the floor.
2. Pull the tab and lift up on the carpet.
Anchoring Of The Load
The cargo tie-downs, located on the trim panels around
the cargo area floor, should be used to safely secure loads
when the vehicle is moving.
Cargo Box — If Equipped
The cargo area contains a preformed cargo box that can
be used for the storage of objects that allows you to
obtain a uniform level when loading.
Tie-Downs
4
GETTING TO KNOW YOUR VEHICLE 143

NOTE:The cargo box is sized for a maximum capacity of
distributed weight equal to 242 lbs (110 kg).
INTERNAL EQUIPMENT
Glove Compartments
The glove compartments is located on the passengers
side of the instrument panel.
Upper Glove Compartment
To open the upper compartment, push in the button
located on the bottom side of the upper door. The door
will automatically open.
Cargo Box
144 GETTING TO KNOW YOUR VEHICLE

To close the compartment door, push downward on the
door’s surface to latch the door closed.Lower Glove Compartment
To open the lower glove compartment, pull outward on
the latch and lower the glove compartment door.
Once the glove compartment is open, a light will turn on
to illuminate the compartment.
Upper Glove Compartment Button
Lower Glove Compartment Latch
4
GETTING TO KNOW YOUR VEHICLE 145

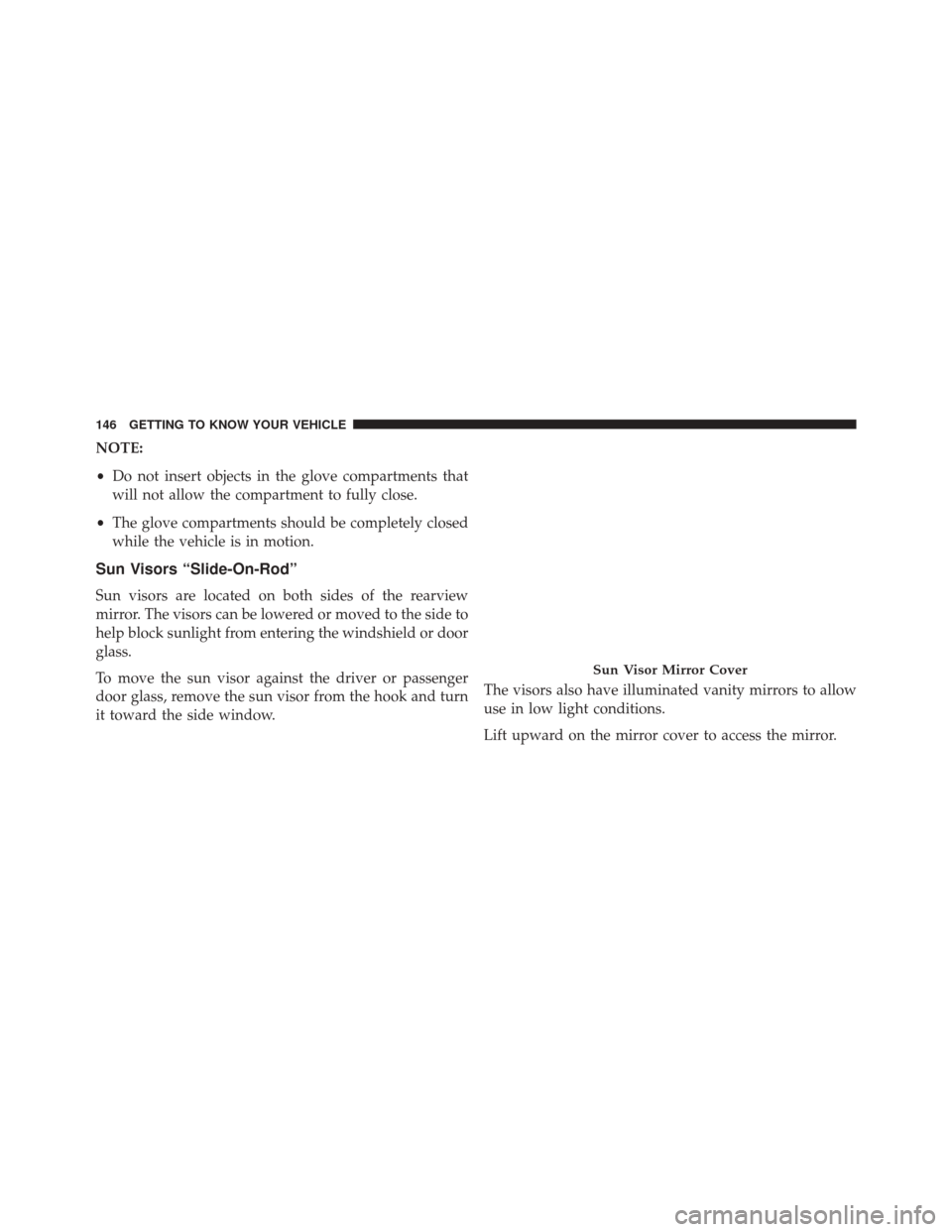

NOTE:
•Do not insert objects in the glove compartments that
will not allow the compartment to fully close.
• The glove compartments should be completely closed
while the vehicle is in motion.
Sun Visors “Slide-On-Rod”
Sun visors are located on both sides of the rearview
mirror. The visors can be lowered or moved to the side to
help block sunlight from entering the windshield or door
glass.
To move the sun visor against the driver or passenger
door glass, remove the sun visor from the hook and turn
it toward the side window. The visors also have illuminated vanity mirrors to allow
use in low light conditions.
Lift upward on the mirror cover to access the mirror.
Sun Visor Mirror Cover
146 GETTING TO KNOW YOUR VEHICLE

Extendible Sun Visor
To extend the sun visor, proceed as follows:
1. Place the sun visor against the door glass by detachingit from the hook and turning it toward the side
window.
2. Slide the visor.
3. Slide out the sun visor extender.
Power Outlets
The front power outlet is located under the center stack of
the instrument panel. It only operates with the ignition in
the MAR/RUN position.
Fully Extended Sun Visor
4
GETTING TO KNOW YOUR VEHICLE 147

NOTE:The power outlet can be changed to “battery”
powered all the time by switching the power outlet
Engine Compartment Fuses/Distribution Unit fuse from
location F84 to F23. Models equipped with the optional
smoker kit,will
have a cigar lighter instead of the power outlet.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
WARNING!
To avoid serious injury or death:
• Only devices designed for use in this type of outlet
should be inserted into any 12 Volt outlet.
• Do not touch with wet hands.
(Continued)
12 Volt Power Outlet
148 GETTING TO KNOW YOUR VEHICLE

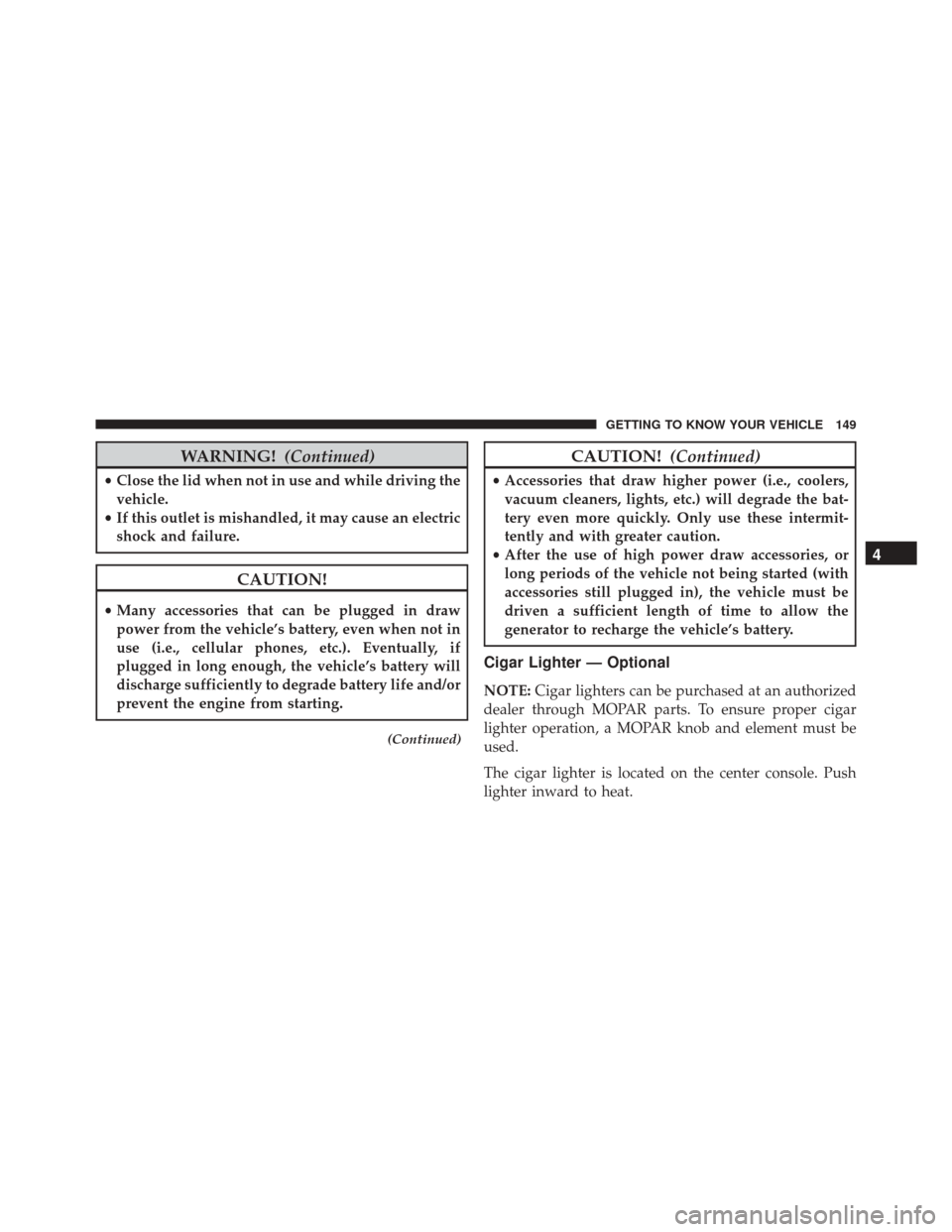

WARNING!(Continued)
•Close the lid when not in use and while driving the
vehicle.
• If this outlet is mishandled, it may cause an electric
shock and failure.
CAUTION!
• Many accessories that can be plugged in draw
power from the vehicle’s battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle’s battery will
discharge sufficiently to degrade battery life and/or
prevent the engine from starting.
(Continued)
CAUTION! (Continued)
•Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.) will degrade the bat-
tery even more quickly. Only use these intermit-
tently and with greater caution.
• After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle’s battery.
Cigar Lighter — Optional
NOTE: Cigar lighters can be purchased at an authorized
dealer through MOPAR parts. To ensure proper cigar
lighter operation, a MOPAR knob and element must be
used.
The cigar lighter is located on the center console. Push
lighter inward to heat.
4
GETTING TO KNOW YOUR VEHICLE 149

After a few seconds, the lighter automatically returns to
its initial position and is ready to be used.
WARNING!
When the cigar lighter is in use it becomes very hot.
To avoid serious injury, handle the cigar lighter with
care. Always check that the cigar lighter has turned
off.
CAUTION!
Do not connect devices with power higher than 180
Watts (15 Amps) to the socket. Do not damage the
socket by using unsuitable adaptors. If the 180 Watt
(15 Amp) power rating is exceeded the fuse protect-
ing the system will need to be replaced.
Cigar Lighter
150 GETTING TO KNOW YOUR VEHICLE
