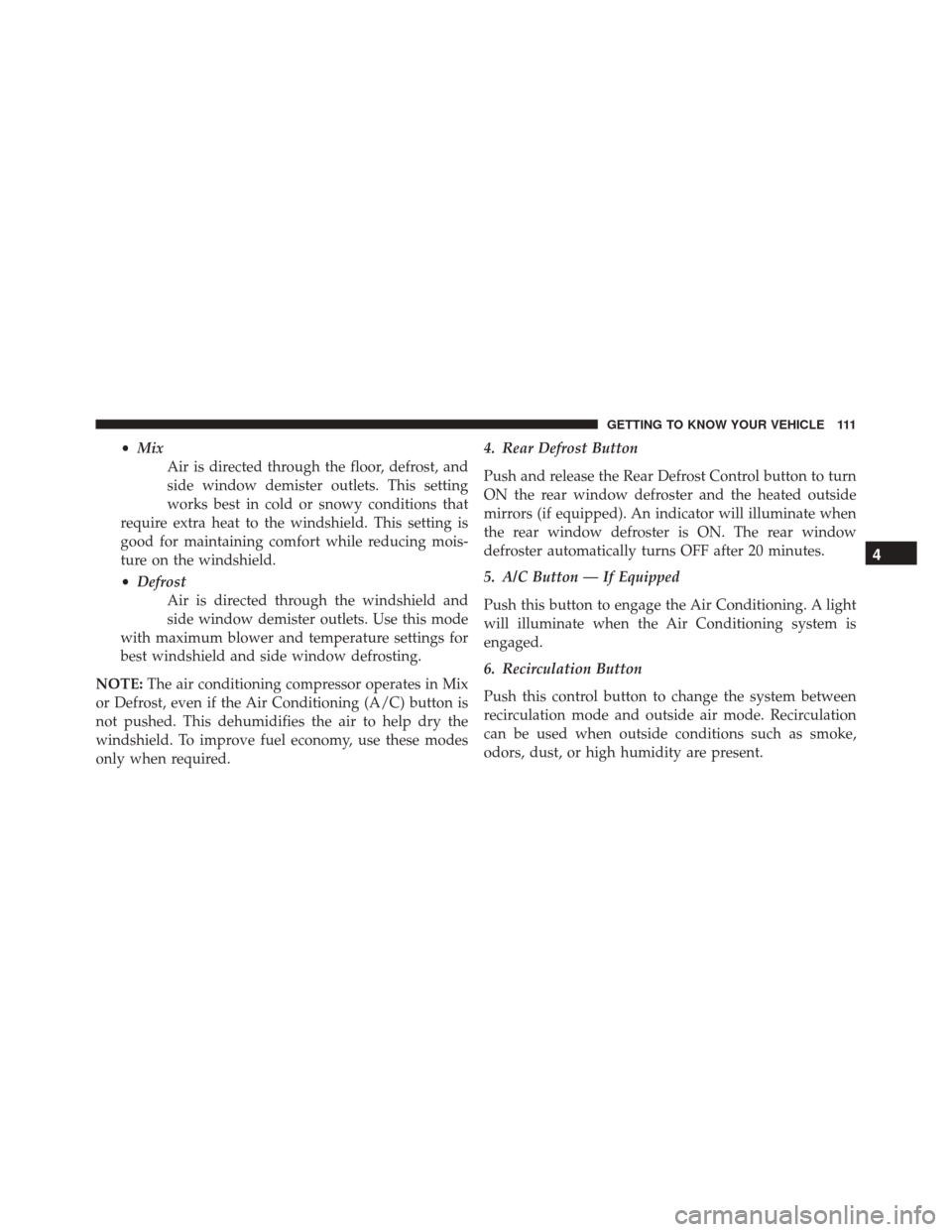

•Mix
Air is directed through the floor, defrost, and
side window demister outlets. This setting
works best in cold or snowy conditions that
require extra heat to the windshield. This setting is
good for maintaining comfort while reducing mois-
ture on the windshield.
• Defrost
Air is directed through the windshield and
side window demister outlets. Use this mode
with maximum blower and temperature settings for
best windshield and side window defrosting.
NOTE: The air conditioning compressor operates in Mix
or Defrost, even if the Air Conditioning (A/C) button is
not pushed. This dehumidifies the air to help dry the
windshield. To improve fuel economy, use these modes
only when required. 4. Rear Defrost Button
Push and release the Rear Defrost Control button to turn
ON the rear window defroster and the heated outside
mirrors (if equipped). An indicator will illuminate when
the rear window defroster is ON. The rear window
defroster automatically turns OFF after 20 minutes.
5. A/C Button — If Equipped
Push this button to engage the Air Conditioning. A light
will illuminate when the Air Conditioning system is
engaged.
6. Recirculation Button
Push this control button to change the system between
recirculation mode and outside air mode. Recirculation
can be used when outside conditions such as smoke,
odors, dust, or high humidity are present.
4
GETTING TO KNOW YOUR VEHICLE 111

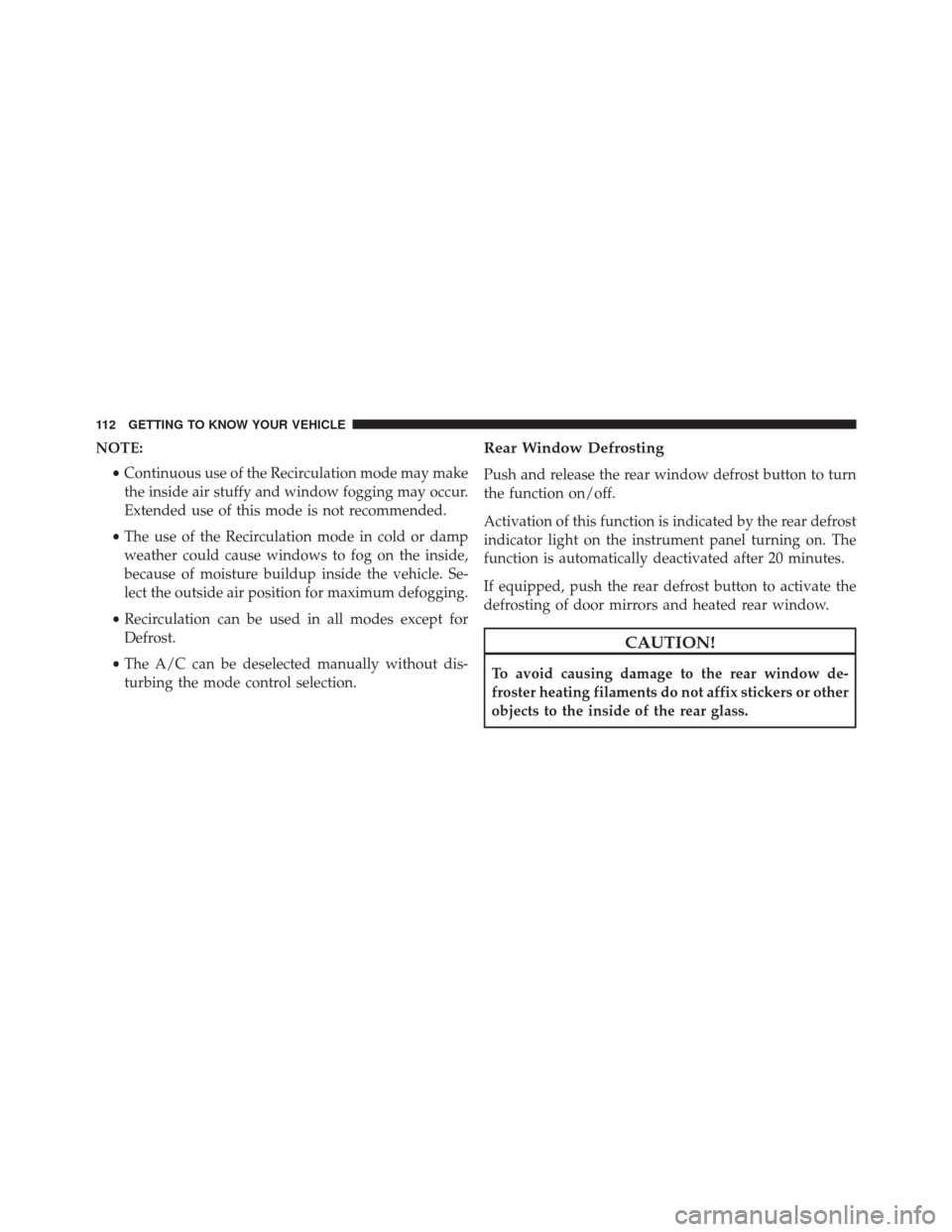

NOTE:•Continuous use of the Recirculation mode may make
the inside air stuffy and window fogging may occur.
Extended use of this mode is not recommended.
• The use of the Recirculation mode in cold or damp
weather could cause windows to fog on the inside,
because of moisture buildup inside the vehicle. Se-
lect the outside air position for maximum defogging.
• Recirculation can be used in all modes except for
Defrost.
• The A/C can be deselected manually without dis-
turbing the mode control selection.Rear Window Defrosting
Push and release the rear window defrost button to turn
the function on/off.
Activation of this function is indicated by the rear defrost
indicator light on the instrument panel turning on. The
function is automatically deactivated after 20 minutes.
If equipped, push the rear defrost button to activate the
defrosting of door mirrors and heated rear window.
CAUTION!
To avoid causing damage to the rear window de-
froster heating filaments do not affix stickers or other
objects to the inside of the rear glass.
112 GETTING TO KNOW YOUR VEHICLE

Air Recirculation
Push and release the Air Recirculation button so that the
LED is on, to enter recirculation mode. It is recommended
to turn the internal air recirculation on while standing in
traffic or in tunnels to prevent the introduction of pol-
luted air.
Do not use the function for a long period of time,
particularly if there are many passengers in the vehicle,
to prevent the windows from misting up.
NOTE:Internal air recirculation makes it possible to
reach the required heating or cooling conditions quickly
depending on the mode selected. Do not use the internal
air recirculation function on rainy/cold days as it would
considerably increase the possibility of the windows
misting.
System Maintenance
In Winter, the Climate Control system must be turned on
at least once a month for approximately 10 minutes.
Have the system inspected at an authorized dealership
before the summer.
NOTE: The system uses R-1234yf (refrigerant) which
does not pollute the environment in the event of acciden-
tal leakage. Under no circumstances is the use of R-134a
(refrigerant) allowed.
4
GETTING TO KNOW YOUR VEHICLE 113

Automatic Climate Controls — If Equipped1. Driver Temperature Control
Provides the driver with independent temperature con-
trol. Rotate the adjustment knob to set desired tempera-
ture shown in the Temperature Display. Rotate fully
counter-clockwise for maximum A/C (LO).
2. A/C Button
Push the A/C Control Button to change the current
setting. The indicator illuminates when the A/C is ON.
Pushing the AUTO control button will cause the A/C
operation to change to AUTO mode and the A/C indi-
cator will turn OFF.
3. MAX Defrost Button
Push the MAX Defrost button to change the current
airflow setting to Defrost mode. The indicator illuminates
when this feature is ON. Performing this function will
cause the automatic climate controls to change to manual
mode. The blower speed increases to full (all LEDs ON)
Automatic Climate Controls
114 GETTING TO KNOW YOUR VEHICLE

when MAX Defrost mode is selected, the air conditioning
compressor is turned ON, both driver and passenger
temperature controls are set to (HI), defrost mode is
selected (LED ON), rear defroster is turned ON (LED
ON) and the air recirculation is turned OFF (LED OFF). If
the MAX Defrost mode is turned OFF, the climate system
will return to the previous setting.
4. Blower Control Indicator LEDs
A total of eight LEDs illuminate to visually indicate
blower speeds.
5. Rear Defrost Button
Push the Rear Defrost button to turn ON the rear window
defroster and the heated outside mirrors (if equipped).
An indicator will illuminate when the rear window
defroster is ON. The rear window defroster automatically
turns OFF after 20 minutes.6. AUTO Button
Pushing this button will automatically control the inte-
rior cabin temperature by adjusting airflow distribution
and amount. Performing this function will cause the
automatic climate controls to change between manual
mode and automatic modes.
7. Passenger Temperature Control
Provides the passenger with independent temperature
control. Rotate the adjustment knob to set desired tem-
perature shown in the Temperature Display.
NOTE:
Rotating the Passenger Temperature Control
knob while in Sync mode will automatically exit Sync.
8. Passenger Temperature Display
Rotate the Passenger Temperature Control dial clockwise
or counter-clockwise to adjust the air temperature in the
front right (Passenger Temperature Control) zone of the
passenger compartment. The set temperature is shown
4
GETTING TO KNOW YOUR VEHICLE 115

on the display. Turning the control knob completely in
one direction or the other activates theHI(maximum
heating) or LO(maximum cooling) functions shown in
the display, respectively. To deactivate these functions,
turn the temperature knob to the desired temperature.
9. SYNC Button
Push the Sync button to toggle the Sync feature ON/OFF.
The Sync indicator will illuminate when this feature is
enabled. Sync is used to synchronize the passenger
temperature setting with the driver temperature setting.
Changing the passenger temperature setting while in
Sync mode will automatically exit this feature and return
to the separate management of air temperatures in the
two zones.
10. Mode Buttons
Airflow distribution modes can be adjusted so air comes
from the instrument panel outlets, floor outlets, de-mist outlets and defrost outlets by selecting these buttons.
One, two or all modes may be selected at any one time.
11. Blower Control
Blower control is used to regulate the amount of air
forced through the climate system. Adjusting the blower
will cause the automatic mode to change to manual
operation. The speeds can be selected by rotating the
Blower Control adjustment knob.
12. ON/OFF Button
Push this button to turn the Climate Control ON/OFF.
13. Recirculation Button
Push to change the current setting. The LED illuminates
when ON.
116 GETTING TO KNOW YOUR VEHICLE

NOTE:•When in Max Defrost mode, the Recirculation button
will change the setting to normal Defrost mode. This
indicates that you can not enter to this mode due to
fogging risk.
• When the Auto indicator is ON and the Recirculation
indicator is OFF, the Recirculation is in AUTO mode.
If the Recirculation indicator is ON, the Recirculation
setting is manual and Recirculation is ON.
14. Driver Temperature Display
Rotate the Driver Temperature Control dial clockwise or
counter-clockwise, to adjust the air temperature in the
front left (Driver Temperature Control) zone of the pas-
senger compartment. The set temperature is shown on
the display. Turning the control knob completely in one
direction or the other activates the HI(maximum heat-
ing) or LO(maximum cooling) functions shown in the display, respectively. To deactivate these functions, turn
the temperature knob to the desired temperature.
Description
The Automatic Dual Zone Climate Control system regu-
lates the air temperatures in the passenger compartment
in two zones: driver side and passenger side.
The system maintains comfort inside the passenger com-
partment and compensates for possible variations in
external climate conditions.
The Climate Control system can recognize extremely cold
(or extremely hot) conditions in the passenger compart-
ment and provide optimal management of the system’s
capabilities.
NOTE:
The reference temperature is 72° F (22° C) for
optimal comfort management.
4
GETTING TO KNOW YOUR VEHICLE 117

The automatically controlled functions are:
•Air temperature at the driver/front passenger side
vents.
• Blower speed (continuous variation of the air flow).
• Compressor engagement (for cooling/dehumidifying
the air).
• Air recirculation.
All these functions can be adjusted manually by operat-
ing the system, selecting one or more functions and
modifying their parameters.
Automatic control of the functions will be suspended: the
system will only override the settings for safety reasons.
Manual selections always take priority over automatic
ones and are stored until the AUTO button is pushed or
the system itself intervenes for specific safety reasons. The amount of air introduced into the passenger com-
partment is not affected by car speed; it is regulated by
the fan, which is controlled electronically.
The air temperature is always automatically controlled
according to the temperature set on the display (except
for when the system is off or in certain conditions when
the compressor is not running).
The system allows the following to be set or adjusted
manually:
•
Driver/passenger side air temperature
• Blower speed (continuous variation)
• Air distribution to seven positions
• Compressor activation
• Rapid defrosting/demisting function
• Air recirculation
