2016 Acura MDX Navigation Manual

248
XX
Text/E-mail Message
XDisplaying Messages
Bluetooth® HandsFreeLink®
Displaying MessagesHMENU button (on Phone screen)
X Text/Email
1.Select account if necessary.
2. Rotate i to select a message.
Press u.
X
The text message is displayed.
The system automatically starts
reading the message aloud.
■Displaying text messages
1 Displaying Messages
The icon appears next to an unread message.
If you delete a message on the phone, the
message is also deleted in the system. If you send
a message from the system, the message goes to
your phone’s outbox.
To see the previous or next message, move w
or y on the text message screen.
Some phones may have an additional setting to
enable this feature.
MDX_KA-31TZ58200.book 248 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

249
XX
Text/E-mail Message
XDisplaying Messages
Bluetooth® HandsFreeLink®
HMENU button (on Phone screen)
X Text/Email
1.Rotate i to select a folder. Press
u .
2. Rotate i to select a message.
Press u.
X
The text message is displayed.
The system automatically starts
reading the message aloud.
■Displaying E-mails
1 Displaying E-mails
Received text and E-mail message may appear in
the message list screen at the same time. In this
case, text messages are titled
No subject
.
MDX_KA-31TZ58200.book 249 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

250
XX
Text/E-mail Message
XDisplaying Messages
Bluetooth® HandsFreeLink®
1.Go to the text or E-mail message
screen.X
The system automatically starts
reading the message aloud.2Displaying Messages
P. 248
2. Press u to stop reading.
Press u again to start reading the
message from the beginning.
1. Go to the text or E-mail message
screen.
X
The system automatically starts
reading the message aloud.2Displaying Messages
P. 248
2. Move r and rotate i to select
Reply . Press u .
■Read or stop reading a message■Reply reading a message
MDX_KA-31TZ58200.book 250 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

251
XX
Text/E-mail Message
XDisplaying Messages
Bluetooth® HandsFreeLink®
3.Rotate i to select the reply
message. Press u .X
The pop-up menu appears on
the screen.
4. Select Send to send the message.
X
Message Sent appears on the
screen when the reply message
was successfully sent.
1. Go to the text message screen.
The system automatically starts
reading the message aloud.
2 Displaying text messages
P. 248
2. Move r and rotate i to select
Call . Press u.
■Making a call to a sender
1 Reply to a message
The available fixed reply messages are as follows:•Talk to you later, I’m driving.•I’m on my way.•I’m running late.•OK•Yes•No
You cannot add, edit, or delete reply messages.
MDX_KA-31TZ58200.book 251 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

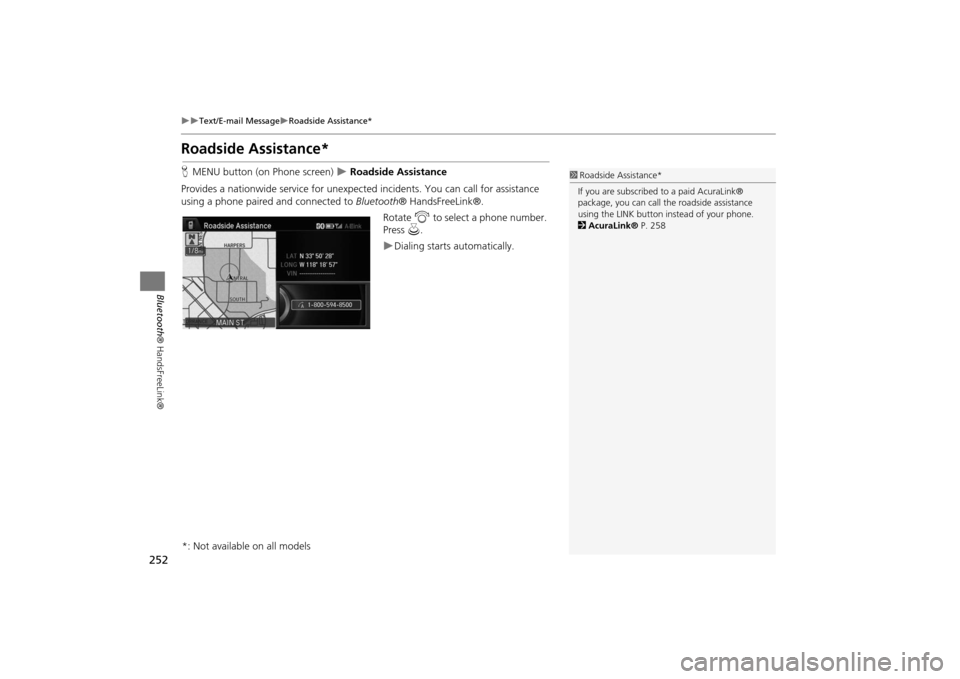

252
XX
Text/E-mail Message
XRoadside Assistance*
Bluetooth® HandsFreeLink®
Roadside Assistance*HMENU button (on Phone screen)
X Roadside Assistance
Provides a nationwide service for unexpected incidents. You can call for assistance
using a phone paired and connected to Bluetooth® HandsFreeLink®.
Rotate i to select a phone number.
Press u.
XDialing starts automatically.
1Roadside Assistance*
If you are subscribed to a paid AcuraLink®
package, you can call the roadside assistance
using the LINK button instead of your phone.
2 AcuraLink® P. 258
*: Not available on all models
MDX_KA-31TZ58200.book 252 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

253
XX
Text/E-mail Message
XHFL Menus
Bluetooth® HandsFreeLink®
HFL MenusThe power mode must be in ACCESSORY or ON to use HFL.
■Phone Settings screen
1.Press the SETTINGS button.
2. Rotate i to select Phone
Settings , then press u.
1HFL Menus
To use HFL, you must first pair your Bluetooth®-
compatible cell phone to the system while the
vehicle is parked.
Some functions are limi ted while driving. A
message appears on the screen when the vehicle is
moving and the operation is canceled.
Edit the user name of a paired phone.
Phone
Edit Device Name
Connect phoneBluetooth
Device List

(Existing
entry list)

Replace This Device
Add Bluetooth Device
Disconnect a paired phone from the system.Connect a phone to the system.
*1: Appears only when a phone is connected to HFL.
Disconnect

(Existing entry list)

Pair a phone to the system.
Edit PIN

Create a security PIN for a paired phone. Replace a previously paired phone with a
new phone.
Delete This Device
Delete a previously paired phone.


Add Bluetooth Device
Pair a phone to the system.

Continued
MDX_KA-31TZ58200.book 253 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

254
XX
Text/E-mail Message
XHFL Menus
Bluetooth® HandsFreeLink®
Text/
Email
*1
Manual Input
Edit Speed Dial
New Entry

Import from Call History
*1: Appears only when a phone is connected to HFL.


Import from Phonebook


Delete All
Delete all the previously stored speed dial numbers.
Select a phone number from the call
history to store as a speed dial number.
Select a phone number from the
phonebook to store as a speed dial number.
Enter a phone number to store as a speed
dial number.

Edit

Delete

(Existing
entry list)
Edit a previously stored speed dial number.
•
Change a number.•Create or delete a voice tag.
Delete a previously st ored speed dial number.

Set calls to automatically transfer from your phone to HFL when you enter the
vehicle.
Auto TransferAuto AnswerRing Tone
Set whether to automatically answer an incoming call after about four
seconds.
Select the ring tone.
Use Contact Photo
Set phonebook data to be automatically imported when a phone is paired to
HFL.
Display a caller’s picture on an incoming call screen.
Automatic Phone Sync

Select Account
Select a mail or text message account.

Enable Text/Email
Turn the text/E-mail message function on and off.
New Text/Email Alert
Select whether a pop-up alert comes on the screen when HFL receives a new
text/E-mail message.

Cancel/Reset all customized items in the Phone Settings group as default.
Default

MDX_KA-31TZ58200.book 254 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

255
XX
Text/E-mail Message
XHFL Menus
Bluetooth® HandsFreeLink®
■Phone screen
1.Press the PHONE button.
2. Press the MENU button to display
the menu items.
Select a phone number from the call history to store as a
speed dial number.
Speed Dial
*1
Manual Input
New Entry

Import from
Call HistoryImport from Phonebook
Select a phone number from th e phonebook to store as a
speed dial number. Enter a phone number to store as a speed dial number.
More Speed Dials
Display another paired phone’s speed dial list.
*1: Appears only when a phone is connected to HFL.
(Existing entry list)
Dial the selected number in the speed dial list.


Phonebook
*1
Dial
*1
Display the paired phone’s phonebook. Enter a phone number to dial.
Continued
MDX_KA-31TZ58200.book 255 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
