2016 Acura MDX Navigation Manual

152
XX
Audio Settings
X
Audio
•Update Gracenote Album Info (CD or HDD mode): Updates the Gracenote®
Album Info (Gracenote® Media Database) from CD or from USB.
2
Updating Gracenote® Album Info
P. 183
• DVD Auto Play (DVD mode): Turns the auto play feature on or off.
• Audio Language (DVD mode): Selects a language for the audio that is available
on the DVD.
• Subtitle Language (DVD mode): Selects a language for the subtitle that is
available on the DVD.
• Menu Language (DVD mode): Selects a language for the DVD menu that is
available on the DVD.
• Angle Mark (DVD mode): Sets whether to display the angle symbol.
• Dynamic Range (DVD mode): Sets whether to control the range of the loud and
low sounds.
• Delete All HDD Data (HDD mode): Resets all the menu and customized settings,
and delete all music data on the HDD.
• Default: Cancels/Resets all cu stomized items in the Audio Settings group as
default.
MDX_KA-31TZ58200.book 152 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

153
XX
Audio Settings
XAdjusting the Sound
Audio
Adjusting the SoundHMENU button
X Sound
1.Rotate i to select the sound
mode to adjust. Press u.
2. Rotate i to adjust the desired
level. Press u.
1Adjusting the Sound
The SVC has four modes: Off, Low , Mid, and
High.
SVC adjusts the volume level based on the
vehicle speed. As you go faster, audio volume
increases. As you slow down, audio volume
decreases.
DTS Neural Surround is a trademark of DTS, Inc.
Interface Dial
Speed-sensitive
Volume
Compensation
Bass
Treble
Fader
Balance
Subwoofer SVC
Center
DTS Neural Surround
Continued
MDX_KA-31TZ58200.book 153 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

154
XX
Audio Settings
XAdjusting the Sound
Audio
1.Select More.
2. Select Sound .
3. Use N, B or other icon to adjust
the setting.X
Use the / / / icons to
turn the page.
X
Select to go back to the
previous screen.
On Demand Multi-Use Display
TM
1 Adjusting the Sound
Select Off, Low , Mid or High for the SVC
setting.
2 Adjusting the Sound P. 153
You can also adjust th e sound to select on
the On Demand Multi-Use Display
TM.
MDX_KA-31TZ58200.book 154 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

155Audio
Playing FM/AM RadioSelecting FM/AM Mode1.Press the MENU button.(in AUDIO mode)
2. Rotate i to select Change Source . Press u.
3. Rotate i to select the frequency band (FM, AM). Press u.X
The band and frequency are displayed on the audio/information screen.
1. Select Audio Source .
2. Select the frequency band (AM, FM) icon.
X
The band and frequency are displayed on the On Demand Multi-Use Display
TM.
Audio Screen ControlControl the audio system through the audio/information screen and On Demand
Multi-Use Display
TM.
Rotate i to select a preset station.
Press u.
XPress and hold u for a few
seconds to store the current
station.XPress MENU button to display the
menu items.2 Audio Menu P. 157
1Playing FM/AM Radio
d “Display audio screen”
You can control the AM/FM radio using voice
commands.
2 Voice Control Operation P. 6
The ST indicator appears on the display
indicating stereo FM broadcasts.
Stereo reproduction in AM is not available.
Interface DialOn Demand Multi-Use Display
TM
The radio can receive the complete AM and FM
bands:
AM band: 530 to 1710 kHz
FM band: 87.7 to 107.9 MHz
You can store 6 AM stations and 12 FM stations
into the preset memory.
Preset stations
Frequency band
Interface Dial
Continued
MDX_KA-31TZ58200.book 155 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

156
XX
Playing FM/AM Radio
XAudio Screen Control
Audio
The following items are available:
• b n: Tune the radio frequency. Select and hold to search that station on preset
screen.
• c x : Search up and down the selected band for a station with a strong signal.
• More : Display the menu items.2Audio Menu P. 157•Scan : Scans for stations with a strong signal in the current band and plays a 10-
second sample. Select Stop Scan to stop scanning and play the current selection.
■ Preset Memory
To store a station:
1. Tune to the selected station on preset screen.
2. Select and hold a desired number you want to store the station.
To listen to a stored statio n, select the station number.
1Audio Screen Control
Select TAG to tag the song if it is played on an
HD Radio
TM station. The iPod/iPhone should be
connected to the audio system to store the
tagged song information on your device.
On Demand Multi-Use Display
TM
Preset screen
Tune screen
Select Tune.
Select Presets .
Station Number
MDX_KA-31TZ58200.book 156 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

157
XX
Playing FM/AM Radio
XAudio Menu
Audio

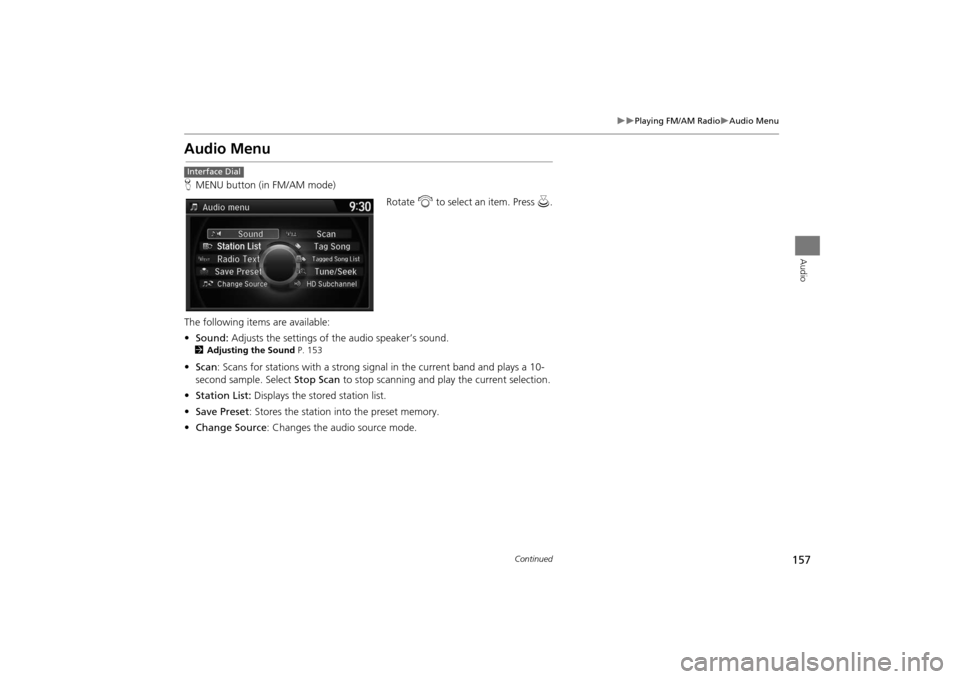

Audio MenuHMENU button (in FM/AM mode)
Rotate i to select an item. Press u.
The following items are available:
• Sound: Adjusts the settings of the audio speaker’s sound.2Adjusting the Sound P. 153•Scan : Scans for stations with a strong signal in the current band and plays a 10-
second sample. Select Stop Scan to stop scanning and pl ay the current selection.
• Station List: Displays the stored station list.
• Save Preset : Stores the station into the preset memory.
• Change Source : Changes the audio source mode.Interface Dial
Continued
MDX_KA-31TZ58200.book 157 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

158
XX
Playing FM/AM Radio
XAudio Menu
Audio
•Radio Text : Displays the text information br oadcast by the current RDS station.
• Tag Song : Displays the TAG information save d to the audio system when an HD
Radio
TM station is selected.
• Tagged Song List : You can store the TAG information in the connected iPod®/
iPhone®. If the iPod®/iPhone® is not connected to the audio system, the
information is stored in the audio unit temporarily, then once the device is
connected to the system, data is transferred to the iPod®/iPhone®.
• Tune/Seek : Tunes the radio to the frequency you select. Rotate i to select a
frequency, then Move u.
• HD subchannel : Displays the subchannel list when an HD Radio
TM station is
selected.
1 Audio Menu
iTunes Tagging
“iTunes” in “iTunes Ta gging” is a trademark of
Apple Inc.
When an HD Radio
TM station is selected, the HD
indicator appears on the audio/information
screen and On Dema nd Multi-Use Display
TM.
If you want to have the information on the song
played from the HD Radio
TM station, select TAG
in On Demand Multi-Use Display
TM or select Tag
Song in the menu with Interface dial.
If iPod®/iPhone® is co nnected, the tag is
transferred to the connect ed device immediately,
otherwise the tag will be transferred when the
device will be connected and select Tag Song in
the menu with Interface dial.
HD Radio Technology manufactured under
license from iBiquity Di gital Corporation. U.S.
and Foreign Patents. HD Radio
TM and the HD, HD
Radio and “Arc” logos are proprietary
trademarks of iBiquity digital Corp.
MDX_KA-31TZ58200.book 158 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

159
XX
Playing FM/AM Radio
XAudio Menu
Audio
1.Select More.
2. Select a setting item.
The following items are available:
• Sound : Displays the sound preferences screen.
2
Adjusting the Sound
P. 153
• Scan: Scans for stations with a strong signal in the current band and plays a 10-
second sample. Select Stop Scan to stop scanning and pl ay the current selection.
• Save Preset : Stores the station into the preset memory.
• Screen Settings : Adjusts the screen’s preferences.
2
Changing the Screen Settings
P. 88
• HD subchannel : Displays the subchannel list when an HD Radio
TM station is
selected.
On Demand Multi-Use Display
TM
