2016 Acura MDX Navigation Manual

240
XX
Bluetooth® HandsFreeLink®
XMaking a Call
Bluetooth ® HandsFreeLink®
HMENU button (on Phone screen)
X Call History
Call history is stored by All, Dialed , Received , and Missed .
1. Move w or y to select All,
Dialed , Received , and Missed .
2. Rotate i to select a number.
Press u.
X
Dialing starts automatically.
1. Press the h button.
2. Move the left selector wheel right
to select Call History .
3. Roll the left selector wheel to select
a number.
4. Push the left selector wheel or the
h button.
X
Dialing starts automatically.
■Using Call History
1 Using Call History
The call history displa ys the last 20 dialed,
received, or missed calls.
(Appears only when a phone is connected to
HFL.)
These icons next to the number indicate the
following: : Dialed calls
: Received calls
: Missed calls
The call history displa ys the last 12 dialed,
received, or missed calls.Multi-information Display
Multi-information Display
MDX_KA-31TZ58200.book 240 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

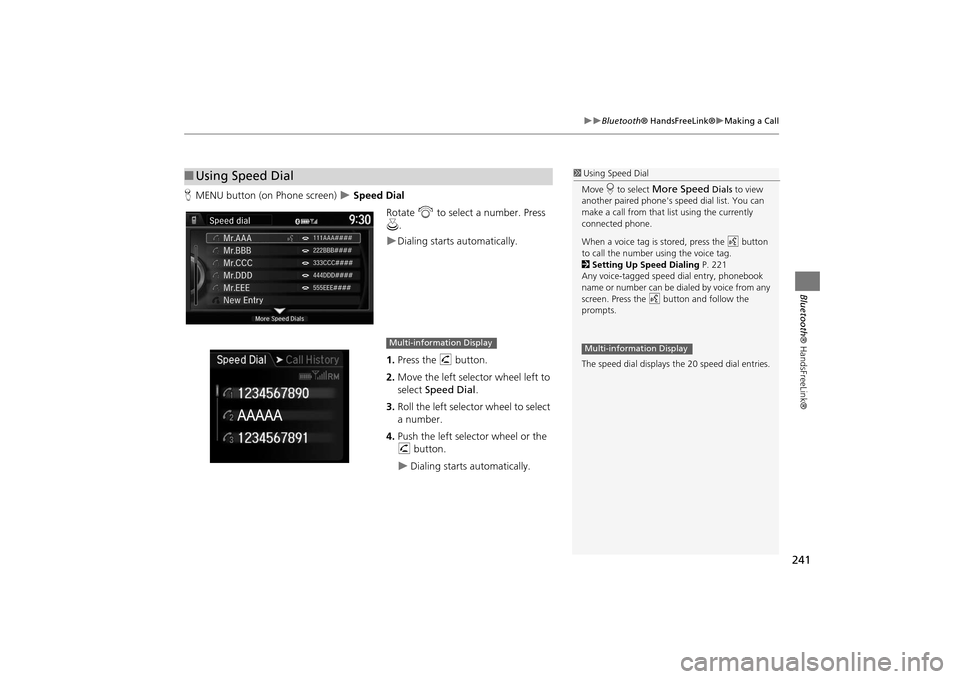

241
XX
Bluetooth® HandsFreeLink®
XMaking a Call
Bluetooth® HandsFreeLink®
HMENU button (on Phone screen)
X Speed Dial
Rotate i to select a number. Press
u .
XDialing starts automatically.
1. Press the h button.
2. Move the left selector wheel left to
select Speed Dial .
3. Roll the left selector wheel to select
a number.
4. Push the left selector wheel or the
h button.X
Dialing starts automatically.
■Using Speed Dial
1 Using Speed Dial
Move r to select
More Speed
Dials to view
another paired phone's sp eed dial list. You can
make a call from that list using the currently
connected phone.
When a voice tag is stored, press the d button
to call the number using the voice tag.
2 Setting Up Speed Dialing P. 221
Any voice-tagged spee d dial entry, phonebook
name or number can be dialed by voice from any
screen. Press the d button and follow the
prompts.
The speed dial displays the 20 speed dial entries.
Multi-information Display
Multi-information Display
MDX_KA-31TZ58200.book 241 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

242
XX
Bluetooth® HandsFreeLink®
XReceiving a Call
Bluetooth ® HandsFreeLink®
Receiving a CallWhen there is an incoming call, an audible notification sounds (if activated) and the
Incoming call screen appears.
1.Press the h button to answer the
call.
2. Press the J button to decline
or end the call.
1 Receiving a Call
Call Waiting
Press the h button to put the current call on
hold to answer the incoming call.
Press the h button again to return to the
current call.
Ignore the incoming call if you do not want to
answer it.
Press the J button if you want to hang up
the current call.
You can select the icons on the On Demand
Multi-Use Display
TM instead of the h and J
buttons.
MDX_KA-31TZ58200.book 242 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

243
XX
Bluetooth® HandsFreeLink®
XReceiving a Call
Bluetooth® HandsFreeLink®
The available options are s hown on the Phone screen.
Rotate i to select the option. Press
u .
XThe mute icon appears when Mute
is selected. Select Mute again to
turn it off.
The following options are available during a call:
• Mute : Mute your voice.
• Transfer: Transfer a call fro m HFL to your phone.
• Touch Tones : Send numbers during a call. This is useful when you call a menu-
driven phone system.
■ Options During a Call
1Options During a CallTouch Tones
: Available on some phones.
You can select the icons on the On Demand
Multi-Use DisplayTM.
MDX_KA-31TZ58200.book 243 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

244Bluetooth® HandsFreeLink®
Text/E-mail MessageSetting a Text Message/E-mailHSETTINGS button
X Phone Settings
X Enable Text/Email
Rotate i to select On or Off . Press
u .
H SETTINGS button
X Phone Settings
X New Text/Email Alert
Rotate i to select On or Off . Press
u .
The following items are available:
• On : A pop-up notification comes on every time you receive a new text message.
• Off : The message you receive is stored in the system without notification.
■To turn on or off the text/E-mail function■To turn on or off the text/E-mail notice
MDX_KA-31TZ58200.book 244 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

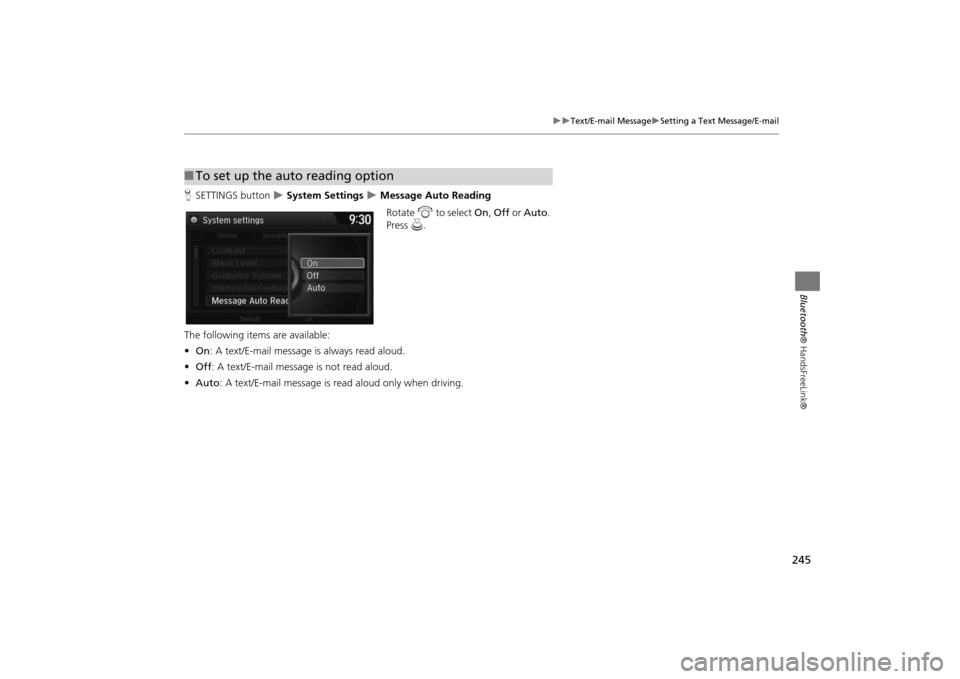

245
XX
Text/E-mail Message
XSetting a Text Message/E-mail
Bluetooth® HandsFreeLink®
HSETTINGS button
X System Settings
X Message Auto Reading
Rotate i to select On, Off or Auto .
Press u.
The following items are available:
• On : A text/E-mail message is always read aloud.
• Off : A text/E-mail message is not read aloud.
• Auto : A text/E-mail message is read aloud only when driving.
■To set up the auto reading option
MDX_KA-31TZ58200.book 245 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

246
XX
Text/E-mail Message
XSelecting a Mail Account
Bluetooth® HandsFreeLink®
Selecting a Mail AccountHSETTINGS button
X Phone Settings
X Select Account
If a paired phone has text message or mail accounts, you can select one of them to
be active and receive notifications. Rotate i to Text Messages or an
E-mail account you want. Press u.
1Selecting a Mail Account
You can also select a mail account from the
folder list screen or the message list screen.
Move r to select
Select Account
, then press
u .
You can only receive notif ications from one text
message or mail account at a time.
MDX_KA-31TZ58200.book 246 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

247
XX
Text/E-mail Message
XReceiving a Text/E-mail Message
Bluetooth® HandsFreeLink®
Receiving a Text/E-mail MessageHFL can display newly received text and E- mail messages as well as 20 of the most
recently received messages on a linked cell phone. Each received message can be
read aloud and replied to using a fixed common phrase.
1.A pop-up appears and notifies you
of a new text or E-mail message.
2. Rotate i to select Read to listen
to the message. Press u.
X
The text or E-mail message is
displayed. The system
automatically starts reading out
the message.
3. To discontinue the message read-
out. Press u.
1Receiving a Text/E-mail Message
The system does not display any received
messages while you are driving. You can only
hear them read aloud.
With some phones, you ma y be able to display
up to 20 most recent text and E-mail messages.
State or local laws may limit your use of the HFL
text/E-mail message feature. Only use the text/E-
mail message feature wh en conditions allow you
to do so safely.
When you receive a text or E-mail message for
the first time since the phone is paired to HFL,
you are asked to turn the
New Text/Email
Alert
setting to On.
2 To turn on or off the text/E-mail notice
P. 244
MDX_KA-31TZ58200.book 247 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
