2016 Acura MDX Navigation Manual

136
XX
Changing Your Route
XEditing the Destination List
Navigation
HMENU button (when en route)
X Destination List
1.Rotate i to select a list item to
delete. Press u.
2. Rotate i to select Delete . Press
u .
3. Rotate i to select Yes . Press u.
■Deleting Waypoints
1 Deleting Waypoints
Move r and rotate i to select Delete All to
delete the destination and all the waypoints.
Select Show on Map to display the waypoint on
the map screen.
MDX_KA-31TZ58200.book 136 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

137
XX
Changing Your Route
XTaking a Detour
Navigation
Taking a DetourHMENU button (when en route)
X Detour
Calculate a detour route manually. The syst em attempts to calculate a new route by
avoiding the next 5 miles (while on a freeway ) or 1 mile (while on a surface street).
Avoiding StreetsHMENU button (when en route)
X Avoid Streets
Select a street or streets along your route to avoid. 1.Rotate i to select the street you
want to avoid. Press u.
X
Repeat the procedure to avoid
other streets.
2. Move r to select Recalculate
Route . Press u.
X
The system calculates a new
route.
1Taking a Detour
The detour option is conv enient if you encounter
an unexpected obstacle such as a road closure or
extremely heavy tr affic congestion.1Avoiding Streets
Avoiding certain streets is convenient if you
know of road construction, road closures, or
excessive traffic along the route.
You cannot choose specific streets you want to
use, only those to avoid. However, you can select
intersections or waypoi nts (places/landmarks)
that the system will use in your route.
2 Adding Waypoints P. 131
You can store up to 10 streets to avoid. You
cannot avoid your current st reet or the streets of
your waypoint(s) or dest ination (system beeps if
selected).
MDX_KA-31TZ58200.book 137 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

138Navigation
Changing Your DestinationThere are several methods you can use to change the route destination.Find Nearest PlaceHENTER button (on map)
X Search Nearby
Search for the nearest place/landmark on the map screen and set it as your
destination.
1.Rotate i to select Search
Nearby . Press u.
2. Rotate i to select a category
type. Press u.
3. Rotate i to select a place. Press
u .
4. Rotate i to select Set as
Destination . Press u.
5. Move r to select Clear Current
Route . Press u.
X
The route is automatically
recalculated and displayed on
the map screen.
X
Rotate i to edit the order to
set the location as a new
waypoint. Press u.
1Find Nearest Place
d “Find Nearest…”
The Find Nearest voice command is the fastest
method of specifying a pl ace/landmark as your
destination. Many kinds of places can be found.
2 Find Place Commands P. 331
MDX_KA-31TZ58200.book 138 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

139
XX
Changing Your Destination
XSelecting a Destination on the Map
Navigation
Selecting a Destination on the MapSelect a new destination when en route by selecting a location on the map.
1.Scroll the map to position the
cursor over your desired
destination, adjusting the map
scale as necessary. Press u.
X
If the address displayed is not
the desired location, press the
BACK button and repeat the
procedure.
2. Rotate i to select Set as
Destination . Press u.
2Calculating the Route
P. 114
3. Move r to select Clear Current
Route . Press u.
X
The route is automatically
recalculated and displayed on
the map screen.
X
Rotate i to edit the order to
set the location as a new
waypoint. Press u.
1Selecting a Destination on the Map
If there is more than one icon or street under the
map cursor, you are prompted to select the item
from a list.
Rotate i to select an item. Press u.
MDX_KA-31TZ58200.book 139 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

140
XX
Changing Your Destination
XEntering a New Destination
Navigation

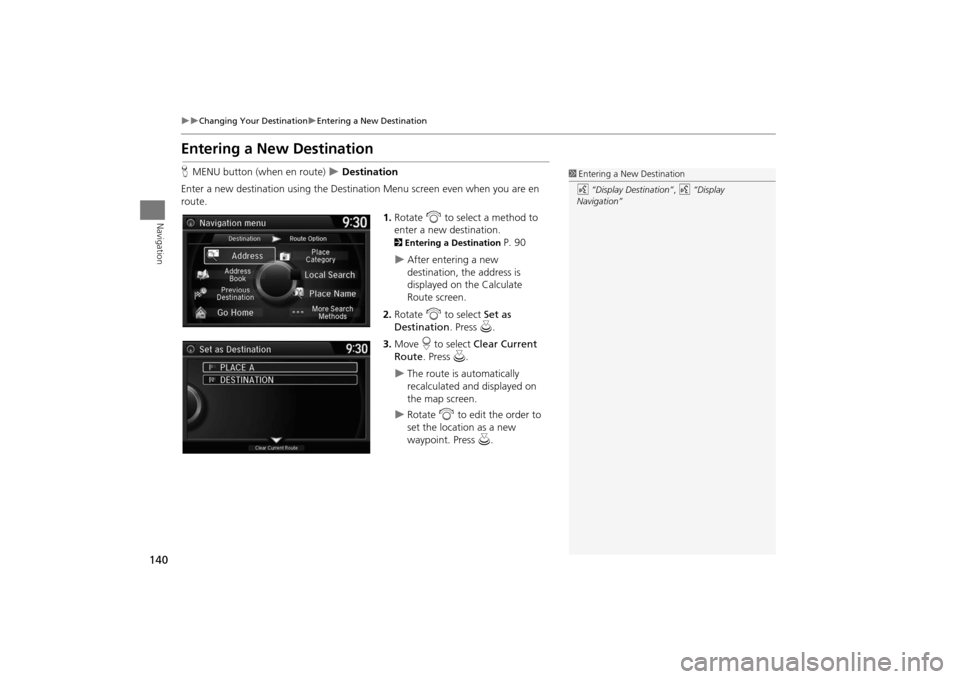

Entering a New DestinationHMENU button (when en route)
X Destination
Enter a new destination using the Destinat ion Menu screen even when you are en
route.
1.Rotate i to select a method to
enter a new destination.
2 Entering a Destination
P. 90
X
After entering a new
destination, the address is
displayed on the Calculate
Route screen.
2. Rotate i to select Set as
Destination . Press u.
3. Move r to select Clear Current
Route . Press u.
X
The route is automatically
recalculated and displayed on
the map screen.
X
Rotate i to edit the order to
set the location as a new
waypoint. Press u.
1Entering a New Destination
d “Display Destination” , d “Display
Navigation”
MDX_KA-31TZ58200.book 140 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

141Navigation
Resuming Your TripStop your vehicle en route (e.g., to rest, stop for gas, etc.), and then continue on
your route.
If you did not complete your route, the C ontinue Trip screen is displayed when you
restart your vehicle.
Rotate i to select Set as
Destination . Press u.
XYou can continue on the same
route.XMove w to scroll the map around
the destination.XPress the BACK button to cancel
your destination.
• Route Preference : Move r to select Route Preference to change the route
preferences (calculating method).
2 Route Preference
P. 56
• View Routes : Displays three different routes.
2Viewing the Routes
P. 115
1R
esum
ing
Your
Trip
The Continue Trip screen has the same options
as when you calculate a route.
2 Calculating the Route P. 114
You can also cancel your destination by pressing
any hard button except the a button
Search Nearby
You can find the nearest place/landmark (e.g.,
nearest gas station) by specifying a category.
2 Find Nearest Place P. 138
Call
You can place a telephone ca ll to the destination
phone number.
2 Bluetooth ® HandsFreeLink® P. 212
Save to Address Book
You can add the destination address to the
address book.
2 Adding an Address Book Entry P. 41
Edit/Delete Entry
You can edit or delete the address book entry.
2 Editing an Address Book Entry P. 43
Edit Home Entry
You can edit your home address entry.
2 Home Address P. 48
More Info
You can view detailed information about the
destination.
MDX_KA-31TZ58200.book 141 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

142
MDX_KA-31TZ58200.book 142 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

143
Audio
This section describes how to operate the audio system. You can play
music from a wide array of media s ources, and control the audio system
using the audio buttons, the Interface Dial, or voice control.
Audio System .................................................. 144
About Your Audio System .............................. 144
USB Port ........................................................ 145
Auxiliary Input Jack ......... .......................... ..... 146
Audio System Theft Protection ....................... 147
Setting Audio Shortcuts ................................. 148
Customizing Audio Source ............................. 149
Audio Remote Controls .................................. 150
Steering Wheel Controls ................................ 150
Audio Settings ................................................. 151
Adjusting the Sound ...................................... 153
Playing FM/AM Radio ..................................... 155
Selecting FM/AM Mode.................................. 155
Audio Screen Control ..................................... 155
Audio Menu .................................................. 157
Playing SiriusXM® Radio ................................ 161
Selecting SiriusXM® Mode............................. 161
Audio Screen Control ..................................... 161 Audio Menu ................................................... 163
SiriusXM® Radio Service................................. 165
Playing a Disc ................................................... 166
Selecting Disc Mode ....................................... 166
Audio Screen Control ..................................... 167
Audio Menu ................................................... 168
Recommended CDs ........................................ 171
Playing Hard Disc Drive (HDD) Audio ............ 173
Selecting HDD Mode ...................................... 173
Recording a Music CD to HDD........................ 174
Audio Screen Control ..................................... 175
Audio Menu ................................................... 176
Playing an iPod® ............................................. 185
Selecting iPod® Mode .................................... 186
Audio Screen Control ..................................... 187
Audio Menu ................................................... 189
Song By Voice
TM (SBV) .................................... 192 Playing Internet Radio
.................................... 197
Selecting Internet Radio Mode ....................... 197
Pandora® Menu ............................................ 198
Aha
TM Radio Menu ......................................... 200
Playing a USB Flash Drive ............................... 202
Selecting USB Mode....................................... 203
Audio Screen Control..................................... 204
Audio Menu .................................................. 205
Playing Bluetooth ® Audio............................. 208
Selecting Bluetooth ® Audio Mode ................ 208
Audio Screen Control..................................... 209
MDX_KA-31TZ58200.book 143 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
