2016 Acura MDX Navigation Manual

88System Setup
On Demand Multi-Use Display™Changing the Screen SettingsAdjusts the screen settings of the On Demand Multi-Use Display™.1.Select More.
2. Select Screen Settings .
3. Use N, B or other icons to adjust
the setting.
X
Use the / / / icons to
turn the page.
X
Select to go back to the
previous screen.
The followings are adju stable screen settings:
• Sync Display Brightness : Selects whether the screen brightness synchronizes
with the instruments panel brightness.
• Brightness : Adjusts the screen's brightness.
• Contrast : Adjusts the screen's contrast.
• Black Level : Adjusts the screen's black level.
• Display : Changes between the daytime or nighttime modes.
• Beep : Turns on or off the beep that sounds every time you touch the screen.
• Keyboard : Changes the on-screen keyboard fro m the alphabetical order to the
qwerty type.
• Vibration : Turns on or off the vibration when you touch the screen.
• Fade Timer : Sets the screen black out timing.
MDX_KA-31TZ58200.book 88 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

89
Navigation
This section describes how to enter a destination, select a route to take,
and follow the route to your destination. It also describes how to change your route or destination along the way.
Entering a Destination........................... 90
Address ................................................. 92
Address Book ......................................... 98
Previous Destination ............................... 99
Place Category ..................................... 100
Local Search ......................................... 102
Place Name .......................................... 104
Place Phone Number ............................ 107
Download POI ...................................... 108
Scenic Route ........................................ 109
Intersection .......................................... 110
Map Input ............................................ 111
Coordinate .......................................... 113 Calculating the Route
............................114
Viewing the Routes ...............................115
Driving to Your Destination .................116
Viewing the Route ................................116
Listening to Voice Guidance ..................120
Reaching a Waypoint ............................121
Map Menu ..............................................122
Displaying the Map Menu .....................122
Hide Traffic Flow ...................................124
Directions .............................................125
Traffic Rerouting™................................127
Changing Your Route ............................129
Pausing the Route .................................130
Canceling the Route .............................130 Adding Waypoints ............................... 131
Editing the Destination List ................... 135
Taking a Detour ................................... 137
Avoiding Streets ................................... 137
Changing Your Destination ................. 138
Find Nearest Place ................................ 138
Selecting a Destination on the Map ...... 139
Entering a New Destination .................. 140
Resuming Your Trip .............................. 141
MDX_KA-31TZ58200.book 89 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

90Navigation
Entering a DestinationHMENU button (on map)
This section describes how to enter a destination for route guidance. Rotate i to select an item. Press u .
XSelect More Search Methods to
display additional menu entries.
The following item s are available:
• Address : Sets a destination by entering an address.
2Address
P. 92
• Address Book : Sets a destination by selecting an address stored in your Address
Book.
2 Address Book
P. 98
• Previous Destination : Sets a destination by select ing a previous destination.
2Previous Destination
P. 99
1Entering a Destinationd
“Display Destination” ,
d
“Display
Navigation”
If you press the MENU button when en route,
the Route Option screen is displayed.
2 Changing Your Route P. 129
Prior to departure, you can set areas along your
route to avoid.
2 Avoiding Streets P. 137
MDX_KA-31TZ58200.book 90 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

91
XX
Entering a Destination
X
Navigation
•Go Home : Sets your home address as a destination. 2Going Home
P. 11
• Place Category : Sets a destination by selecting a place/landmark.
2Place Category
P. 100
• Local Search: Sets a destination by using Local Search.
2Local Search
P. 102
• Place Name : Sets a destination by entering a place name.
2Place Name
P. 104
• Place Phone No. : Sets a destination by entering the phone number of a place/
landmark.
2 Place Phone Number
P. 107
• Download POI: Sets a destination by using a lis t of the imported POI (category
and places) data you created.
2 Download POI
P. 108
• Scenic Route : Sets a destination by using a list of scenic roads for each state (U.S.
and Canada only).
2 Scenic Route
P. 109
• Intersection : Sets a destination (intersectio n) by entering two streets.
2Intersection
P. 110
• Map Input : Sets a destination by scrolling through the map.
2Map Input
P. 111
• Coordinate: Sets a destination by entering latitude and longitude.
2 Coordinate
P. 113
MDX_KA-31TZ58200.book 91 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

92
XX
Entering a Destination
XAddress
Navigation
AddressHMENU button
X Address
Enter an address to use as th e destination. The state or pr ovince you are currently in
is displayed (e.g., California).
Rotate i to select an item. Press u .
The following item s are available:
• City : Selects your destination city.
2Selecting a City
P. 94
• Street : Selects your destination street.
2Selecting a Street
P. 95
• House Number: Enters the house number to select the street.
2 Selecting a Street by House Number
P. 97
• ZIP Code : Enters the zip code to select the city.
2Selecting a City by Zip Code
P. 93
• Change State : Selects the state or province.
2Selecting the State or Province
P. 93
1Address
Using Voice Command
You can say the entire address at once using
voice commands. Say d “Address ” on the
Voice Portal screen, then say the entire address.
For example, “ 1-2-3-4 Main Street, Los Angeles,
California. ” The system interprets the address.
Say d “Set as destination ” to begin the route.
The system language need s to be set in English.
MDX_KA-31TZ58200.book 92 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

93
XX
Entering a Destination
XAddress
Navigation
HMENU button
X Address
X Change State
Rotate i to select a state from the
list. Press u.
H MENU button
X Address
X ZIP Code
1.Enter the zip code of your
destination.
2. Move r to select OK. Press u.
■Selecting the State or Province
1 Selecting the State or Province
Move w or y to select the following areas:•USA for the U.S. mainland, Alaska, Hawaii,
and Puerto Rico•Canada•Mexico
■ Selecting a City by Zip Code
1 Selecting a City by Zip Code
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Continued
MDX_KA-31TZ58200.book 93 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

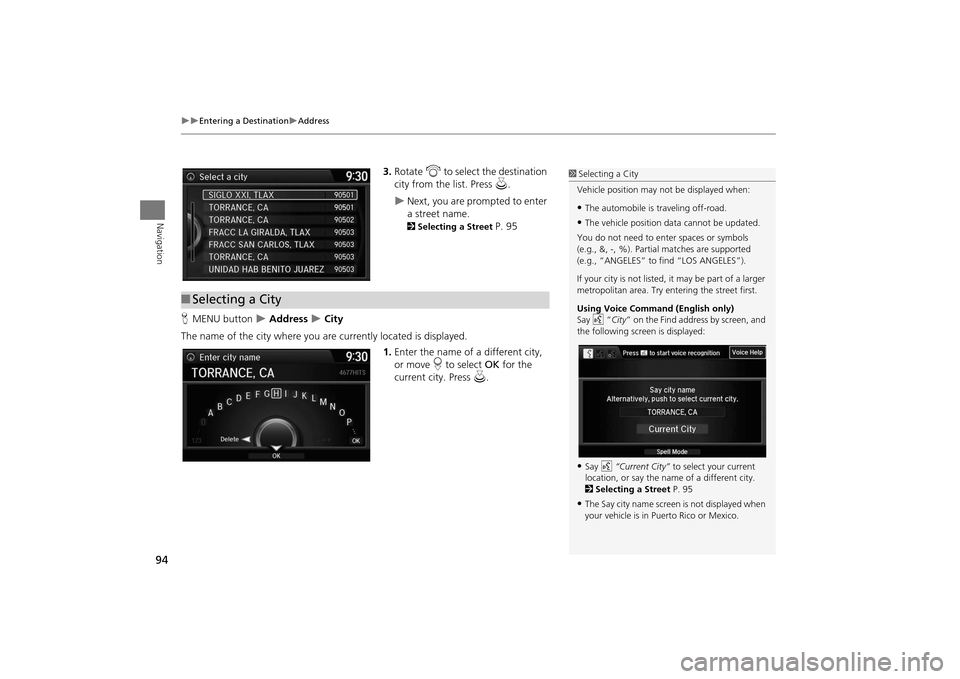

94
XX
Entering a Destination
XAddress
Navigation
3.Rotate i to select the destination
city from the list. Press u.X
Next, you are prompted to enter
a street name. 2Selecting a Street
P. 95
H MENU button
X Address
X City
The name of the city where you are currently located is displayed. 1.Enter the name of a different city,
or move r to select OK for the
current city. Press u.
■Selecting a City
1 Selecting a City
Vehicle position may not be displayed when:•The automobile is traveling off-road.•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols
(e.g., &, -, %). Partia l matches are supported
(e.g., “ANGELES” to find “LOS ANGELES”).
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
Using Voice Command (English only)
Say d “City ” on the Find address by screen, and
the following screen is displayed:•Say d “Current City” to select your current
location, or say the name of a different city.
2 Selecting a Street P. 95•The Say city name screen is not displayed when
your vehicle is in Puerto Rico or Mexico.
MDX_KA-31TZ58200.book 94 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

95
XX
Entering a Destination
XAddress
Navigation
2.Rotate i to select your
destination city fr om the list. Press
u .X
A list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list. Matching letters are
highlighted.
X
Next, you are prompted to enter
a street name. 2Selecting a Street
P. 95
H MENU button
X Address
X Street
1.Enter the name of your destination
street.
X
Do not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).
X
Move r to select OK to display
a list of streets. Press u.
Non-detailed area mark: Try entering the
street first and then select the city.■Selecting a Street
1 Selecting a Street
When entering the names of major freeways,
you can use the following abbreviations. For
interstates, use an “I ” (e.g., I-10). For U.S.
freeways, use “US” (e.g., US-18). For state
freeways, use the two-character state
designation (e.g., CA-101). For county roads, use
the appropriate desi gnation (e.g., G-2).
Using Voice Command (English only)
Say d “Street ” on the Find address by screen,
and the following screen is displayed:•Say the name of your destination street, and
say the street number as a string of individual
numbers.•Set the route to your destination.
2 Calculating the Route P. 114•The Say street name screen is not displayed
when your vehicle is in Puerto Rico or Mexico.
Continued
