2016 Acura MDX Navigation Manual

176
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
Audio MenuHMENU button (in HDD mode)
Rotate i to select an item. Press u .
The following item s are available:
• Sound : Adjusts the settings of the audio speaker’s sound.2Adjusting the Sound P. 153•Scan:
Scan Albums: Provides 10-second sampling of the first track in each album.
Scan Tracks: Provides 10-second sampling of all tracks on HDD.
• Music Search: Selects a file from the Music Search list.
2
How to Select a Track from the Music Search List
P. 178
• Change Source: Changes the audio source mode.
• Random/Repeat: The following menu items vary depending on the category you
selected by the Music Search list.
Repeat Artist: Repeats all tracks in the current artist.
Repeat Album: Repeats all tracks in the current album.
Repeat Track: Repeats the current track.
Random in Artist: Plays all tracks in the curre nt artist in random order.
Random in Album: Plays all tracks in the current album in random order.
Random All Tracks: Plays all tracks in random order.
• Edit/Delete: Change the playlist name, album name, genre, and track order of
the current playlist. You can also delete tracks, playlists, and albums.
Interface Dial
MDX_KA-31TZ58200.book 176 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

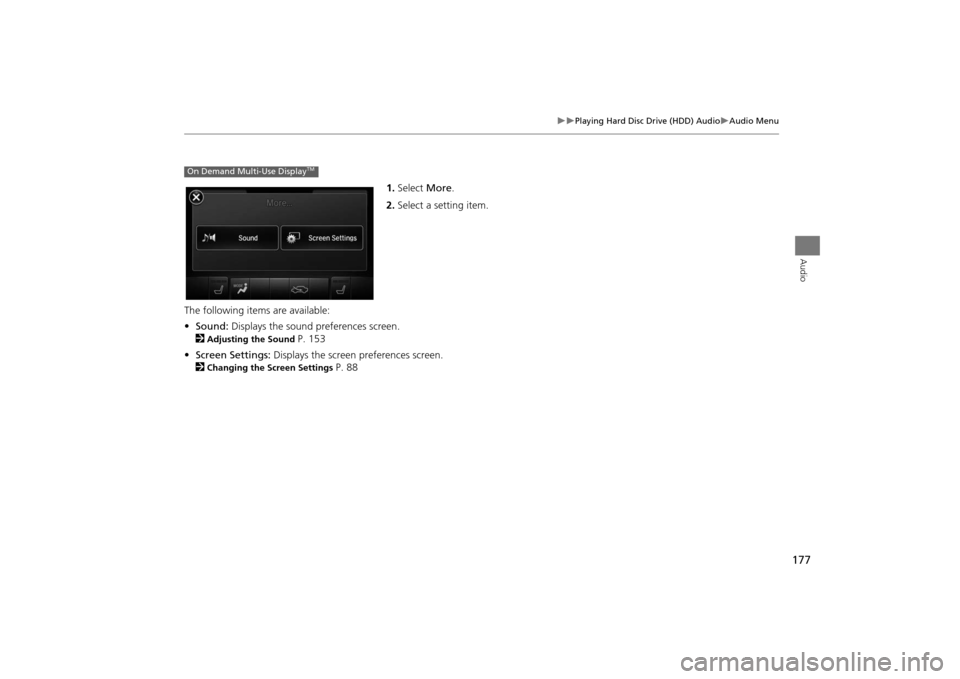

177
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
1.Select More.
2. Select a setting item.
The following items are available:
• Sound: Displays the sound preferences screen.
2
Adjusting the Sound
P. 153
• Screen Settings: Displays the screen preferences screen.
2
Changing the Screen Settings
P. 88
On Demand Multi-Use Display
TM
MDX_KA-31TZ58200.book 177 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

178
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HMENU button (in HDD mode)
X Music Search
1.Move w or y to select a search
category. Press u.
2. Rotate i to select a track from
the Music Search list. Press u.
■How to Select a Track from the Music Search List
MDX_KA-31TZ58200.book 178 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

179
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HMENU button (in HDD mode)
X Edit/Delete
1.Rotate i to select Albums or
Playlist . Press u.
2. Rotate i to select an album or
playlist that you want edit or
delete. Press u.
X
The pop-up menu appears on
the screen.
3. Rotate i to select an item. Press
u .
The following items are available:
• Edit Name: Enter a new name using the interface dial or the On Demand Multi-
Use Display
TM.
• Delete: Deletes the selected album or playlist.
• List Tracks: Change the track title, artist name, genre and composer. You can
also delete tracks.
■ Editing an Album or Playlist
1 Editing an Album or Playlist
The maximum number of or iginal playlists is 50
with a maximum of 99 songs in each playlist.
Each album CD counts as an original playlist.
Adding a track from a user playlist into the same
user playlist will cause the track to appear twice
in the playlist.
Deleting an album (origina l playlist) also deletes
the album tracks you have stored in any user
playlists.
Deleting a user playlist or deleting all tracks from
a user playlist does not remo ve the playlist folder.
The folder retains the playlist name and artist
information.
MDX_KA-31TZ58200.book 179 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

180
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HMENU button (in HDD mode)
X Edit/Delete
XPlaylists
XCreate New Playlist
1. Enter the playlist name using the
interface dial or the On Demand
Multi-Use Display
TM.
2. Select tracks from the music search
list.
■Creating a new Playlist
MDX_KA-31TZ58200.book 180 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

181
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HMENU button (in HDD mode)
X Edit/Delete
X Tracks
Change the track title, artist name, genr e and composer. You can also delete tracks.
Rotate i select a track you want to
edit or delete. Press u.
XThe pop-up menu appears on the
screen.
The following items are available:
• Edit Name: Enter the track information (track name, track artist, etc.) using the
interface dial or the On Demand Multi-Use Display
TM.
• Delete: Deletes a track.
■Editing Track Information
MDX_KA-31TZ58200.book 181 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

182
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HMENU button (in HDD mode)
X Edit/Delete
Music information (album name, artist name , genre) can be acquired by accessing
the Gracenote® Album Info.
1.Rotate i to select Albums. Press
u .
2. Rotate i to select an album that
you want edit or delete. Press u.
X
The pop-up menu appears on
the screen.
3. Rotate i to select Edit Name .
Press u.
4. Move r to select Get Music Info .
Press u.
X
The system starts to access the
Gracenote® Album Info.
■Displaying Music Information
MDX_KA-31TZ58200.book 182 ページ ２０１４年１２月１８日　木曜日　午後３時５９分

183
XX
Playing Hard Disc Drive (HDD) Audio
XAudio Menu
Audio
HSETTINGS button (in HDD mode)
X Audio Settings
X CD/HDD
Update the Gracenote® Album Info (Gracenote® Media Database) that is included
with the navigation system. 1.Insert the update disc into the disc
slot or connect the USB flash drive
that includes the update.
2. Rotate i to select Update
Gracenote Album Info. Press u.
3. Rotate i to select Update by CD
or Update by USB . Press u.
X
The system starts updating and
the confirmation message
appears on the screen. Press to
finish u.
■Updating Gracenote® Album Info
1 Updating Gracenote® Album Info
To acquire updated files:
• Consult a dealer.
• Visit http://www.navteq. com/gracenote/acura.
Once you perform an update, any information
you edited before will be overwritten or erased.
MDX_KA-31TZ58200.book 183 ページ ２０１４年１２月１８日　木曜日　午後３時５９分
