2016 Abarth 500 Owner handbook (in English)

Button(front window
fast demisting/
defrosting)
When button
is pressed, the
climate control system activates all the
functions required for fast demisting/
defrosting:
❒compressor on (if the weather
conditions are suitable);
❒air recirculation off;
❒maximum air temperature setting (HI);
❒fan speed determined according to
the coolant temperature;
❒air flow conveyed to the windscreen
and front side windows;
❒heated rear window on.
IMPORTANT The function remains
active for approximately 3 minutes after
the coolant temperature exceeds 50°C.
SYSTEM SERVICING
In winter, the climate control system
must be turned on at least once a
month for about 10 minutes.
Have the system inspected at an
Abarth Dealership before the summer.
2)
HEATED REAR WINDOW
DEMISTING/DEFROSTING
Press button
to activate: when this
function is activated, the button LED
switches on.
This function is timed and it will turn off
automatically after about 20 minutes.
Press the
button again to switch
the function off in advance.
IMPORTANT Do not apply stickers on
the inside of the rear window over
the heating filaments to avoid damage.
IMPORTANT
2) The system uses R134a coolant
which does not pollute the
environment in the event of
accidental leakage. Never use R12
fluid which is not compatible
with the system components.
29

EXTERNAL LIGHTS
IN BRIEF
The left-hand stalk operates most of
the external lights. The external
lights can only be switched on when
the ignition key is at MAR-ON.
The instrument panel and the
dashboard and central tunnel
controls will light up together with the
external lights.
DAYTIME RUNNING
LIGHTS (DRL)
"Daytime Running Lights"
(for versions/markets, where provided)
With the ignition key at MAR-ON and
ring nut A fig. 27 turned to
, the
daytime running lights switch on. The
other lights and interior lighting stay off.
The automatic operation of the daytime
running lights can be activated/
deactivated via the Setup menu (see
"Menu items" paragraph in this
chapter).
If the daytime running lights are
deactivated, no light comes on when
the ring nut is turned toO.
12) 13)
DIPPED HEADLIGHTS/
SIDE LIGHTS
With the ignition key turned to
MAR-ON, turn the ring nut to
fig.
27. If dipped headlights are activated,
the daytime running lights switch off
and the side lights and dipped
headlights switch on.
The
warning light switches on in
the instrument panel.
When the ignition key is turned to
STOP or removed and the ring nut is
turned fromOto
, all the side lights
and the number plate lights come on.
The
warning light will come on
in the instrument panel.MAIN BEAM HEADLIGHTS
To activate the main beam headlights,
with the ring nut at
, pull the stalk
towards the steering wheel beyond the
end of travel position.
The
warning light switches on in the
instrument panel.
When the stalk is pulled towards the
steering wheel again, beyond the end
of travel position, the main beam
headlights deactivate, the dipped
headlights reactivate and the
warning light switches off.
FLASHING
To do this, pull the stalk towards the
steering wheel (unstable position)
fig. 27, regardless of the position of the
ring nut.
The
warning light switches on in the
instrument panel.
27AB0A0026
30
GETTING TO KNOW YOUR CAR

DIRECTION INDICATORS
Bring the stalk to the (stable) position:
❒up (position 1) fig. 28: activates
the right direction indicator;
❒down (position 2): activates the left
direction indicator.
Warning light
orwill blink on the
instrument panel. The direction
indicators switch off automatically when
the steering wheel is straightened.
"Lane Change" function
If you wish to signal a lane change,
place the left stalk in the unstable
position for less than half a second.
The direction indicator on the selected
side flashes three times and then
switches off automatically."FOLLOW ME HOME"
DEVICE
This allows the space in front of the car
to be lit for a set time.
Activation:with the ignition key on
STOP or removed, pull the stalk
towards the steering wheel within 2
minutes from turning the engine off.
At each single movement of the stalk,
the lights will remain on for an extra
30 seconds up to a maximum of 210
seconds: then the lights are switched
off automatically.
Each time the stalk is operated, the
warning light on the instrument
panel turns on and the display shows
how long the function remains active.
The warning light switches on when the
stalk is pulled for the first time and
stays lit until the function switches off
automatically. Each time the stalk is
activated it increases the time that the
lights remain on.
Deactivation:keep the stalk pulled
towards the steering wheel for more
than two seconds.
WARNING
12) The daytime running lights are
an alternative to the dipped
headlights for driving in countries
where it is compulsory to have
lights on during the day; where it
is not compulsory, the use of
daytime running lights is
permitted.
13) Daytime running lights cannot
replace dipped headlights when
driving at night or through
tunnels. The use of daytime
running lights is governed by the
highway code of the country in
which you are driving. Comply
with legal requirements.
28AB0A0027
31

WINDOW CLEANING
IN BRIEF
The right stalk controls screen
wiper/washer operation.
This operates only with the ignition
key turned to MAR-ON.
WINDSCREEN
WIPER/WASHER
Operation
3) 4)
The stalk has five different positions
(four speeds) fig. 29:
❒A: windscreen wiper stopped.
❒B: intermittent operation.
❒C: continuous slow operation.
❒D: continuous fast operation.
❒E: temporary fast operation (unstable
position).
The temporary fast function lasts as
long as you manually keep the stalk in
that position. The lever returns to
position A when it is released,
automatically stopping the windscreen
wipers."Smart washing"
function
Pull the stalk towards the steering
wheel (unstable position) to operate the
windscreen washer.
Keep the stalk pulled to activate both
the windscreen washer jet and the
windscreen wiper with a single
movement; the latter turns on
automatically if you keep the stalk
pulled for more than half a second.
The operation of the windscreen wiper
terminates several strokes after the
stalk is released; a final cleaning stroke
several seconds later completes the
wiping operation.REAR WINDOW
WIPER/WASHER
Operation
5)
This operates only with the ignition key
turned to MAR-ON.
Turn the ring nut to
to operate the
rear window wiper.
With the windscreen wiper active,
rotate the ring nut to
to activate the
rear window wiper which, in this case,
operates (in the different positions) in
synchronisation with the windscreen
wiper, but with half its frequency. With
the windscreen wiper on, engaging
reverse will automatically turn the rear
window wiper on, in continuous slow
operation. Operation stops when
reverse is disengaged.
29AB0A0028
32
GETTING TO KNOW YOUR CAR

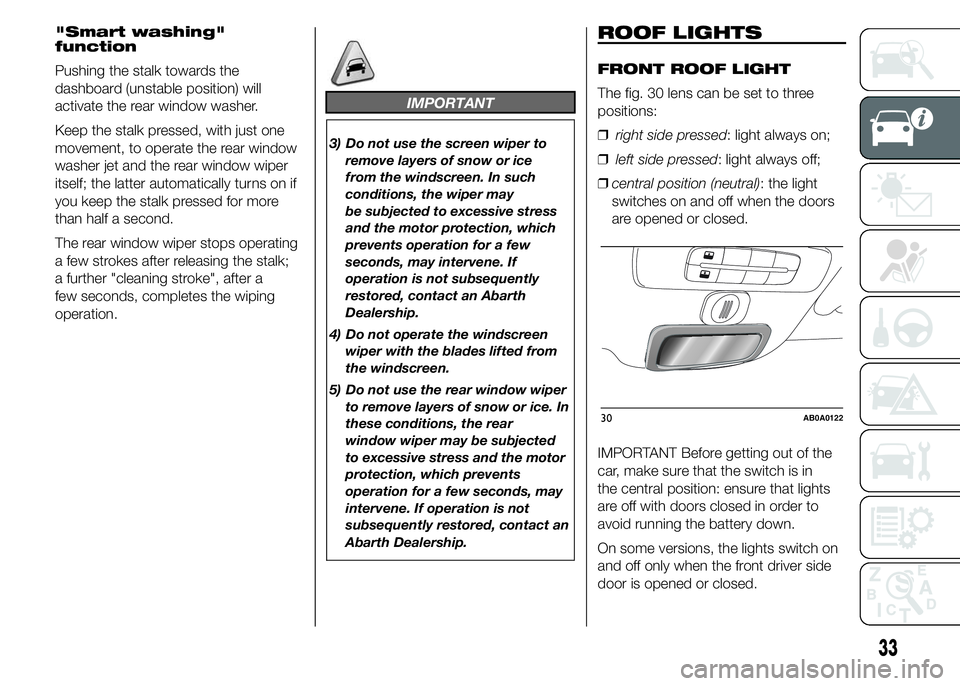

"Smart washing"
function
Pushing the stalk towards the
dashboard (unstable position) will
activate the rear window washer.
Keep the stalk pressed, with just one
movement, to operate the rear window
washer jet and the rear window wiper
itself; the latter automatically turns on if
you keep the stalk pressed for more
than half a second.
The rear window wiper stops operating
a few strokes after releasing the stalk;
a further "cleaning stroke", after a
few seconds, completes the wiping
operation.
IMPORTANT
3) Do not use the screen wiper to
remove layers of snow or ice
from the windscreen. In such
conditions, the wiper may
be subjected to excessive stress
and the motor protection, which
prevents operation for a few
seconds, may intervene. If
operation is not subsequently
restored, contact an Abarth
Dealership.
4) Do not operate the windscreen
wiper with the blades lifted from
the windscreen.
5) Do not use the rear window wiper
to remove layers of snow or ice. In
these conditions, the rear
window wiper may be subjected
to excessive stress and the motor
protection, which prevents
operation for a few seconds, may
intervene. If operation is not
subsequently restored, contact an
Abarth Dealership.
ROOF LIGHTS
FRONT ROOF LIGHT
The fig. 30 lens can be set to three
positions:
❒right side pressed: light always on;
❒left side pressed: light always off;
❒central position (neutral): the light
switches on and off when the doors
are opened or closed.
IMPORTANT Before getting out of the
car, make sure that the switch is in
the central position: ensure that lights
are off with doors closed in order to
avoid running the battery down.
On some versions, the lights switch on
and off only when the front driver side
door is opened or closed.
30AB0A0122
33

When the doors are released using the
key with remote control, a timer will
be activated for about 10 seconds.
When the doors are locked using the
key with remote control, the roof light
switches off.
Roof light timing (lens
central position)
Switching on
Three different switching-on modes are
provided:
❒when opening one door a three-
minute timer will start, which restarts
each time a door is opened;
❒a timer of about 10 seconds will start
when the ignition key is removed
within two minutes from turning the
engine off;
❒a timer of about 10 seconds will start
when the doors are opened (either by
remote control or key in driver’s
door).Switching off
Three modes are provided for switching
off:
❒when all doors are closed, the
three-minute timer will stop and
a ten-second one will start. This timer
will stop when the key is turned to
MAR-ON;
❒when doors are locked (either with
remote control or with key on driver
side door), the roof light switches off.
❒the interior lights are switched off
in any case after 15 minutes to
preserve battery charge
LUGGAGE
COMPARTMENT LIGHT
For versions fitted with luggage
compartment light, the light comes on
automatically when the tailgate is
opened and it will switch off when it is
closed.CONTROLS
SPORT FUNCTION
When the SPORT button fig. 31 is
pressed the sports driving setting is
turned on featuring more
responsiveness during acceleration, an
increase in drive torque and more
precise steering with greater effort
required on the steering wheel.
When this function is on, the word
SPORT is lit up in the display and the
instrument panel shows a dedicated
screen. Press the button again to turn
the function off and restore the normal
driving setting.
CDMENU
FM ASAM 1 2 3 4 5 6 AUDMP3 RND RPT TPM CD-IN EQ
LOUD AF LOC PTY TP TA RMB PBCD
31AB0A0029
34
GETTING TO KNOW YOUR CAR

IMPORTANT When the SPORT button
is pressed, the function is activated
about 5 seconds later.
IMPORTANT During acceleration using
the SPORT function the steering may
shudder which is typical of a sports
setting.
HAZARD WARNING
LIGHTS
They are turned on by pressing the
button B fig. 31, regardless of the
position of the ignition key.
With the device on, warning lights
andlight up in the instrument
panel.
Press button B again to switch the
lights off.
IMPORTANT The use of hazard warning
lights is governed by the highway
code of the country you are driving in:
comply with legal requirements.Emergency braking
In the event of an emergency braking,
the hazard warning light switch on
automatically together with warning
lights
andon the instrument
panel.
The lights switch off automatically when
emergency braking ceases.
FRONT FOG
LIGHTS/REAR FOG
LIGHTS
(for versions/markets, where provided)
The fog lights can be activated only
when the dipped headlamps are on.
To turn on the front/rear fog lights, use
the button C fig. 31 as follows:
❒First pressing: front fog lights on;
❒second pressing: rear fog lamps
on;
❒third pressing: front/rear fog lights
off.
With front fog lights on, the
warning
light on the instrument panel will come
on at the same time.
With rear fog lights on, the
warning
light on the instrument panel will come
on at the same time.REAR FOG LIGHTS
When the dipped beam headlights are
on, these can be activated by pressing
button
fig. 32.
With lights on, the warning light
on
the instrument panel will come on at the
same time.
Press the button again to switch the
lights off.
FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact
causing:
❒the fuel supply cut-off with the engine
consequently switching off
❒the automatic unlocking of the doors
❒turning on the lights inside the
vehicle.
32AB0A0030
35

The intervention of the system is
indicated by a message shown on the
display.
IMPORTANT Carefully check the car for
fuel leaks, for instance in the engine
compartment, under the car or near the
tank area.
14)
After a collision, turn the ignition key to
STOP position to prevent the battery
from running down.
To restore the correct operation of the
car, proceed as follows:
❒turn the ignition key to the MAR-ON
position
❒activate the right direction indicator
❒deactivate the right direction indicator
❒activate the left direction indicator
❒deactivate the left direction indicator
❒activate the right direction indicator
❒deactivate the right direction indicator
❒activate the left direction indicator
❒deactivate the left direction indicator
❒turn the ignition key to the STOP
position
❒turn the ignition key to the MAR-ON
position.
WARNING
14) If, after an impact, you smell fuel
or notice leaks from the fuel
system, do not reactivate the
system to avoid the risk of fire.
INTERIOR FITTINGS
CIGAR LIGHTER
(for versions/markets, where provided)
It is located on the central tunnel
fig. 33,near the handbrake lever. To
activate the cigar lighter, press button
A.
After a few seconds the button goes
back to its initial position and the cigar
lighter is ready for use.
15)
IMPORTANT Always check that the
cigar lighter is switched off.
IMPORTANT Do not connect devices
with power higher than 180 W to the
socket. Do not damage the socket by
using unsuitable plugs.
33AB0A0033
36
GETTING TO KNOW YOUR CAR
