2016 Abarth 500 Owner handbook (in English)

GRAPHICAL INDEX
.
HEADLIGHTS
❒Bulb types ..........................................136
❒External lights ..................................... 30
❒Bulb replacement ................................135
WHEELS
❒Rims and tyres ....................................178
❒Tyre pressure ......................................181
DOOR MIRRORS
❒Adjustment ......................................... 19
❒Folding ............................................... 20
DOORS
❒Central opening/closing ...................... 42
BONNET
❒Opening/closing .................................. 48
WINDSCREEN WIPERS
❒Blade replacement ..............................165
1AB0A0160
5

.
REAR LIGHTS
❒Bulb types
❒Bulb replacement ................................142
LUGGAGE COMPARTMENT
❒Opening/closing .................................. 45
REAR WINDOW WIPER
❒Blade replacement ..............................166
.
2AB0A0161
6
GRAPHICAL INDEX

AIR VENTS
❒Climate comfort .................................. 21
LEFT STALK
❒External lights ..................................... 30
TURBO PRESSURE GAUGE
❒Operation ........................................... 79
INSTRUMENT PANEL
❒Control panel and on-board
instruments ......................................... 78
❒Warning lights ..................................... 83
RIGHT STALK
❒Window cleaning ................................ 32
PASSENGER SIDE AIRBAG
❒Operation ...........................................115
GLOVE COMPARTMENT
❒Opening .............................................. 37
ELECTRIC WINDOW CONTROLS
❒Operation ........................................... 44
STEERING WHEEL
❒Adjustment ......................................... 18
❒Driver's side front airbag .....................114
3AB0A0220
7

.
RADIO
❒System ............................................... 60
HAZARD WARNING LIGHTS
❒Operation ........................................... 35
HEATER/CLIMATE CONTROL
SYSTEM
❒Manual climate control ........................ 24
❒Automatic climate control .................... 26
MANUAL GEARBOX
❒Using the gearbox ..............................124
4AB0A0221
8
GRAPHICAL INDEX

GETTING TO KNOW YOUR CAR
In-depth knowledge of your new vehicle
starts here.
The handbook that you are reading
simply and directly explains how it
is made and how it works.
That’s why we advise you to read it
seated comfortably on board, so that
you can see what is described here for
yourself.SYMBOLS ...................................... 10
FIAT CODE SYSTEM ....................... 10
THE KEYS....................................... 11
IGNITION SWITCH .......................... 14
SEATS ............................................ 15
HEAD RESTRAINTS ........................ 17
STEERING WHEEL ......................... 18
REAR VIEW MIRRORS .................... 19
CLIMATIC COMFORT ..................... 21
HEATING AND VENTILATION.......... 22
MANUAL CLIMATE CONTROL
SYSTEM ......................................... 24
AUTOMATIC CLIMATE CONTROL
SYSTEM ......................................... 26
EXTERNAL LIGHTS......................... 30
WINDOW CLEANING ...................... 32
ROOF LIGHTS ................................ 33
CONTROLS .................................... 34
INTERIOR FITTINGS ....................... 36
FIXED GLASS ROOF ....................... 40
ELECTRIC SUN ROOF .................... 40
DOORS ........................................... 42
ELECTRIC WINDOWS .................... 44
LUGGAGE COMPARTMENT ........... 45
BONNET ......................................... 48
ROOF RACK/SKI RACK .................. 50
HEADLIGHTS.................................. 51ESC SYSTEM ................................. 52
ITPMS (INDIRECT TYRE
PRESSURE MONITORING
SYSTEM) ........................................ 56
EOBD SYSTEM............................... 59
DUALDRIVE ELECTRIC POWER
STEERING ...................................... 59
RADIO SYSTEM .............................. 60
ACCESSORIES PURCHASED BY
THE OWNER................................... 60
PARKING SENSORS....................... 62
REFUELLING THE CAR .................. 64
PROTECTING THE
ENVIRONMENT .............................. 65
9

SYMBOLS
Some car components have coloured
labels whose symbols indicate
precautions to be observed when using
this component. Under the bonnet
there is also a label that summarises all
the symbols.
FIAT CODE SYSTEM
IN BRIEF
This is an electrical engine locking
system which increases protection
against an attempted theft of the. It is
automatically activated when the
ignition key is removed.
Each key contains an electronic
device which modulates the signal
emitted during ignition by an antenna
built into the ignition device. The
signal, which changes each time the
engine is started, is the “password”,
by means of which the control unit
recognises the key and enables
starting.
1)
Operation
Each time the vehicle is started turning
the ignition key toMAR-ON, the Fiat
CODE system control unit sends a
recognition code to the Powertrain
Control Module to deactivate the
immobiliser.
The acknowledgement code is sent
only if the Fiat CODE system control
unit has recognised the code
transmitted from the key.
Each time the ignition key is turned to
STOP, the Fiat CODE system
deactivates the functions of the
Powertrain Control Module.
Irregular operation
If, during starting, the code is not
correctly recognised, the symbol
comes on in the display.
In this case, turn the key toSTOPand
then back toMAR-ON; if the lock
continues, try with the other keys
provided with the vehicle. Contact an
Abarth Dealership if you still cannot
start the engine.
IMPORTANT Each key has its own
code which must be stored by the
system's control unit. Contact an
Abarth Dealership to have new keys (up
to 8) stored with a code.
10
GETTING TO KNOW YOUR CAR

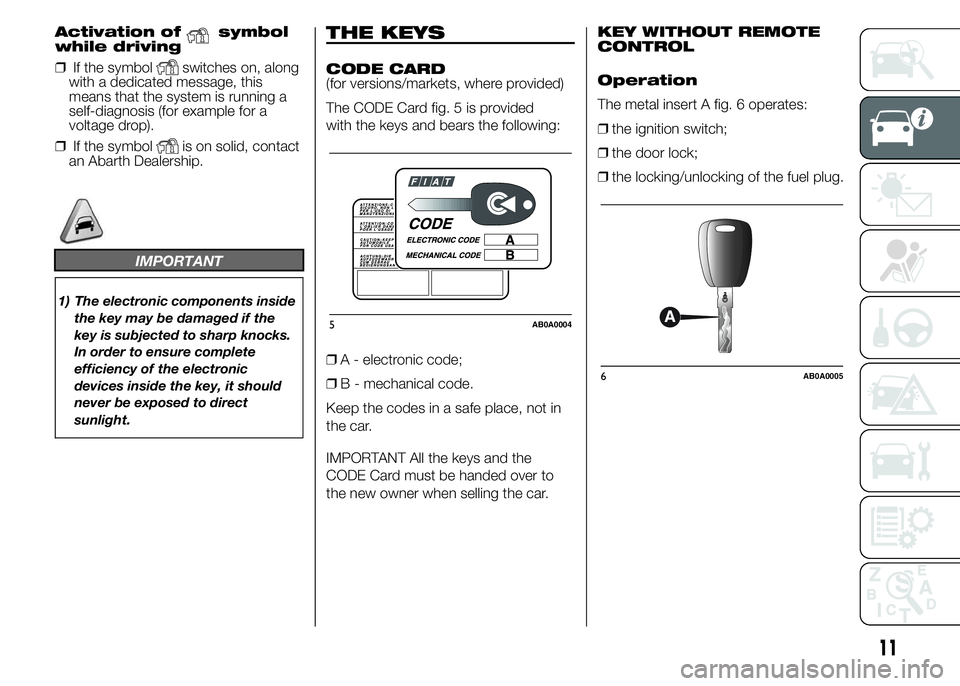

Activation ofsymbol
while driving
❒If the symbol
switches on, along
with a dedicated message, this
means that the system is running a
self-diagnosis (for example for a
voltage drop).
❒If the symbol
is on solid, contact
an Abarth Dealership.
IMPORTANT
1) The electronic components inside
the key may be damaged if the
key is subjected to sharp knocks.
In order to ensure complete
efficiency of the electronic
devices inside the key, it should
never be exposed to direct
sunlight.
THE KEYS
CODE CARD
(for versions/markets, where provided)
The CODE Card fig. 5 is provided
with the keys and bears the following:
❒A - electronic code;
❒B - mechanical code.
Keep the codes in a safe place, not in
the car.
IMPORTANT All the keys and the
CODE Card must be handed over to
the new owner when selling the car.KEY WITHOUT REMOTE
CONTROL
Operation
The metal insert A fig. 6 operates:
❒the ignition switch;
❒the door lock;
❒the locking/unlocking of the fuel plug.
5AB0A0004
6AB0A0005
11

KEY WITH REMOTE
CONTROL
Operation
The metal insert A fig. 7 operates:
❒the ignition switch;
❒the door lock;
❒the locking/unlocking of the fuel plug.
Press button B to open/close the
metal insert.
1)
Unlocking door and
luggage compartment
Briefly press button
: unlocking
of doors and luggage compartment,
timed switching-on of internal lights and
double flashing of direction indicators
(for versions/markets, where provided).
The doors are unlocked automatically
if the fuel cut-off system intervenes.
Locking door and
luggage compartment
Briefly press button
: locking of doors
and luggage compartment, switching
off of internal lights and single flashing
of direction indicators (for versions/
markets, where provided).
If one or more doors are open, the
doors will not be locked. This is
indicated by a rapid flashing of the
direction indicators (for versions/
markets, where provided). The doors
will be locked if the tailgate is open
however.
When a speed of more than 20 km/h is
reached, the doors will be locked
automatically if this specific function
was set.Opening the luggage
compartment
Press the
button to open the
luggage compartment remotely. The
direction indicators will flash twice
to indicate that the luggage
compartment has been opened.
REQUESTING
ADDITIONAL REMOTE
CONTROLS
The system can recognise up to 8 keys
with incorporated remote control. If
you need to request a new remote
control, contact an Abarth Dealership,
taking the CODE Card (for versions/
markets, where provided), an identity
document and documents proving
ownership of the car with you.
7AB0A0006
12
GETTING TO KNOW YOUR CAR
