2015 JEEP WRANGLER Owners Manual

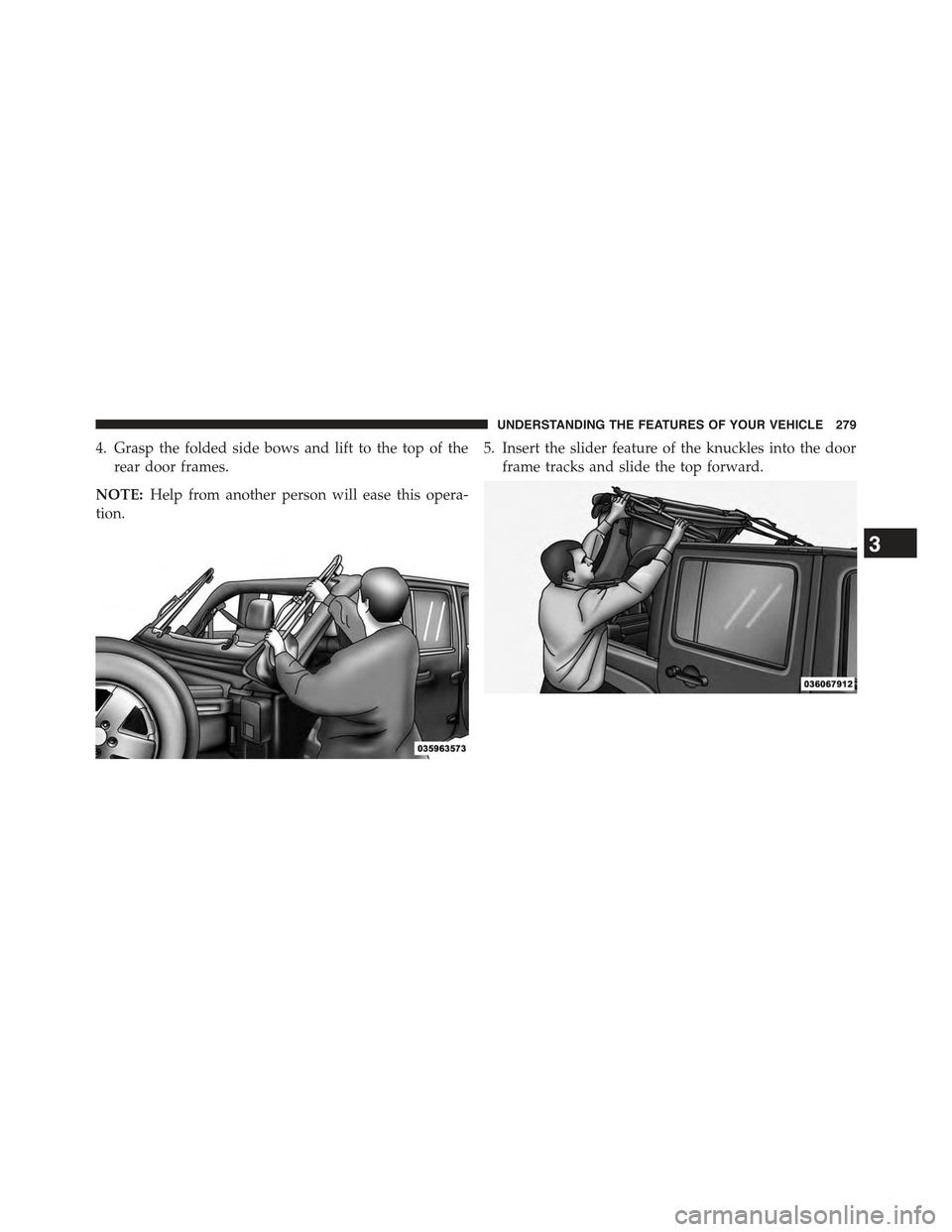

4. Grasp the folded side bows and lift to the top of the
rear door frames.
NOTE:Help from another person will ease this opera-
tion.
5. Insert the slider feature of the knuckles into the door
frame tracks and slide the top forward.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 279

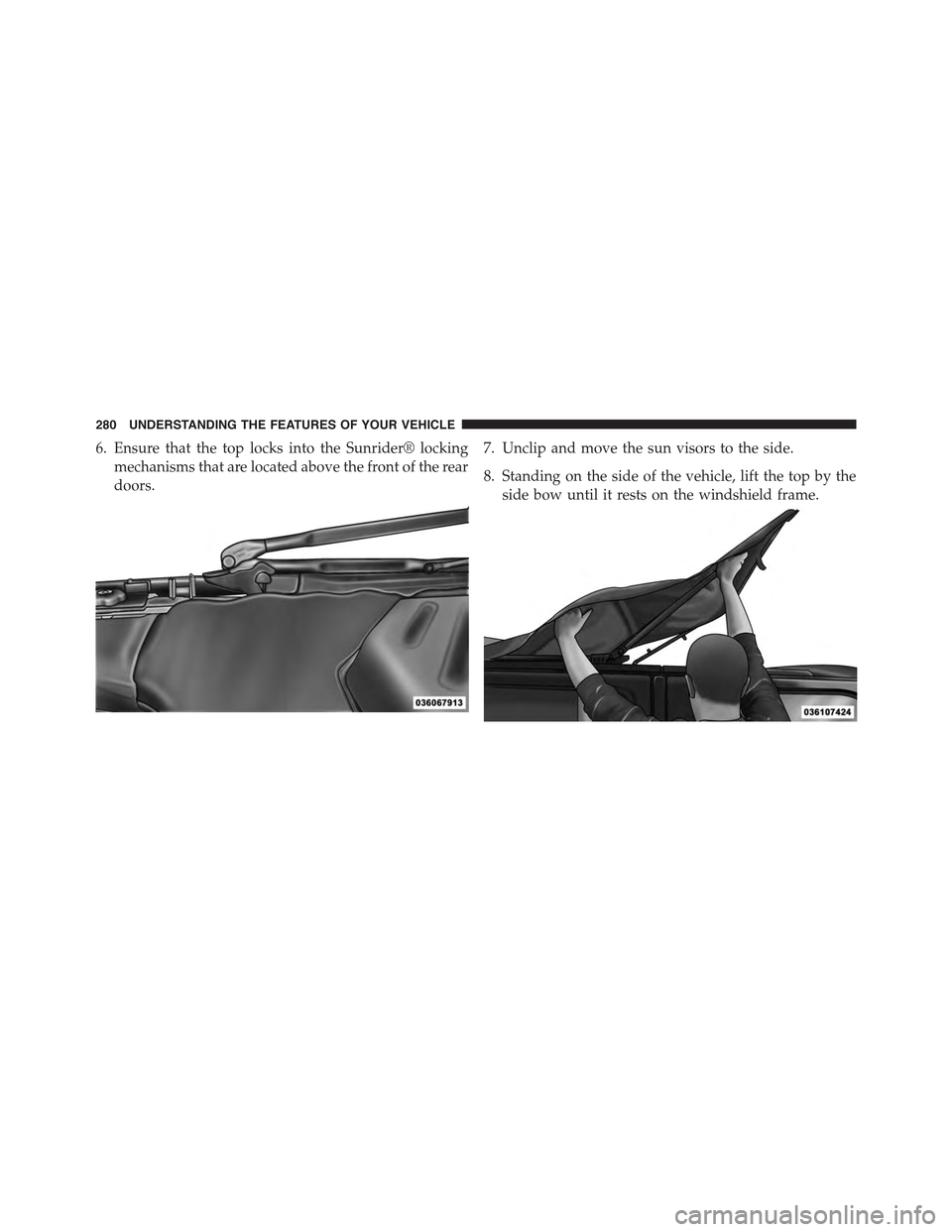

6. Ensure that the top locks into the Sunrider® locking
mechanisms that are located above the front of the rear
doors.
7. Unclip and move the sun visors to the side.
8. Standing on the side of the vehicle, lift the top by the
side bow until it rests on the windshield frame.
280 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

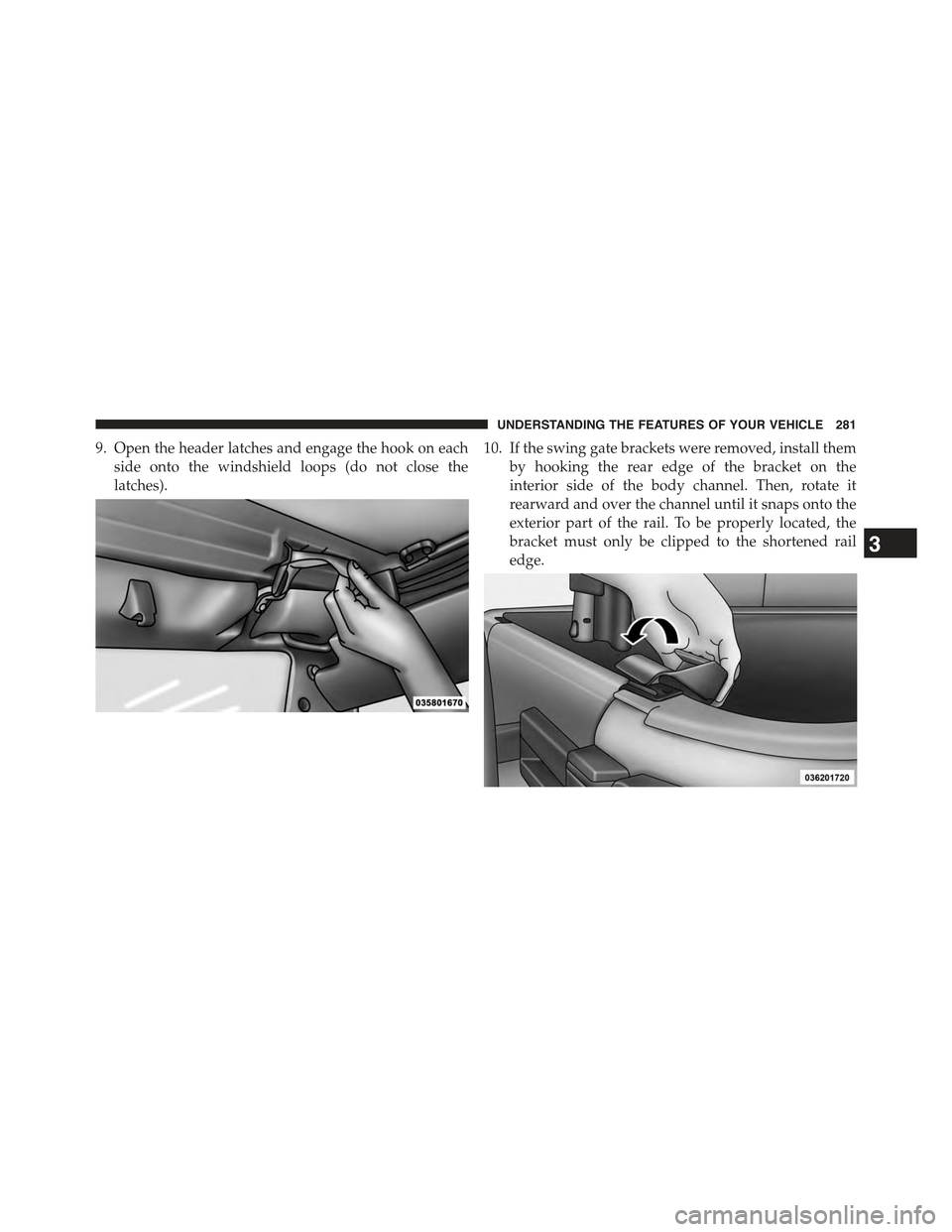

9. Open the header latches and engage the hook on each
side onto the windshield loops (do not close the
latches).
10. If the swing gate brackets were removed, install them
by hooking the rear edge of the bracket on the
interior side of the body channel. Then, rotate it
rearward and over the channel until it snaps onto the
exterior part of the rail. To be properly located, the
bracket must only be clipped to the shortened rail
edge.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 281

11. Ensure that the straps are positioned correctly before
pulling the sail panels over the rear roof bow (4–
bow).
Partially install the sail panel retainers into the body side
channel, leaving the last 3 in (7.6 cm) toward the rear
window loose (on both sides). Pulling down on the rear
roof bow (4–bow) will aid in reaching the channel with
the retainers.
282 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

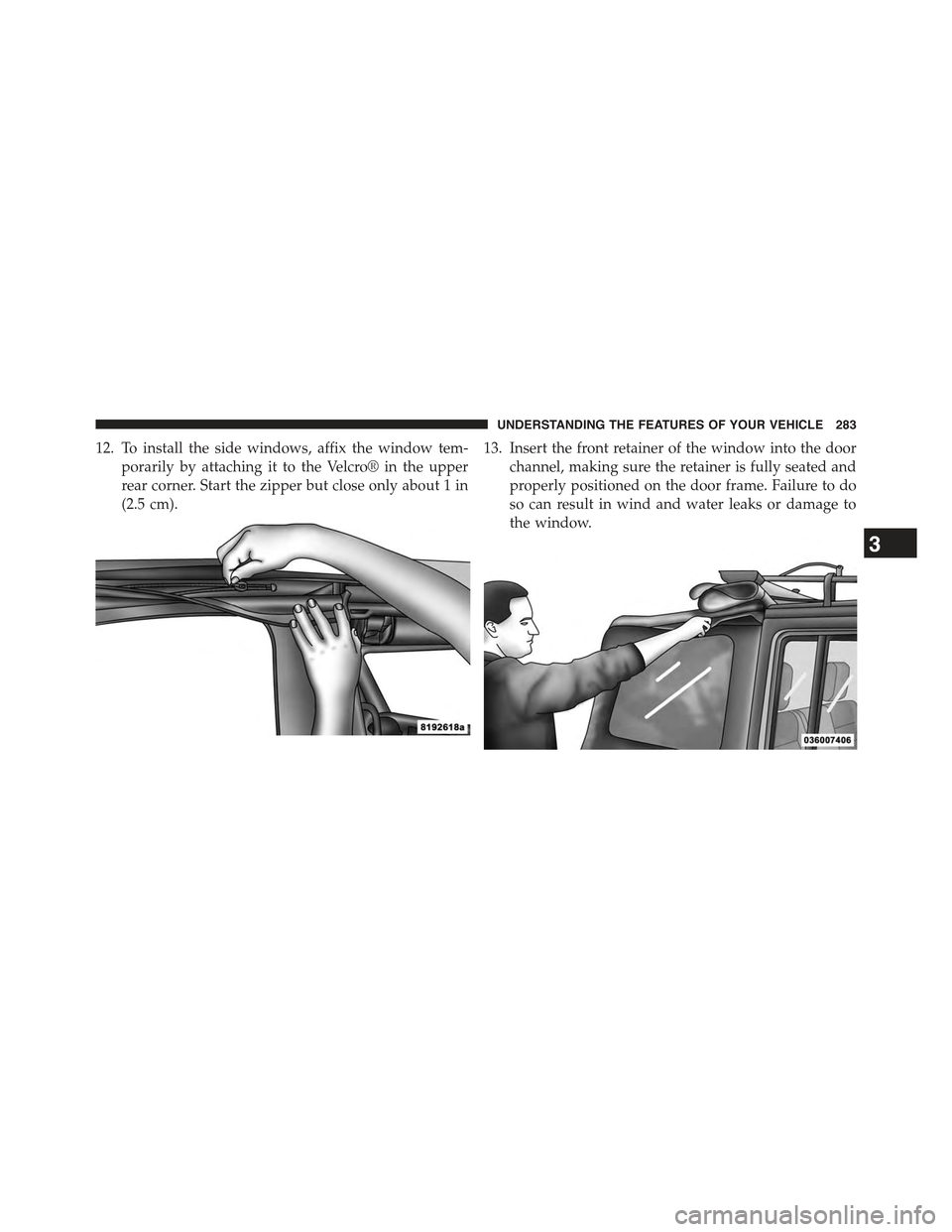

12. To install the side windows, affix the window tem-
porarily by attaching it to the Velcro® in the upper
rear corner. Start the zipper but close only about 1 in
(2.5 cm).
13. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do
so can result in wind and water leaks or damage to
the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

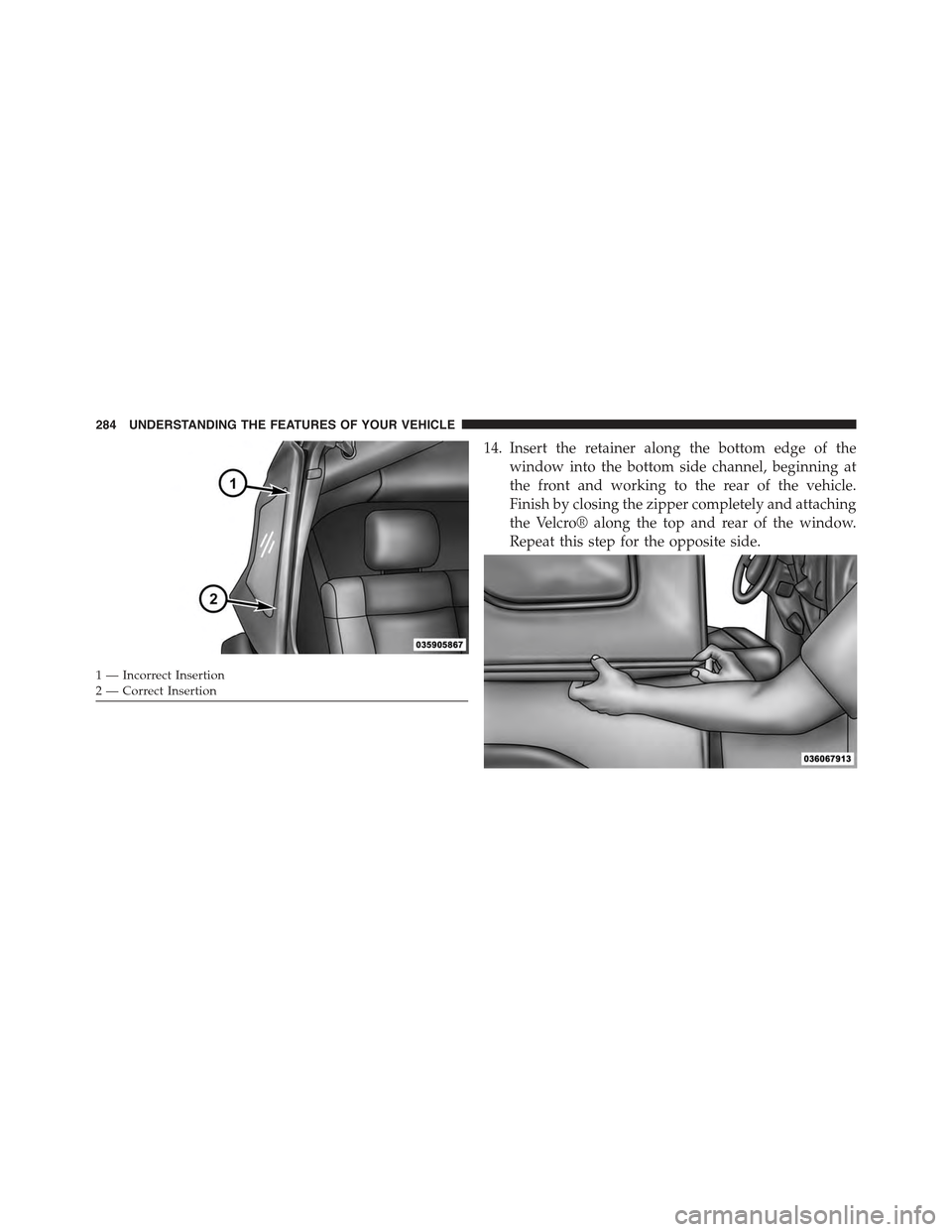

14. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at
the front and working to the rear of the vehicle.
Finish by closing the zipper completely and attaching
the Velcro® along the top and rear of the window.
Repeat this step for the opposite side.
1 — Incorrect Insertion2 — Correct Insertion
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

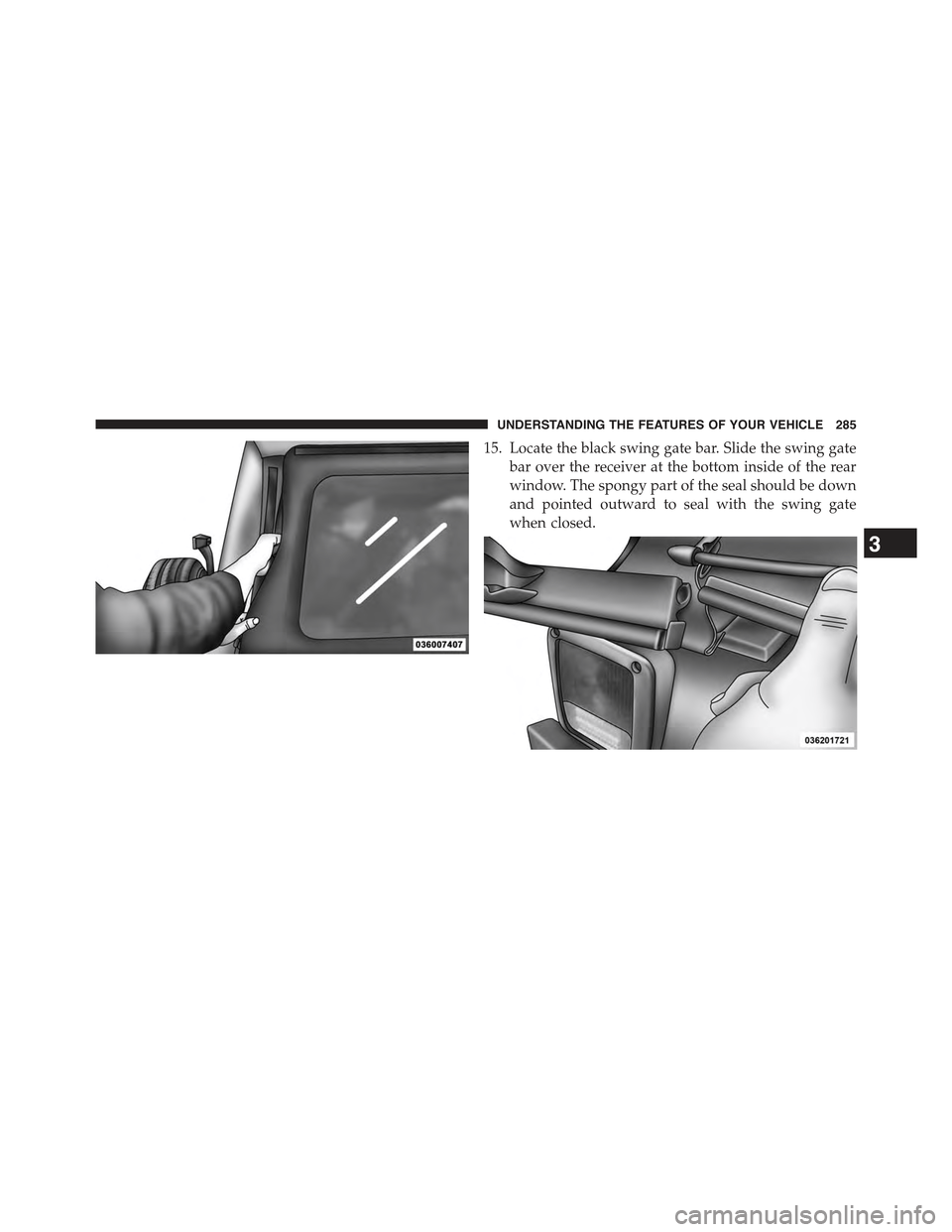

15. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down
and pointed outward to seal with the swing gate
when closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 285

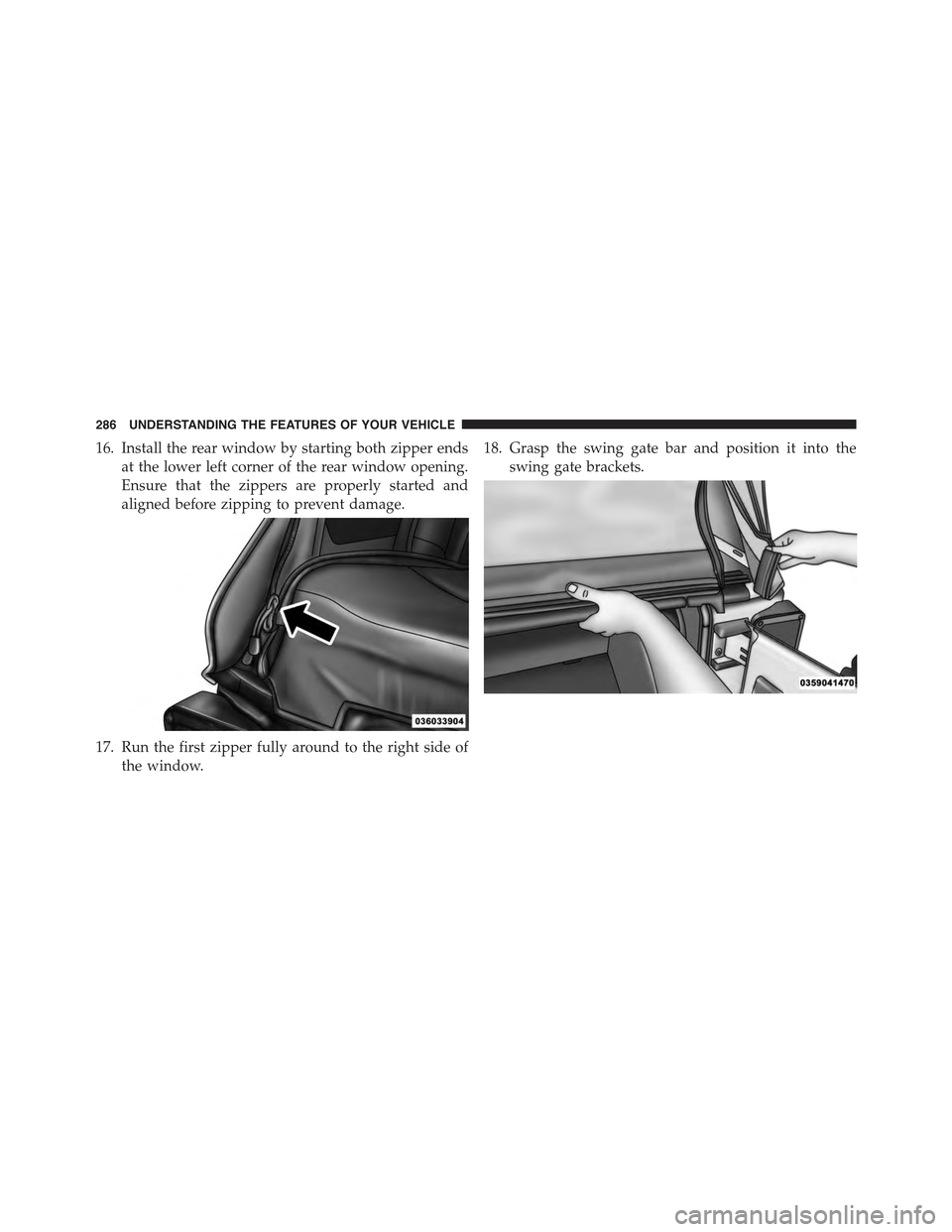

16. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and
aligned before zipping to prevent damage.
17. Run the first zipper fully around to the right side of
the window.
18. Grasp the swing gate bar and position it into the
swing gate brackets.
286 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
