CAUTION!
The removal of the Freedom Top™ requires four
adults located on each corner. Failure to follow this
caution could damage the Freedom Top™.
Rear Hard Top Installation
NOTE:If the door frames are installed from soft top
usage, they must be removed prior to installation of the
hard top.
1. Inspect the hard top seals for damage and replace if
necessary.
2. Install the hard top using the same steps for removal
in reverse order.
Make sure that the hard top is sitting flush with the body
at the sides and check to ensure that there is a uniform
gap between the lift glass and hard top.
NOTE:
•The Torx® fasteners that attach the hard top to the
body should be torqued to 88 in lb +/- 22 in lb
(10 N·m +/- 2.5 N·m).
•It is not necessary to pinch connection when rein-
stalling washer hose. Push on until click is heard.
DOOR FRAME
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•Opening a door or lowering a window while the
top is wet may allow water to drip into the vehicle’s
interior.
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 215

CAUTION!(Continued)
•Careless handling and storage of the removable
door frame(s) may damage the seals, causing water
to leak into the vehicle’s interior.
•The door frame(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.
WARNING!
•Do not drive your vehicle on public roads with the
door frame(s) removed as you will lose the protec-
tion that they can provide. This procedure is fur-
nished for use during off-road operation only.
•Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.
Door Frame Removal

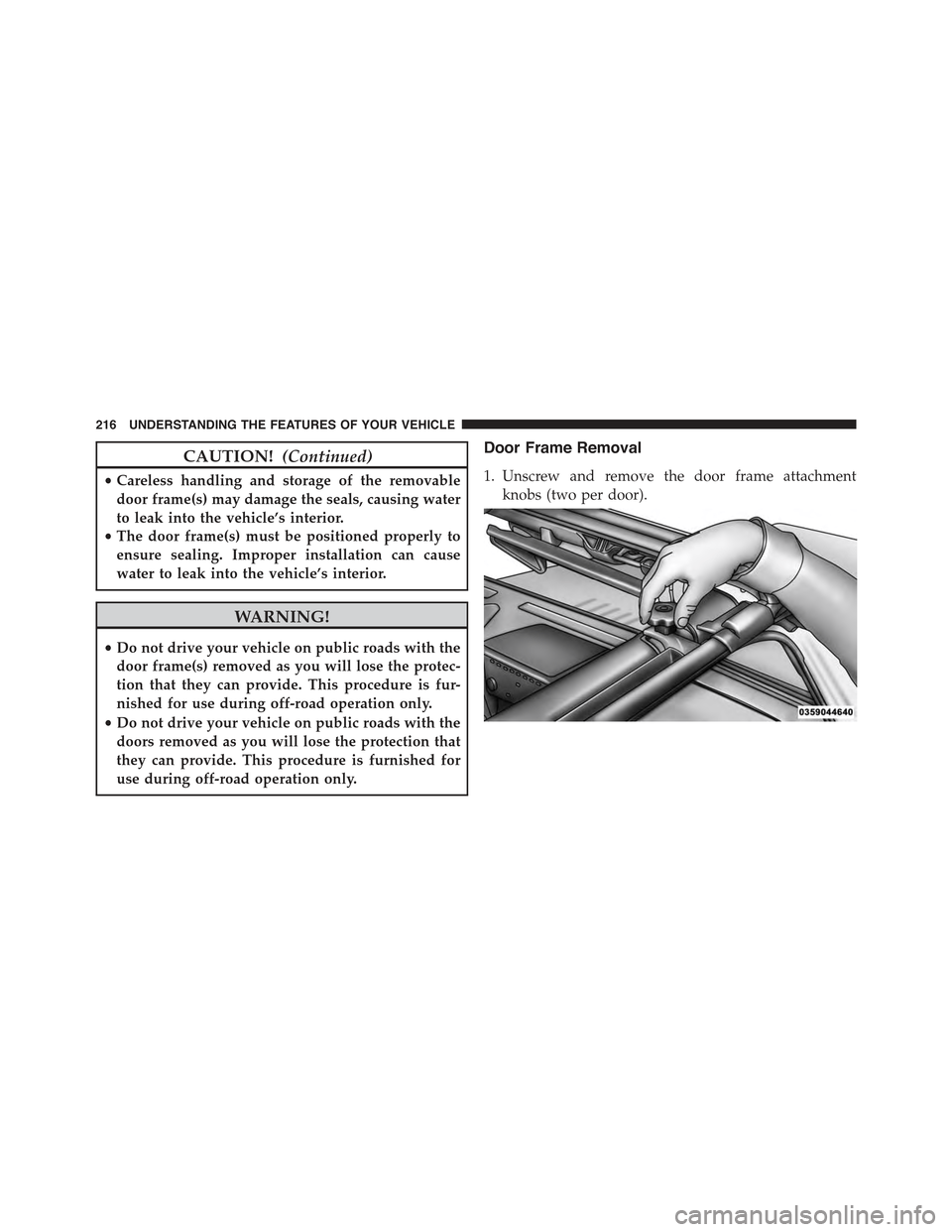

1. Unscrew and remove the door frame attachment
knobs (two per door).
216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!
Use both hands to remove the door frames. The door
frames will fold and could cause injury if both hands
are not used.
2. Place one hand on the upper rear and one hand on the
front of the door frame.
3. Pull the frame toward you with your rearward hand to
remove the frame from the vehicle.
4. Screw the knobs back into the door frame and fold for
storage. Store in a secure location.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

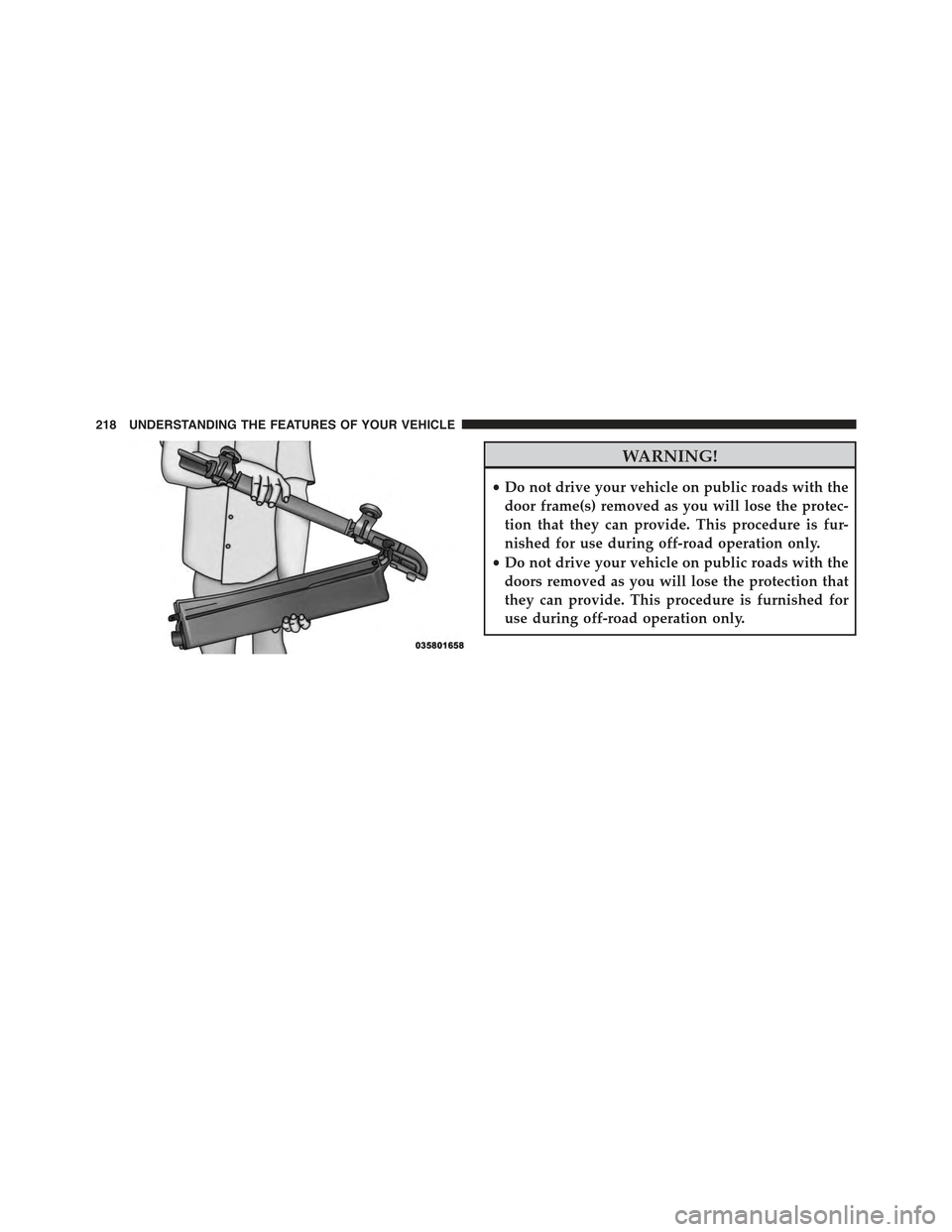

WARNING!
•Do not drive your vehicle on public roads with the
door frame(s) removed as you will lose the protec-
tion that they can provide. This procedure is fur-
nished for use during off-road operation only.
•Do not drive your vehicle on public roads with the
doors removed as you will lose the protection that
they can provide. This procedure is furnished for
use during off-road operation only.
218 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Door Frame Installation — Two-Door Models — If
Equipped

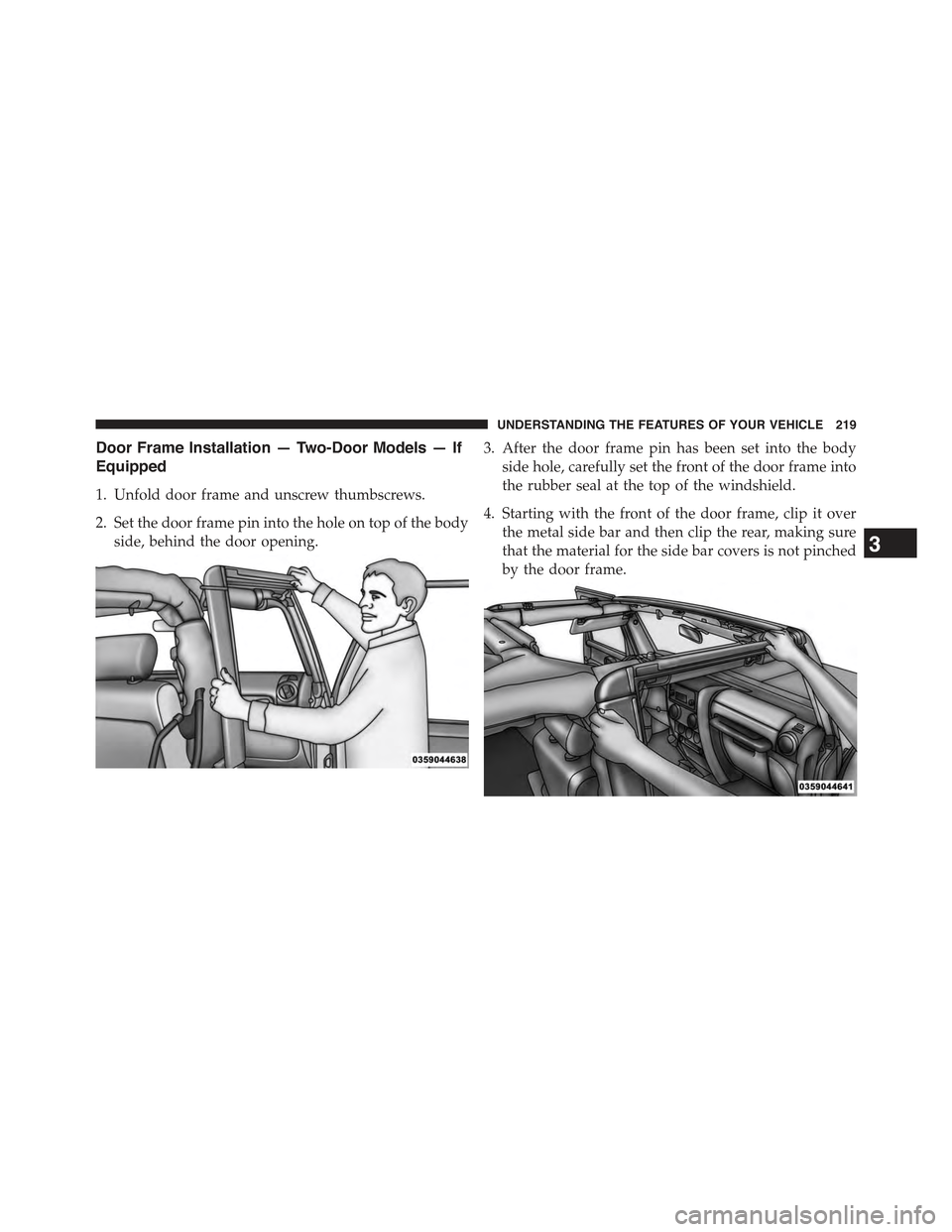

1. Unfold door frame and unscrew thumbscrews.
2. Set the door frame pin into the hole on top of the body
side, behind the door opening.
3. After the door frame pin has been set into the body
side hole, carefully set the front of the door frame into
the rubber seal at the top of the windshield.
4. Starting with the front of the door frame, clip it over
the metal side bar and then clip the rear, making sure
that the material for the side bar covers is not pinched
by the door frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

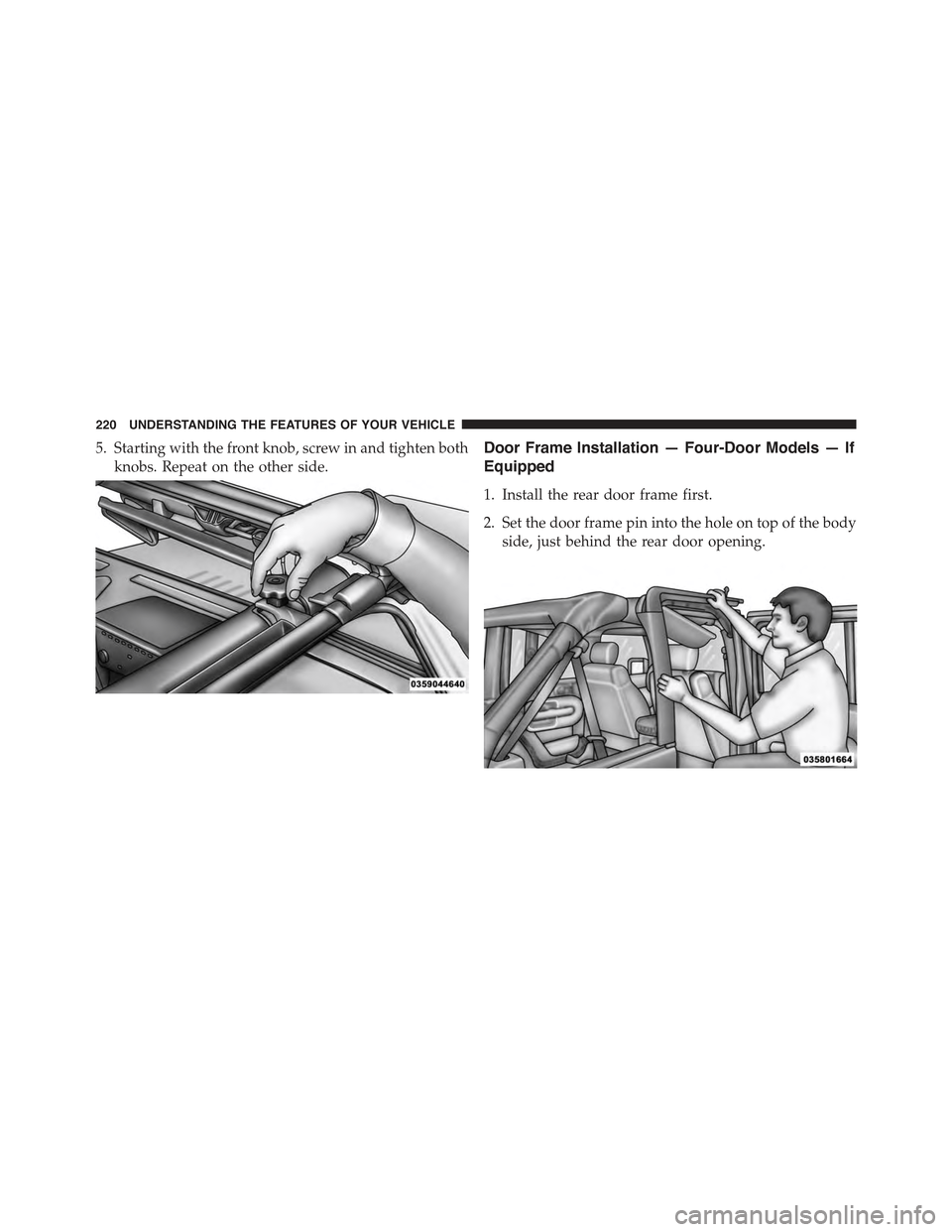

5. Starting with the front knob, screw in and tighten both
knobs. Repeat on the other side.
Door Frame Installation — Four-Door Models — If
Equipped
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the body
side, just behind the rear door opening.
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

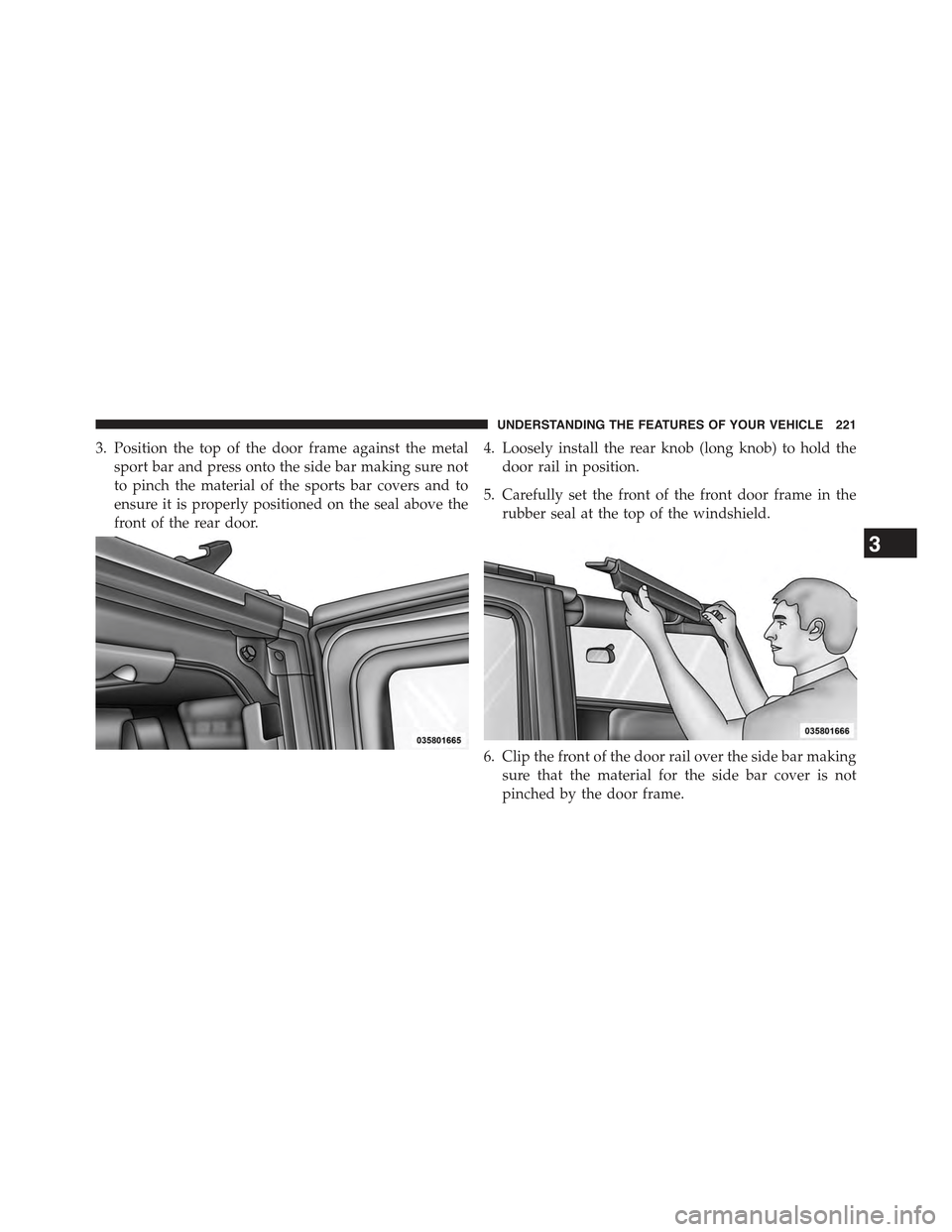

3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not
to pinch the material of the sports bar covers and to
ensure it is properly positioned on the seal above the
front of the rear door.
4. Loosely install the rear knob (long knob) to hold the
door rail in position.
5. Carefully set the front of the front door frame in the
rubber seal at the top of the windshield.
6. Clip the front of the door rail over the side bar making
sure that the material for the side bar cover is not
pinched by the door frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

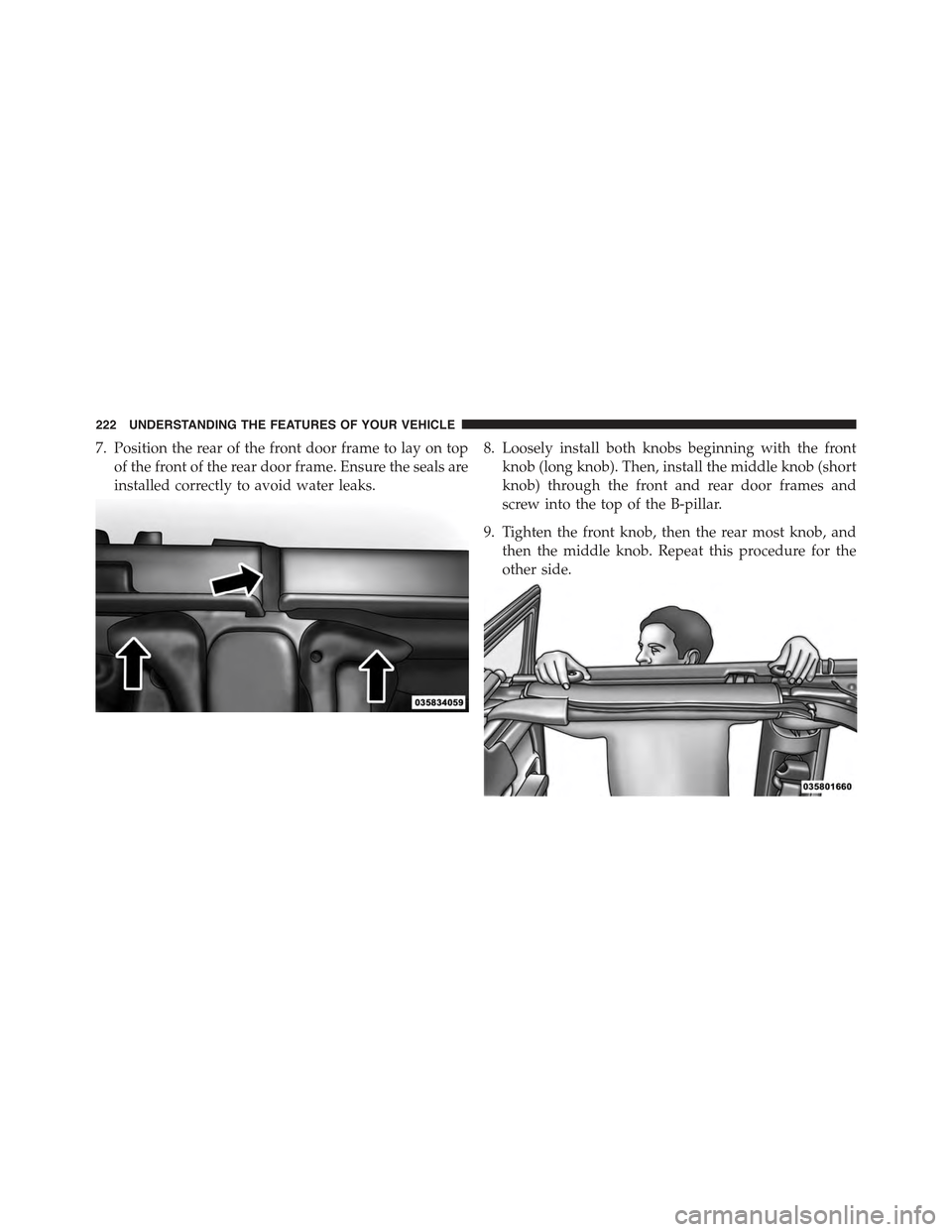

7. Position the rear of the front door frame to lay on top
of the front of the rear door frame. Ensure the seals are
installed correctly to avoid water leaks.
8. Loosely install both knobs beginning with the front
knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and
screw into the top of the B-pillar.
9. Tighten the front knob, then the rear most knob, and
then the middle knob. Repeat this procedure for the
other side.
