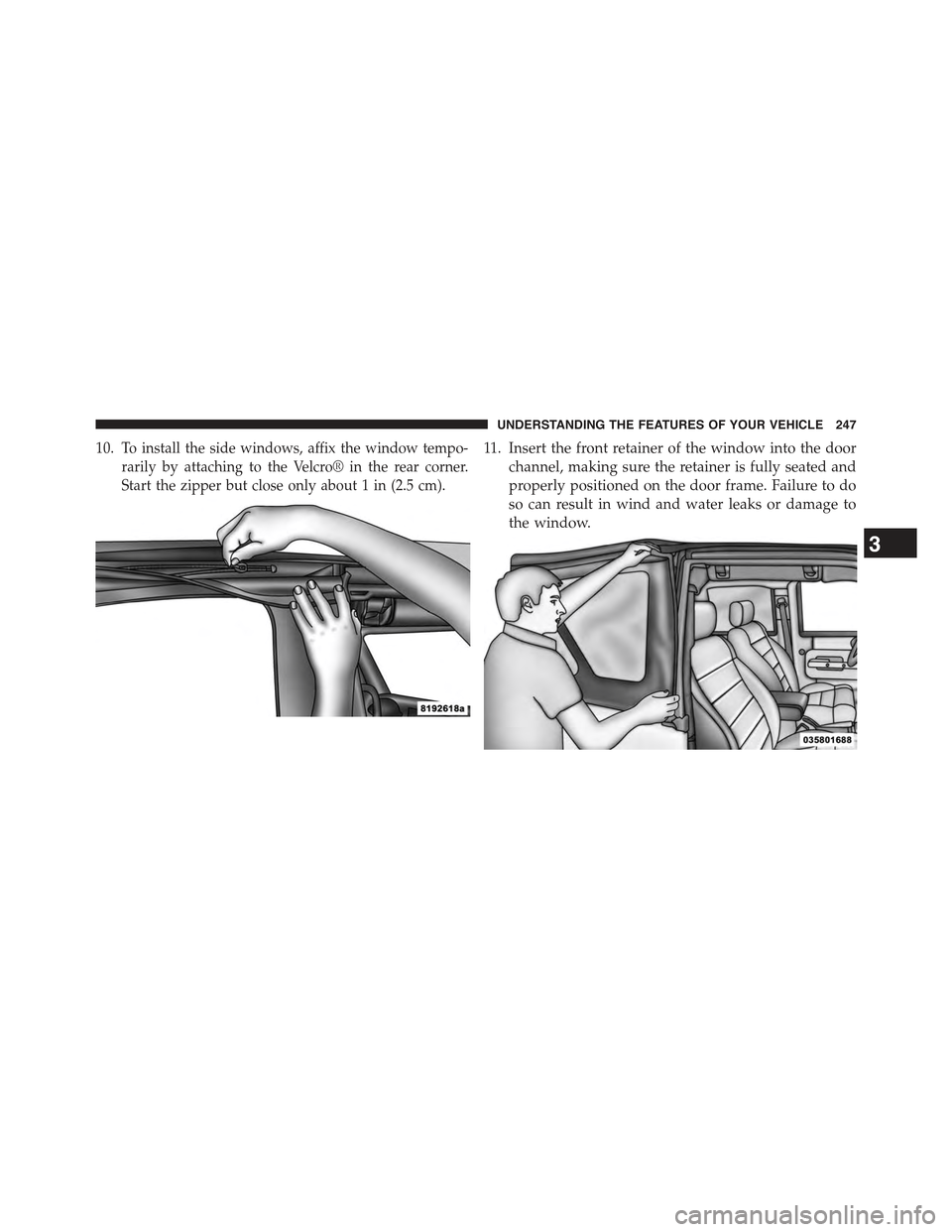

10.To install the side windows, affix the window tempo-
rarily by attaching to the Velcro® in the rear corner.
Start the zipper but close only about 1 in (2.5 cm).
11. Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
properly positioned on the door frame. Failure to do
so can result in wind and water leaks or damage to
the window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 247

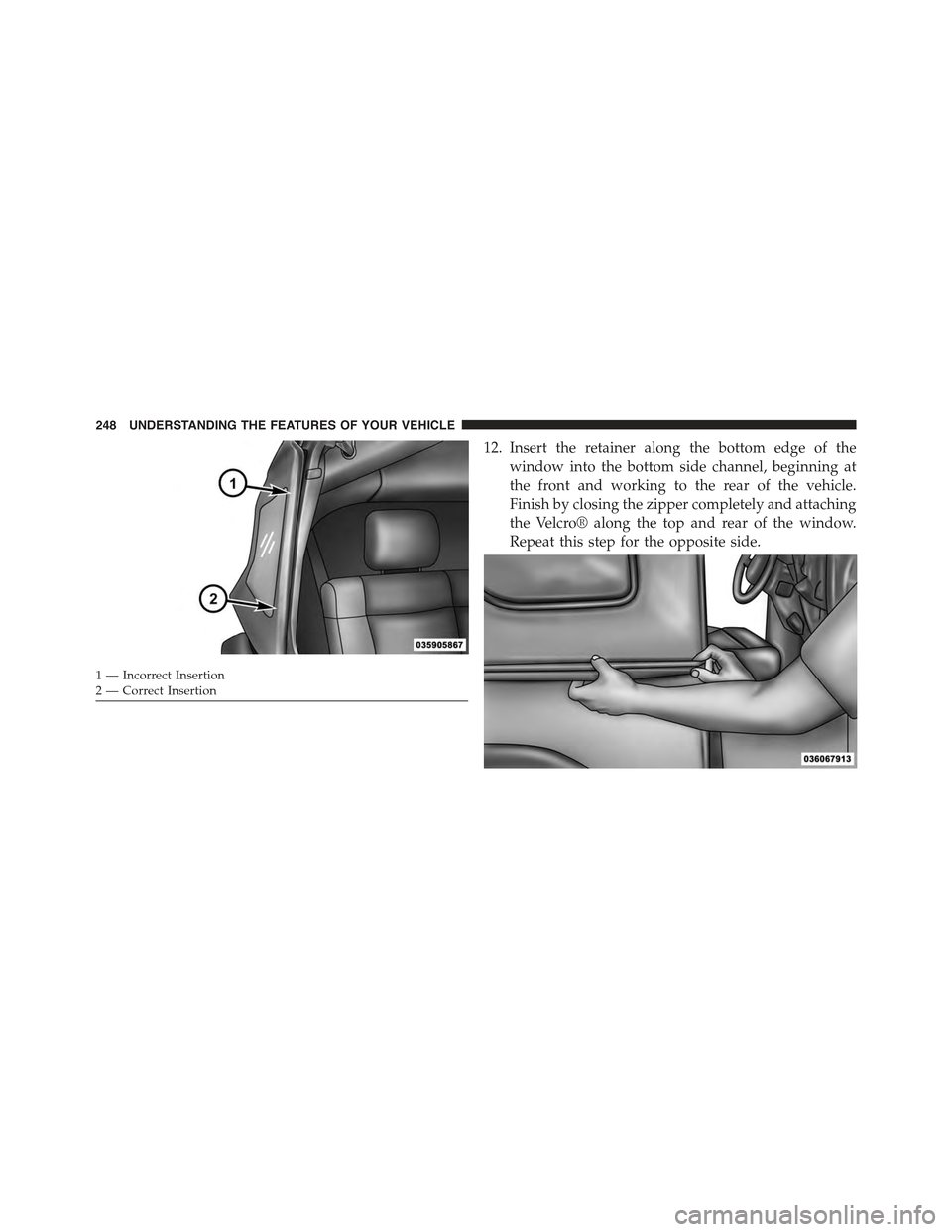

12. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at
the front and working to the rear of the vehicle.
Finish by closing the zipper completely and attaching
the Velcro® along the top and rear of the window.
Repeat this step for the opposite side.
1 — Incorrect Insertion2 — Correct Insertion
248 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

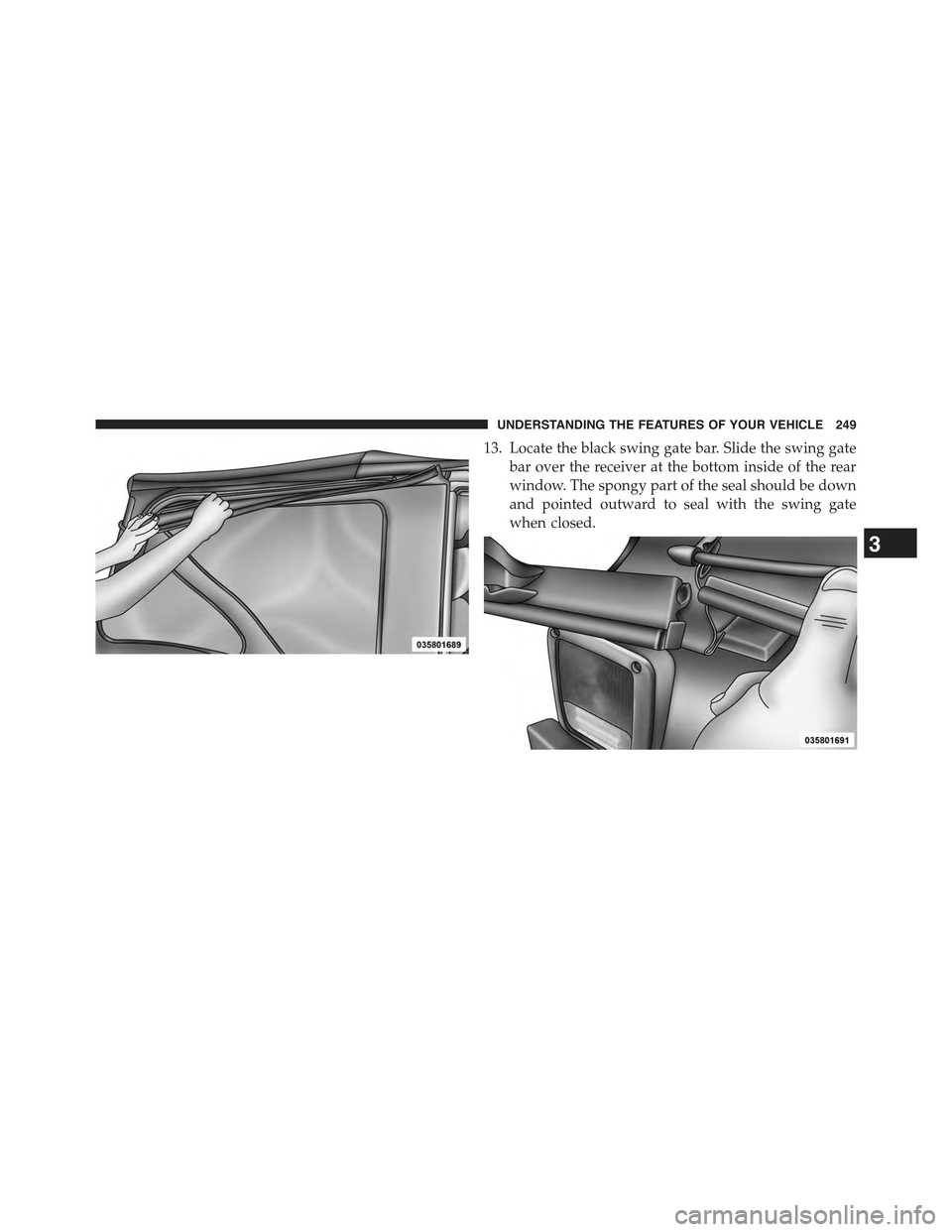

13. Locate the black swing gate bar. Slide the swing gate
bar over the receiver at the bottom inside of the rear
window. The spongy part of the seal should be down
and pointed outward to seal with the swing gate
when closed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 249

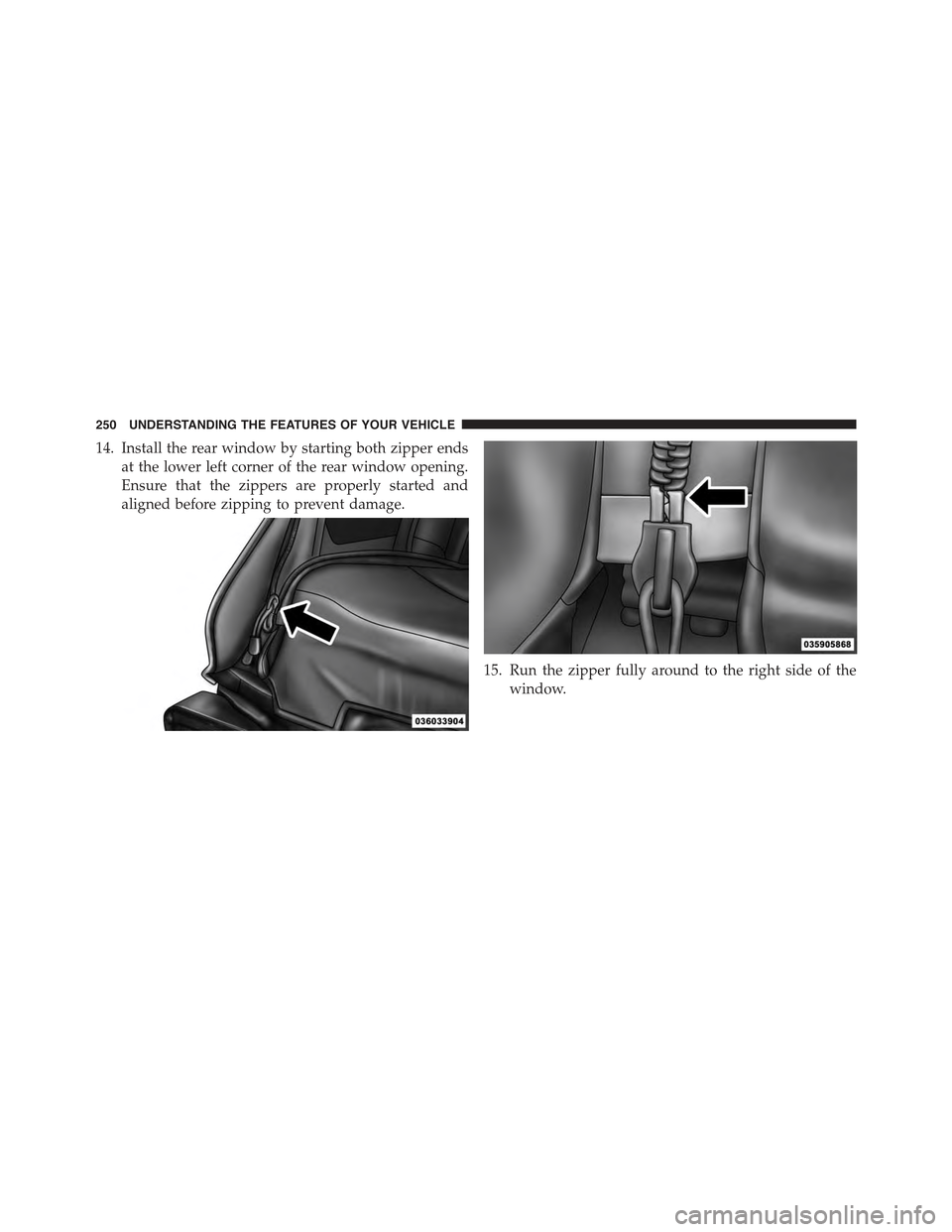

14. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and
aligned before zipping to prevent damage.
15. Run the zipper fully around to the right side of the
window.
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

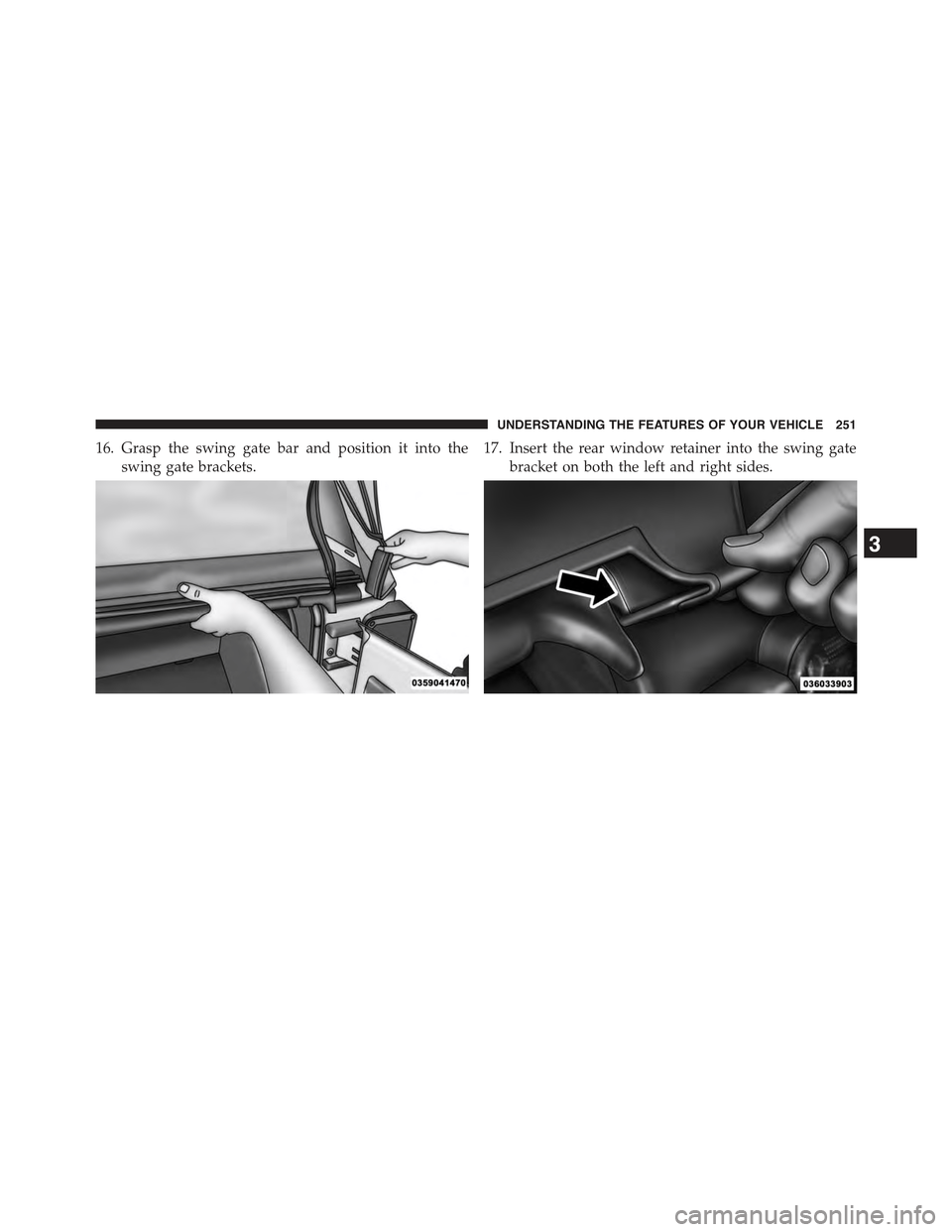

16. Grasp the swing gate bar and position it into the
swing gate brackets.
17. Insert the rear window retainer into the swing gate
bracket on both the left and right sides.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

18. Apply downward pressure on the top corner of the
rear soft top bow (3–bow), then complete attaching
the sail panel retainers into the body side channel.
19. Close the header latches and return the sun visors to
their secured position.
SUNRIDER® (TWO-DOOR MODELS)
CAUTION!
Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE:If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider® feature open, it is recom-
mended that you remove the rear window of the vehicle.
252 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Opening The Sunrider®
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame.
3. Make sure to slide the plastic sleeves forward to
unlock the Sunrider® links.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253

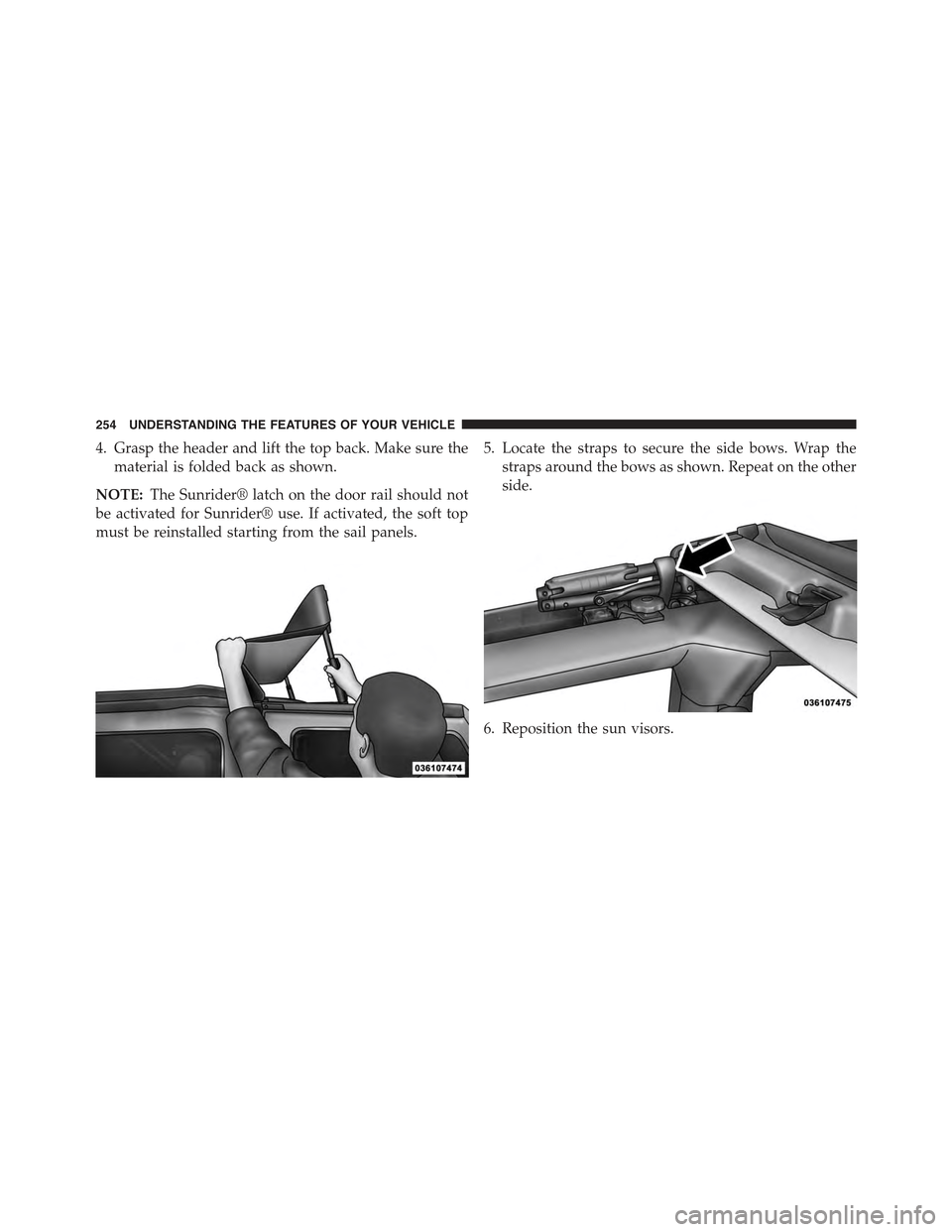

4. Grasp the header and lift the top back. Make sure the
material is folded back as shown.
NOTE:The Sunrider® latch on the door rail should not
be activated for Sunrider® use. If activated, the soft top
must be reinstalled starting from the sail panels.
5. Locate the straps to secure the side bows. Wrap the
straps around the bows as shown. Repeat on the other
side.
6. Reposition the sun visors.
