2015 JEEP WRANGLER Owners Manual

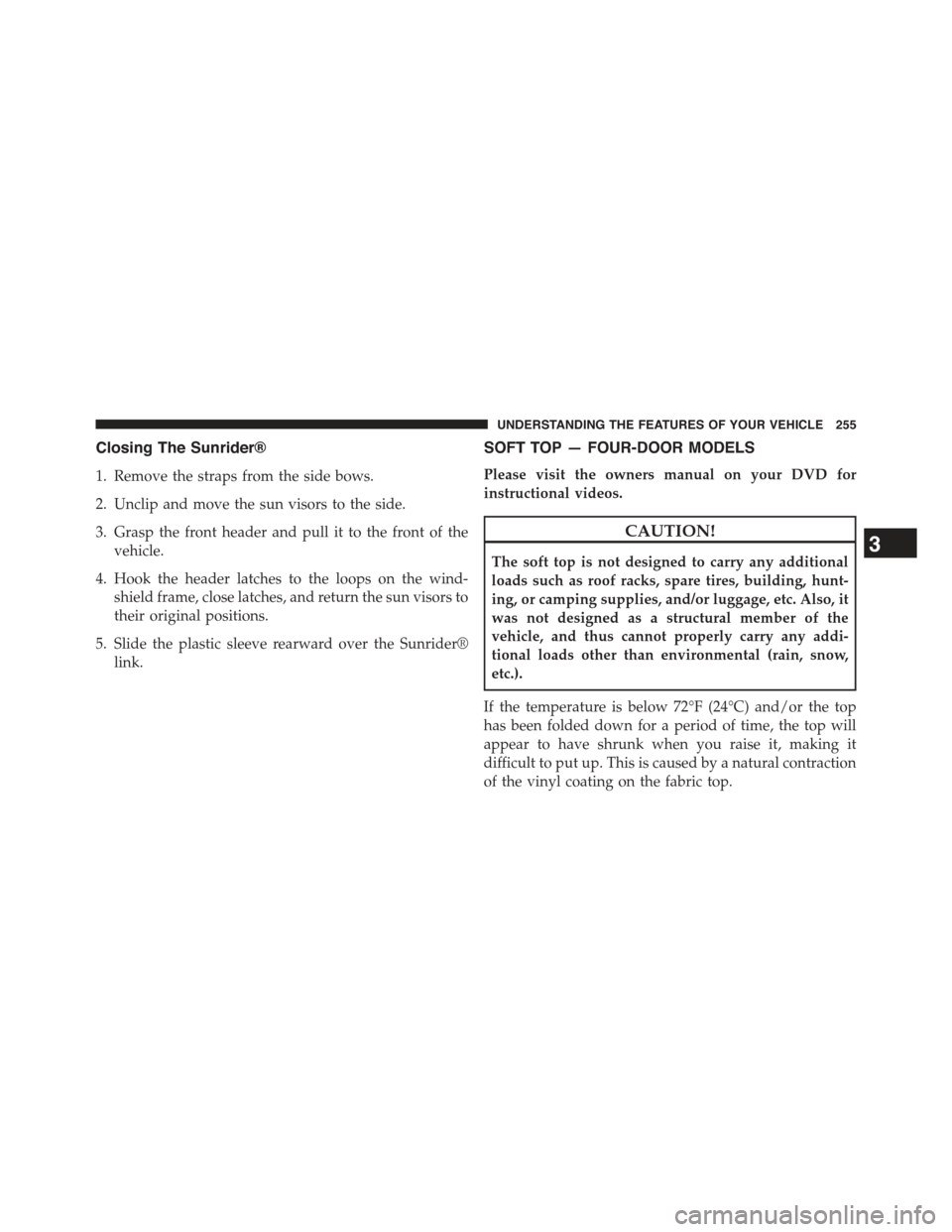

Closing The Sunrider®
1. Remove the straps from the side bows.
2. Unclip and move the sun visors to the side.
3. Grasp the front header and pull it to the front of the
vehicle.
4. Hook the header latches to the loops on the wind-
shield frame, close latches, and return the sun visors to
their original positions.
5. Slide the plastic sleeve rearward over the Sunrider®
link.
SOFT TOP — FOUR-DOOR MODELS
Please visit the owners manual on your DVD for
instructional videos.
CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle, and thus cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 255

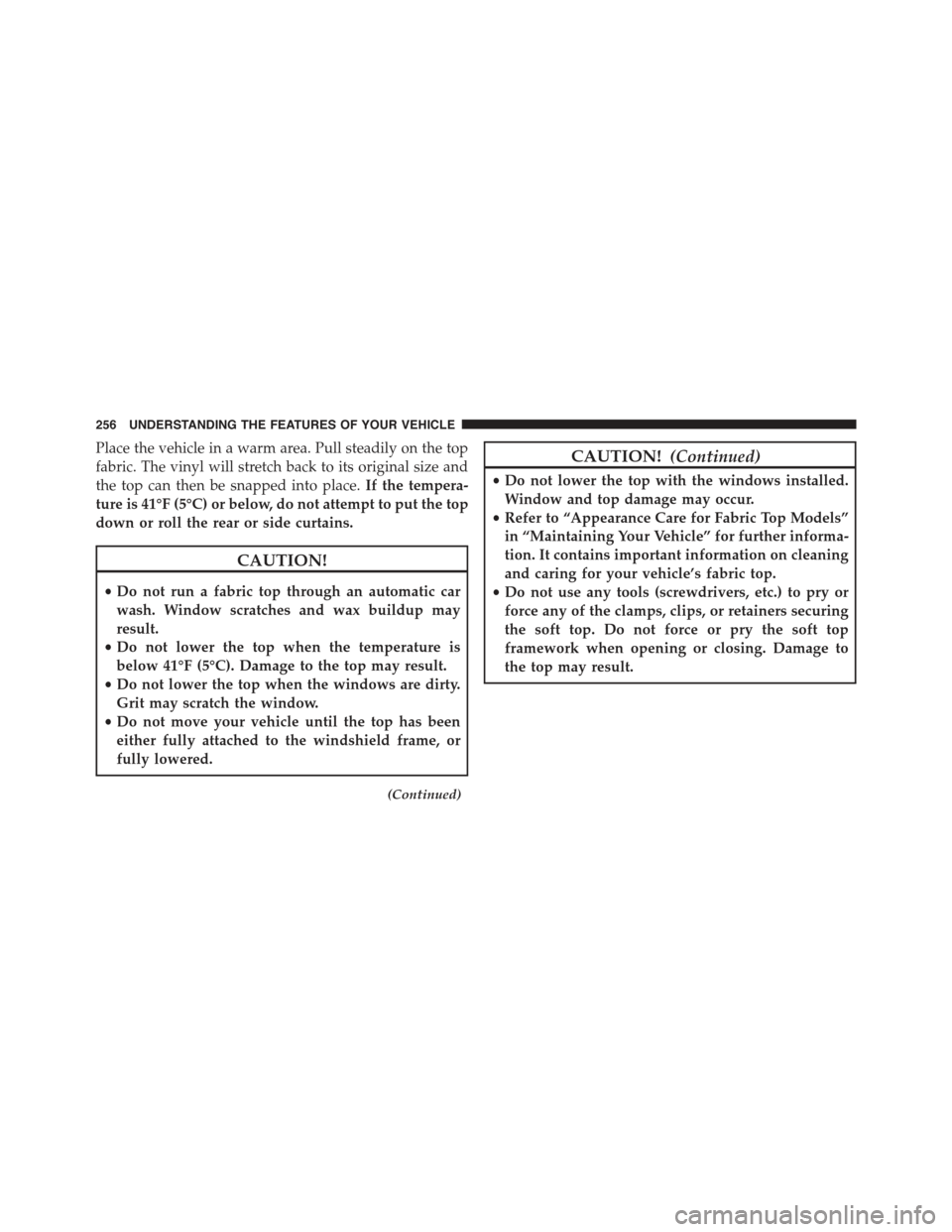

Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be snapped into place.If the tempera-
ture is 41°F (5°C) or below, do not attempt to put the top
down or roll the rear or side curtains.
CAUTION!
•Do not run a fabric top through an automatic car
wash. Window scratches and wax buildup may
result.
•Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
•Do not lower the top when the windows are dirty.
Grit may scratch the window.
•Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
(Continued)
CAUTION!(Continued)
•Do not lower the top with the windows installed.
Window and top damage may occur.
•Refer to “Appearance Care for Fabric Top Models”
in “Maintaining Your Vehicle” for further informa-
tion. It contains important information on cleaning
and caring for your vehicle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
256 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

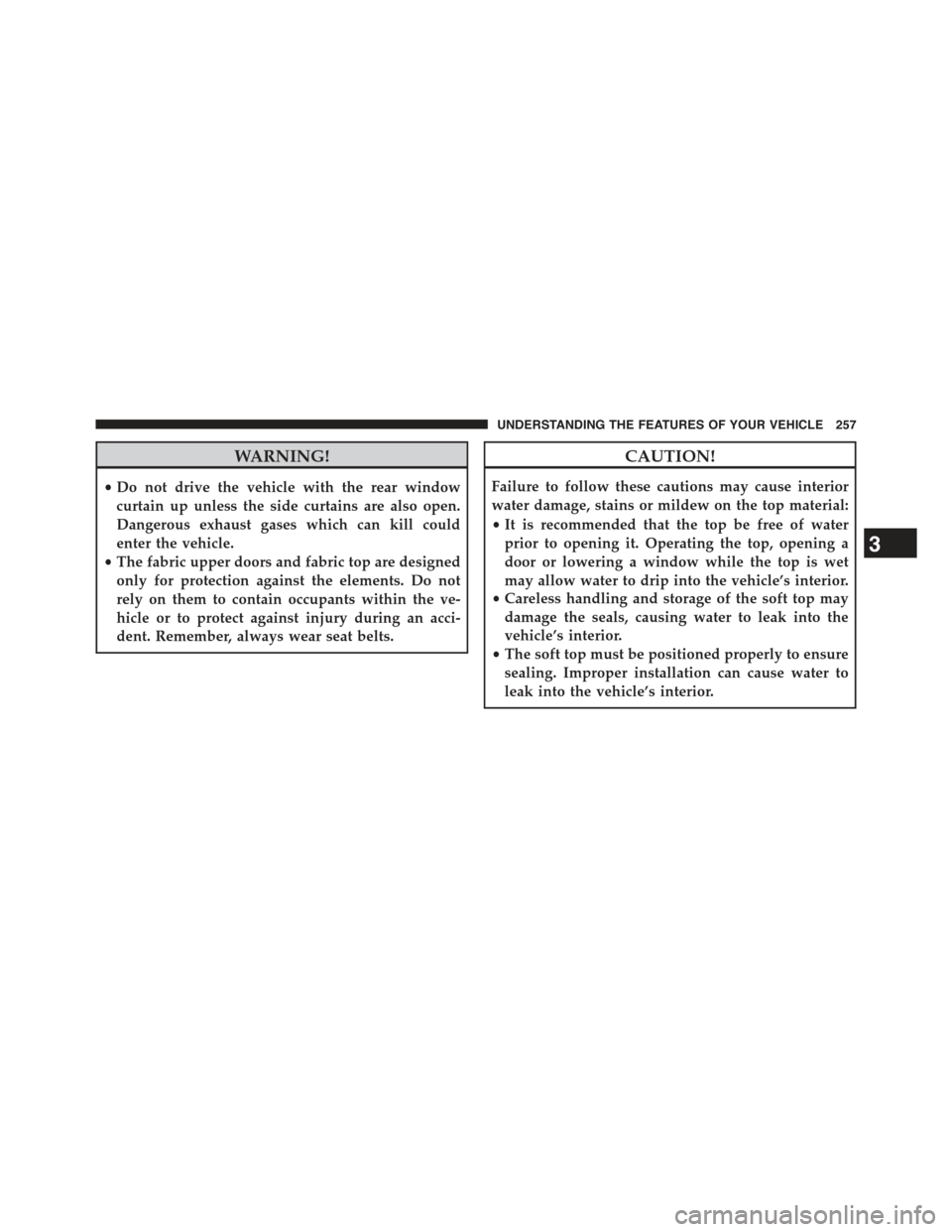

WARNING!
•Do not drive the vehicle with the rear window
curtain up unless the side curtains are also open.
Dangerous exhaust gases which can kill could
enter the vehicle.
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the ve-
hicle or to protect against injury during an acci-
dent. Remember, always wear seat belts.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

NOTE:Do not remove any of the three attachment
knobs unless you are planning on installing the hard top.
Quick Steps For Lowering The Soft Top
1. Remove the side windows.
258 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

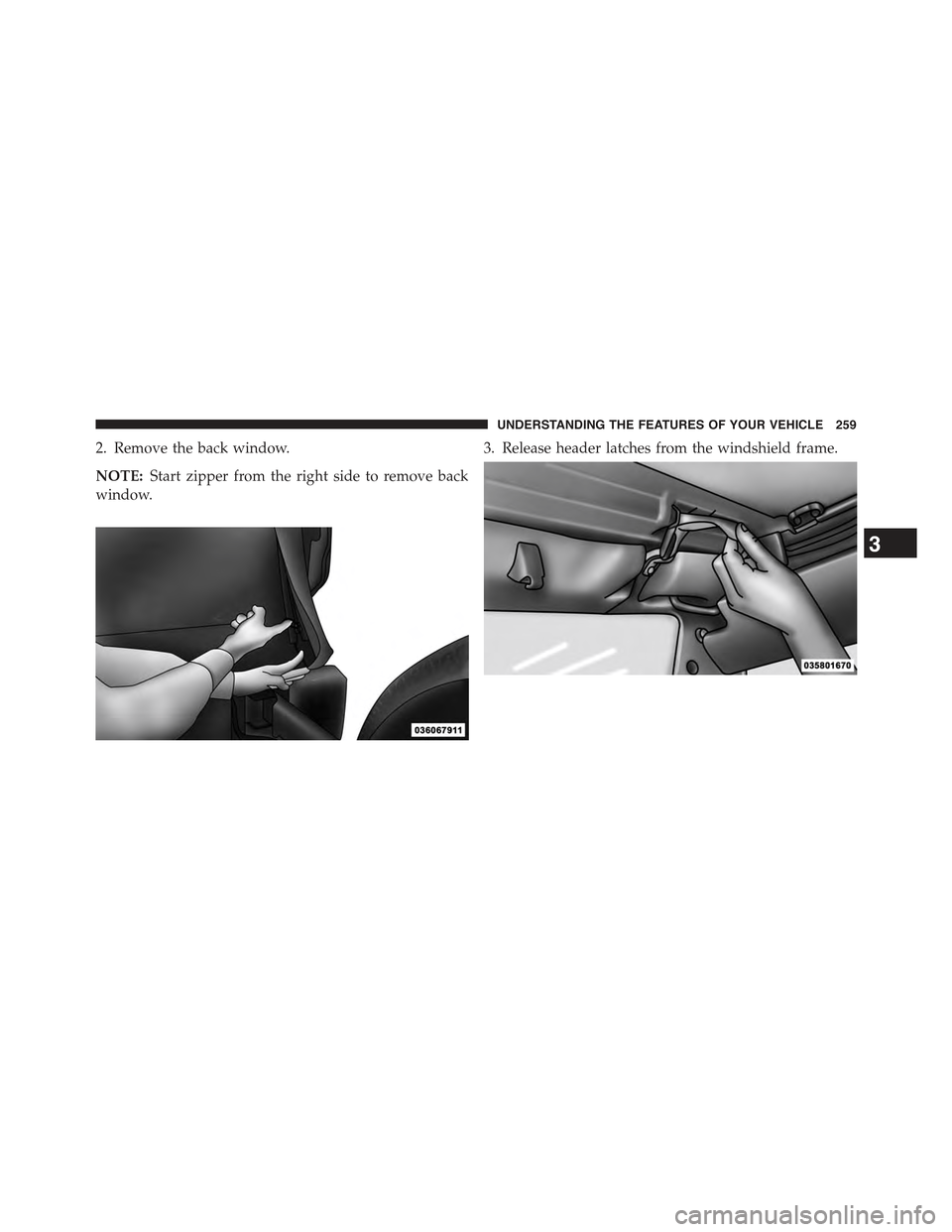

2. Remove the back window.
NOTE:Start zipper from the right side to remove back
window.
3. Release header latches from the windshield frame.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

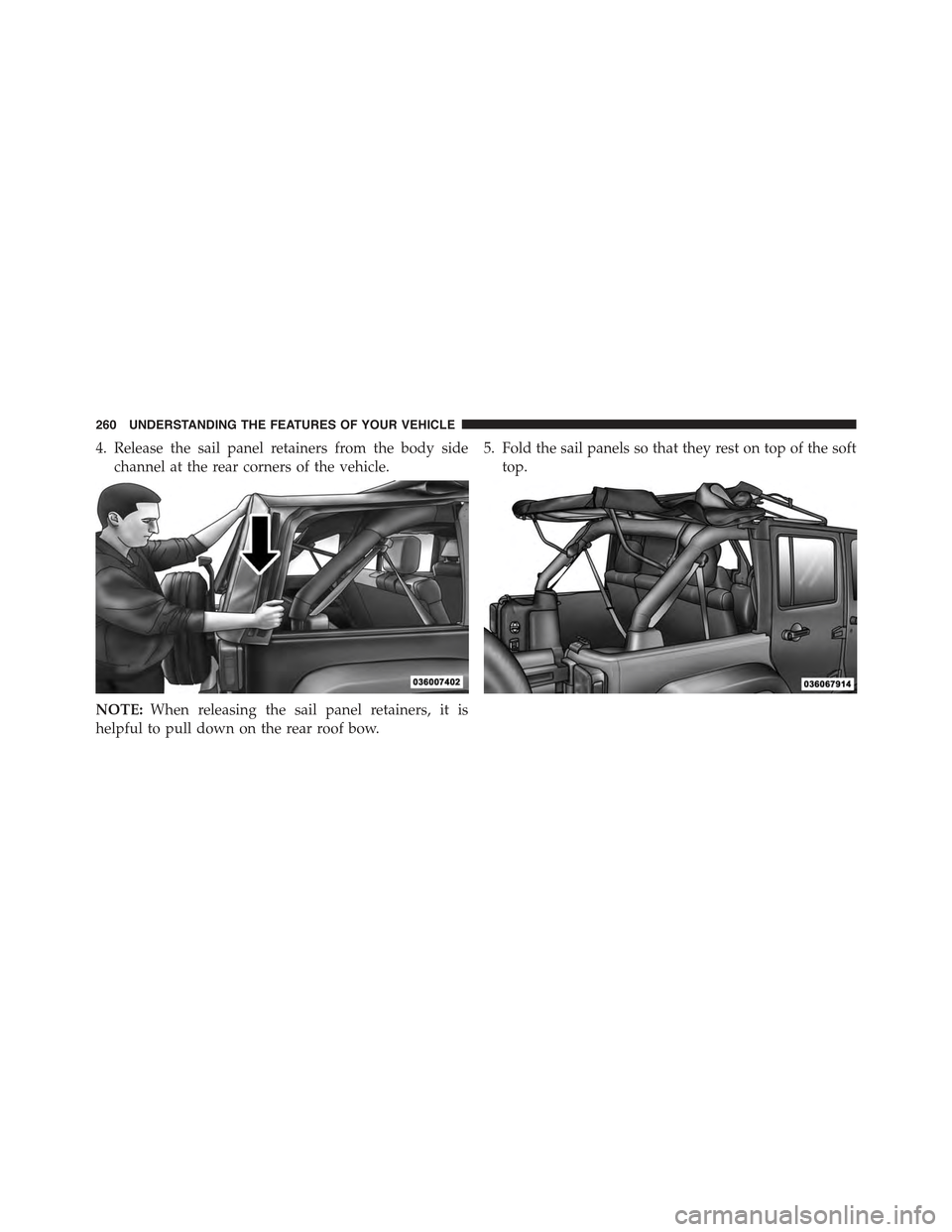

4. Release the sail panel retainers from the body side
channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
5. Fold the sail panels so that they rest on top of the soft
top.
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Fold header rearward, pulling the fabric to the rear.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261

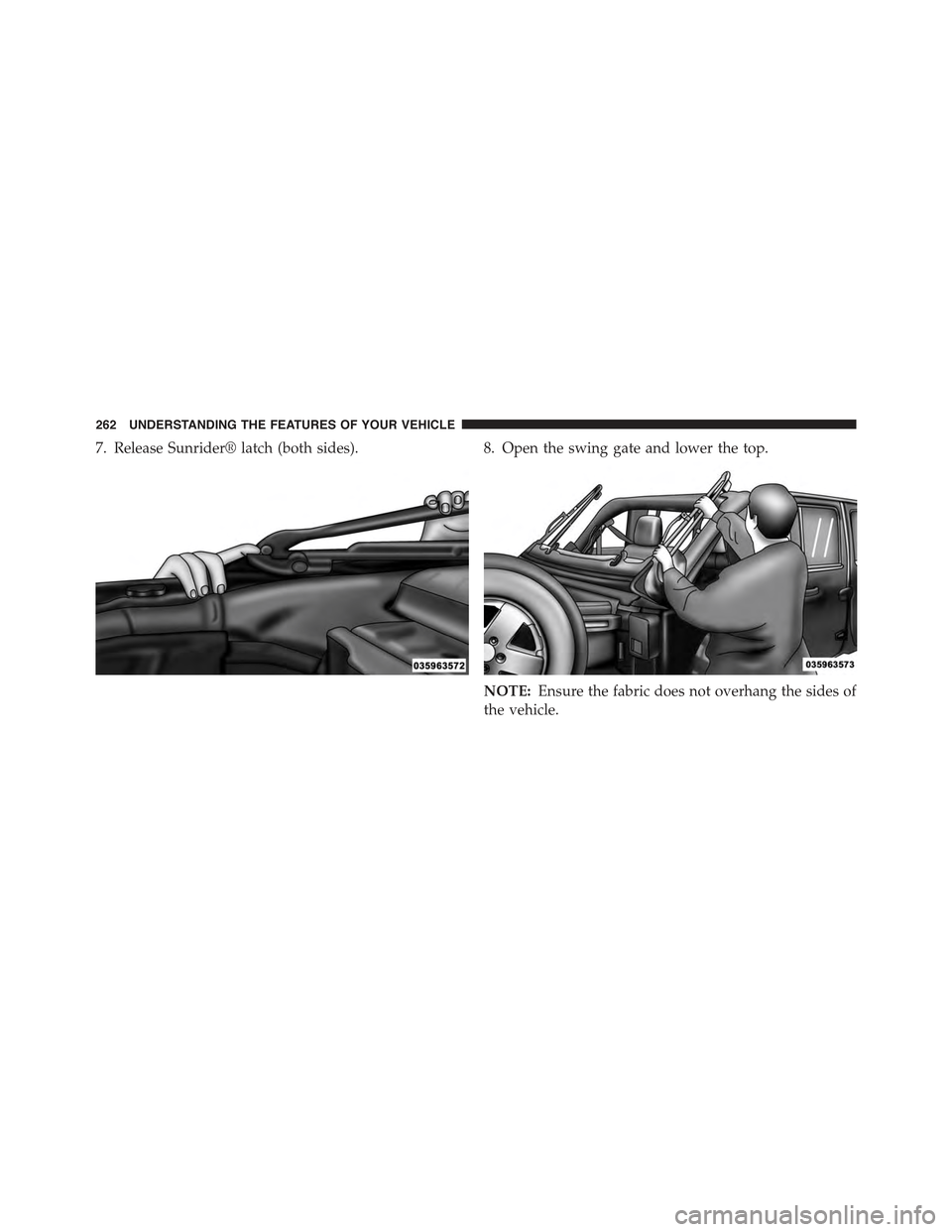

7. Release Sunrider® latch (both sides).8. Open the swing gate and lower the top.
NOTE:Ensure the fabric does not overhang the sides of
the vehicle.
