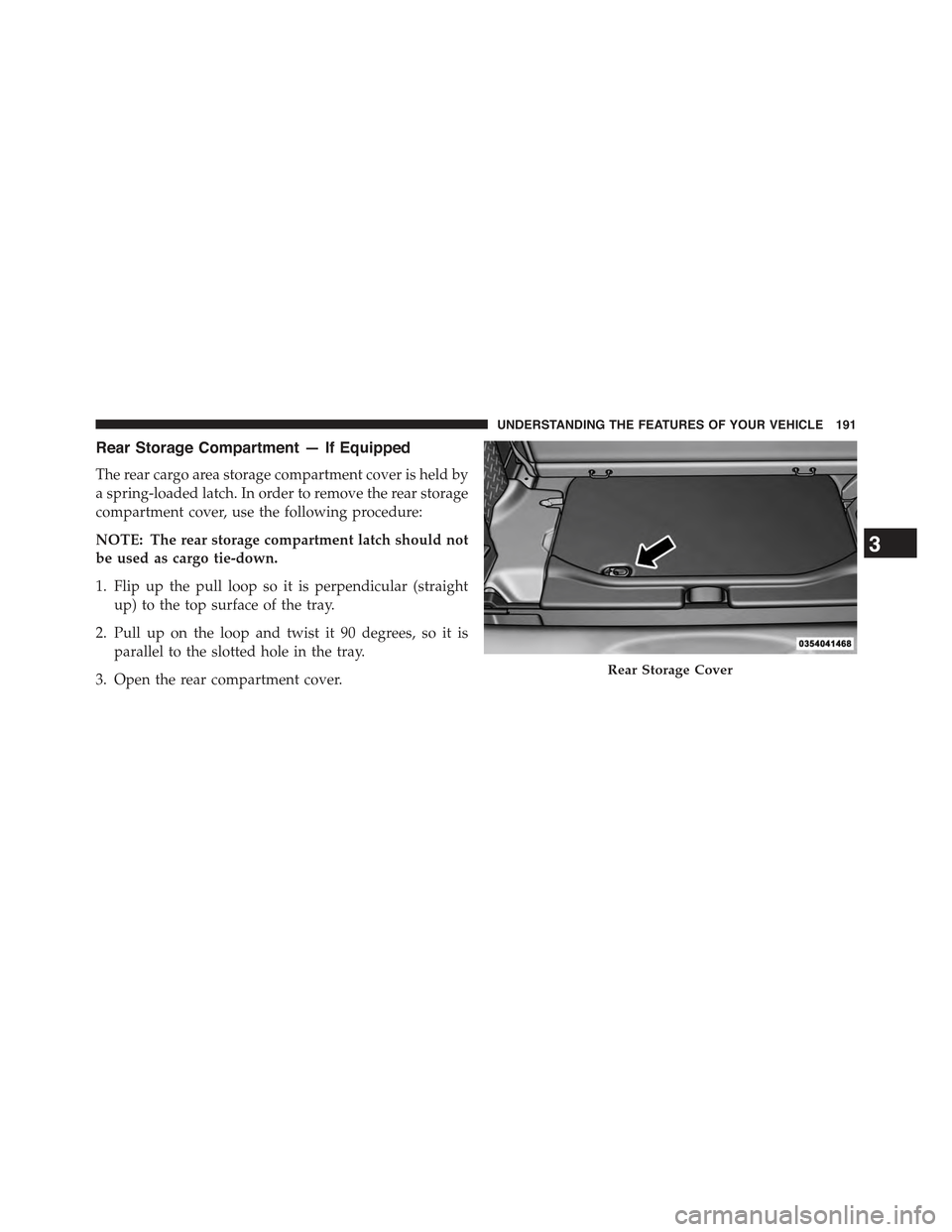

Rear Storage Compartment — If Equipped
The rear cargo area storage compartment cover is held by
a spring-loaded latch. In order to remove the rear storage
compartment cover, use the following procedure:
NOTE: The rear storage compartment latch should not
be used as cargo tie-down.
1. Flip up the pull loop so it is perpendicular (straight
up) to the top surface of the tray.
2. Pull up on the loop and twist it 90 degrees, so it is
parallel to the slotted hole in the tray.
3. Open the rear compartment cover.Rear Storage Cover
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 191

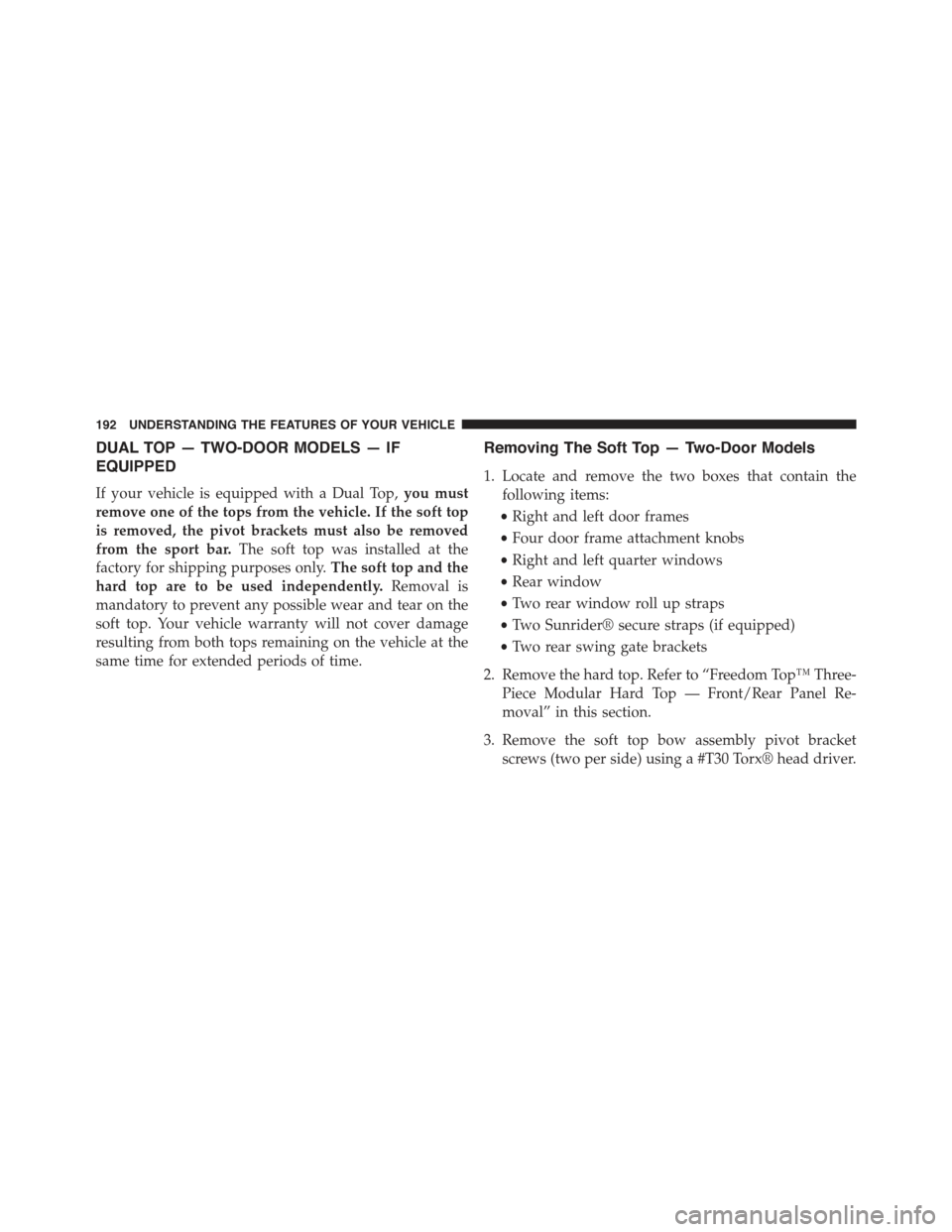

DUAL TOP — TWO-DOOR MODELS — IF
EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar.The soft top was installed at the
factory for shipping purposes only.The soft top and the
hard top are to be used independently.Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing The Soft Top — Two-Door Models
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Four door frame attachment knobs
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunrider® secure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top™ Three-
Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section.
3. Remove the soft top bow assembly pivot bracket
screws (two per side) using a #T30 Torx® head driver.
192 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

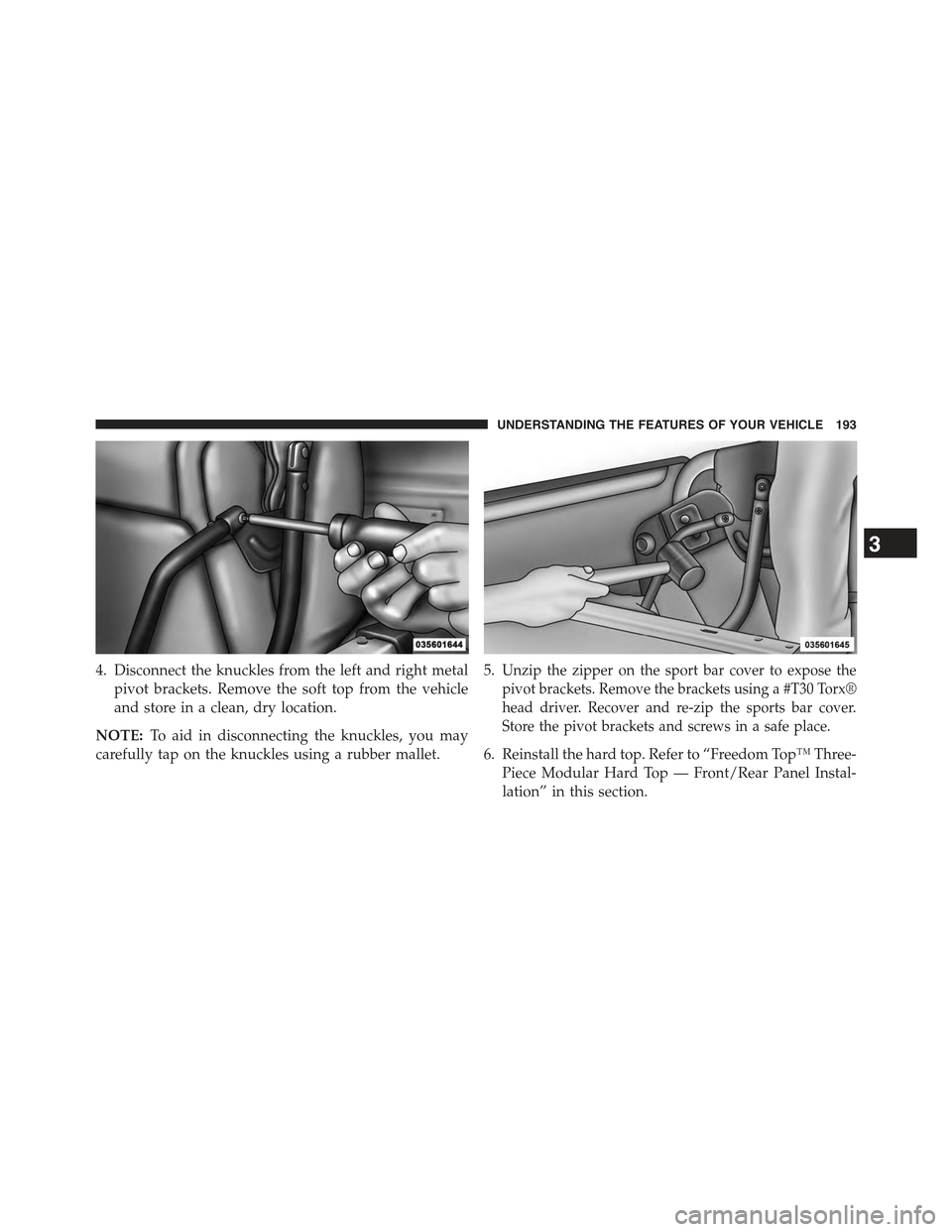

4. Disconnect the knuckles from the left and right metal
pivot brackets. Remove the soft top from the vehicle
and store in a clean, dry location.
NOTE:To aid in disconnecting the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
5.Unzip the zipper on the sport bar cover to expose the
pivot brackets. Remove the brackets using a #T30 Torx®
head driver. Recover and re-zip the sports bar cover.
Store the pivot brackets and screws in a safe place.
6. Reinstall the hard top. Refer to “Freedom Top™ Three-
Piece Modular Hard Top — Front/Rear Panel Instal-
lation” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 193

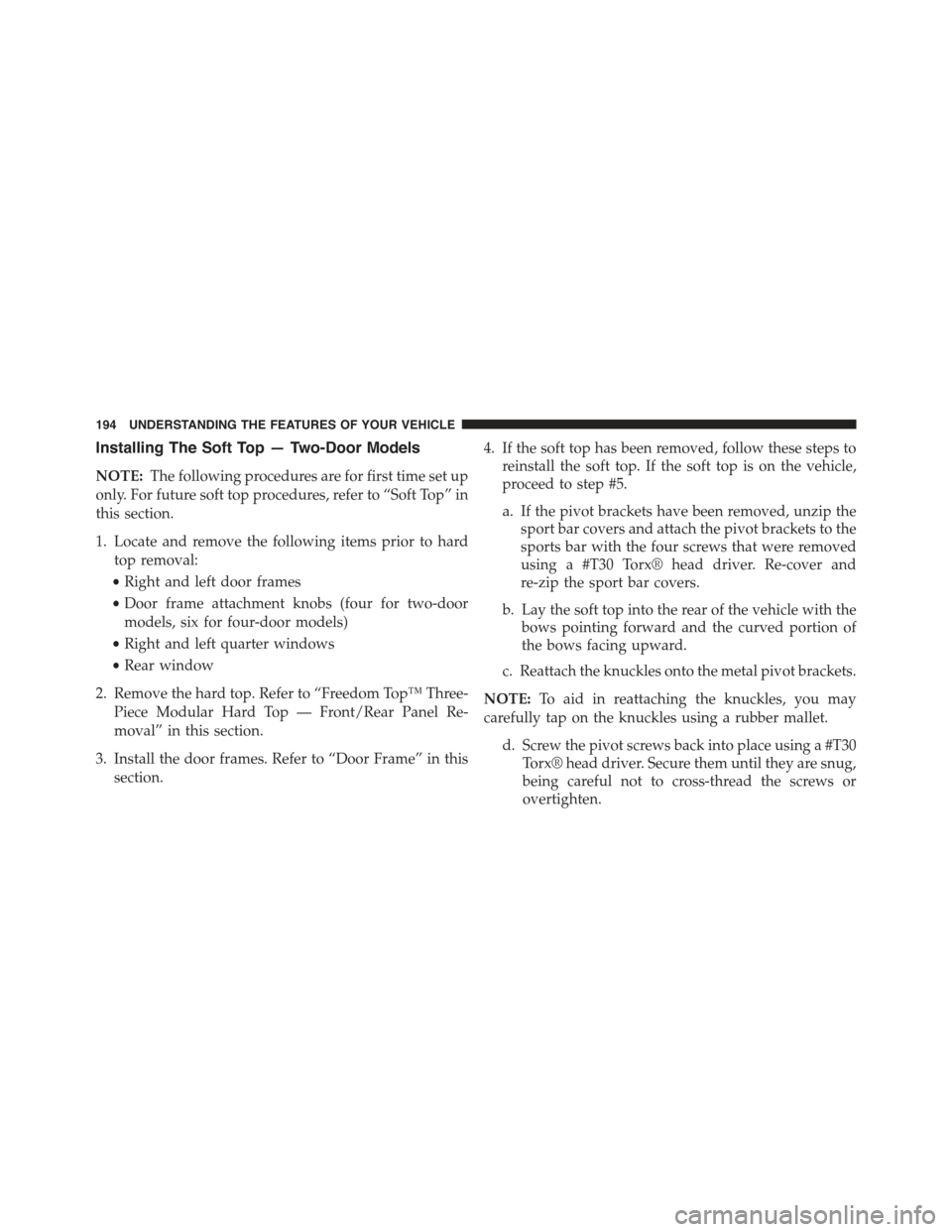

Installing The Soft Top — Two-Door Models
NOTE:The following procedures are for first time set up
only. For future soft top procedures, refer to “Soft Top” in
this section.
1. Locate and remove the following items prior to hard
top removal:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
2. Remove the hard top. Refer to “Freedom Top™ Three-
Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section.
3. Install the door frames. Refer to “Door Frame” in this
section.
4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5.
a. If the pivot brackets have been removed, unzip the
sport bar covers and attach the pivot brackets to the
sports bar with the four screws that were removed
using a #T30 Torx® head driver. Re-cover and
re-zip the sport bar covers.
b. Lay the soft top into the rear of the vehicle with the
bows pointing forward and the curved portion of
the bows facing upward.
c. Reattach the knuckles onto the metal pivot brackets.
NOTE:To aid in reattaching the knuckles, you may
carefully tap on the knuckles using a rubber mallet.
d. Screw the pivot screws back into place using a #T30
Torx® head driver. Secure them until they are snug,
being careful not to cross-thread the screws or
overtighten.
194 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
5. Remove the swing gate bar (black metal bar for
bottom of rear window) and set aside.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 195

NOTE:Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE:A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
The Soft Top” in this section.
DUAL TOP — FOUR-DOOR MODELS — IF
EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar.The soft top was installed at the
factory for shipping purposes only.The soft top and the
hard top are to be used independently.Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing The Soft Top — Four-Door Models
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Six door frame attachment knobs
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunrider® secure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top™ Three-
Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

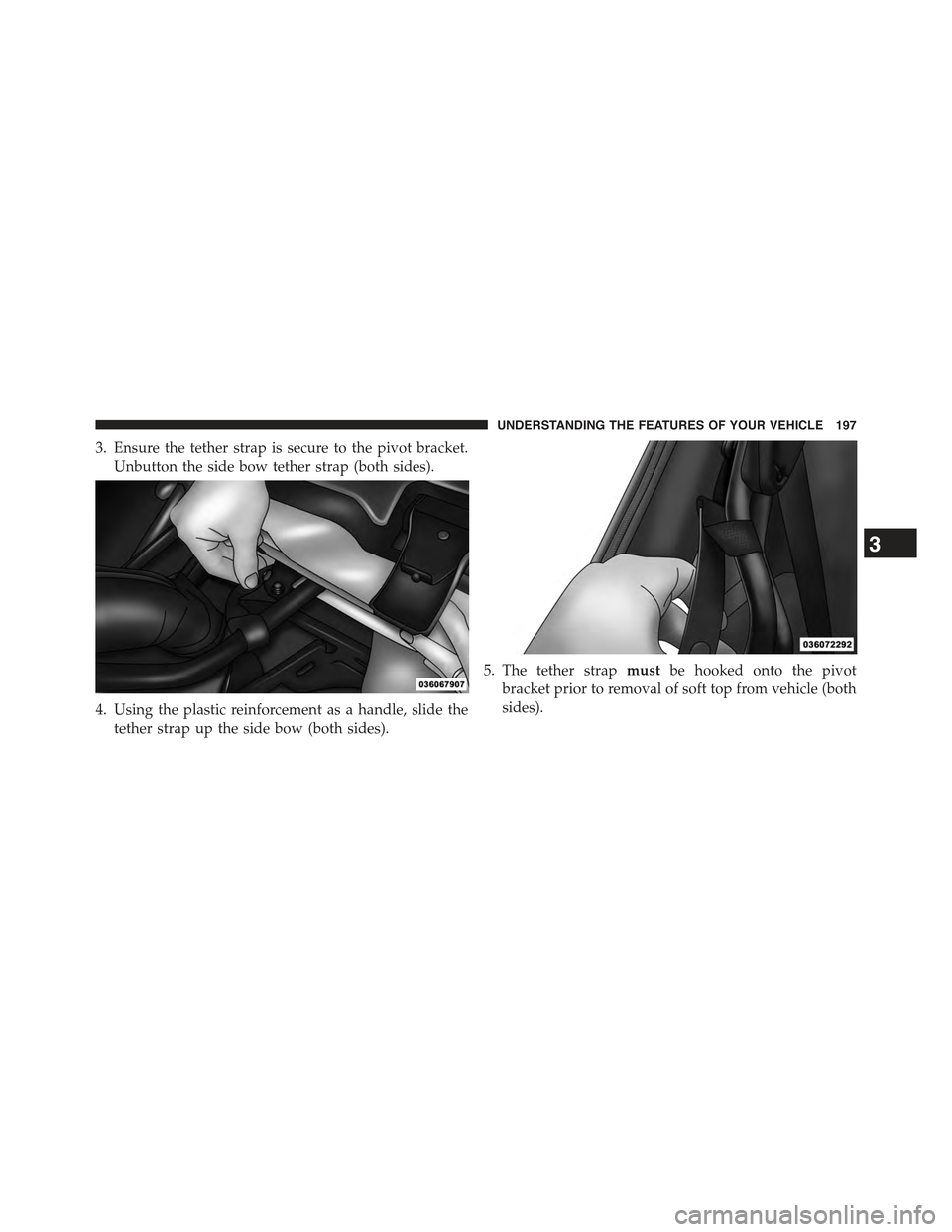

3. Ensure the tether strap is secure to the pivot bracket.
Unbutton the side bow tether strap (both sides).
4. Using the plastic reinforcement as a handle, slide the
tether strap up the side bow (both sides).
5. The tether strapmustbe hooked onto the pivot
bracket prior to removal of soft top from vehicle (both
sides).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 197

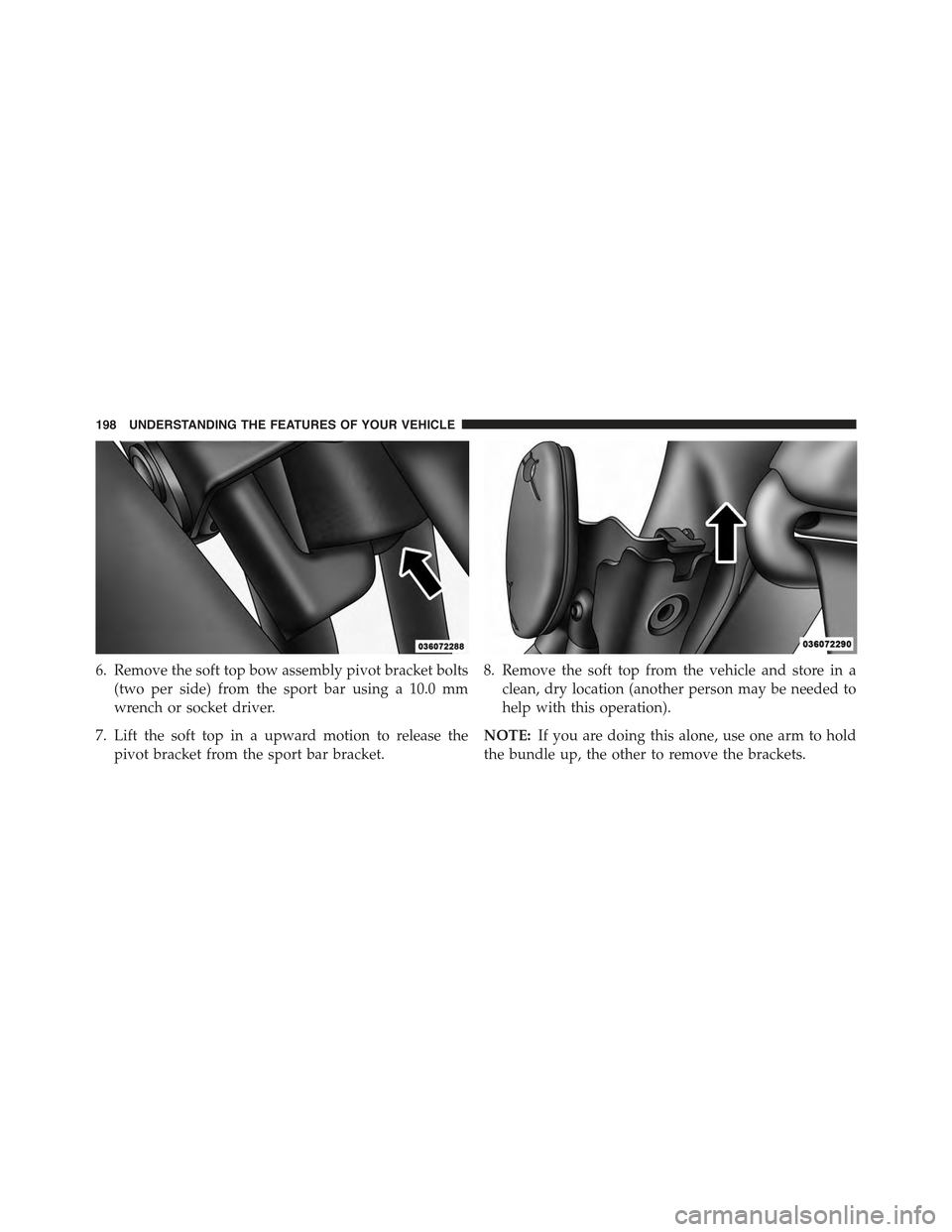

6. Remove the soft top bow assembly pivot bracket bolts
(two per side) from the sport bar using a 10.0 mm
wrench or socket driver.
7. Lift the soft top in a upward motion to release the
pivot bracket from the sport bar bracket.
8. Remove the soft top from the vehicle and store in a
clean, dry location (another person may be needed to
help with this operation).
NOTE:If you are doing this alone, use one arm to hold
the bundle up, the other to remove the brackets.
