19. Insert the rear window retainer into the swing gate
bracket on both the left and right sides.
20. Complete the installation of the sail panel by insert-
ing the rest of the retainer into the body channel.
21. Close the header latches and return the sun visors to
their secured position.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 287

SUNRIDER® (FOUR-DOOR MODELS)
CAUTION!
Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE:If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider® feature open, it is recom-
mended that you remove the rear window of the vehicle.
Opening The Sunrider®
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame.
288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

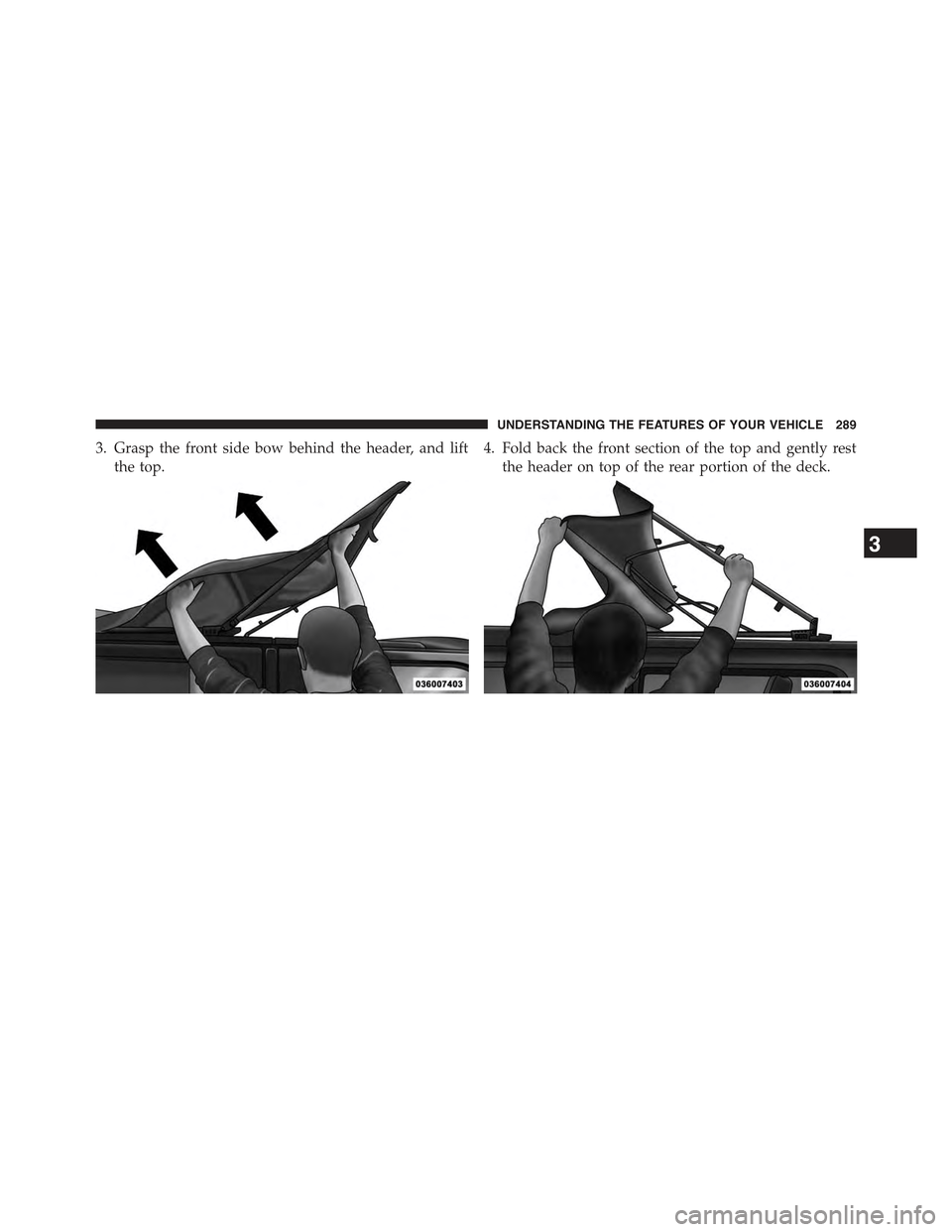

3. Grasp the front side bow behind the header, and lift
the top.
4. Fold back the front section of the top and gently rest
the header on top of the rear portion of the deck.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

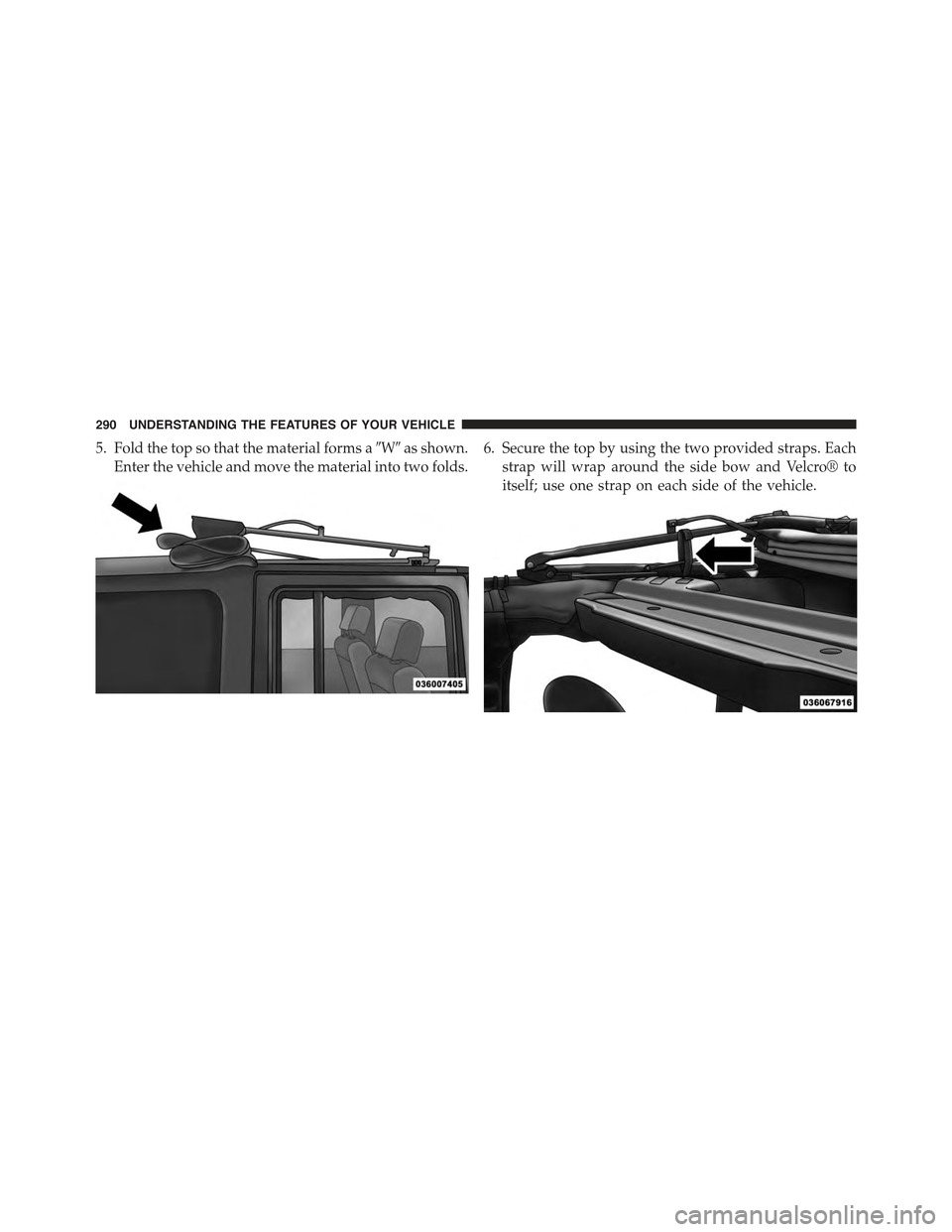

5. Fold the top so that the material forms a#W#as shown.
Enter the vehicle and move the material into two folds.
6. Secure the top by using the two provided straps. Each
strap will wrap around the side bow and Velcro® to
itself; use one strap on each side of the vehicle.
290 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Closing The Sunrider®
Perform the above steps in the opposite order.
NOTE:Failure to fold the fabric rearward will allow the
material to sag and may block the rearview mirror.
FOLDING WINDSHIELD
The fold-down windshield and removable side bars on
your vehicle are structural elements that can provide
some protection in some accidents. The windshield also
provides some protection against weather, road debris
and intrusion of small branches and other objects.
Do not drive your vehicle on-road with the windshield
down and the side bars removed as you lose the protec-
tion these structural elements can provide.
If required for certain off-road uses, the side bars can be
removed and the windshield folded down. However, the
protection afforded by these features is then lost. If you
remove the side bars and fold down the windshield,
drive slowly and cautiously. It is recommended that the
speed of the vehicle be limited to 10 mph (16 km/h), with
low range operation preferred if you are driving off-road
with the windshield folded down.
Raise the windshield and reinstall the side bars as soon as
the task that required their removal is completed and
before you return to on-road driving. Both you and your
passenger should wear seat belts at all times, on-road and
off-road, regardless of whether the windshield is raised
or folded down.
Outside rearview mirrors are mounted on the doors. If
you choose to remove the doors, see your authorized
dealer for a replacement cowl-mounted outside mirror.
Federal law requires outside mirrors on vehicles for
on-road use.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 291

WARNING!
Carefully follow these warnings to help protect
against personal injury:
•Do not drive your vehicle on-road with the wind-
shield down.
•Do not drive your vehicle unless the windshield is
securely fastened, either up or down.
•Eye protection, such as goggles, should be worn at
all times when the windshield is down.
•Be sure that you carefully follow the instructions
for raising the windshield. Make sure that the
folding windshield, windshield wipers, side bars,
and all associated hardware and fasteners are cor-
rectly and tightly assembled before driving your
vehicle. Failure to follow these instructions may
prevent your vehicle from providing you and your
passengers protection in some accidents.
(Continued)
WARNING!(Continued)
•If you remove the doors, store them outside the
vehicle. In the event of an accident, a loose door
may cause personal injury.
Lowering The Windshield And Removing Side
Bars
1. Lower the fabric top or remove the hard top following
the instructions in this manual.
NOTE:To assist in properly reinstalling side bars, mark
the original locations prior to removing.
292 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

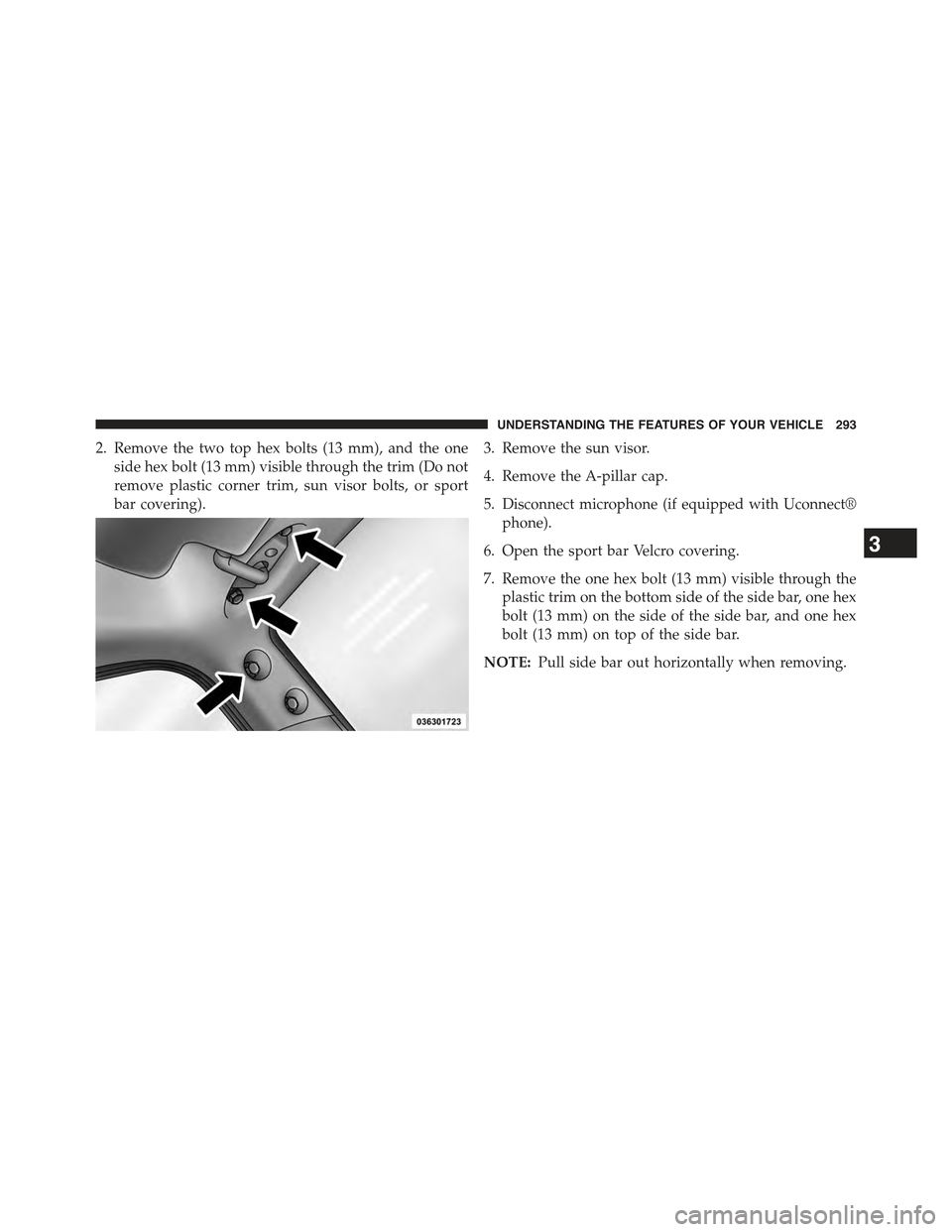

2. Remove the two top hex bolts (13 mm), and the one
side hex bolt (13 mm) visible through the trim (Do not
remove plastic corner trim, sun visor bolts, or sport
bar covering).
3. Remove the sun visor.
4. Remove the A-pillar cap.
5. Disconnect microphone (if equipped with Uconnect®
phone).
6. Open the sport bar Velcro covering.
7. Remove the one hex bolt (13 mm) visible through the
plastic trim on the bottom side of the side bar, one hex
bolt (13 mm) on the side of the side bar, and one hex
bolt (13 mm) on top of the side bar.
NOTE:Pull side bar out horizontally when removing.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 293

CAUTION!
Do not remove the head impact foam from the side
bars, as damage to the foam may result.
NOTE:Store all of the mounting bolts in their original
threaded holes and tighten for safekeeping.

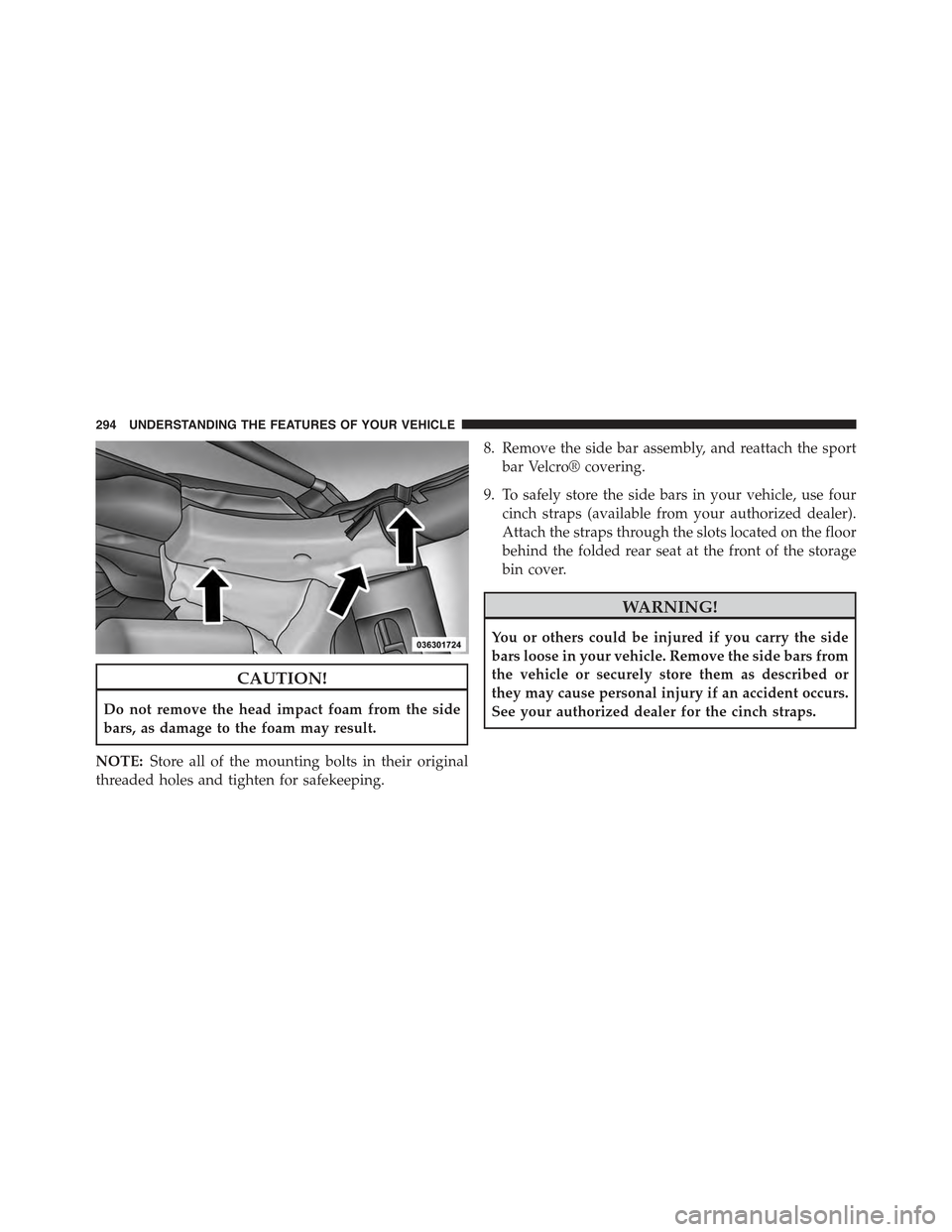

8. Remove the side bar assembly, and reattach the sport
bar Velcro® covering.
9. To safely store the side bars in your vehicle, use four
cinch straps (available from your authorized dealer).
Attach the straps through the slots located on the floor
behind the folded rear seat at the front of the storage
bin cover.
WARNING!
You or others could be injured if you carry the side
bars loose in your vehicle. Remove the side bars from
the vehicle or securely store them as described or
they may cause personal injury if an accident occurs.
See your authorized dealer for the cinch straps.
