Quick Steps For Raising The Soft Top
1. Open the swing gate and raise the top, engaging the
Sunrider® latches (another person may be needed to
help with this operation).
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

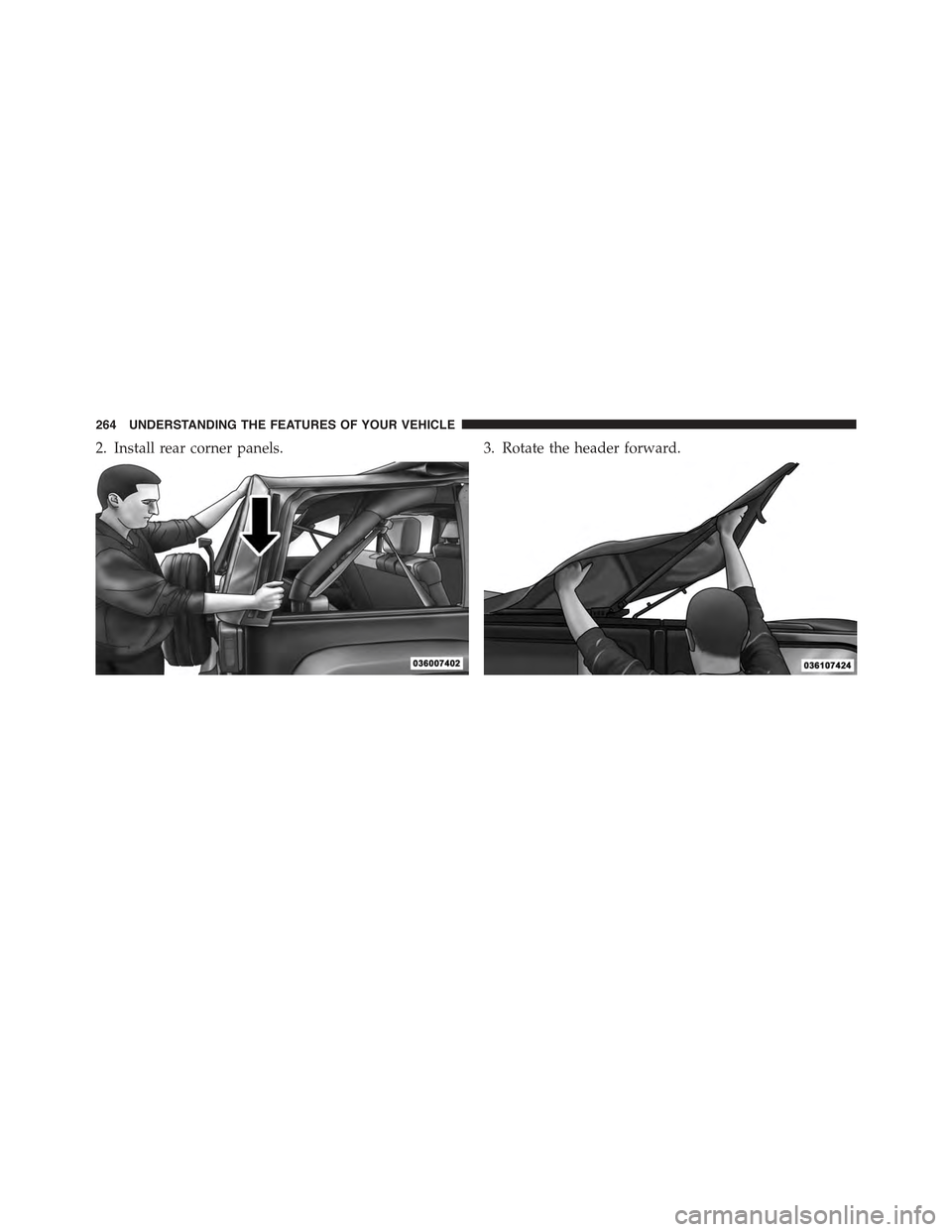

2. Install rear corner panels.3. Rotate the header forward.
264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

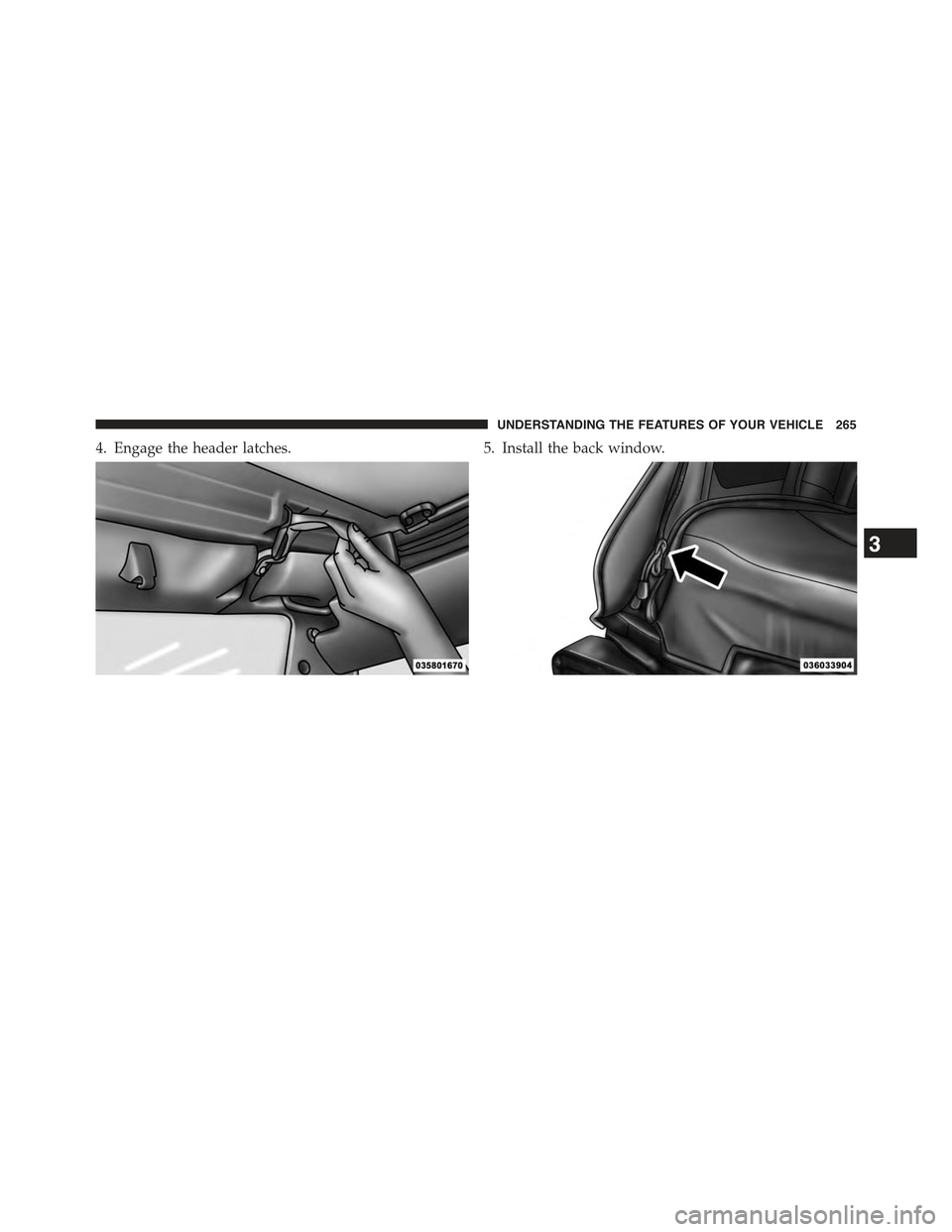

4. Engage the header latches.5. Install the back window.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

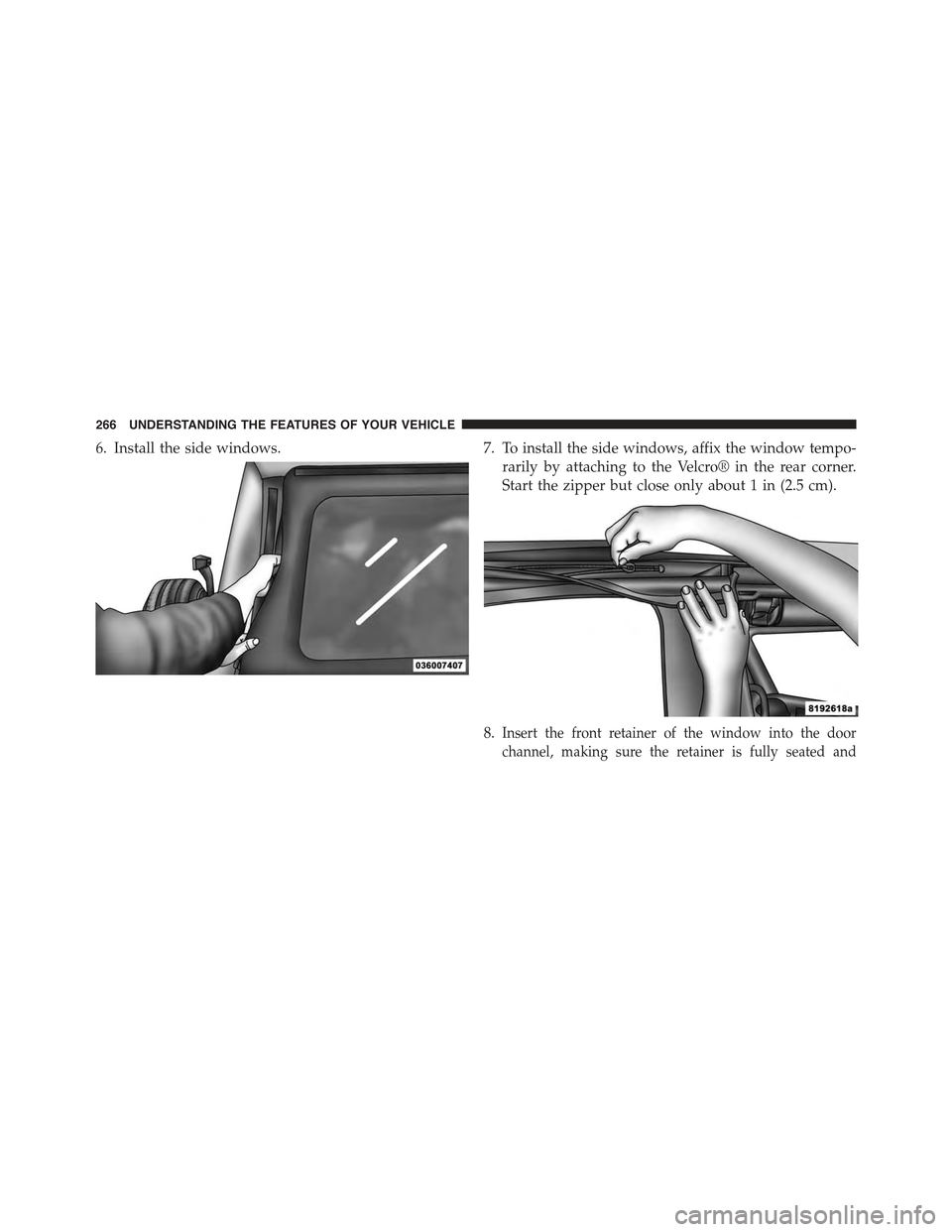

6. Install the side windows.7. To install the side windows, affix the window tempo-
rarily by attaching to the Velcro® in the rear corner.
Start the zipper but close only about 1 in (2.5 cm).
8.Insert the front retainer of the window into the door
channel, making sure the retainer is fully seated and
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

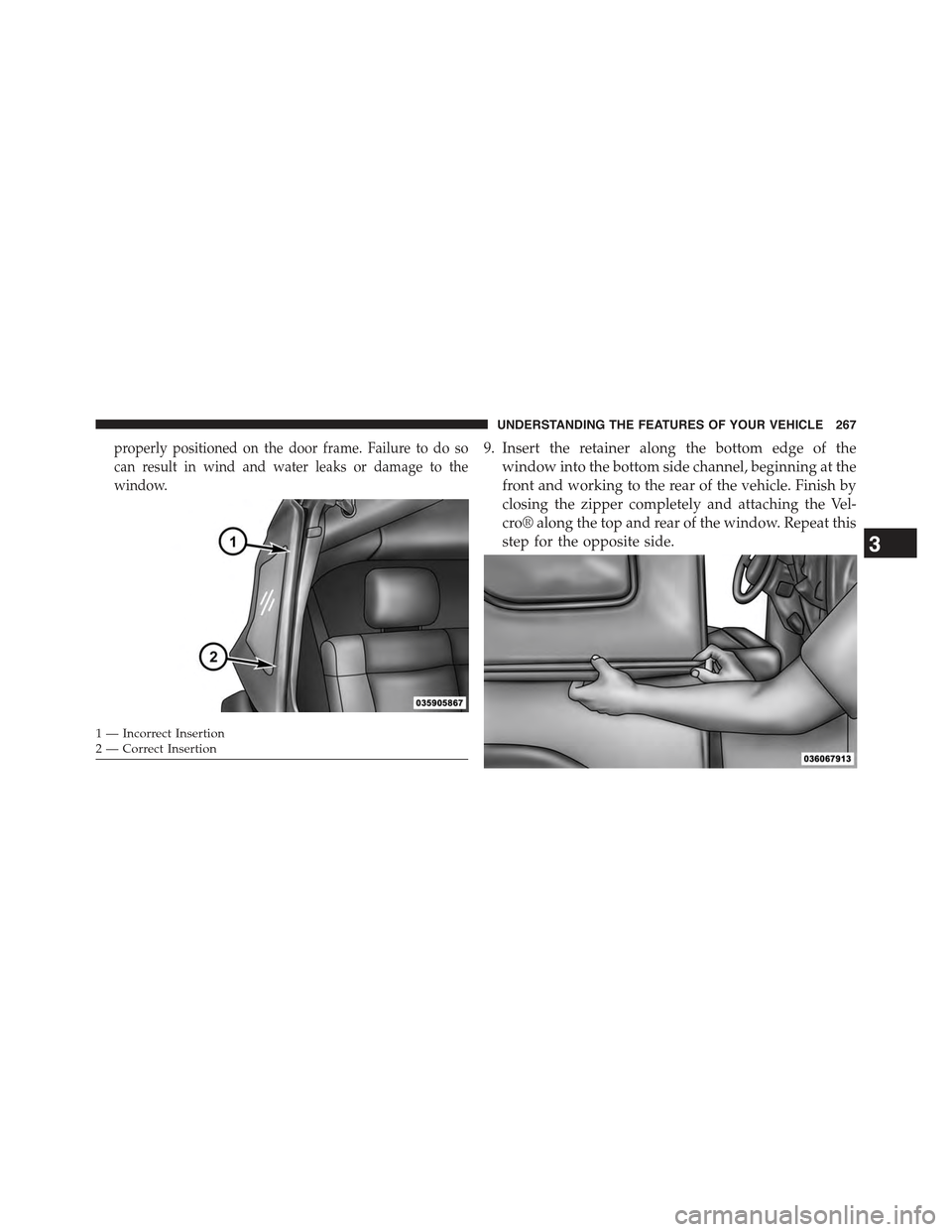

properly positioned on the door frame. Failure to do so
can result in wind and water leaks or damage to the
window.
9. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Vel-
cro® along the top and rear of the window. Repeat this
step for the opposite side.
1 — Incorrect Insertion2 — Correct Insertion
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

Folding Down The Soft Top

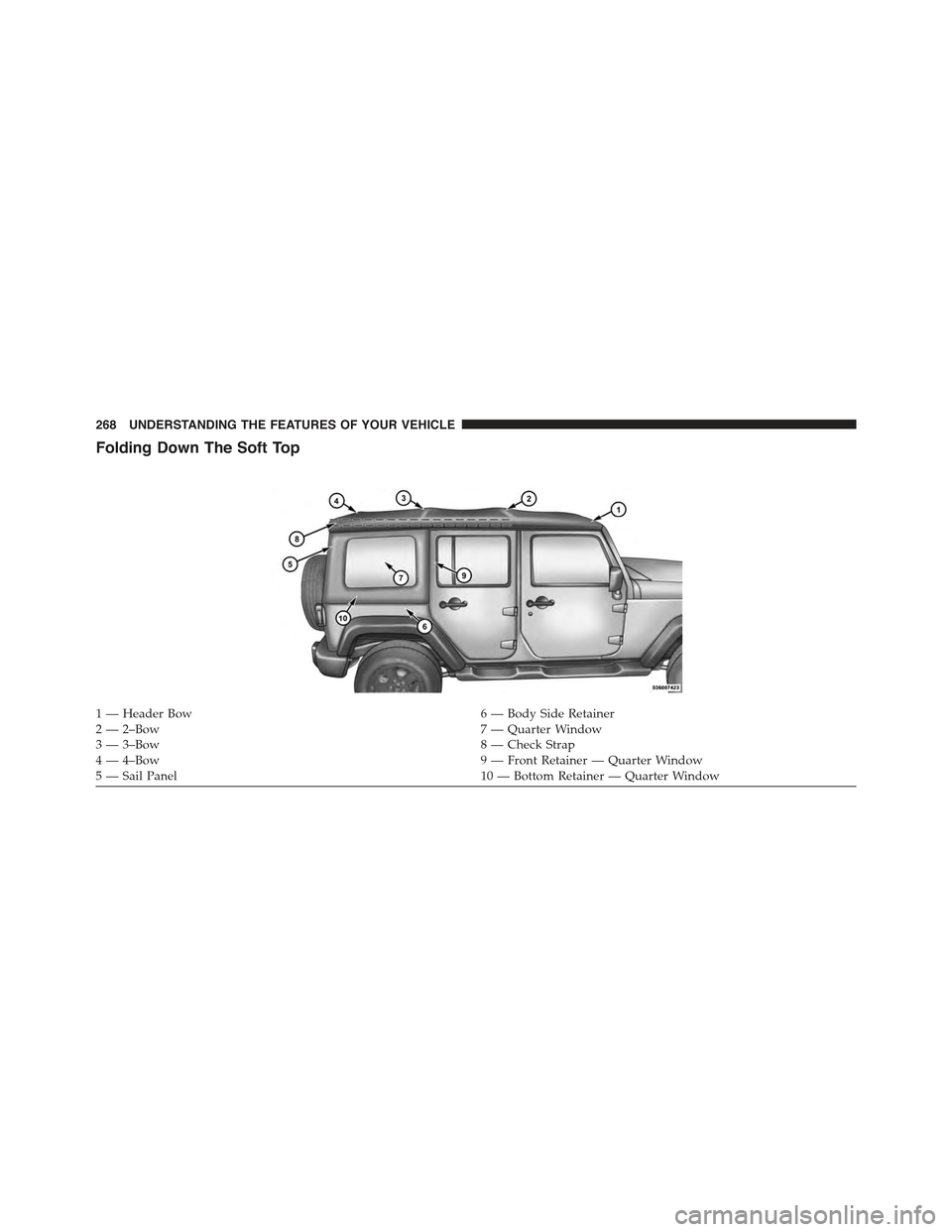

1—HeaderBow6—BodySideRetainer2—2–Bow7—QuarterWindow3 — 3–Bow8 — Check Strap4—4–Bow9—FrontRetainer—QuarterWindow5 — Sail Panel10 — Bottom Retainer — Quarter Window
268 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

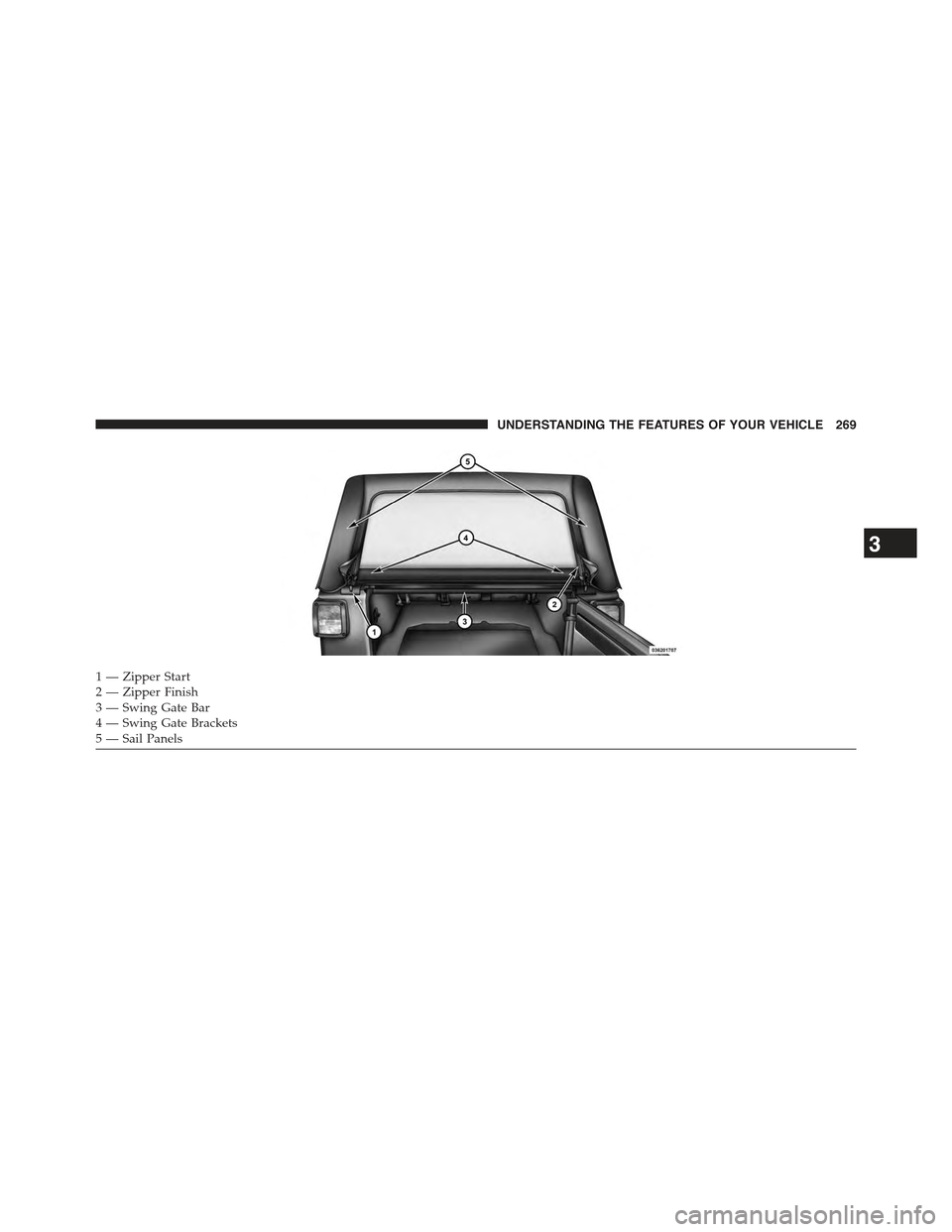

1 — Zipper Start2 — Zipper Finish3—SwingGateBar4—SwingGateBrackets5 — Sail Panels
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 269

NOTE:Clean side and rear windows before removal to
assist in preventing scratching during removal of the soft
top. If zippers are difficult to operate due to road dust,
etc., clean them with a mild soap solution and a small
brush. Cleaning products are available through your
authorized dealer.
1. If your vehicle has half-doors, remove each half-door
window by opening the door and lifting the half-door
window out.
NOTE:Stow half-door windows carefully outside of the
vehicle, never inside, to avoid scratches.
2. Unclip and move the sun visors to the side.
3. Release the header latches and hooks from the loops
on the windshield frame.
270 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
