2015 JEEP WRANGLER Owners Manual

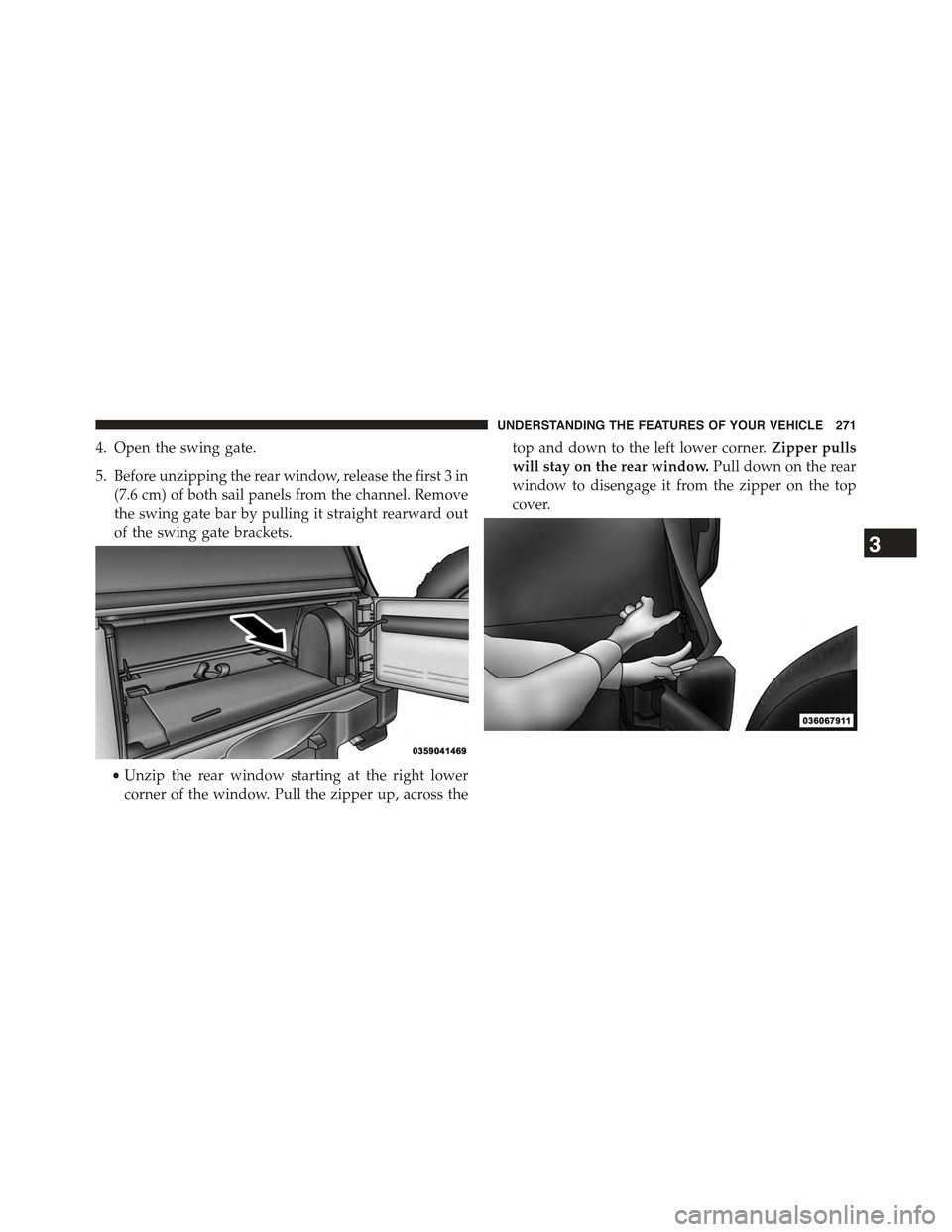

4. Open the swing gate.
5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove
the swing gate bar by pulling it straight rearward out
of the swing gate brackets.
•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window.Pull down on the rear
window to disengage it from the zipper on the top
cover.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271

6. Remove the rear window retainer from the swing gate
bracket on both the left and right sides.
7. Stow the windows carefully to avoid scratching.
8. Undo the Velcro® that runs along the top and rear
edge of the side window.
9. Beginning from the rear lower corner, completely
unzip the window.
10. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat
this step on the opposite side.
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

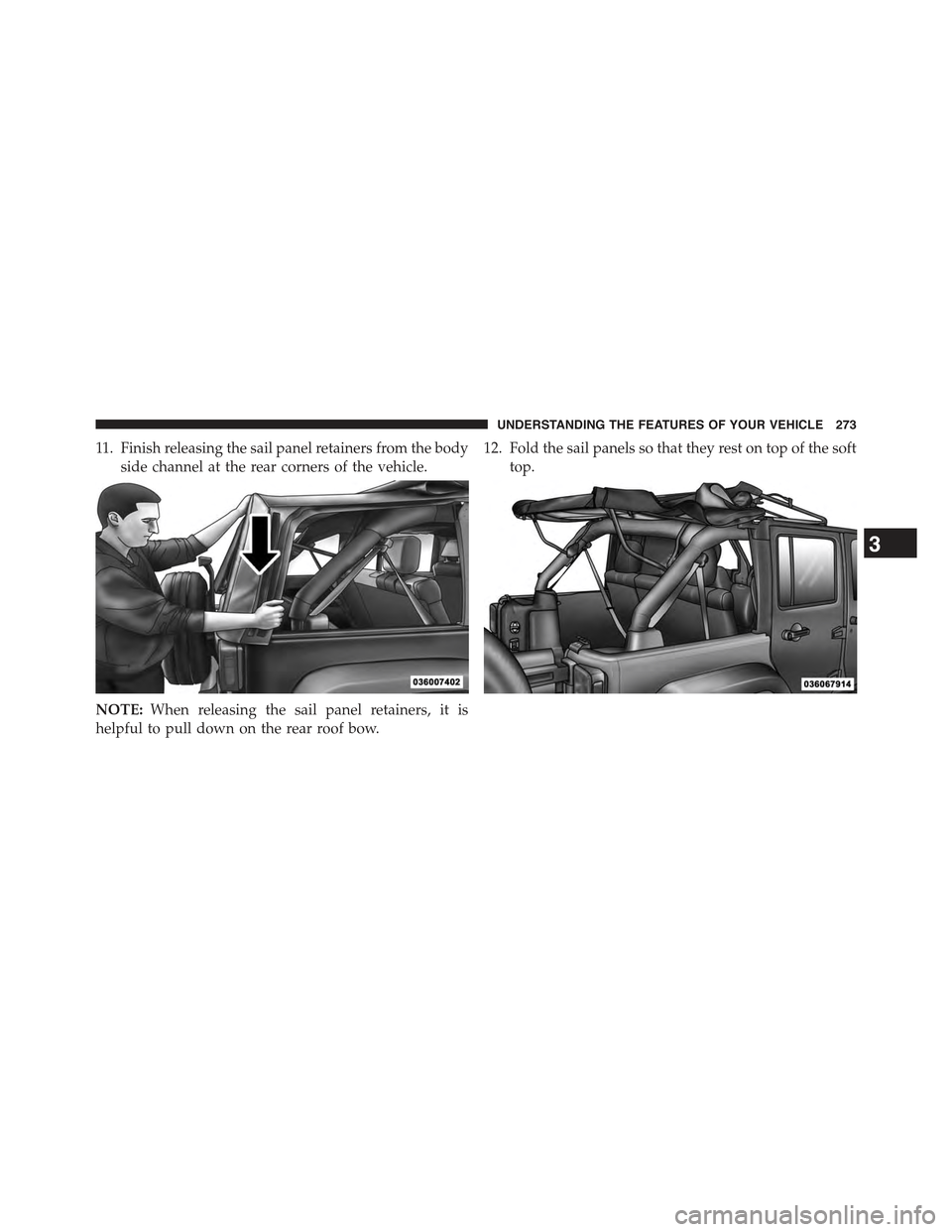

11. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
12. Fold the sail panels so that they rest on top of the soft
top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273

13. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket
forward while rolling the entire bracket back in
toward the vehicle to disengage.
14. Grasp the front side bow behind the header, and lift
the top.
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

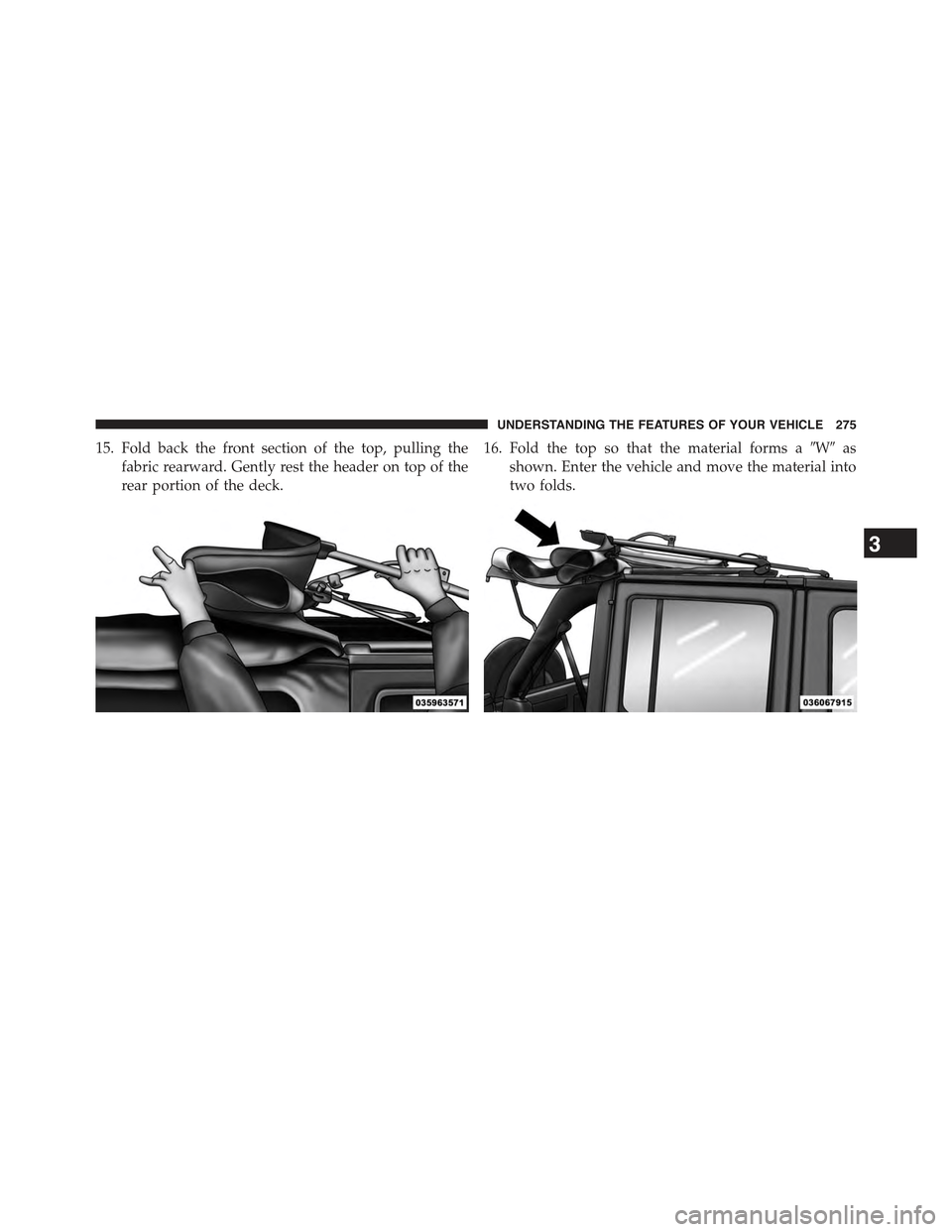

15. Fold back the front section of the top, pulling the
fabric rearward. Gently rest the header on top of the
rear portion of the deck.
16. Fold the top so that the material forms a#W#as
shown. Enter the vehicle and move the material into
two folds.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275

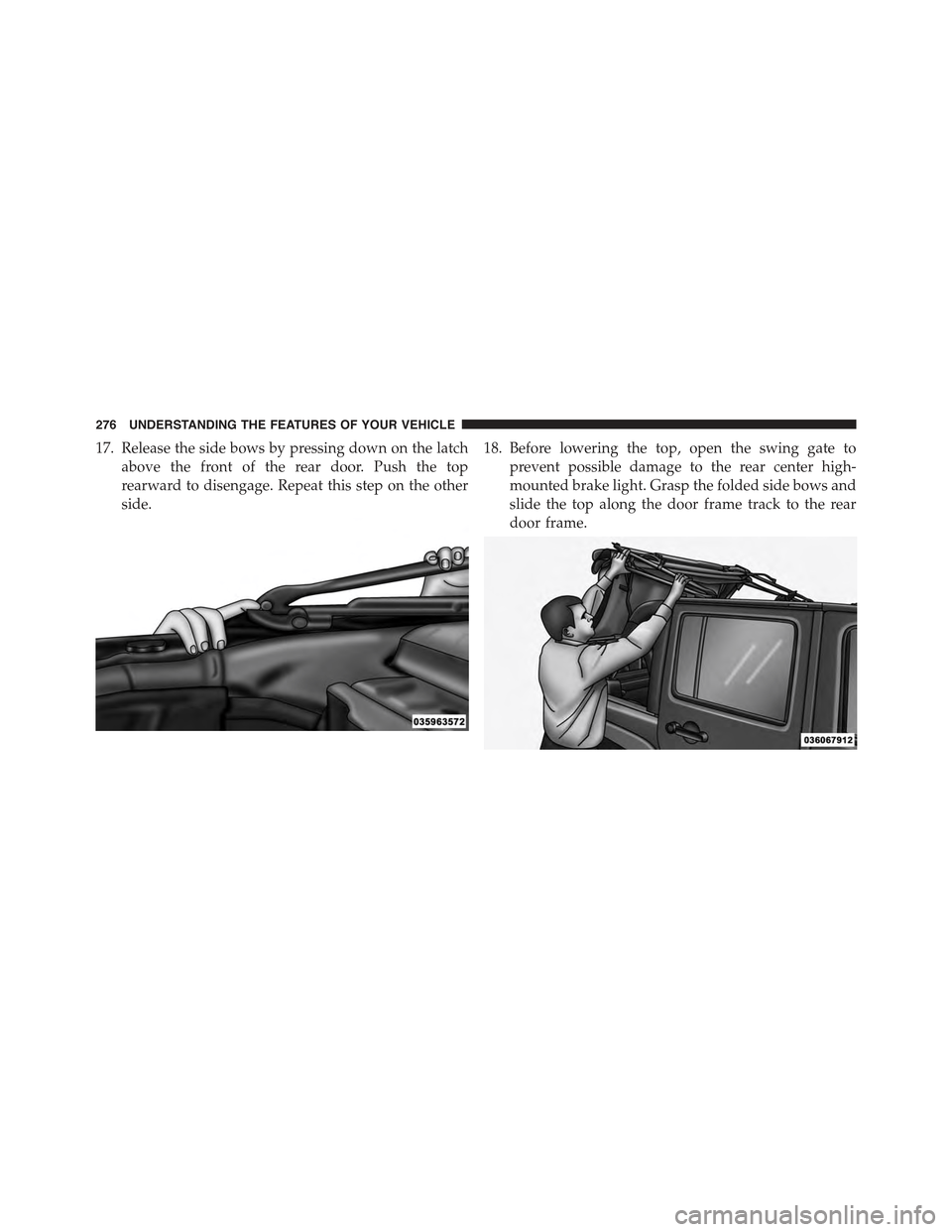

17. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top
rearward to disengage. Repeat this step on the other
side.
18. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-
mounted brake light. Grasp the folded side bows and
slide the top along the door frame track to the rear
door frame.
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

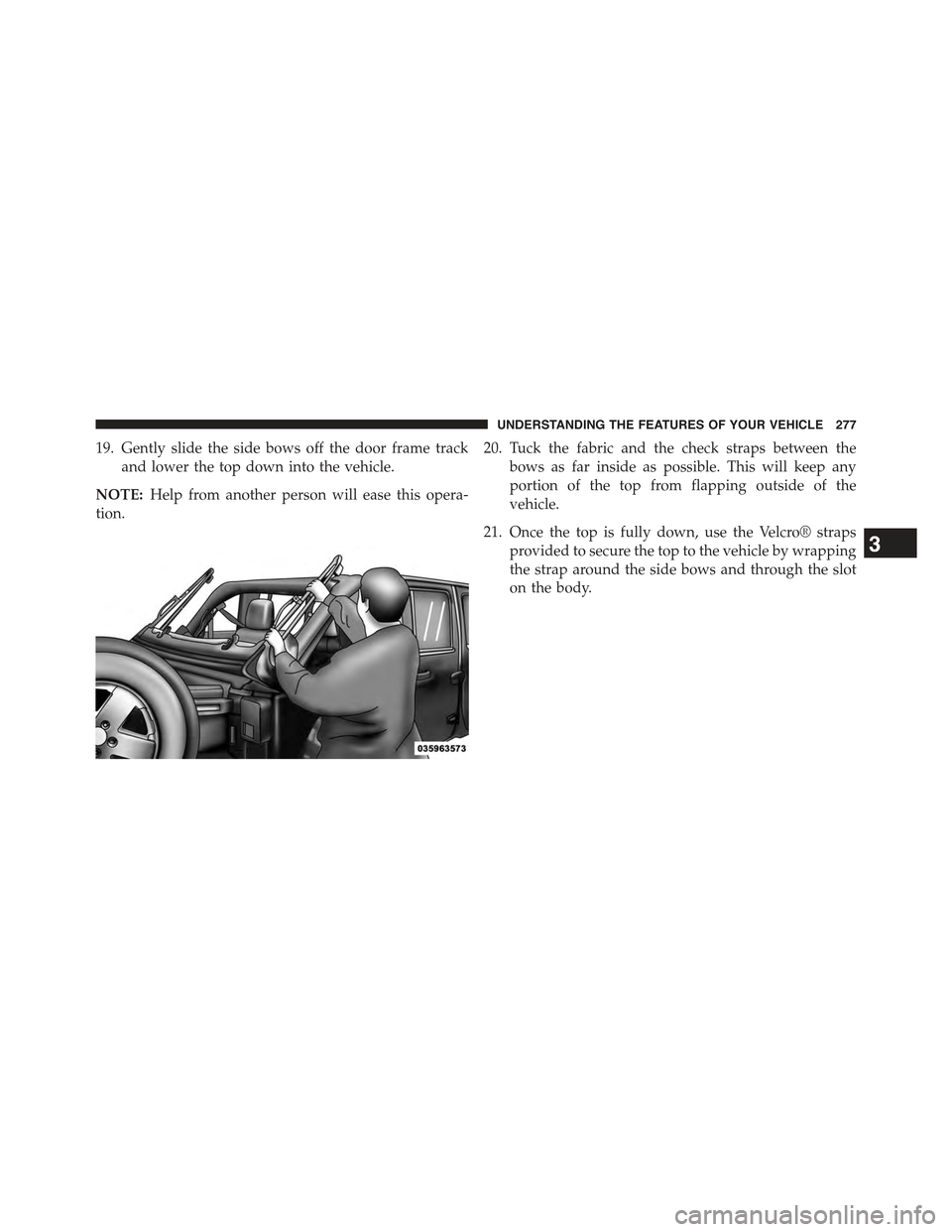

19. Gently slide the side bows off the door frame track
and lower the top down into the vehicle.
NOTE:Help from another person will ease this opera-
tion.
20. Tuck the fabric and the check straps between the
bows as far inside as possible. This will keep any
portion of the top from flapping outside of the
vehicle.
21. Once the top is fully down, use the Velcro® straps
provided to secure the top to the vehicle by wrapping
the strap around the side bows and through the slot
on the body.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277

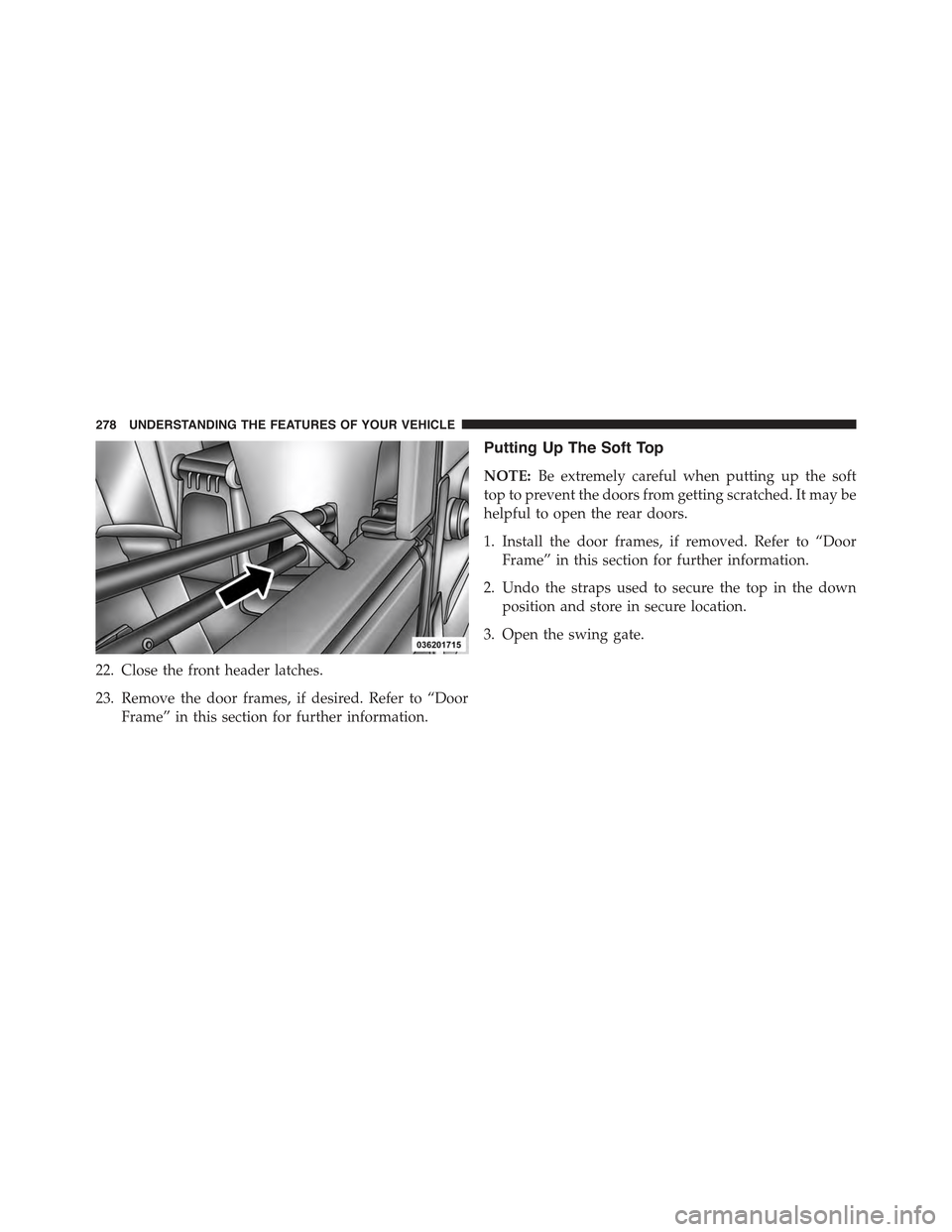

22. Close the front header latches.
23. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
Putting Up The Soft Top
NOTE:Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if removed. Refer to “Door
Frame” in this section for further information.
2. Undo the straps used to secure the top in the down
position and store in secure location.
3. Open the swing gate.
