NOTE:Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE:A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
The Soft Top” in this section.
DUAL TOP — FOUR-DOOR MODELS — IF
EQUIPPED
If your vehicle is equipped with a Dual Top,you must
remove one of the tops from the vehicle. If the soft top
is removed, the pivot brackets must also be removed
from the sport bar.The soft top was installed at the
factory for shipping purposes only.The soft top and the
hard top are to be used independently.Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing The Soft Top — Four-Door Models
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Six door frame attachment knobs
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunrider® secure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top™ Three-
Piece Modular Hard Top — Front/Rear Panel Re-
moval” in this section.
196 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

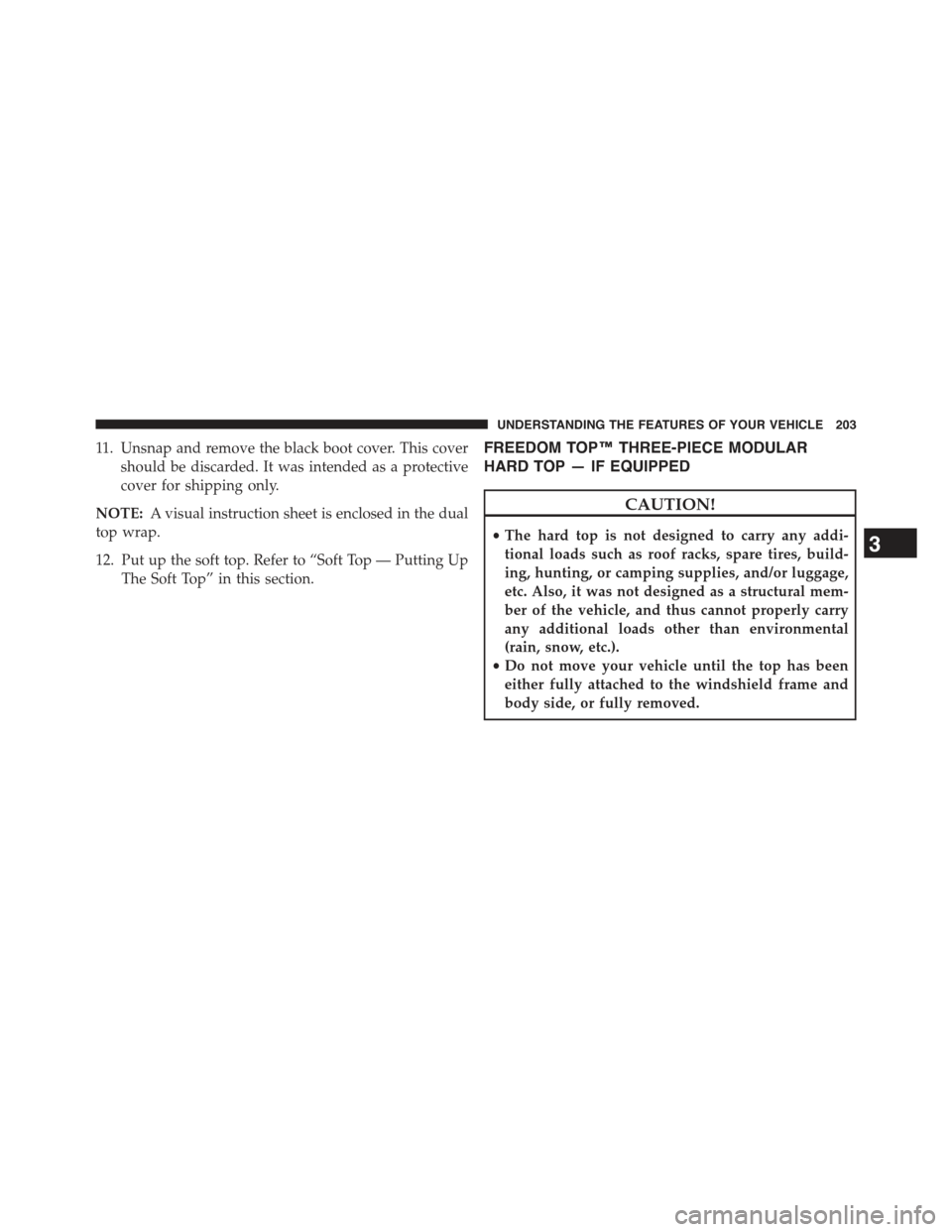

11. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE:A visual instruction sheet is enclosed in the dual
top wrap.
12. Put up the soft top. Refer to “Soft Top — Putting Up
The Soft Top” in this section.
FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural mem-
ber of the vehicle, and thus cannot properly carry
any additional loads other than environmental
(rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
body side, or fully removed.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 203
