2015 HONDA CR-Z Owners Manual

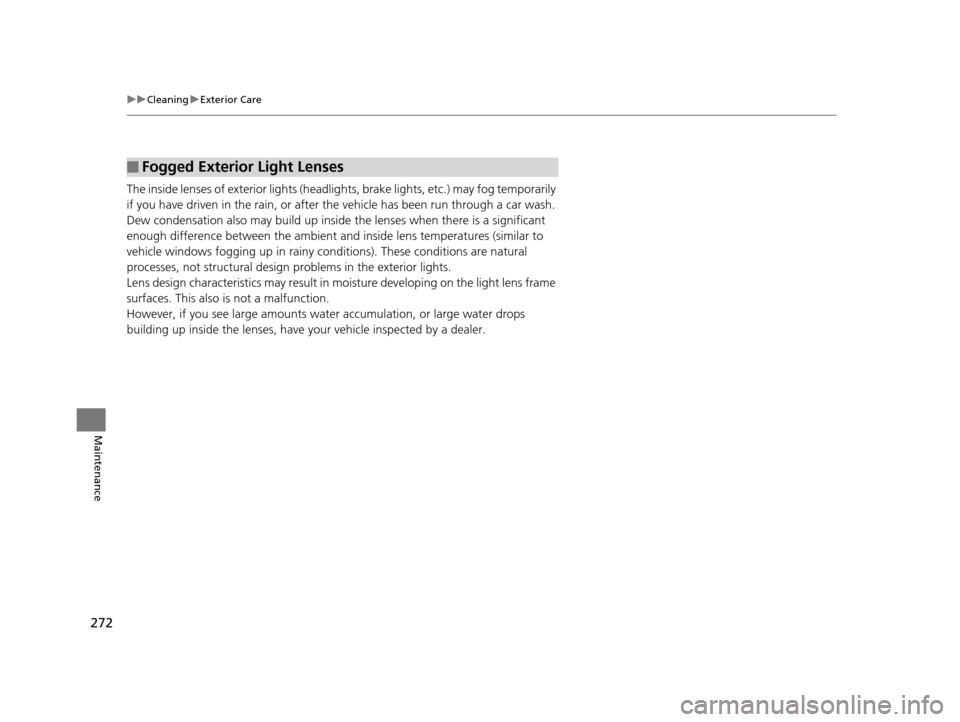

272
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts wate r accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Fogged Exterior Light Lenses
15 CR-Z-31SZT6400.book 272 ページ ２０１４年８月１日　金曜日　午後１時５９分

273
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 274
If a Tire Goes Flat Changing a Flat Tire
*....................... 275
Temporarily Repairi ng a Flat Tire....... 281
Engine Does Not Start Checking the Engine ........................ 290
Jump Starting .................................... 291
Shift Lever Does Not Move .............. 293
Overheating How to Handle Overheating ............. 294 Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes
On ............................................. 296
If the Charging System Indicator Comes
On ................................................. 297
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 298
If the Brake System Indicator (Red) Comes On ................................................. 299
If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 299
If the IMA Indicator Comes On......... 300 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 300
Fuses Fuse Locations ................................. 301
Inspecting and Changing Fuses ........ 304
Emergency Towing ........................... 305
When You Cannot Open the Hatch ..... 307
* Not available on all models
15 CR-Z-31SZT6400.book 273 ページ ２０１４年８月１日　金曜日　午後１時５９分

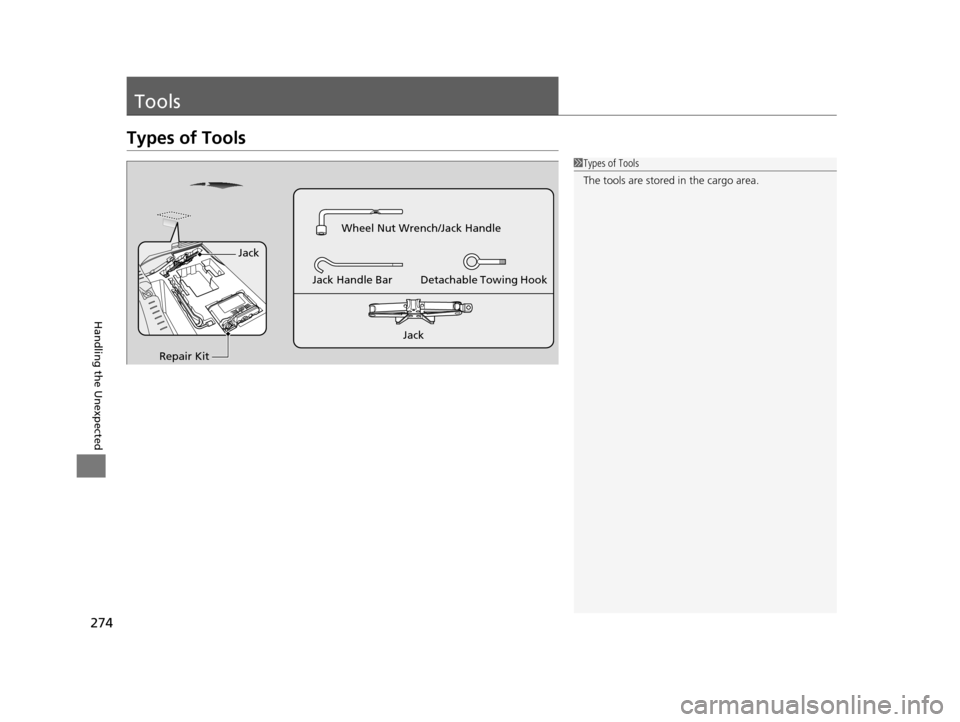

274
Handling the Unexpected
Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/Jack Handle
Jack
Jack Handle Bar Detachable Towing Hook
Repair Kit
Jack
15 CR-Z-31SZT6400.book 274 ページ ２０１４年８月１日　金曜日　午後１時５９分

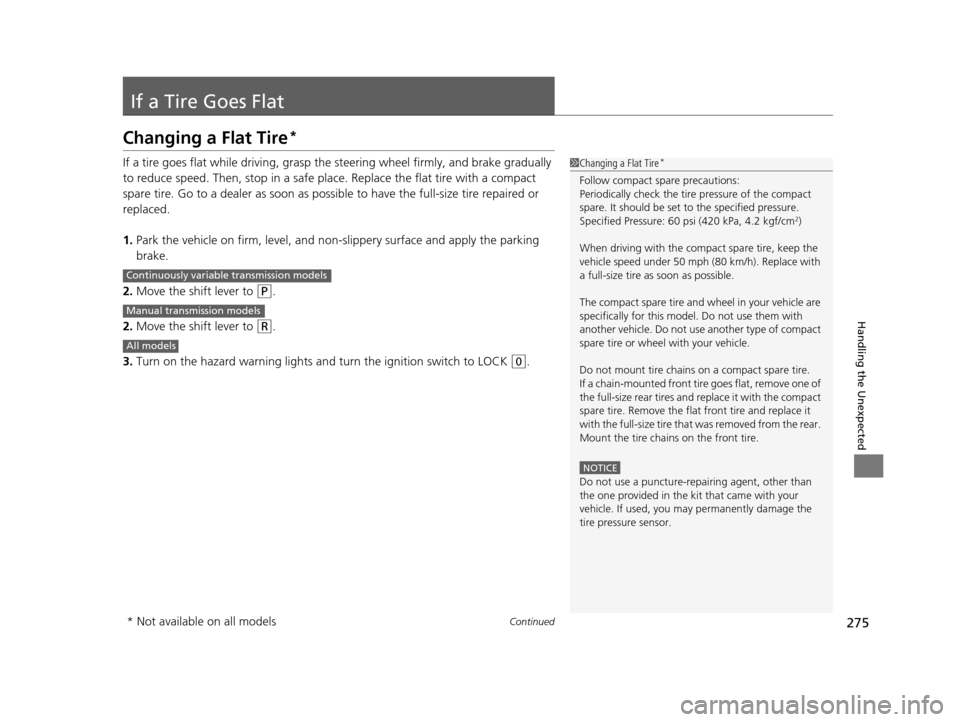

275Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire*
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0.
1Changing a Flat Tire*
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use a puncture-repairing agent, other than
the one provided in the kit that came with your
vehicle. If used, you ma y permanently damage the
tire pressure sensor.
Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
15 CR-Z-31SZT6400.book 275 ページ ２０１４年８月１日　金曜日　午後１時５９分

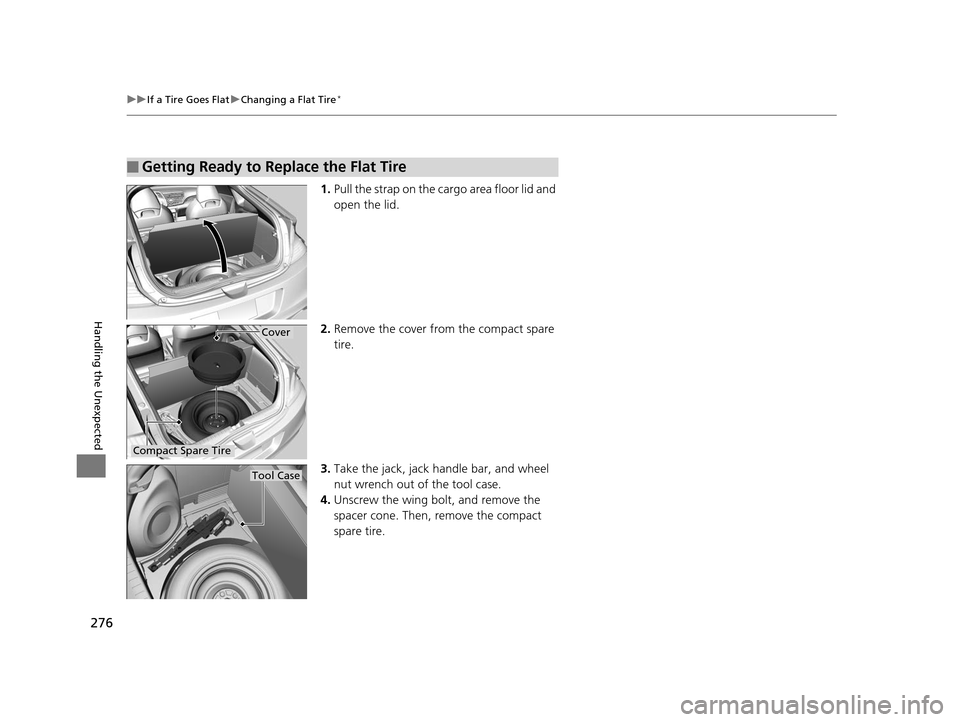

276
uuIf a Tire Goes Flat uChanging a Flat Tire*
Handling the Unexpected
1. Pull the strap on the cargo area floor lid and
open the lid.
2. Remove the cover fro m the compact spare
tire.
3. Take the jack, jack handle bar, and wheel
nut wrench out of the tool case.
4. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the compact
spare tire.
■Getting Ready to Replace the Flat Tire
Compact Spare Tire
Cover
Tool Case
15 CR-Z-31SZT6400.book 276 ページ ２０１４年８月１日　金曜日　午後１時５９分

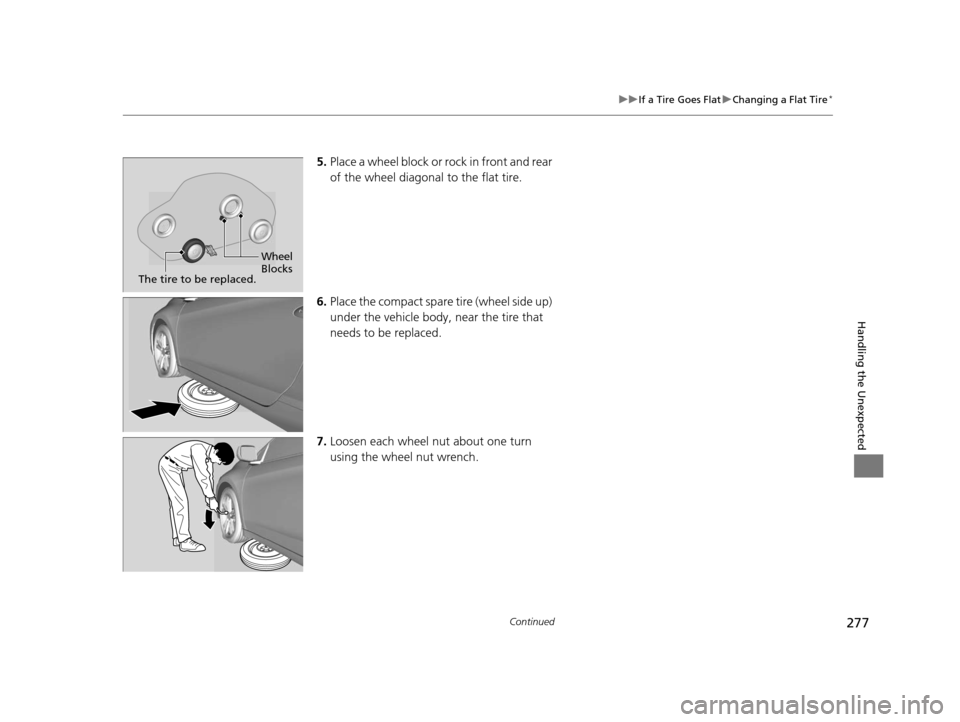

277
uuIf a Tire Goes Flat uChanging a Flat Tire*
Continued
Handling the Unexpected
5. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
6. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
7. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
15 CR-Z-31SZT6400.book 277 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuIf a Tire Goes Flat uChanging a Flat Tire*
278
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
15 CR-Z-31SZT6400.book 278 ページ ２０１４年８月１日　金曜日　午後１時５９分

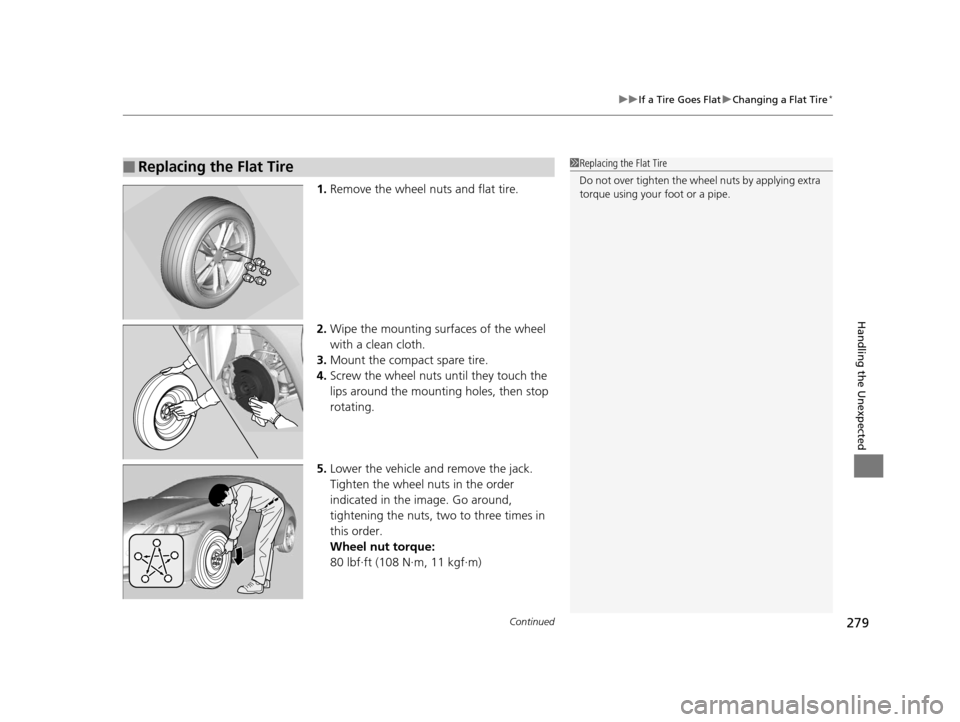

Continued279
uuIf a Tire Goes Flat uChanging a Flat Tire*
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounti ng holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
15 CR-Z-31SZT6400.book 279 ページ ２０１４年８月１日　金曜日　午後１時５９分
