Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 66
Multi-Information Display Warning and Information Messages ...................... 78
Gauges and Multi-Information Display Gauges .............................................. 81
Multi-Information Display .................. 83
15 CR-Z-31SZT6400.book 65 ページ ２０１４年８月１日　金曜日　午後１時５９分

66
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and
Brake System
Indicator
(Red)
●Comes on for a few seconds
when you turn the ignition switch
to ON
(w, then goes off if the
parking brake has been released.
●Comes on when the parking
brake is applied, and goes off
when it is released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 299
●Comes on along with the ABS
indicator - Have your vehicle checked by
a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 299
Low Oil
Pressure
Indicator
●Comes on when you turn the
ignition switch to ON
(w, and
goes off when the engine starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 296
U.S.
Canada
(Red)
U.S.Canada
15 CR-Z-31SZT6400.book 66 ページ ２０１４年８月１日　金曜日　午後１時５９分

67
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
●Comes on when you turn the
ignition switch to ON
(w, and
goes off either when the engine
starts or after several seconds if
the engine did not start. If
“readiness codes” have not been
set, it blinks five times before it
goes off.
●Comes on if there is a problem
with the emissions control system.
●Blinks when a misfire in the
engine's cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 315●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take the vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 298
12 Volt Battery
Charging
System
Indicator
●Comes on when you turn the
ignition switch to ON
(w, and
goes off when the engine starts.
●Comes on when the 12 volt
battery is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the Charging System Indicator
Comes On P. 297
Transmission
Indicator*
●Comes on for a few seconds when
you turn the ignition switch to ON
(w, then goes off.●Blinks if the transmission system
has a problem.
●Blinks while driving - Avoid sudden
starts and acceleration and have your
vehicle checked by a dealer immediately.
* Not available on all models
15 CR-Z-31SZT6400.book 67 ページ ２０１４年８月１日　金曜日　午後１時５９分

68
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
●Comes on and the beeper sounds
if you are not wearing a seat belt
when you turn the ignition switch
to ON
(w.●If the passenger is not wearing a
seat belt, the indicator comes on a
few seconds later.
●Blinks while driving if either you or
your passenger has not fastened a
seat belt. The beeper sounds and
the indicator blinks at regular
intervals.
●The beeper stops and the indicator goes
off when you and your passenger fasten
your seat belts.
●Stays on after you or your passenger
has fastened the seat belt - A
detection error may have occurred in the
sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 33
Low Fuel
Indicator
●Comes on when the fuel reserve is
running low (approximately 1.8
U.S. gal./6.9 Liter left).
●Blinks if there is a problem with
the fuel gauge.
●Comes on - Refuel your vehicle as soon
as possible.
●Blinks - Have your vehicle checked by a
dealer.
15 CR-Z-31SZT6400.book 68 ページ ２０１４年８月１日　金曜日　午後１時５９分

69
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

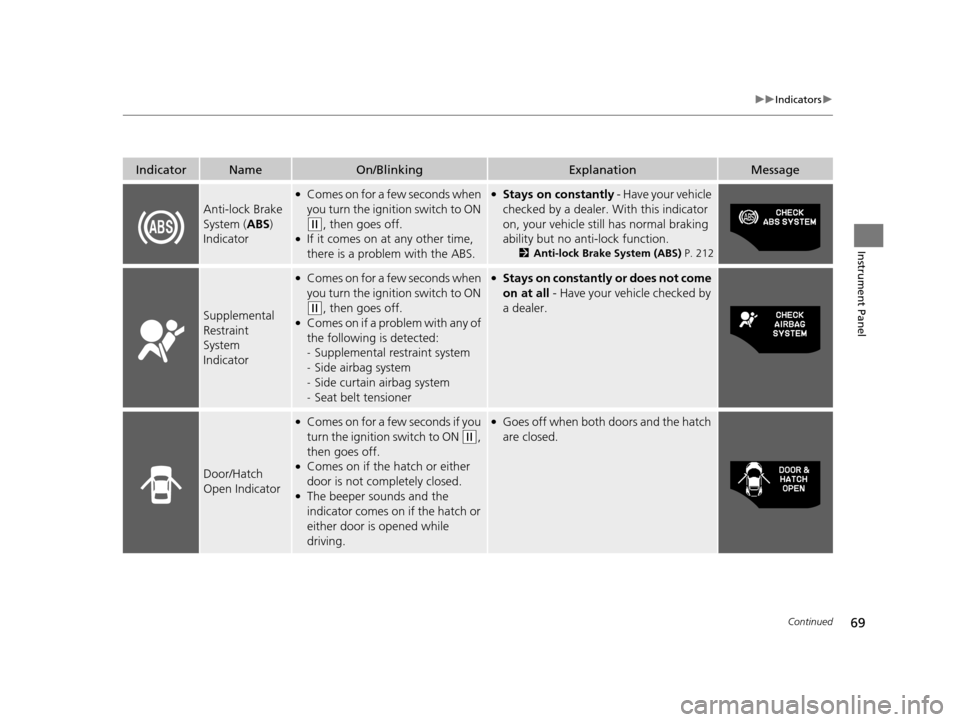

Anti-lock Brake
System (ABS)
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w, then goes off.●If it comes on at any other time,
there is a problem with the ABS.
●Stays on constantly - Have your vehicle
checked by a dealer. With this indicator
on, your vehicle still has normal braking
ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 212
Supplemental
Restraint
System
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w, then goes off.●Comes on if a problem with any of
the following is detected:
-Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
Door/Hatch
Open Indicator
●Comes on for a few seconds if you
turn the ignition switch to ON
(w,
then goes off.
●Comes on if the hatch or either
door is not completely closed.
●The beeper sounds and the
indicator comes on if the hatch or
either door is opened while
driving.
●Goes off when both doors and the hatch
are closed.
15 CR-Z-31SZT6400.book 69 ページ ２０１４年８月１日　金曜日　午後１時５９分

70
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

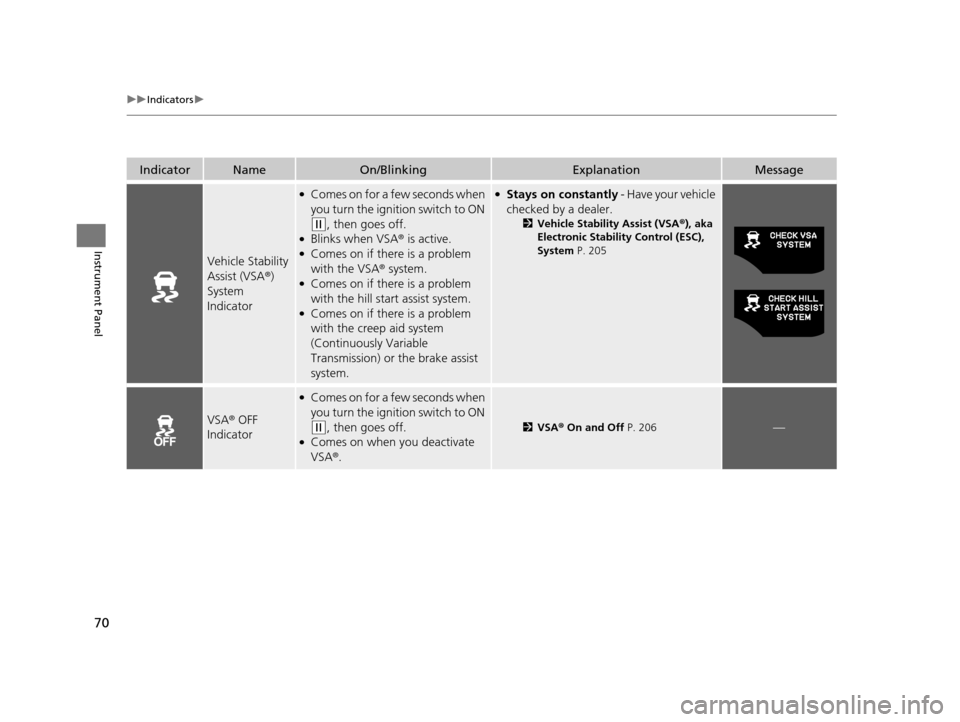

Vehicle Stability
Assist (VSA ®)
System
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w, then goes off.●Blinks when VSA® is active.●Comes on if there is a problem
with the VSA® system.
●Comes on if there is a problem
with the hill start assist system.
●Comes on if there is a problem
with the creep aid system
(Continuously Variable
Transmission) or the brake assist
system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability Assist (VSA ®), aka
Electronic Stability Control (ESC),
System P. 205
VSA® OFF
Indicator
●Comes on for a few seconds when
you turn the igniti on switch to ON
(w, then goes off.●Comes on when you deactivate
VSA®.
2VSA ® On and Off P. 206—
15 CR-Z-31SZT6400.book 70 ページ ２０１４年８月１日　金曜日　午後１時５９分

71
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Power
Steering (EPS)
System
Indicator●Comes on when you turn the
ignition switch to ON
(w, and
goes off when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 299
Low Tire
Pressure/TPMS
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w.●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a
compact spare tire
* is temporarily
installed.
●Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
●Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
U.S.
models
only
* Not available on all models
