2015 HONDA CR-Z Owners Manual

304
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK (0. Turn
headlights and all accessories off.
2. Check the fuses in the engine
compartment.
u If the fuse is blown, have it replaced by a
dealer.
3. Inspect the small fuses in the vehicle
interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 301 to P. 302.
There is a fuse puller on the fuse box.
Fuse
Blown
Fuse
Fuse Puller
15 CR-Z-31SZT6400.book 304 ページ ２０１４年８月１日　金曜日　午後１時５９分

305Continued
Handling the Unexpected

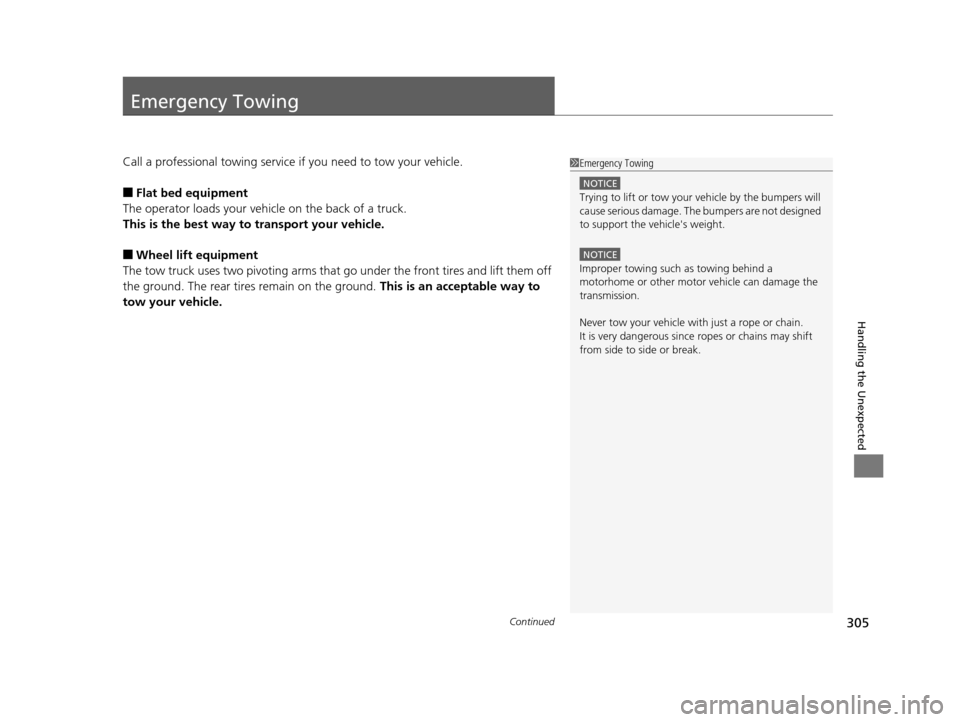

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
15 CR-Z-31SZT6400.book 305 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuEmergency Towing u
306
Handling the Unexpected

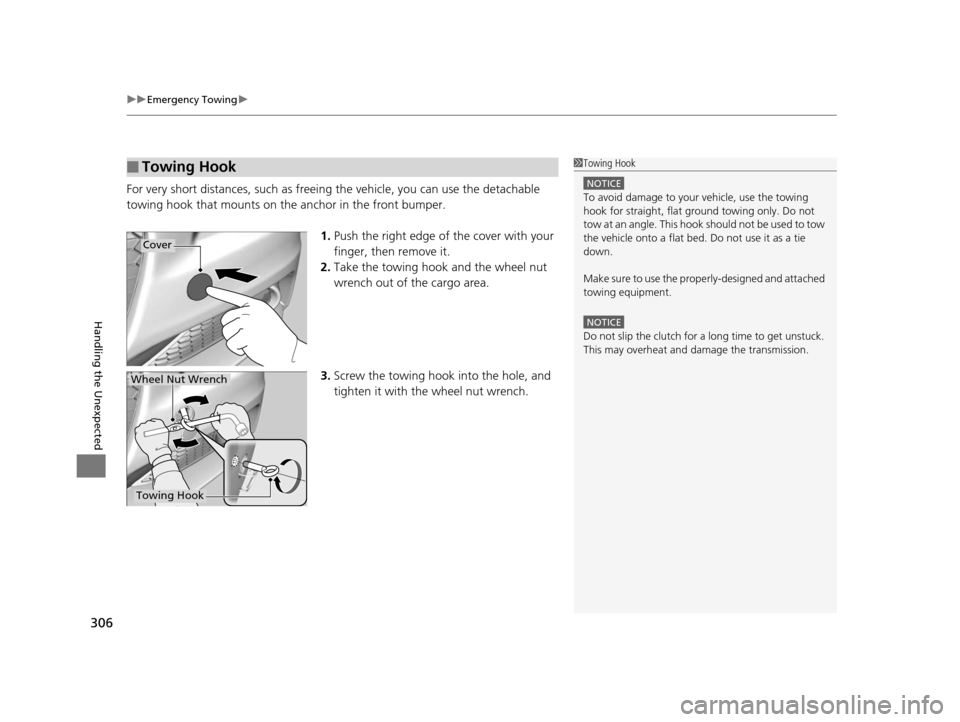

For very short distances, su ch as freeing the vehicle, you can use the detachable
towing hook that mounts on the anchor in the front bumper.
1.Push the right edge of the cover with your
finger, then remove it.
2. Take the towing hook and the wheel nut
wrench out of the cargo area.
3. Screw the towing hook into the hole, and
tighten it with the wheel nut wrench.
■Towing Hook1Towing Hook
NOTICE
To avoid damage to your vehicle, use the towing
hook for straight, flat ground towing only. Do not
tow at an angle. This hook should not be used to tow
the vehicle onto a flat bed. Do not use it as a tie
down.
Make sure to use the prope rly-designed and attached
towing equipment.
NOTICE
Do not slip the clutch for a long time to get unstuck.
This may overheat and damage the transmission.
Cover
Wheel Nut Wrench
Towing Hook
15 CR-Z-31SZT6400.book 306 ページ ２０１４年８月１日　金曜日　午後１時５９分

307
Handling the Unexpected

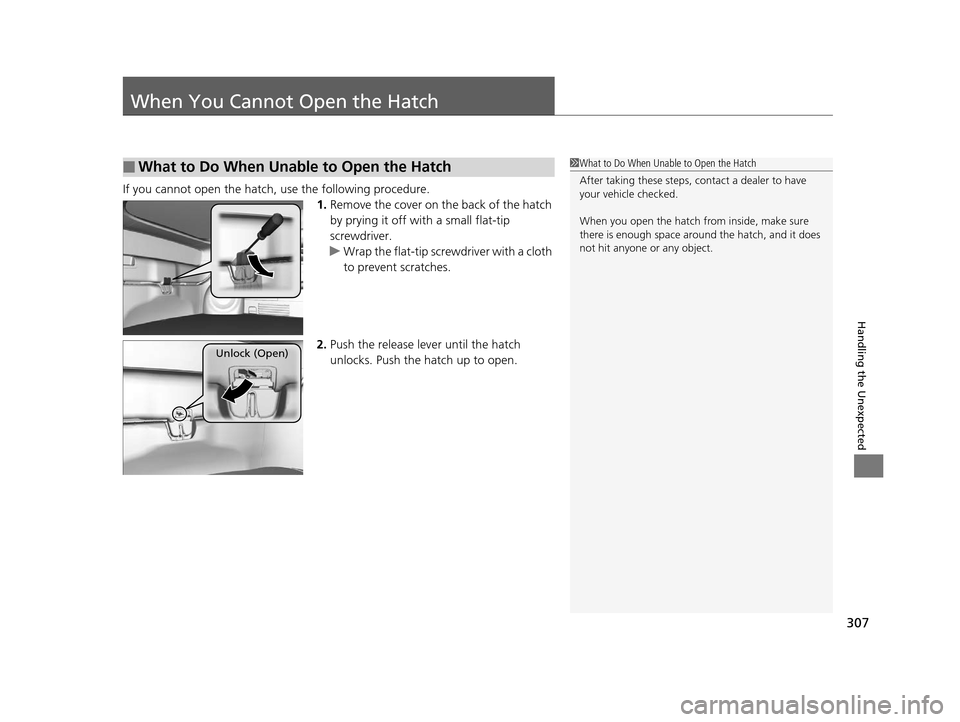

When You Cannot Open the Hatch
If you cannot open the hatch, use the following procedure.
1.Remove the cover on the back of the hatch
by prying it off with a small flat-tip
screwdriver.
u Wrap the flat-tip scre wdriver with a cloth
to prevent scratches.
2. Push the release lever until the hatch
unlocks. Push the hatch up to open.
■What to Do When Unable to Open the Hatch1What to Do When Unab le to Open the Hatch
After taking these steps, contact a dealer to have
your vehicle checked.
When you open the hatch fr om inside, make sure
there is enough space around the hatch, and it does
not hit anyone or any object.
Unlock (Open)
15 CR-Z-31SZT6400.book 307 ページ ２０１４年８月１日　金曜日　午後１時５９分

308
15 CR-Z-31SZT6400.book 308 ページ ２０１４年８月１日　金曜日　午後１時５９分

309
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 310
Identification Numbers Vehicle Identification Number (VIN), Engine Number and Transmission
Number ......................................... 312
Devices that Emit Radio Waves ....... 313
Reporting Safety Defects ................. 314Emissions Testing
Testing of Readiness Codes.............. 315
Warranty Coverages ........................ 317
Authorized Manuals ......................... 319
Customer Service Information ......... 320
15 CR-Z-31SZT6400.book 309 ページ ２０１４年８月１日　金曜日　午後１時５９分

310
Information
Specifications
■Vehicle Specifications
ModelCR-Z
No. of Passengers:
Front 2
Rear -
Total 2
Weights:Gross Vehicle
Weight Rating U.S.: 3,263 lbs (1,480 kg)
Canada: 1,480 kg
Gross Axle Weight
Rating (Front)U.S.: 1,819 lbs (825 kg)
Canada: 825 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,455 lbs (660 kg)
Canada: 660 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type SP-10
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91 cu-in (1,497 cm3)
Spark Plugs NGK DIFR6D13
DENSO DK20PR-D13
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 10.6 US gal (40 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.12 US qt (4.85 L)
■ Light Bulbs
*1: Vehicle with discharge headlights
*2: Vehicle with halogen bulb low beam headlights
Headlights (Low Beam)35W (D4S)*1
55W (H11)*2
Headlights (High Beam) 60W (HB3)Fog Lights*35W (H8)
Front Turn Signal/Parking/Side
Marker Lights 28W/8W
Rear Side Marker Lights3CP
Brake/Taillights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Back-Up Lights 16W
Rear Turn Signal Lights21W (Amber)
High-Mount Brake Lights LED
License Plate Light5W
Cargo Area Light 5W
Interior LightsFront8WRear3.4WVanity Mirror Lights*2WGlove Box Light1.4WCourtesy Lights2CP (3.8W)
* Not available on all models
15 CR-Z-31SZT6400.book 310 ページ ２０１４年８月１日　金曜日　午後１時５９分

311
uuSpecifications u
Information
■Brake Fluid
■ Continuously Variable Transmission
Fluid
■ Manual Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Continuously
Variable Transmission Fluid
Capacity Change 3.0 US qt (2.8 L)
SpecifiedHonda Manual Transmission
Fluid (MTF)
Capacity Change1.5 US qt (1.4 L)
■Engine Oil
■ Engine Coolant
*1: Manual transmission models
*2: Continuously variable transmission models
Recommended·Genuine Honda Motor Oil 0W-20·API Premium-grade 0W-20 detergent oil
Capacity Change 3.6 US qt (3.4 L)
Change
including
filter
3.8 US qt (3.6 L)
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.17 US gal (4.42 L)*1
1.15 US gal (4.35 L)*2
(change including the remaining
0.116 US gal (0.44 L) in the reserve tank)
■ Tire
*3: Optional on Canadian models
*4: 205/45R17 tires
Regular
SizeP195/55R16 86V205/45R17 84W*3
Pressure
psi (kPa
[kgf/cm
2])
Front30 (210 [2.1])32 (220 [2.2])*4
Rear30 (210 [2.1])30 (210 [2.1])*4
Compact
Spare*
Size T135/80D15 99M
Pressure
psi (kPa
[kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 6J17 x 6.5J*3
Compact
Spare*15 x 4T
* Not available on all models
