2015 HONDA CR-Z Owners Manual

200
uuWhen Driving uPlus Sport System
Driving
Plus Sport System
Helps the vehicle to momentarily accelera te with more engine and electric motor
assist power when you depress the accelerator pedal.
This system can be used in any driving mode (SPORT, NORMAL, or ECON).
When the vehicle speed is over 19 mph (30 km/h), and the IMA battery charge level
indicator shows more than four segments:
The Plus Sport System indicator comes on.
The system is available.
The Plus Sport indicator blinks.
The system stands by to be activated.
Only the Plus Spo rt indicator blinks.
The Plus Sport READY indicator goes off.
The system is in operation.
Press the (Plus Sport) button on the
steering wheel.
Depress the accelerator pedal.
15 CR-Z-31SZT6400.book 200 ページ ２０１４年８月１日　金曜日　午後１時５９分

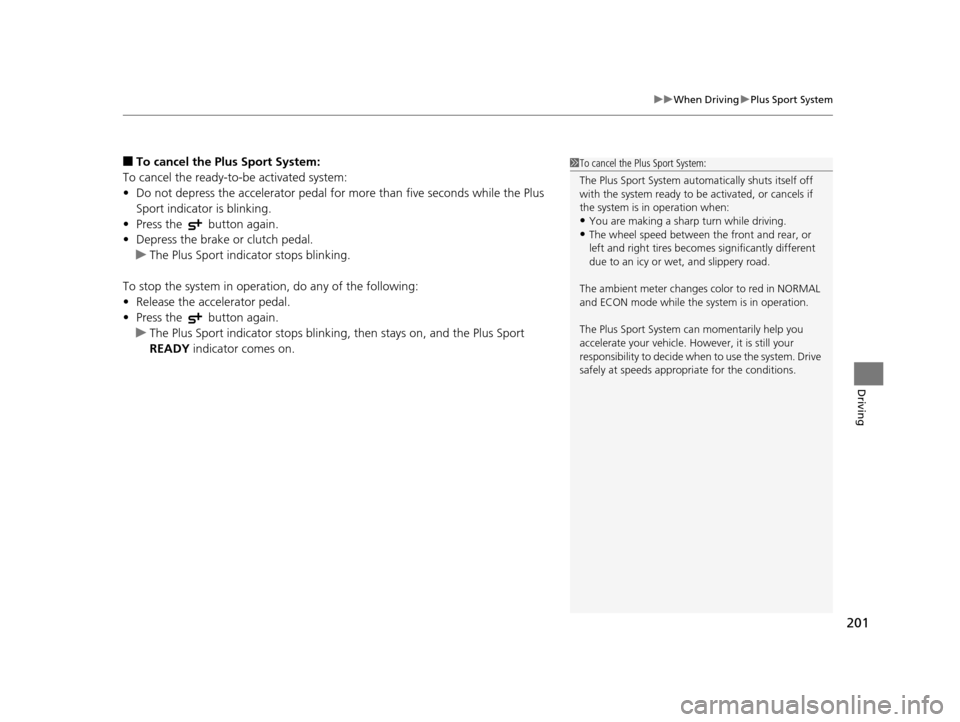

201
uuWhen Driving uPlus Sport System
Driving
■To cancel the Plus Sport System:
To cancel the ready-to-be activated system:
• Do not depress the accelerator pedal for more than five seconds while the Plus
Sport indicator is blinking.
• Press the button again.
• Depress the brake or clutch pedal.
u The Plus Sport indica tor stops blinking.
To stop the system in operation, do any of the following:
• Release the accelerator pedal.
• Press the button again.
u The Plus Sport indicator stops blinking, then stays on, and the Plus Sport
READY indicator comes on.1To cancel the Plus Sport System:
The Plus Sport System automatically shuts itself off
with the system ready to be activated, or cancels if
the system is in operation when:
•You are making a sharp turn while driving.•The wheel speed between the front and rear, or
left and right ti res becomes signifi cantly different
due to an icy or wet, and slippery road.
The ambient meter changes color to red in NORMAL
and ECON mode while the system is in operation.
The Plus Sport System can momentarily help you
accelerate your vehicle. However, it is still your
responsibility to decide when to use the system. Drive
safely at speeds appropr iate for the conditions.
15 CR-Z-31SZT6400.book 201 ページ ２０１４年８月１日　金曜日　午後１時５９分

202
uuWhen Driving uCruise Control
Driving
Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little acceleration or deceleration.1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
While in the ECON mode, it may take relatively more
time to accelerate to maintain the set speed.
When the engine speed slows down, try to
downshift.
You can maintain the set sp eed if you change gear
within five seconds.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Manual transmission models
■Press the CRUISE button
on the steering wheel. CRUISE MAIN
is on in
the instrument panel.Cruise control is ready to
use.
How to use
■Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~Always keep sufficient distance between
you and the vehicle in front of you.
When to use
15 CR-Z-31SZT6400.book 202 ページ ２０１４年８月１日　金曜日　午後１時５９分

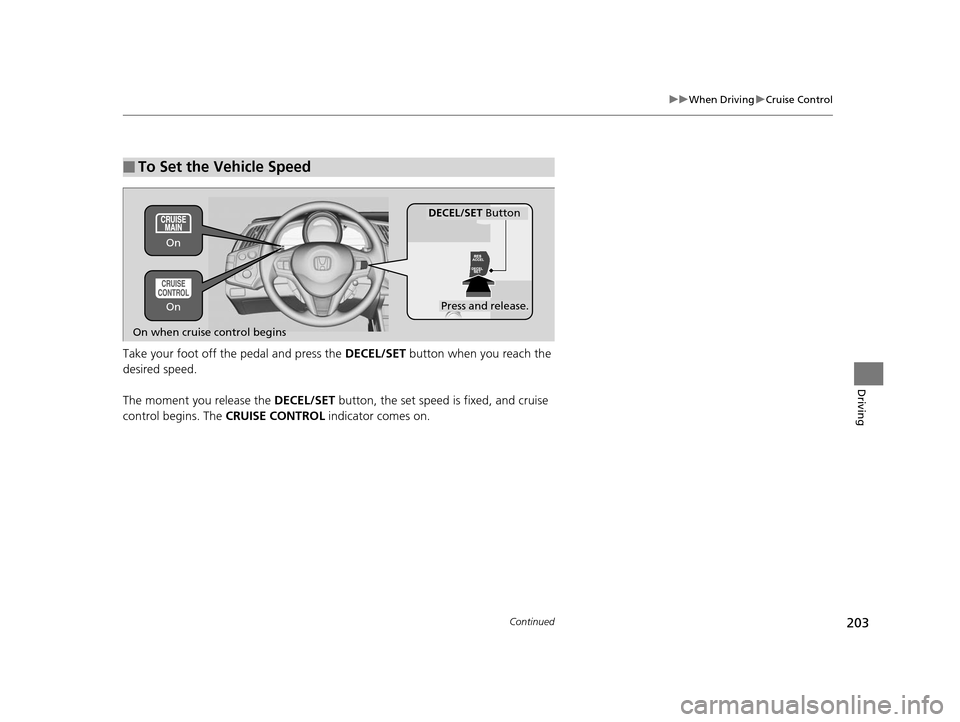

203
uuWhen Driving uCruise Control
Continued
Driving
Take your foot off the pedal and press the DECEL/SET button when you reach the
desired speed.
The moment you release the DECEL/SET button, the set speed is fixed, and cruise
control begins. The CRUISE CONTROL indicator comes on.
■To Set the Vehicle Speed
DECEL/SET Button
On when cruise control begins
Press and release.
On On
15 CR-Z-31SZT6400.book 203 ページ ２０１４年８月１日　金曜日　午後１時５９分

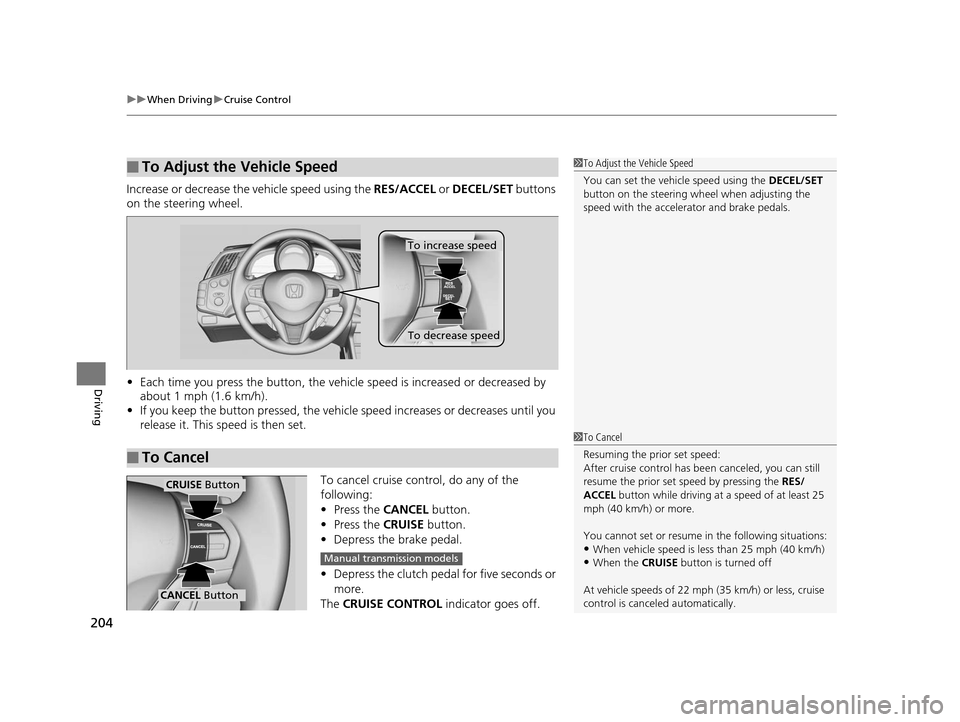

uuWhen Driving uCruise Control
204
Driving
Increase or decrease the vehicle speed using the RES/ACCEL or DECEL/SET buttons
on the steering wheel.
• Each time you press the button, the vehicl e speed is increased or decreased by
about 1 mph (1.6 km/h).
• If you keep the button pressed, the vehicl e speed increases or decreases until you
release it. This speed is then set.
To cancel cruise control, do any of the
following:
• Press the CANCEL button.
• Press the CRUISE button.
• Depress the brake pedal.
• Depress the clutch pedal for five seconds or
more.
The CRUISE CONTROL indicator goes off.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
You can set the vehicle speed using the DECEL/SET
button on the steering wheel when adjusting the
speed with the accelera tor and brake pedals.
■To Cancel
To decrease speed
To increase speed
1To Cancel
Resuming the prior set speed:
After cruise control has be en canceled, you can still
resume the prior set speed by pressing the RES/
ACCEL button while driving at a speed of at least 25
mph (40 km/h) or more.
You cannot set or resume in the following situations:
•When vehicle speed is less than 25 mph (40 km/h)
•When the CRUISE button is turned off
At vehicle speeds of 22 m ph (35 km/h) or less, cruise
control is canceled automatically.
CRUISE Button
CANCEL Button
Manual transmission models
15 CR-Z-31SZT6400.book 204 ページ ２０１４年８月１日　金曜日　午後１時５９分

205
uuWhen Driving uVehicle Stability Assist (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving
Vehicle Stability Assist (VSA ®), aka Electronic
Stability Control (ESC), System
Helps to stabilize the vehicl e during cornering if the vehicle turns more or less than
what was intended. It also assists in mainta ining traction on slippery surfaces. It does
so by regulating engine output and selectively applying the brakes.
When VSA® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic system. You will also see the
indicator blink.
■VSA ® Operation
1 Vehicle Stability Assist (VSA ®), aka Electronic Stability Control
(ESC), System
VSA ® may not function properly if tire type and size
are mixed. Make sure to use the same size and type
of tire, and the air pr essures as specified.
When the VSA ® indicator comes on and stays on
while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and alwa ys leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
VSA® System
Indicator
15 CR-Z-31SZT6400.book 205 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuWhen Driving uVehicle Stability Assist (VSA® ), aka Electronic Stability Control (ESC), System
206
Driving
This button is on the driver side control panel.
To turn the VSA® system on and off, press and
hold it until you hear a beep.
VSA ® will stop and the indicator will come on.
To turn it on again, press the (VSA ® OFF)
button until you hear a beep.
VSA ® is turned on every time you start the
engine, even if you turned it off the last time
you drove the vehicle.
■VSA ® On and Off1 Vehicle Stability Assist (VSA ®), aka Electronic Stability Control
(ESC), System
Without VSA ®, your vehicle will have normal braking
and cornering ability, bu t it will not have VSA®
traction and stability enhancement.
In certain unusual conditions when your vehicle gets
stuck in shallow mud or fr esh snow, it may be easier
to free it with VSA® temporarily switched off.
When the VSA ® system is off, the traction control
system is also off. You should only atte mpt to free
your vehicle with the VSA ® off if you ar e not able to
free it when the VSA ® is on.
Immediately after freeing your vehicle, be sure to
switch VSA ® on again. We do not recommend driving
your vehicle with the VSA ® and traction control
systems switched off.
If the low tire pressure/TPMS indicator comes on or
blinks, the VSA ® system comes on automatically. In
this case, you cannot turn the system off by pressing
the button.
You may hear a motor sound coming from the
engine compartment while system checks are being
performed immediately after starting the engine or
while driving. This is normal.
VSA ® OFF
Indicator
15 CR-Z-31SZT6400.book 206 ページ ２０１４年８月１日　金曜日　午後１時５９分

207
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Driving
Tire Pressure Monitoring System (TPMS)
Monitors the tire pr essure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the multi-information display.
CHECK TIRE PRESSURE is displayed when a
tire has significantly low pressure.
U.S. models only
1 Tire Pressure Monitoring System (TPMS)
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on.
2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 300
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of over inflation.
READY
15 CR-Z-31SZT6400.book 207 ページ ２０１４年８月１日　金曜日　午後１時５９分
