2015 HONDA CR-Z Owners Manual

96
15 CR-Z-31SZT6400.book 96 ページ ２０１４年８月１日　金曜日　午後１時５９分

97
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................... 98
Locking and Unlocking the Doors
Key Types and Functions .................... 99
Locking/Unlocking the Doors from the Outside .......................................... 100
Locking/Unlocking the Doors from the Inside ............................................. 102
Auto Door Locking/Unlocking .......... 104
Opening and Closing the Hatch....... 105
Security System Immobilizer System .......................... 107
Security System Alarm ...................... 107
Opening and Closing the Windows ..... 109
Operating the Switches Around the
Steering Wheel
Ignition Switch ................................. 111
Turn Signals ..................................... 112
Light Switches.................................. 112
Fog Lights
*...................................... 114
Daytime Running Lights ................... 114
Wipers and Washers ........................ 115
Brightness Control ........................... 117
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 118
Adjusting the Steering Wheel........... 119 Adjusting the Mirrors
Interior Rearview Mirror ................... 120
Power Door Mirrors ......................... 121
Adjusting the Seats Adjusting the Seat Positions ............. 122
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 127
Interior Convenience Items .............. 128
Climate Control System Using Automatic Climate Control .... 136
Automatic Climate Control Sensors ...... 138
* Not available on all models
15 CR-Z-31SZT6400.book 97 ページ ２０１４年８月１日　金曜日　午後１時５９分

98
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display, using the CLOCK (AM /FM ) button with
the ignition switch in ON
(w.
1. Press and hold the CLOCK button until the clock display begins to blink.
2. Press the
(1 (Hour) button to change the hours.
3. Press the
(2 (Minute) button to change the minutes.
4. Press the CLOCK button to go back to the normal display.
■Adjusting the Time
1Adjusting the Clock
To set the time to the nearest hour:
Press and hold the CLOCK button until the clock
display begins to blink, then press the
( 3 (Reset)
button.
Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
( 2 Button
(1 Button
(3 Button
CLOCK ButtonClock Display
15 CR-Z-31SZT6400.book 98 ページ ２０１４年８月１日　金曜日　午後１時５９分

99
Controls
Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:
Use the key to start and stop the engine, and
to lock and unlock all the doors and hatch.
You can also use the remote transmitter to
lock and unlock the doors and hatch.
Contains a number that you will need if you
purchase a replacement key.
■Keys
1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 107
The keys contain precision electronics.
Adhere to the following advi ce to prevent damage to
the electronics:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.
•Keep the keys away from liquids.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
Key with Remote Transmitter
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
15 CR-Z-31SZT6400.book 99 ページ ２０１４年８月１日　金曜日　午後１時５９分

100
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

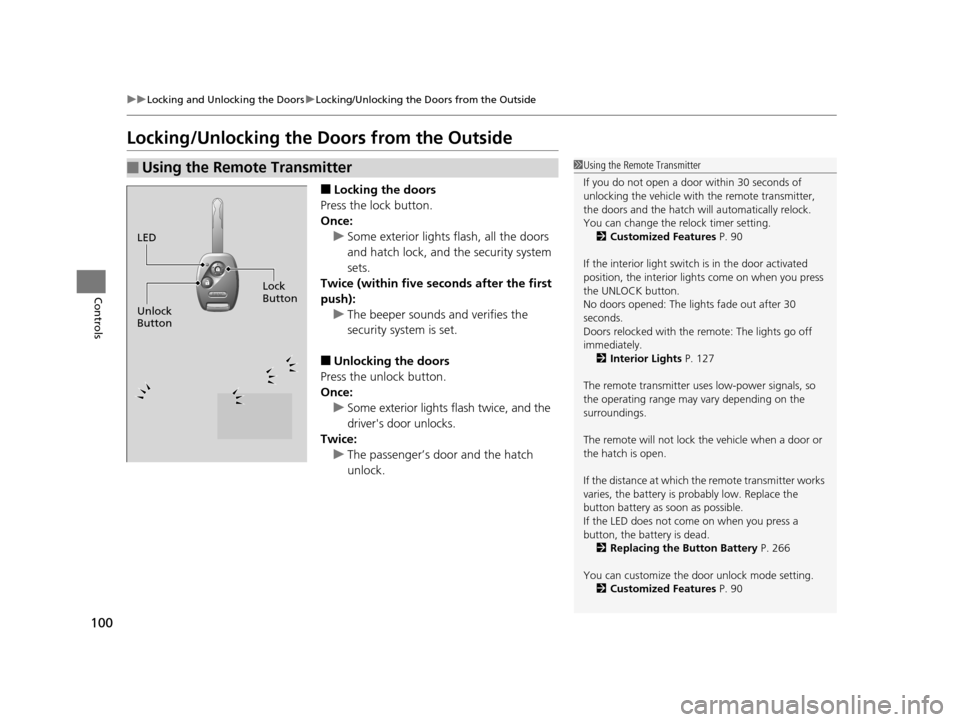

Locking/Unlocking the Doors from the Outside
■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and hatch lock, and the security system
sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the
driver's door unlocks.
Twice:
u The passenger’s door and the hatch
unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors and the hatch will automatically relock.
You can change the relock timer setting.
2 Customized Features P. 90
If the interior light switch is in the door activated
position, the interior light s come on when you press
the UNLOCK button.
No doors opened: The li ghts fade out after 30
seconds.
Doors relocked with the remote: The lights go off
immediately. 2 Interior Lights P. 127
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door or
the hatch is open.
If the distance at which the remote transmitter works
varies, the battery is pr obably low. Replace the
button battery as soon as possible.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 266
You can customize the door unlock mode setting. 2 Customized Features P. 90
LED
Unlock
Button Lock
Button
15 CR-Z-31SZT6400.book 100 ページ ２０１４年８月１日　金曜日　午後１時５９分

101
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Fully insert the key and turn it.
■Locking the driver's door
Pull the lock tab rearward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passenger's door
Pull the lock tab rearward and close the door.
■Lockout prevention system
The doors and the hatch cannot be locked when the key is in the ignition switch, and
either door or the hatch is open.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver's door with a key, all the
doors and hatch lock at the same time. When
unlocking, the driver's door unlocks first. Turn the
key a second time within a few seconds to unlock the
passenger’s door and the hatch.
You can customize the door unlock mode setting.
2 Customized Features P. 90
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver's door, all the doors and
hatch lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.
15 CR-Z-31SZT6400.book 101 ページ ２０１４年８月１日　金曜日　午後１時５９分

102
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

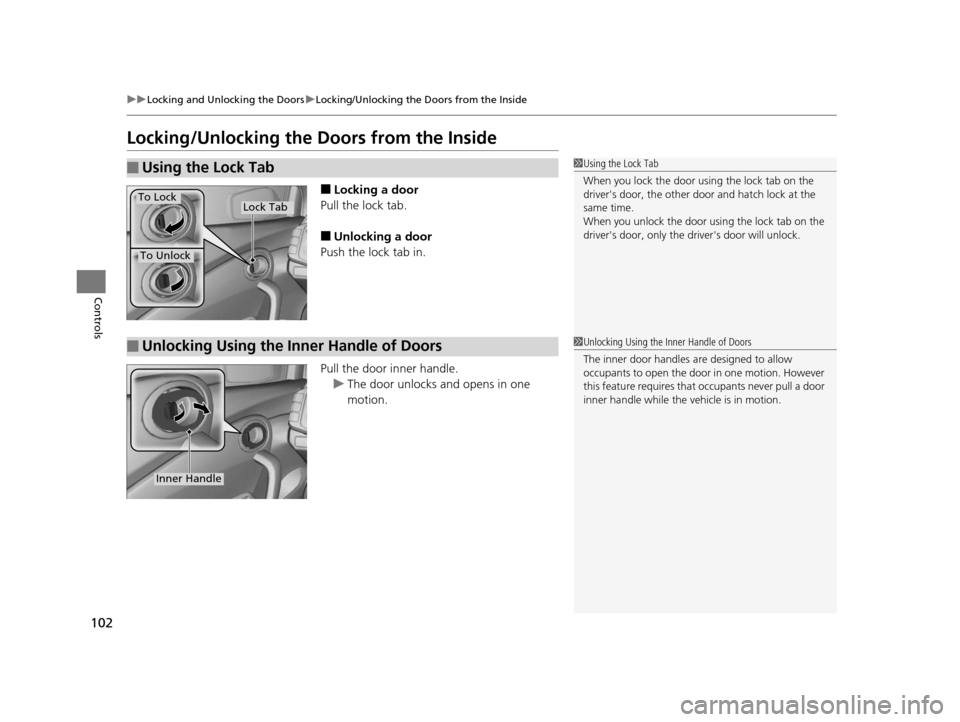

Locking/Unlocking the Doors from the Inside
■Locking a door
Pull the lock tab.
■Unlocking a door
Push the lock tab in.
Pull the door inner handle. u The door unlocks and opens in one
motion.
■Using the Lock Tab1Using the Lock Tab
When you lock the door using the lock tab on the
driver's door, the other door and hatch lock at the
same time.
When you unlock the door using the lock tab on the
driver's door, only the driv er's door will unlock.
To Unlock
Lock TabTo Lock
■Unlocking Using the Inner Handle of Doors1Unlocking Using the Inner Handle of Doors
The inner door handles are designed to allow
occupants to open the door in one motion. However
this feature requires that occupants never pull a door
inner handle while the vehicle is in motion.
Inner Handle
15 CR-Z-31SZT6400.book 102 ページ ２０１４年８月１日　金曜日　午後１時５９分

103
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls
Press the master door lo ck switch in as shown
to lock or unlock both doors and the hatch.

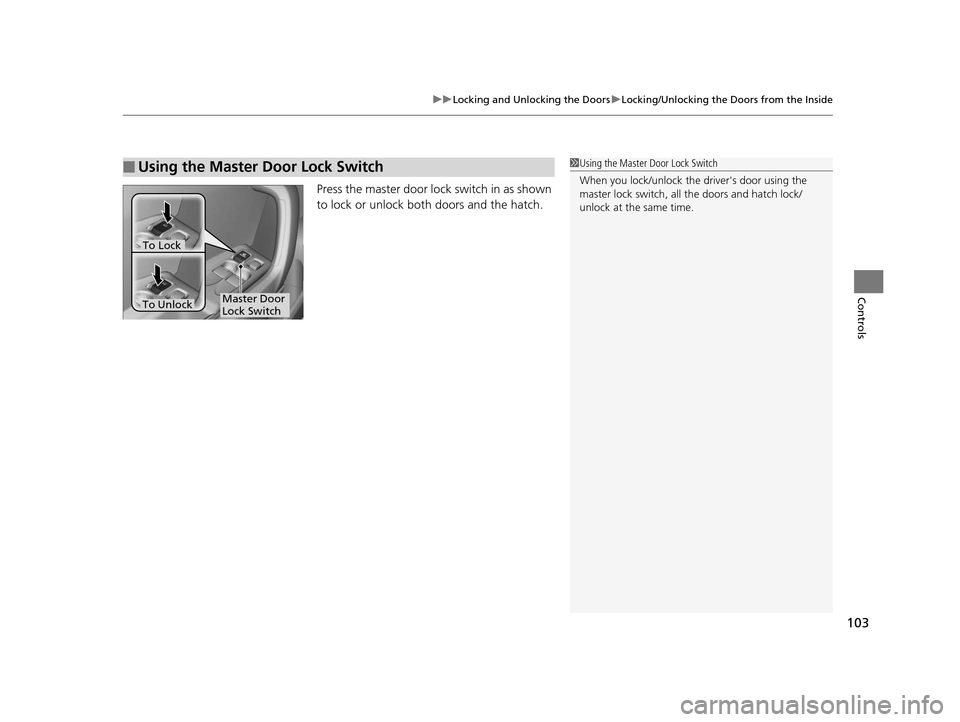

■Using the Master Door Lock Switch1 Using the Master Door Lock Switch
When you lock/unlock the driver's door using the
master lock switch, all the doors and hatch lock/
unlock at the same time.
Master Door
Lock Switch
To Lock
To Unlock
15 CR-Z-31SZT6400.book 103 ページ ２０１４年８月１日　金曜日　午後１時５９分
