2015 HONDA CR-Z Owners Manual

128
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Pull the handle to open the glove box.
You can keep beverage bottles and cans cool
with the air condi tioning system.
1. Push the lever forward to open the air vent
in the glove box.
2. Turn on the climate control system and
adjust the temperature to cool.
3. Set the mode control or .
u The cool air is dive rted through the air
vent.
■Glove Box1 Glove Box
Use only resealable cont ainers or keep unopened
cans in the glove box.
Spilled liquids can dama ge the upholstery and
electrical components in the glove box and inside the
dashboard.
When the heater begins to divert warm air, the
airflow into the glov e box is shut off.
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
Handle
Close
OpenLever
15 CR-Z-31SZT6400.book 128 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued129
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

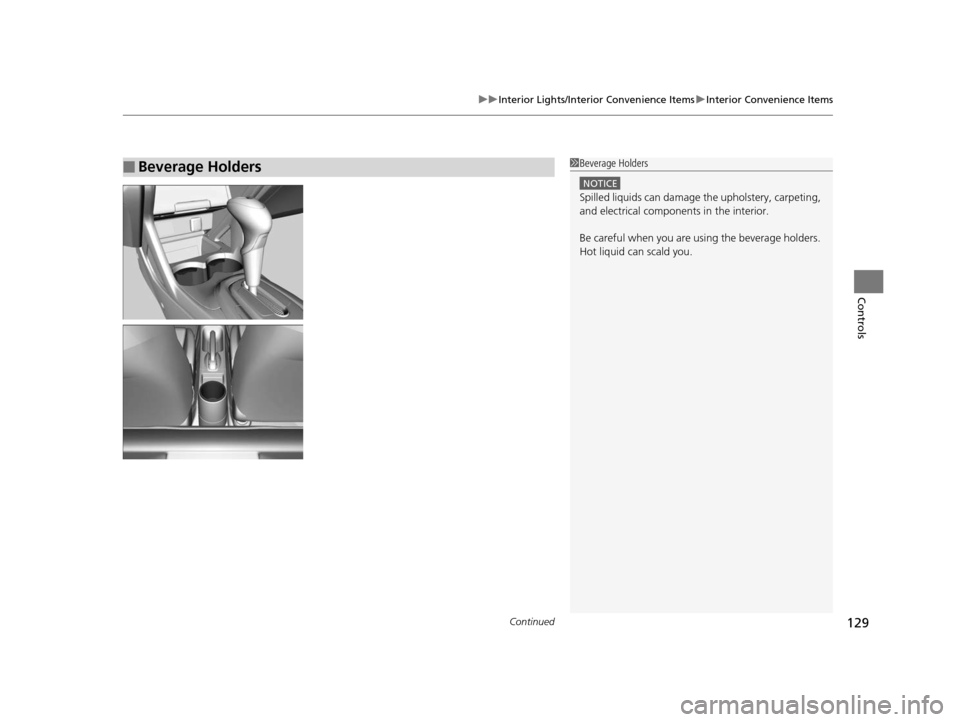

■Beverage Holders1Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
15 CR-Z-31SZT6400.book 129 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
130
Controls
The accessory power soc ket can be used when
the ignition switch is in ACCESSORY
(q or ON
(w.
Open the cover to use it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12 volt DC access ories that are rated 180
watts or less (15 amps).
To prevent 12 volt battery drain, only use the power
socket with the engine running.
15 CR-Z-31SZT6400.book 130 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued131
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

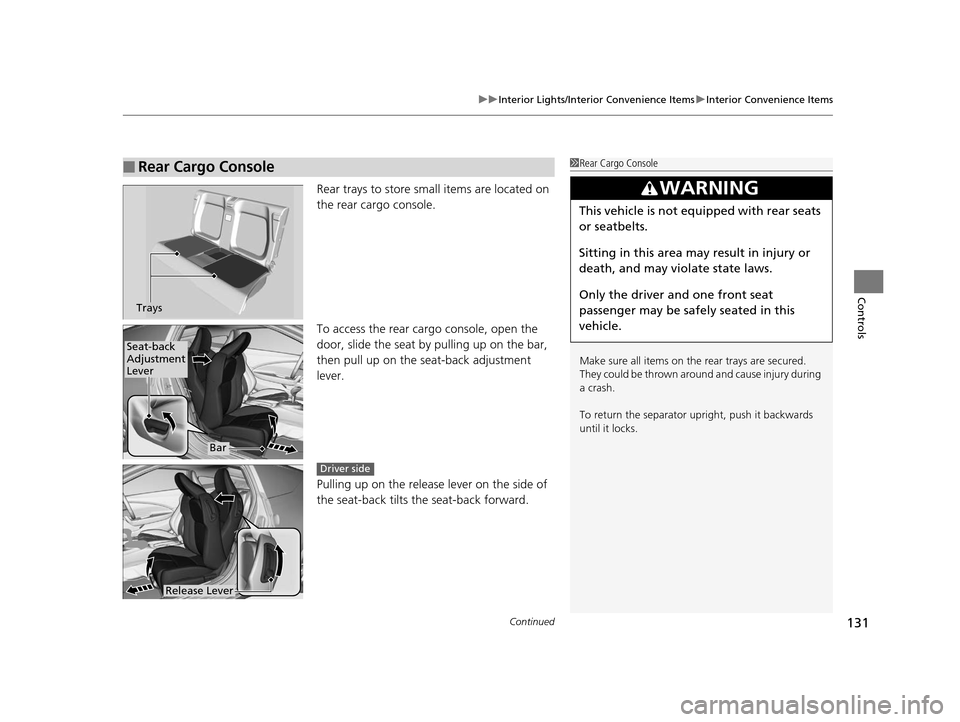

Rear trays to store small items are located on
the rear cargo console.
To access the rear ca rgo console, open the
door, slide the seat by pulling up on the bar,
then pull up on the seat-back adjustment
lever.
Pulling up on the release lever on the side of
the seat-back tilts the seat-back forward.
■Rear Cargo Console1 Rear Cargo Console
Make sure all items on the rear trays are secured.
They could be thrown around and cause injury during
a crash.
To return the separator upright, push it backwards
until it locks.
3WARNING
This vehicle is not equipped with rear seats
or seatbelts.
Sitting in this area may result in injury or
death, and may violate state laws.
Only the driver and one front seat
passenger may be safely seated in this
vehicle.
Trays
Seat-back
Adjustment
Lever
Bar
Release Lever
Driver side
15 CR-Z-31SZT6400.book 131 ページ ２０１４年８月１日　金曜日　午後１時５９分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
132
Controls

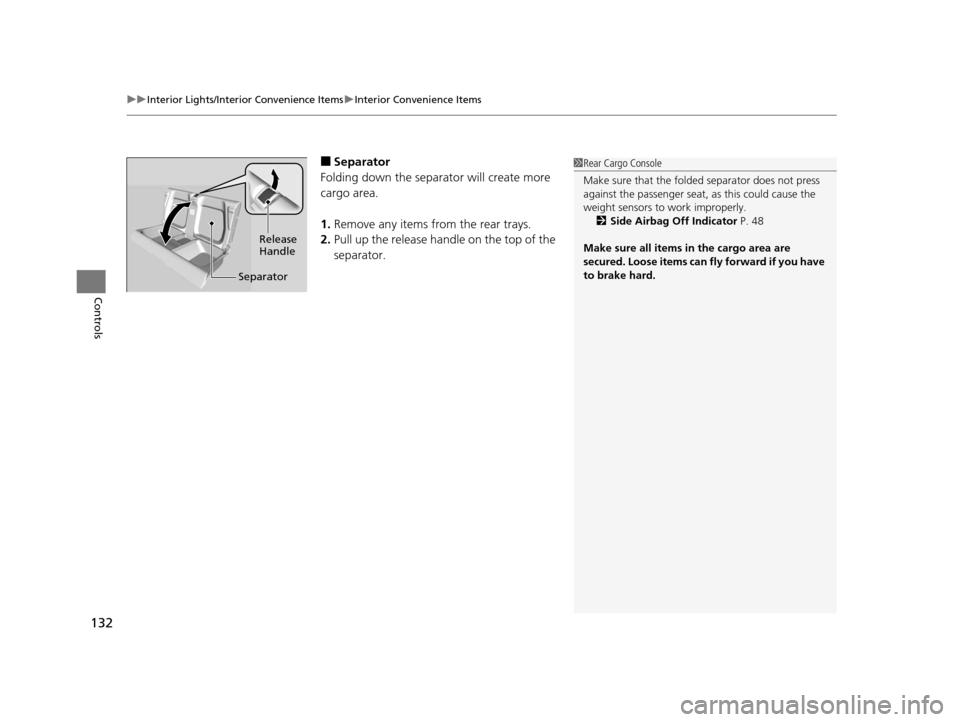

■Separator
Folding down the separato r will create more
cargo area.
1. Remove any items from the rear trays.
2. Pull up the release handle on the top of the
separator.1Rear Cargo Console
Make sure that the folded separator does not press
against the passenger seat, as this could cause the
weight sensors to work improperly.
2 Side Airbag Off Indicator P. 48
Make sure all items in the cargo area are
secured. Loose items can fly forward if you have
to brake hard.
Release
Handle
Separator
15 CR-Z-31SZT6400.book 132 ページ ２０１４年８月１日　金曜日　午後１時５９分

Continued133
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

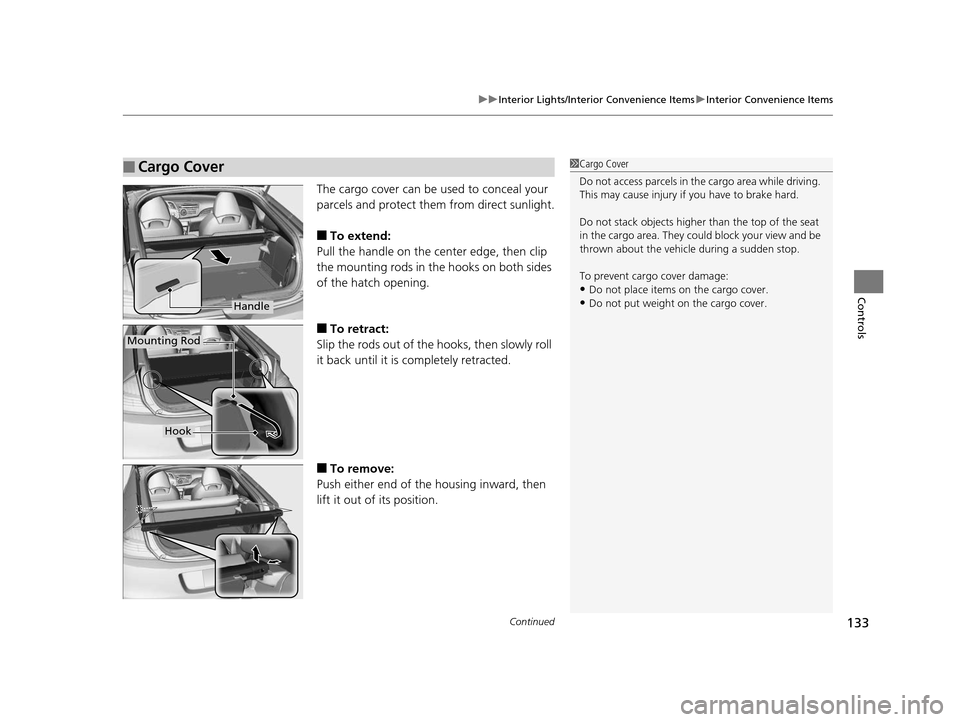

The cargo cover can be used to conceal your
parcels and protect them from direct sunlight.
■To extend:
Pull the handle on the center edge, then clip
the mounting rods in the hooks on both sides
of the hatch opening.
■To retract:
Slip the rods out of the hooks, then slowly roll
it back until it is completely retracted.
■To remove:
Push either end of th e housing inward, then
lift it out of its position.
■Cargo Cover1 Cargo Cover
Do not access parcels in the cargo area while driving.
This may cause injury if you have to brake hard.
Do not stack objects higher than the top of the seat
in the cargo area. They could block your view and be
thrown about the vehicle during a sudden stop.
To prevent cargo cover damage:
•Do not place items on the cargo cover.•Do not put weight on the cargo cover.Handle
Mounting Rod
Hook
15 CR-Z-31SZT6400.book 133 ページ ２０１４年８月１日　金曜日　午後１時５９分

134
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

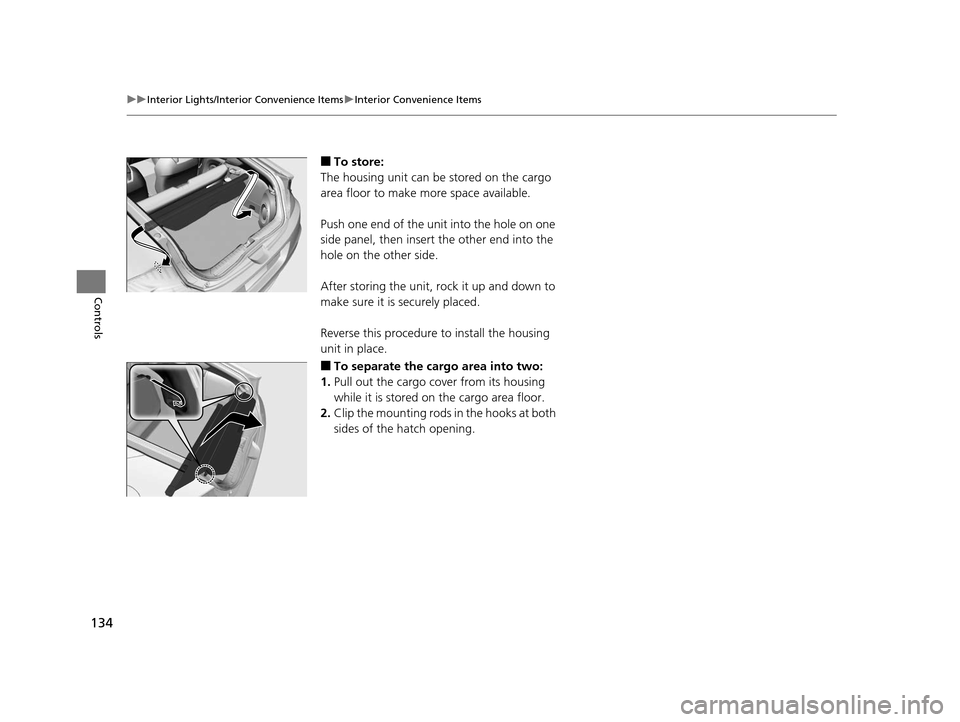

■To store:
The housing unit can be stored on the cargo
area floor to make more space available.
Push one end of the unit into the hole on one
side panel, then insert the other end into the
hole on the other side.
After storing the unit, rock it up and down to
make sure it is securely placed.
Reverse this procedure to install the housing
unit in place.
■To separate the cargo area into two:
1. Pull out the cargo cover from its housing
while it is stored on the cargo area floor.
2. Clip the mounting rods in the hooks at both
sides of the hatch opening.
15 CR-Z-31SZT6400.book 134 ページ ２０１４年８月１日　金曜日　午後１時５９分

135
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The ignition switch must be in ON (w to use
the seat heaters. The HI setting heats the seats
faster than the LO setting.
There is no heater in the passenger's seat-
back due to the side airbag cutoff system.
While in HI , the heater cycles on and off.
u The appropriate indicator will be on
while the seat heater is on. Briefly press
the switch on the opposite side to turn
the heater off. The indicator will be off.
When a comfortable temperature is
reached, select LO to keep the seat
warm.
■Seat Heaters*1 Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
