Cockpit
Cockpit

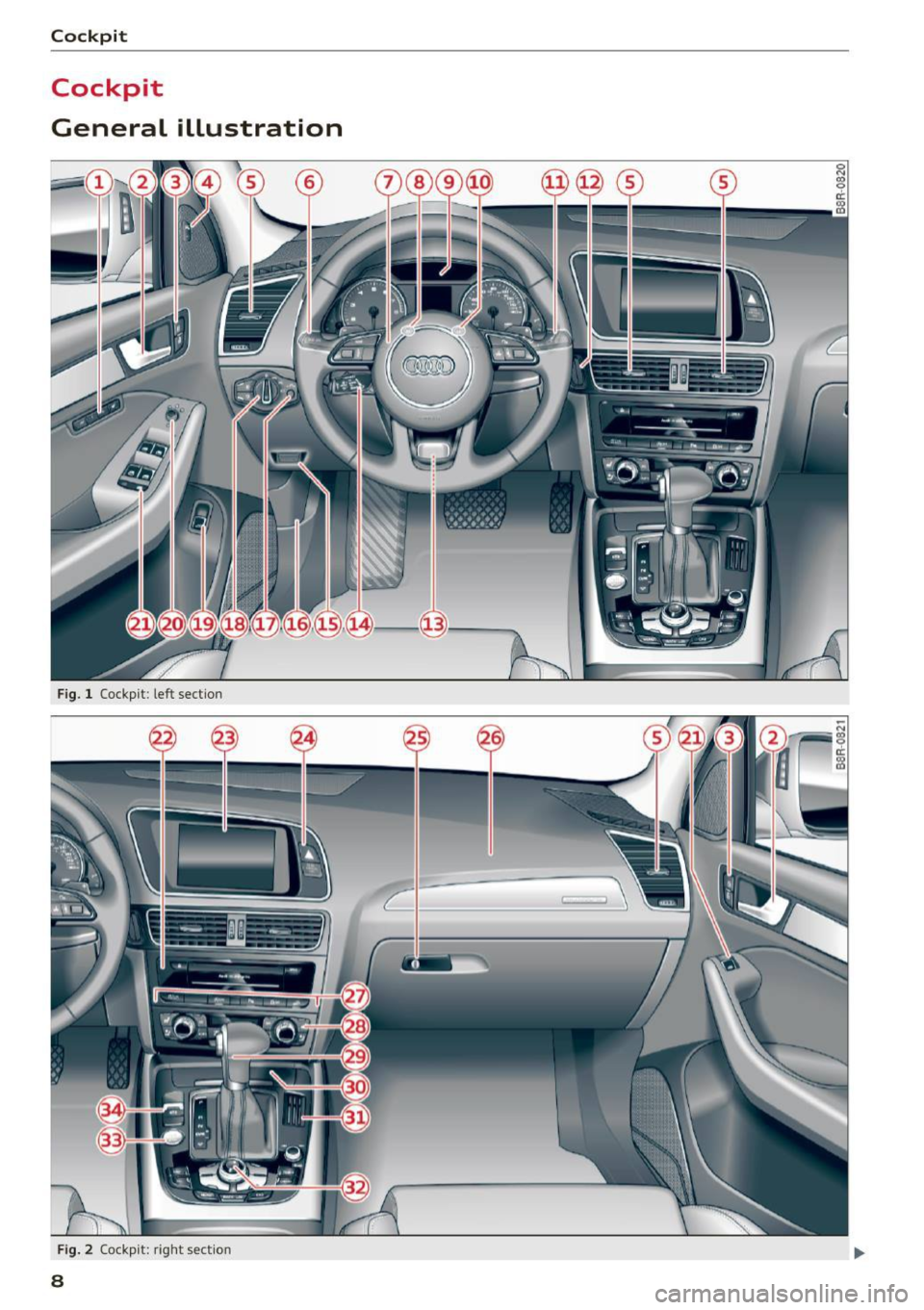

General illustration
Fig. 1 Cockpit : left section
F ig. 2 Cockpi t: right sect ion
8

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,
(!) Memory buttons (driver's seat)
@ Door handle
@ Power locking switch ........ .. .
© Side assist button ............ .
® Air outlets ............ .. .. .. .
@ Turn signal and high beam ..... .
(j) Multifunction steering wheel with:
- Horn
- Driver's airbag ........ .. .. .. .
- Audio/video, telephone, naviga-
tion and voice recognition but­
tons
- Rocker switches for tiptron ic op-
eration ... ........... .. .. .. .
@ ISETI button ............... .. .
® Instrument cluster ............ .
@ Reset button for trip odometer .. .
@ Switches for:
- Windshield wiper/washer ..... .
- Trip computer .............. .
@ Ignition lock ........... .. .. .. .
@ Adjustable steering column
~ Control lever for: 64
42
116
81
55
156
127
11
10
13
57
22
84
84
- Cruise control . . . . . . . . . . . . . . . 95
- Adaptive cruise control . . . . . . . 107
@ Data Link Connector for On Board
Diagnostics (OBD II) . . . . . . . . . . . 26
@ Release lever for the engine hood . 221
@ Instrument illumination . . . . . . . . 56
@ Light switch . . . . . . . . . . . . . . . . . . 52
@ Switch for unlocking the trunk lid . 43
@ Adjuster control for outside mirrors . . 59
@ Power window switches . . . . . . . . . 46
@ Radio system or Audi multimedia
(see separate manual)
@ Radio or MMI display (see separate
manual)
@ Button/Indicator light for:
- Emergency flasher .......... .
- PASSENGER AIR BAG OFF
@ Glove compartment (lockable) .. .
@ Front passenger's airbag ....... .
@ Depending on options:
- Audi drive select button ...... .
- Start-Stop-System button or .. .
- Id'! button (hybrid drive) .... . .
- Parking system button ....... .
- Electron ic Stabilization Control
(ESC) button ............... .
- Hill descent assist button ..... .
@ Climate control ............. . .
@ Shift lever for automatic transmis-
sion ........................ .
@ Ashtray with cigarette lighter
@ Coin storage
@ Depending on options:
- MMI control console or
- Parking system button ....... .
- Electron ic Stabilization Control
(ESC) button ............... .
Cockpit
54
78
156
120 91
101
129
191
193
80
123
76, 76
129
191
- Hill descent assist button . . . . . . 193
-Audi drive select button . . . . . . . 120
- Start-Stop-System button . . . . . 91
@ I START ENGINE STOPI button . . . 87
@> Electromechanical parking brake 89
(D Tips
Some of the equipment or features shown in
the general illustration may be standard
equipment on your vehicle or may be optional
equipment depending on your model. Always
ask your authorized Audi dealer if you have a
question about your vehicle.
9

Instruments and indicator Lights
Instruments and indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Overv iew of t he inst rument cluste r
Hybrid drive*: the instrument cluster varies
c::> page99.
CD Coolant temperature gauge
@
®
©
®
Tachome ter .............. ... .
War ning/ indicato r lights .. .. ... .
ISETlbutton .... .. .. ... ... ... .
Di sp lay
- Driver information system . ... .
- T ime and date d isp lay . .. .. ... .
- Odome ter .... ......... .... .
® Reset b utton for t rip odometer . ..
(J) Speedometer
® Fue l gauge
(D Tips
T he illum ina tion fo r the instr ument clus ter
lights up whenever yo u sw itch on the ig nit io n
w it h t he
vehicle headlight s off. As the day ­
light fades, the instr ument clus ter ill umi na ­
tion likew ise dims a utomatica lly and will go
out comp lete ly when the outs ide light is very
low. This feature is meant to remind you to
sw itch on the head lights when outside light
condi tions become poor .
10
10
1 1
14
11
20
1 2
1 3
1 3
1 2
Engine coolant temperature gauge
The engine coolant gauge ¢ page 10, fig. 3 CD
on ly works when t he ignition is on. To prevent
damage to your engine, please note the follow­
ing important points :
Engine cold
If the needle is at or close to the bottom o f the
gauge, the engine has not yet reached its operat­
i ng temperature. Avo id high engine speeds,
heavy engine loads, and heavy thrott le applica­
tions .
Normal temperature
When the engine has reached its operating tem­
perature, the needle will move to the middle of
the ga uge and rema in there. I f the engine is
working hard at hig h outs ide temperatures, t he
needle may move higher on the gauge. This is not
a cause for concern as long as the. warning
li ght i n the inst ru m en t cluste r display does not il-
l u m inat e. .,,.

Warning light in th e instrument clus ter
di splay
If the . warning light in the instrument cluster
display flashes , this can mean one of two th ings:
either the coolant
t emperature is too high, or the
coolan t
level is too low 9 page 29.
If the needle is well in the upper area of the
gauge, the coo lant temperature is too high.
S top
the veh icle , switc h the engin e off, and allo w i t
to coo l.
If the warning light comes on again after
driving a short distance , contact an authorized
Aud i dealer or other q ualified workshop .
..&, WARNING
-Always observe the warni ng i n 9 page 221,
before opening the hood and chec king the
engine coolan t level.
- Never open the engine hood if you see o r
hear steam, or if you see engine coolant
dr ipping from the engine compartmen t. You
cou ld burn yourself . Let the engine cool off
first so that you cannot hear o r see any
steam or engine coo lant.
CD Note
- M ount ing additional lights or accesso ries in
front of the air inlets red uces the cooling ef ­
fect of the radiator . At high outside temper ­
atures or high engine load, the eng ine could
overheat .
- The front spoiler has been designed to prop­
erly distribute the cooling air when the veh i­
cle is moving . If the spoiler is damaged, this
could reduce the cooling effect and the en­
gine could then overheat. Ask your author ­
i zed Audi dealer for assistance .
Tachometer (engine rev counter )
The tachometer indicates the engine RPM (revo ­
lutions per minutes) .
If engine RPM drops below 1,500 , you should
downshift to the next lower gear. The red area at
~ the end of the scale indicates max imum perm is -co
~ sible eng ine RPM after the break- in period . Be-
:;, fore reach ing th is area, move the selector lever to
"' N
"' ......
Ins trument s and indi cator ligh ts
position D/S or ease your foot off the acce le rator
pedal.
CD Note
The tachome ter needle @~ page 10, fig. 3
shou ld only brief ly be in the red zone: you
could damage your engine! The beginning of
the red zone varies depend ing on the engine .
@ For the sake of the envi ronment
Upshifting early saves fuel and reduces engine
noise .
~ button
Fig . 4 SET but ton in th e ins trume nt cluster
The !SE T! button pe rforms the following func­
tio ns:
Switching on time, date, temperature
displ ay and odomet er
The display appea rs fo r approximate ly 30 sec­
onds when yo u press the
!SE T! button ~ fig. 4
with the ignition off .
Starting the Auto-Check sequence
T he Auto-Chec k system ~ page 2 7 constantly
monitors ce rtain ind iv idual f unct ions and compo­
nents of the vehicle when the ignition is turned
on and when the vehicle is moving .
With the ignition turned on, you can start the "Auto-Check seq uence" by pressing the
!S ET ! bu t­
ton. You can perform an Auto-Check sequence
when the vehicle is stationary and the ign ition is
turned on or when the vehicle is moving slower
than 3 mph (5 km/h). ..,.
11

Instruments and indicator Lights
The numbe r of keys programmed to the vehicle is
also displayed. The disp lay
L2 3 /3 indicates that
three keys have been programmed. This allows
you to make sure you have received all of the keys
when you purchase a used veh icle.
F or examp le, if you on ly receive two keys, you
should ta ke those keys to your authorized Audi
dealer to have the missing key deactivated so it
cannot be used. You sh ould also report the miss­
i n g key to your insurance company .
Calling up the driver info rmation
A yellow or red symbol appears in the inst rument
cluster display, usua lly with a driver message .
The driver message display disappears after about 5 seconds. The dr iver message can be dis­
p layed aga in by briefly pressing the
IS ET I button .
Setting the speed warning
By press ing the I SETI b utton briefly , you can set
threshold 1 of the speed warning whi le you are
driving
c::;, page 95. By maintaining pressu re on
the
! SE TI button, you de lete the warning thresh­
old.
Digital clock with date display
F ig . 5 In st rum en t cluster: t ime an d date
Depending on the veh icle equ ipment level, yo u
may choose between the quartz clock or t he GPS
controlled clock *
l!!j in the radio or in the MM!*.
You ca n lea rn mor e about this in the M MI man ual
or in th e radio use r's manual.
@ Tips
- Wh en yo u sw itch off the ignition or open
the d riv er door, t he time, date , odomet er
12
and tempe ra tur e a re dis playe d for an addi ­
t ional 30 seconds.
- Yo u ca n also call up the display wi th t he
!SET ! button c::;, page 11 while the igniti on is
s w itched
off .
Fuel gauge
The fuel gauge works only when the igniti on is
o n.
When the needle reaches t he rese rve mark, the
c::;, page 33 Ji] symbol appears in the instru ­
ment cluster disp lay as well as the message
Please refuel. This message is meant to rem ind
yo u to
refuel.
The tota l tank capacity of your ve hicle is listed in
c::;, page 2 78.
(D Note
N eve r run the ta nk comp letely dry! A n irregu­
l a r supply of fuel can cause eng ine misfir ing
and fuel could enter into the ex haust system.
The cata lytic converter could then overheat
and be damaged .

M N
co ~ co
rl I.O
"' N
"' rl
Odometer
The odometer indicates the distance driven.
Fig. 6 I nstrument cluster: odometer
Fig . 7 Instrument cluster: reset button
.,. N r;
ci: a, al
The display of distance driven is shown in kilome­
ters "km" or in "miles" .
- USA models -Miles
- Canada models -Kilometers
You can switch from kilometers to miles or vise
versa in the radio or in the MMI*. You can learn
Instrument s and indi cator ligh ts
more about this in the MMI manual or in the ra ­
dio user's manual.
Odometer /trip odometer
T he odometer shows the total number of kilome­
ters o r miles that have been dr iven on the vehi­
cle .
The trip odometer shows the distance driven s ince it was last reset. It can be used to measu re
short distances. The last digit shows distances of
100 meters or 1/10 of a mile.
The trip odometer can be reset to zero by press­
ing the reset butto n
10.01 ¢ fig. 7.
Ma lfunct ion me ssage
If there is a malfunct ion somewhere in the in­
strument cluster,
dEF will appear in the tripod­
ometer and w ill stay on . Contact your author ized
Audi dealer to have the problem corrected .
(D Tips
- When you switch off the ignition or open
the driver door, the t ime, date, odometer
and temperat ure are displayed for an addi­
tional 30 seconds.
- You can also call up the display with the
!SET ! button¢ page 11 wh ile the ignition is
switched off.
13

Instruments and indicato r Lights
Indicator lights
Overview
The warning/indicator lights indicate different functions or a possible malfunction.
Fig. 8 Instrument cluster with warn ing/indicator lights
Your vehicle is equipped w ith several important
warn ing and indicator lights to help you monitor
the continued reliable operation of your vehicle
¢,&. .
14
Electromechan ical steering, Dy­
n amic steering*
¢page 195
Electronic power control
(alternative to
li,I )
¢page 15
Glow plug system
(alternative to
[m)
¢p age 15
Electronic Stabilization Control
(ESC)
¢pag e 15
Electronic Stabilization Contro l
(ESC)
¢ page 15
USA models : Safety systems
¢page 16
Canada models: Safety systems
¢page 16
Tire pressure mon itor ing system*
¢ page 16
Left turn signal
¢page 16
Trailer turn signal assembly"
¢page 16
Safety belt
¢page 17
Malfunction Indicator Lamp (MIL)
¢ page 17
High beam
¢page 17
Right turn signal
¢page 16
USA models: Cruise control acti­
vated
¢ page 17
Canada models: Cruise control ac­
tivated
¢page 17
USA models: Anti-lock brake sys­
tem (ABS) defective
¢page 17
Canada models: Anti-lock brake
system (ABS) defective
¢page 17
