Speed warning 2
Storing wa rning 2 is recomme nded if you always
want to be reminded of a certa in speed, for ex­
ample when you are trave ling in a co untry that
has a genera l maxim um speed limit, or if you do
not want to exceed a specified speed fo r w inter
ti res.
The speed warning 2 symbol ,. (USA mode ls)/
• (Canada models) app ears in the display when
you exceed the stored speed lim it . Unlike warning
1, it w ill not go out until the vehicle speed d rops
be low the stored speed limit .
Sett ing speed warning 2
~ page 95 .
@ Tips
Even tho ugh you r vehicle is equipped with a
spee d warn ing system, you sho uld still watch
the speedomete r to make s ure you are not
driving faster than the speed limit.
Speed warning 1: setting a speed limit
Warning threshold 1 is set by the !SET I button .
Fig. 10 7 SET butto n in t he in st ru me nt cl uster
Storing the maximum speed
.,. Drive at the desired max imum speed.
.,. Press the ISET l button in the instrument panel
display ~fig .
107for 1 second .
Resetting the maximum speed
.,. Drive the vehicle at a speed of at least 3 mph
(5 km/h)
.,. Press the l~S -ET~ ! butto n for more than 2 seconds.
T he speed warning symbol. (USA models) .
(Canada models) will appear briefly in the display
when you release the !SET l button to ind icate
D riv ing
th at the maximum speed has been stored suc ­
cessfu lly.
T he maxim um s peed rema ins stored un til i t is
ch anged by pressing the !SE T! button ag ain brief­
ly or until it is deleted by a lengthy push on the
button.
Speed warning 2: setting a speed limit
T he MMI* or the radio control unit is u sed to s et,
change or delete warning threshold
2.
.,. Sele ct: !CAR!func tion butt on> Instrument
cluster > Speed warning .
Or
.,. Select: I CAR I function button > Car systems *
contro l butto n > Driver as sist > Speed warning.
W arning threshold 2 can be set in the speed
range s tarting from 20 mph to 1 50 mph (3 0 km/
h to 240 km/ h). Settings can each be ad justed i n
intervals of 5 mph (10 km/h).
Cruise control system
Switching on
The cruise control system makes it possible to
drive at a constant speed starting at
20 mph (30
km/h).
0
f
®t
0
F ig. 1 08 Co ntr ol leve r w ith p ush -b u tto n
Fig. 1 09 Disp lay : Se lected speed
a)
8 ci: a) m
95

Driving
"'Pull the lever to position @¢ fig. 108 to
switch the system on.
"'Drive at the speed to be controlled.
"' Press button @to set that speed.
The stored speed and the indicator light
[ij;jl)~i~ (US model)/BI (Canadian model) appear
in the instrument cluster display¢
fig. 109. The
display may va ry, depending on the type of dis­
play in your vehicle .
The speed is kept constant by modifying engine
power or through an active brake intervention.
A WARNING
- Always pay attention to the traffic around
you when the cruise control is in operation .
You are always responsible for your speed
and the distance between your vehicle and
other vehicles.
- For reasons of safety, cruise control should
not be used in the city, in stop-and-go traf­
fic, on twisting roads and when road condi­
tions are poor (such as ice, fog, gravel,
heavy rain and hydroplaning) -you could
have an accident.
- Switch the cruise control off temporarily
when driving in turning lanes, highway exits
or in construction zones.
- Please note that unconsciously "resting"
your foot on the accelerator pedal causes
cruise control not to brake. This is due to the
control system being overridden by the driv­
er's acceleration.
- Never use the cruise control when driving
off-road or on unpaved roads . The cruise
control is intended for use only when the ve­
hicle is being operated on paved roads, and
is not suitable for use off-road or on un­
paved roads.
- If a brake system malfunction such as over­ heating occurs when the cruise control sys­
tem is switched on, the braking function in
the system may be switched off. The other
cruise control functions remain active as
long as the indicator
light[ij;11 )~1~ (US mod­
el)/lil (Canadian model) is on.
96
(D Tips
The brake lights illuminate as soon as the
brakes apply automatically.
Changing speed
"'To increase/decrease the speed in increments,
tap the lever in the
010 direction ¢ page 95,
fig . 108.
"'To increase/decrease the speed quickly, hold
the lever in the
010 direction until the de­
sired speed is displayed.
You can also press the accelerator pedal down to increase your speed, e .g . if you want to pass
someone . The speed you saved earlier will re­
sume as soon as you let off of the accelerator
pedal.
If, however, you exceed your saved speed by
S mph (10 km/h) for longer than 5 minutes, the
cruise control will be turned off temporarily. The
green symbol in the display turns white, the
saved speed is retained.
Pre-selecting speed
You can pre-select your desired speed while the
vehicle is not moving.
"'Turn on the ignition.
"'Pull lever into position
(I) ¢page 95, fig. 108 .
"'Press the lever in the 0 or 0 direction to in-
crease or decrease your speed.
"' Let go of the lever to save that speed.
This function makes it possible, for example, to
save the speed you want before driving on the
highway. Once on the highway, activate the cruise
control by pulling the l ever toward @.
· Switching off
Temporary deactivation
"' Step on the brake pedal, or
"'Press the lever into position@(not clicked into
place) ¢
page 95, fig. 108, or
"'Drive for longer than S minutes at more than
S mph (10 km/h) above the stored speed.

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,

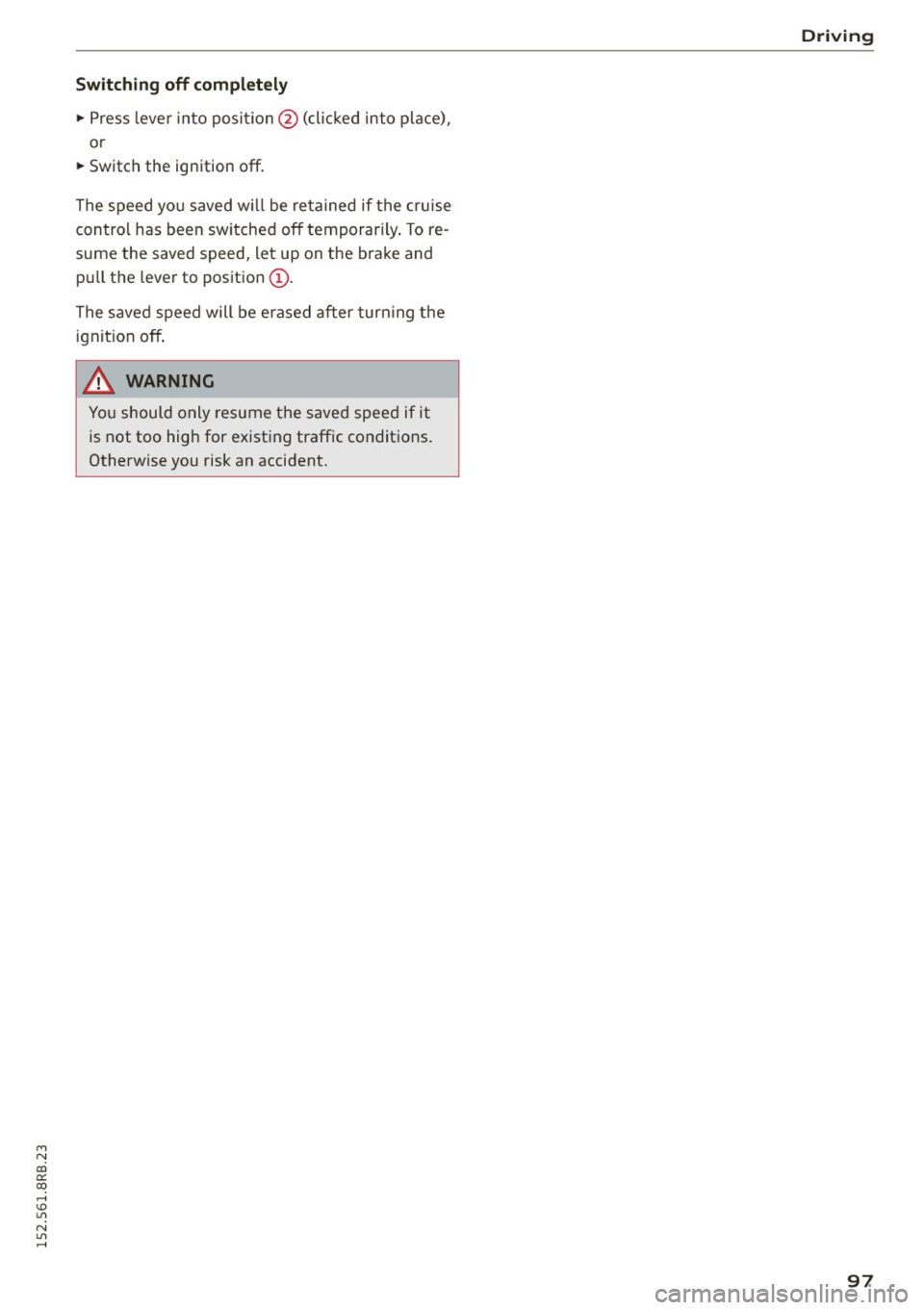

Switchin g off completely
"' Press leve r into position @(clicked into place) ,
o r
"' Switch the ignition off.
The speed yo u saved w ill be retained if the c ruise
control has bee n sw itched off temporar ily . To re­
sume the saved speed, let up on the brake and pu ll the lever to position ©-
The saved speed will be e rased after turn ing the
ignition off .
& WARNING
You should only resume the saved speed if it
is not too high for existing traffic conditions.
Otherwise you risk an accident.
Dri ving
97

Hybrid
Hybrid
Hybrid drive
Introduction
App lies to veh icles: w ith hybr id drive
Gener al inf orm ation
The hybr id drive is a combined drive concept that
automatically switches between combustion en­
g ine and electr ic drive types or combines them.
All work on h igh voltage systems is intended only
for h igh voltage technicians and may only be per­
formed by authorized service facilities in accord­
ance w ith Aud i regulations.
The high voltage system is composed of the fol­ lowing h igh voltage components: the h igh volt­
age battery, the power electronics, the e lectr ic
motor, the h igh voltage A/C compressor and the
orange h igh vo ltage w iring.
High volta ge battery
The high voltage battery is located in the luggage
compartment underneath the cargo floor . You do
not need to perform any maintenance work on
the high voltage battery. Additional information
about the h igh vo ltage battery can be found un­
der
r::!v page 105 .
The high voltage battery service plug is a lso
found underneath an orange cover under the ca r­
go floo r. T he service plug is provided on ly for use
by service personne l and must not be removed by
others who are not trained to use it .
A WARNING
The voltage in the high voltage system is life­
threatening. Touching a damaged high vo lt­
age component can result in a fatal electric
shock. The components in the high voltage
system are marked w ith a warning label wh ich
warns against the h igh voltage.
- Never perform work on orange h igh voltage
cables or on high voltage components. Only
authorized repair facilities that are certified
may perform wo rk on the high voltage sys­
tem.
98
- Never open or remove the service plug cover
in the center of the cargo floor.
- Never damage, alter o r remove the orange
high voltage cable or disconnect it from the
high voltage system.
- Aud i regu lations must be followed during
all work performed on the high voltage sys­
tem and high voltage components.
A WARNING
While in electric dr ive mode, the veh icle pro­
duces considerab ly less id ling, driving and op­
erat ing no ise than when the combustion en­
g ine is running. This may make it difficult or
impossible fo r othe rs such as pedes trians and
chi ld ren to hear and notice the veh icle when it
is in electrical drive mode . This can lead to
collisions and inj uries, for example in low traf ­
fic areas, when maneuvering or when driving
in reverse.
A WARNING
Never leave the vehicle unattended whi le in
the drive ready mode. The vehicle could begin moving if the accelerator peda l is pressed,
even if the combustion engine is switched off .
This may cause collisions and severe or fatal injuries. When the vehicle enters dr ive ready
mode, the status message
h• .,rid ii J ap­
pears br iefly in the instrumen t cluster display
and the needle in the powe r meter points to
READ Y ¢ page 99.
-When exi ting the vehicle, make sure these ­
lecto r lever is i n the P position, the ignition
is switched off and the hybrid system is de­
activated.
(D Note
- T he h igh voltage system can be damaged if
the vehicle underbody comes into contact
with the ground. Immediate ly drive your ve­
hicle to an authorized repair facility and
have it inspected.
- Do not transport fluids in open containers in
the luggage compartment. Spill ed fluids
can seep underneath the cargo floor. This
can damage the high voltage system.
-

Starting the vehicle
Applies to vehicles: with hybrid drive
The vehicle is started and turned off either w ith
the ign ition key
q page 84 or with the
IS TAR T ENGINE STOP I button* ¢page 87 in the
same way as a conventional vehicle .
When starting the vehicle, the need les in the in­
strument cluster
move upward br iefly. When the
vehicle enters d rive ready mode, the status mes­
sage
hybrid ready appears briefly in the instru ­
ment cluster display and the needl e in the power
meter points to READY
q page 99.
Depending on the operation mode of the hybr id
system, there are two possib le drive ready modes
after the vehicle has been started:
Drive r eady mode with combustion engine
If the ope rat ing requirements q page 101 for
e lec tric dr ive mode are
not met, the combustion
Power meter overview
Applies to vehicles: with hybrid drive
H ybri d
engine starts the vehicle as usual. You can start
driving as usual.
Drive ready m ode with th e el ectric motor
If the operating requi rements 9 page 101 for
the e lectr ic dr ive mode are met , the combustion
engi ne remains off after starting the vehicle.
(j) Tips
To p reven t the 12 volt batte ry from d ischarg­
i ng, never leave t he veh icle parked in the dr ive
ready mode. Remove the key from the igni tion
or press the
! S T AR T ENGINE ST OP I button *.
When leaving the vehicle always take the key
with you.
The power meter shows the hybrid drive condition and the availability of the hybrid system.
F ig. 1 10 Powe r meter overview
An economical dr iv ing and recuperation range is
shown in g reen . A d riving range that is not eco­
n omical is shown in o range. In addi tion, the ba t-
"' tery status provides information about the high
N
~ voltage battery charge stat us.
co
rl I.O
"' N
"' rl
@ Fuel eff icient driving with in the
combust ion engine 's pa rtial load
range
@ System limits for electric driving in
the EV mode
@ El ectric dr iving or driv ing with the
combust ion engine (EFFIC IENCY)
99

Hybrid
© Vehicle drive ready (READY)
® High voltage battery charge status
® Recuperation (CHARGE)
(f) Driving within the combustion en ­
gine's full load range
@ 100% combust ion engine
® Boosting -the electric engine as­
sists the combustion engine (BOOST)
@ Engaging the convent ional brakes
with recuperation
@ Vehicle not drive ready (OFF)
@ EV mode active
The needle remains at
OFF when the ignition is
turned on. When the vehicle enters drive ready mode, the status message
hybrid ready appears
briefly in the instrument cluster d isplay and the
needle in the power meter points to
READY .
Indicator lights and messages
Applies to vehicles: with hybrid drive
The indicator lights in the instrument cluster
b lin k or tu rn on. They i ndicate functions o r mal­
functions.
W ith some ind icator lights, messages may ap­
pear and a warning tone may sound. Also note
the indicator l ights in ¢
page 2 7.
Press brake pedal to start vehicle
This message appears if you do not press the
brake pedal when starting the vehicle.
Shift to N or P to start vehicle
This message appears if the selector lever for the
automatic transmission is not in the Nor P posi­
tions when starting the vehicle .
-Hybrid drive: System fault! Power
brakes, steering malfunction pos sible
lfthe indicator light turns on and this message
appears, there is a malfunction in the hybrid sys­
tem. The brake booster and the power steering
may stop working. Stop the vehicle in a safe loca ­
tion as soon as possible.
100
You may continue driving if the indicator light
turns off after starting the vehicle severa l times.
Drive to an authorized repair facility immediately
to have the malfunct ion corrected.
Q/ij:@ ,j rlybrid drive: System fault! Contact
dealer
If the indicator light turns on and this message
appears, there is a malfunct ion in the hybr id sys ­
tem. Drive to an authorized repair facility imme­
diately to have the ma lfunction corrected.
Ill Hybrid system : Performance restricted .
Please contact dealer
If the indicator light turns on and this message
appears, there is an engine control malfunction .
The
ffa i ndicator light in the instrument cluster
also t urns on. The eng ine output is red uced . Drive
to you r autho rized Aud i deale r o r qualified repair
facility immediate ly to have the malfunction cor­
rected.
Hybrid drive deactivated. Please restart
engine manually.
This message appears if the high volta ge battery
charge level has fallen be low a certain range or if
the ignition key is no longer inside the vehicle fo r
vehicles with the convenience key*.
Start the engine with e ither the ignition key
¢
page 84 or with the !S TAR T EN GINE STOPI but­
ton* ¢
page 87.
Hybrid battery: Low battery charge. Battery
will be charged while driving.
This message appears if the high volta ge battery
charge level has fa llen below a certain range. If
this message turns off after a litt le while, the
high voltage battery charged enough w hile driv­
i ng .
If the message does not turn off, have an autho r­
ized repair facility correct the malfunct ion as
soon as possible.
EV mode is currently unavailable.
This message appears if the cond itions
¢ page 101 for enhanced elect ric driving are not
met. Try again at a later time.

M N
co
a:
co
,...., \!) 1.1"1
N 1.1"1 ,....,
Hybrid functions and operating modes
Appl ies to vehicles: with hybri d drive
Fig. 111 Center console: av bu tton
.,. To turn on EV mode, press the l.,,;v l button. The
indicator light in the button will turn on. The
• indicator light also turns on in the instru­
ment cluster display.
The functions and operating modes described be­
low are selected automatically by the veh icle con­
trol system, depending on the vehicle operating
status. This ensures that the vehicle is always in
the correct operating mode. One exception is the
enhanced elect ric driving mode
(E V mode), which
is activated by the driver ¢
page 101.
Driving with the combustion engine
The vehicle is powered by the combustion engine.
The high voltage battery is charged simultane­
ously, if needed.
Full acceleration (boost)
In full acceleration, the vehicle is powered by
both the combustion eng ine and the electric mo­
tor . This operating mode is called
Boost and is
only available for a short amount of time because
i t uses so much energy. Availability depends on
the high voltage battery charge level.
The boost operating mode is activated by press­ in g the accelerator peda l all the way down.
Electric driving
The vehicle can be driven completely electrically
depending on the high voltage battery charge
level and the driving res istance . The combustion
engine turns off at that t ime .
Hybrid
The combustion engine starts when accelerating
or when the high voltage battery charge level drops below a certain thresho ld. The vehicle re­
sumes electric driving once the acceleration and
the high voltage battery charge level permit .
Enhanced electric driving mode (EV mode)
Pressing the 1~· 1 button r::!> fig. 111 can extend the
usual limits on e lectric driving so that you can a l­
ways drive in electric mode, if the condition of
the electrical system permits. The operating
mode is then set to maximum electric drive @,
@ <:!> page 99, fig . 110. It can be driven com­
pletely electrically for up to 1.8 miles (3 km) at a
constant
37 mph (60 km/h).
The following conditions must be met to activate
the enhanced electric drive:
- The high voltage battery must be sufficiently
charged.
- The temperature of the
12 volt batteries and
the high voltage battery must be sufficient.
- The vehicle speed must not be higher than
62 mph (100 km/h).
- The transmission must not be in tiptronic
mode.
- Offroad mode and hill descent assist must not
be turned on
r::!;>page 192.
T he combustion engine turns on and interrupt s
the enhanced ele ctric drive mode when the vehi­
cle is acce lerated. The gray ind icator light
I§ a l­
so turns on in the display. The enhanced electric
drive mode resumes automatica lly once accelera­
tion stops.
The enhanced electric drive mode is
deactivated
if at least one of the following conditions is met :
- The ignition is turned off.
- The
l~ ·I button is pressed aga in.
- The high voltage battery charge level is low .
- The vehicle speed is higher than approximately
62 mph (100 km/h) .
- The
S selector lever position or tiptronic mode
is selected.
- Offroad mode or hill descent assist is switched
on .
The
l "'-'' I button must be pressed to reactivate it. 1iJ11-
101

Hybrid
St art-Stop function
The combust ion engine is operated only as need­
ed . Genera lly, the combustion engine turns
off
when the vehicle is stationary and the high volt­
age battery powers the electrical vehicle sys­
tems .
The purpose o f automatica lly shutting the com­
bustion engine
off in hybrid drive mode is to save
fue l. All of the important vehicle systems, such
as steering, brakes and the A/C system, contin ue
to remain active. In some cases, systems may re­
qu ire the combustion engine to continue running
when the vehicle is stationary. When driv ing in
congested traffic for long periods of t i me, the
combustion engine will cycle on when the veh icle
is stationa ry to keep the h igh voltage battery
charged .
Gliding
If the gas pedal is not pressed and the D position
is selected, the combustion engine rema ins
turned
off up to speeds of approximate ly 99 mph
(160 km/h). Dr iving conse rvative ly like this can
r educe fue l consumpt ion.
Energy recovery (recup eration )
When braking, the e lectr ic motor will act as a
generator creating electric energy that is then
s to red in the h igh voltage batte ry. This also oc­
curs when the ve hicle is coas ting or dr iv ing down­
hi ll. The combust ion engine is automatically
turned
off in t his case.
Tips for Driving Efficiently with your Hybrid
Applies to veh icles: w ith hybrid drive
Driving situa- Conditions
tions
- Shift into the D pos ition .
Starting from a -
Release the brake pedal.
stop -
Only press mode rate ly on the ac-
celer ator peda l.
102
The vehicle is braked with the electric motor by
applying early and even press ure to t he brakes
and us ing short pedal movements¢
page 99,
fig. 110@. By do ing th is, a large amount of the
k inet ic energy is recovered and may be stored as
electric energy in the high voltage batte ry. Dur ­
i ng heavy braking, the convent ional brakes are al­
so act ivated
¢ page 99, fig . 110 @.
The energy recovery is shown in the MMI display
¢page 105 .
Automatic start of the combu stion engine
Various operating conditions cause the combus ­
tion eng ine to start a utomatica lly :
- T he high vo ltage battery charge leve l is low.
- T he temperature of the combustion engi ne is
low.
- Th e temperature of the cataly tic converte r is
low.
- T he power output needed for the A/C system is
high.
- T he veh icle speed is high .
- The vehicle acceleration is h igh .
- The incline is steep.
- High charge level for the high voltage battery
when coasting. In this case, the hig h voltage
battery cannot absorb any more ene rgy and so
the electric motor cannot s low down the veh i­
cle. The combustion engine tur ns on (eng ine
brake) . In this situation the high voltage bat­
tery will show a Max cha rge.
Vehicle behavior
In the D posit io n, the hybrid system adapts
to the driving s ituat ion by automatically
sw itch ing between the combust io n engine
a nd e lectr ic dr ive types or by combini ng
them.
