2014 MERCEDES-BENZ CLS-Class Owner's Manual

Depending on the equipment level of your
vehicle, there ar
etwo variants of wipe rblade;
these are installed and removed in different
ways. Based on the diagrams ,chec kwhich
system is installed in your vehicle.
Changing the wiper blades (version 1) Removing the wiper blades
X
Remove the SmartKey from the ignition
lock or turn it to position 0(KEYLESS-GO).
X Fold the wiper arm away from the
windshield until it engages.
X Set the wiper blade at right angles to the
wiper arm. X
Remove the wiper blade from the retaining
pin on the wiper arm in the direction of the
arrow.
Installing the wiper blades
X Push the new wiper blade onto the
retaining pin on the wiper arm in the
opposite direction to the arrow.
Make sure that the wiper blade slides fully
onto the retaining pin on the wiper arm.
X Turn the wiper blade parallel to the wiper
arm.
X Fold the wiper arm back onto the
windshield. Changing the wiper blades (version 2) Removing the wiper blades
X
Remove the SmartKey from the ignition
lock or turn it to position 0(KEYLESS-GO).
X Fold the wiper arm away from the
windshield until it engages. X
Firmly press release knob 001Aand pull the
wiper blade upwards from the wiper arm in
the direction of the arrow.
Installing the wiper blades
X Position the new wiper blade in the retainer
on the wiper arm and slide it into place in
the opposite direction from the arrow.
The wiper blade audibly engages.
X Make sure that wiper blade is seated
correctly.
X Fold the wiper arm back onto the
windshield. Windshield wipers
127Lights and windshield wipers Z

Problems with the windshield wipers
Problem Possible causes/consequences and
000B Solutions
The windshield wipers
are jammed. Leaves or snow, for example, may be obstructing the windshield
wiper movement.T
he wiper motor has been deactivated.
X For safety reasons, you should remove the SmartKey from the
ignition lock.
or
X Switch off the engine using the Start/Stop button and open the
driver's door.
X Remove the cause of the obstruction.
X Switch the windshield wipers back on. The windshield wipers
fail completely. The windshield wiper drive is malfunctioning.
X
Select another wiper speed on the combination switch.
X Have the windshield wipers checked at aqualified specialist
workshop. 128
Windshield wipersLights and windshield wipers

Useful information
............................130
Overview of climat econtrol sys-
tems ................................................... 130
Operating the climat econtrol sys-
tems ................................................... 135
Setting the air vents .........................142 129Climat
econtrol

Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please not ethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related system sand functions.
i Read the information on qualified
specialist workshops: (Y page 26).Overview of climat
econtrol systems Important safet
ynotes
Observ ethe settings recommende donthe
following pages. The windows could
otherwise fog up.
To preven tthe windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air
dehumidification function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof
closed.
The residual heat function can only be
activated or deactivated with the ignition
switched off (Y page 141).
i Ventilate the vehicle for abrief period
during warm weather, e.g. using the
convenience opening feature (Y page 89).
This will speed up the cooling process and
the desired vehicle interior temperature
will be reached more quickly. i
The integrated filter filters out most
particles of dust and soot and completely
filters out pollen. It also reduces gaseous
pollutantsa nd odors.Aclogged filter
reduces the amoun tofair supplied to the
vehicle interior .For this reason, you should
always observe the interval for replacing
the filter, which is specified in the
Maintenance Booklet .Asitdepends on
environmental conditions, e.g. heavy air
pollution, the interval may be shorter than
stated in the Maintenance Booklet. 130
Overview of climatec
ontrol systemsClimatecontrol

Control panel for dual-zone automatic climat
econtrol Canad
aonly
001A Setsthe temperature, left (Y page 138)
0010 Defrost sthe windshield (Y page 139)
0024 Switches th eZONE function on/of f(Y page 139)
0021 Switches coolin gwitha ir dehumidification on/of f(Ypage 136)
001E Switches the rear window defroster on/off (Y page 140)
0025 Setsthe temperature, right (Y page 138)
0009 Activates/deactivates air-recirculation mode (Y page 141)
0016 Setsthe air distribution (Y page 138)
001D Increases the airflow (Y page 139)
000F Reduces the airflow ( Ypage 139)
0004 Switches climat econtro lon/off (Y page 135)
000B Setsclimate contro ltoautomatic (Y page 137) Overview of climat
econtrol systems
131Climatecontrol

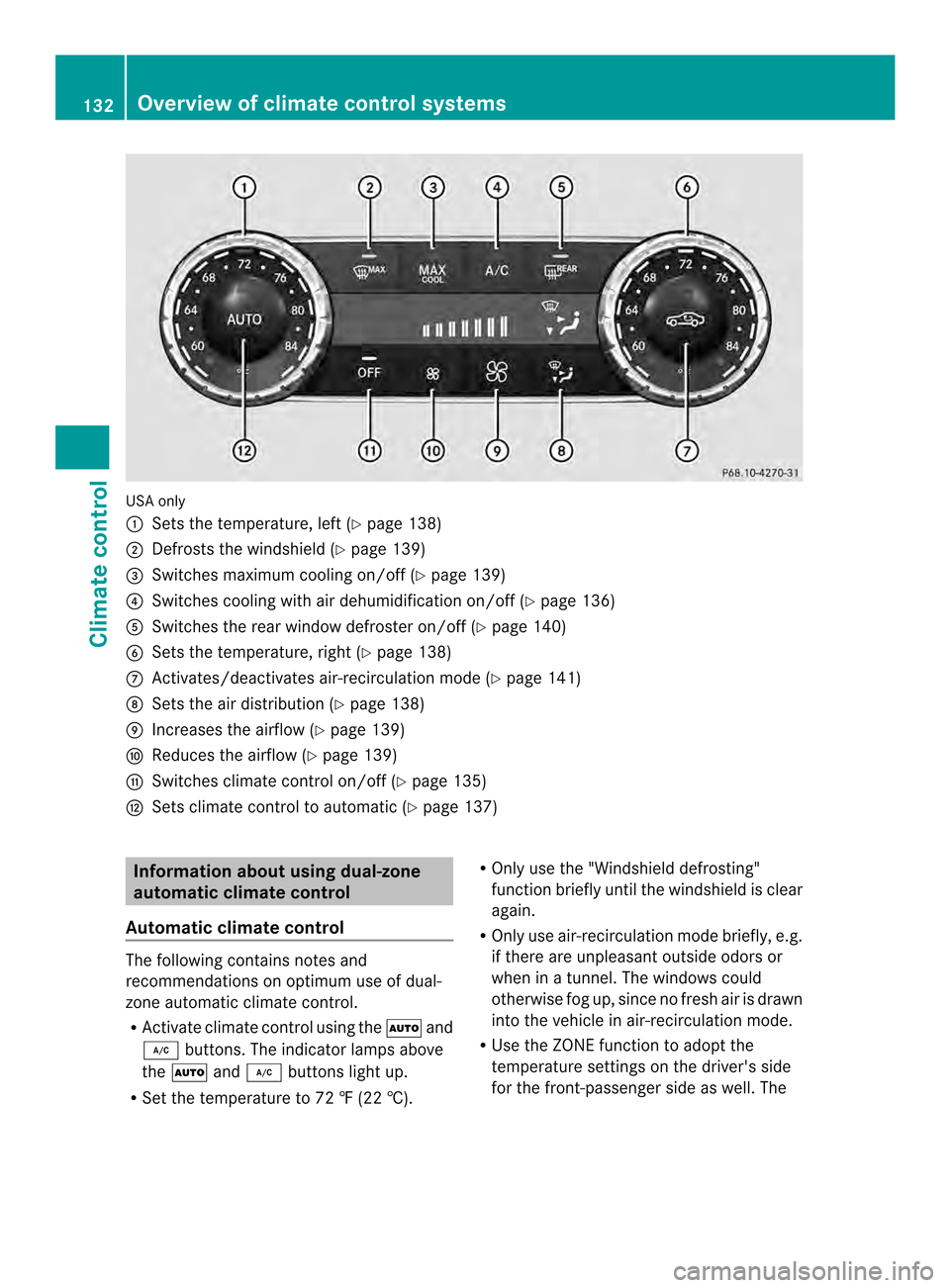

USA only
001A
Sets the temperature, left (Y page 138)
0010 Defrosts the windshield( Ypage 139)
0024 Switches maximum cooling on/off (Y page 139)
0021 Switches cooling with air dehumidification on/off (Y page 136)
001E Switches the rear window defroster on/off (Y page 140)
0025 Sets the temperature, right (Y page 138)
0009 Activates/deactivates air-recirculation mode (Y page 141)
0016 Sets the air distribution (Y page 138)
001D Increases the airflow (Y page 139)
000F Reduces the airflow (Y page 139)
0004 Switches climate control on/off (Y page 135)
000B Sets climate control to automatic (Y page 137)Information about using dual-zone
automatic climate control
Automatic climate control The following contains notes and
recommendations on optimum use of dual-
zone automatic climate control.
R
Activate climate control using the 000Dand
000C buttons. The indicator lamps above
the 000D and000C buttons light up.
R Set the temperature to 72 ‡(22 †). R
Only use the "Windshield defrosting"
function briefly until the windshieldisc lear
again.
R Only use air-recirculation mode briefly,e .g.
if there are unpleasant outside odors or
when in atunnel. The windows could
otherwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the
temperature settings on the driver's side
for the front-passenger side as well.T he132
Overview of climate control systemsClimatec
ontrol

indicator lamp above the
0010button goes
out.
R Vehicles with COMAN DMultimedia-
System: if you change the settings of the
climate control system, the climate status
display appears for approximately three
seconds at the bottom of the screen in the
COMAND display. See also the separate
COMAND operating instructions .You will
see the current settings of the various
climate control functions.
ECO start/stop function During automatic engine switch-off, the ECO
start/stop function only operates at a
reduced capacity. If you require the full
climate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 152). Overview of climate control systems
133Climate control

Control panel for 3-zone automatic climat
econtrol Canad
aonly
Fron tcontrol panel
001A Setsthe temperature, left (Y page 138)
0010 Defrosts th ewindshield (Y page 139)
0024 Switche sthe residual heat function on/off (Y page 141)
0021 Switche scooling with air dehumidificatio non/off (Y page 136)
001E Switche sthe rea rwindow defroster on/off (Y page 140)
0025 Setsthe temperature, right (Y page 138)
0009 Switches the ZONE function on/off (Y page 139)
0016 Switches climate control on/off (Y page 135)
001D Setsthe air distribution (Y page 138)
000F Increases the airflow (Y page 139)
0004 Reduces the airflow ( Ypage 139)
000B Adjusts the climate mode settings (Y page 137)
001C Activates/deactivates air-recirculation mode (Y page 141)
000E Setsclimate control to automatic (Y page 137)
Rea rcontrol panel
0012 Increases the airflow (Y page 139)
0013 Reduces the airflow ( Ypage 139)
0017 Display
0020 Reduces the temperature ( Ypage 138)
0023 Increases the temperature (Y page 138)134
Overview of climate control systemsClimate control
