2014 Lexus CT200h Owner's Manual (in English)

297
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)

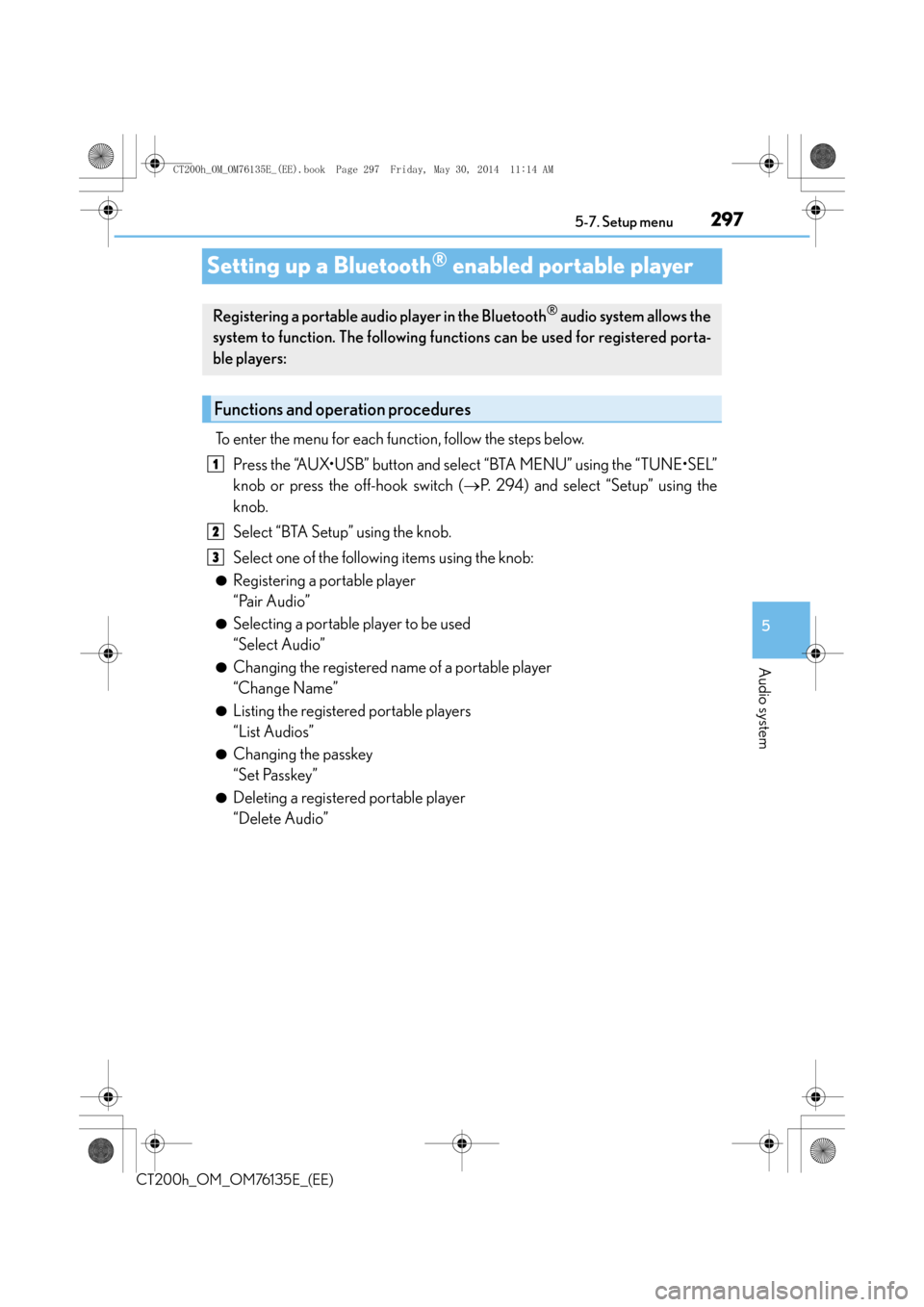

Setting up a Bluetooth® enabled portable player
To enter the menu for each function, follow the steps below.
Press the “AUX•USB” button and select “BTA MENU” using the “TUNE•SEL”
knob or press the off-hook switch ( →P. 294) and select “Setup” using the
knob.
Select “BTA Setup” using the knob.
Select one of the following items using the knob:
●Registering a portable player
“Pair Audio”
●Selecting a portable player to be used
“Select Audio”
●Changing the registered name of a portable player
“Change Name”
●Listing the registered portable players
“List Audios”
●Changing the passkey
“Set Passkey”
●Deleting a registered portable player
“Delete Audio”
Registering a portable audi o player in the Bluetooth® audio system allows the
system to function. The following functions can be used for registered porta-
ble players:
Functions and operation procedures
1
2
3
CT200h_OM_OM76135E_(EE).book Page 297 Friday, May 30, 2014 1 1:14 AM

2985-7. Setup menu
CT200h_OM_OM76135E_(EE)
Select “Pair Audio” using the “TUNE•SEL” knob, and perform the procedure for
registering a portable player. (→P. 2 9 5 )
Select “Select Audio” using the “TUNE•SEL” knob.
Select the portable player to be used using the knob.
Select “From Car” or “From Audio” using the knob.
If “From Car” is selected, the portable player will be automatically connected when-
ever:
The power switch is in ACCESSORY or ON mode.
Select “Change Name” using the “TUNE•SEL” knob.
Select the desired portable player name to be changed using the knob.
Select “Record Name” using the knob, and say the new name after the beep.
The name to be registered will be repeated aloud. Select “Confirm” using the knob.
Select “List Audios” using the “TUNE•SEL” knob. The list of registered portable
players will be read aloud.
When listing is complete, the system returns to “BTA Setup”.
Select “Set Passkey” using the “TUNE•SEL” knob.
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Registering a portable player
Selecting a portable player to be used
Changing the registered name of a portable player
Listing the registered portable players
Changing the passkey
1
2
3
1
2
3
4
1
2
3
CT200h_OM_OM76135E_(EE).book Page 298 Friday, May 30, 2014 1 1:14 AM

2995-7. Setup menu
5
Audio system
CT200h_OM_OM76135E_(EE)
Select “Delete Audio” using the “TUNE•SEL” knob
Select the desired portable player to be deleted using the knob.
If the portable player to be deleted is paired as a Bluetooth
® phone, the registra-
tion of the cellular phone can be deleted at the same time.
When “Del Phone?” is displayed, select “Yes” or “No” using the knob.
(Bluetooth
® phone →P. 316)
■The number of portable players that can be registered
Up to 2 portable players can be registered in the system.
Deleting a register ed portable player
1
2
3
CT200h_OM_OM76135E_(EE).book Page 299 Friday, May 30, 2014 1 1:14 AM

3005-7. Setup menu
CT200h_OM_OM76135E_(EE)
Bluetooth® audio system setup
To enter the menu of each setting, follow the steps below. Press the off-hook switch ( →P. 294) and select “Setup” using the
“TUNE•SEL” knob
Select “System Setup” using the knob.
Select one of the following items using the knob:
●Setting voice guidance volume
“Guidance Vol” ( →P. 3 0 4 )
●Displaying the Bluetooth® device address and name
“Device Name” ( →P. 3 0 4 )
●Initializing the system
“Initialize” ( →P. 3 0 4 )
System setup items an d operation procedures
1
2
3
CT200h_OM_OM76135E_(EE).book Page 300 Friday, May 30, 2014 1 1:14 AM

301
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)
Setting a cellular phone
To enter menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob
Select “Phone Setup” using the knob.
Select one of the following items using the knob:
●Registering a cellular phone
“Pair Phone”
●Selecting a cellular phone to be used
“Select Phone”
●Changing the registered name of a cellular phone
“Change Name”
●Listing the registered cellular phones
“List Phones”
●Changing the passkey
“Set Passkey”
●Deleting a registered cellular phone
“Delete Phone”
Select “Pair Phone” using the “TUNE•SEL” knob, and perform the procedure for
registering a cellular phone. ( →P. 2 9 6 )
Select “Select Phone” using the “TUNE•SEL” knob.
Select the cellular phone to be used using the knob.
Registering a cellular phone in the ha nds-free phone system allows the system
to function. The following function can be used for registered cellular phones:
Functions and operation procedures
Registering a cellular phone
Selecting a cellular phone to be used
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 301 Friday, May 30, 2014 1 1:14 AM

3025-7. Setup menu
CT200h_OM_OM76135E_(EE)
Select “Change Name” using the “TUNE•SEL” knob.
Select the desired cellular phone name to be changed using the knob.
Select “Record Name” using the knob, and say the new name after the beep.
The name to be registered will be repeated aloud. Select “Confirm” using the knob.
Select “List Phones” using the “TUNE•SEL” knob. The list of registered cellular
phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”. Select “Set Passkey” using the “TUNE•SEL” knob.
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Phone” using the “TUNE•SEL” knob.
Select the desired cellular phone to be deleted using the knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player, the
registration of the audio player can be deleted at the same time.
When “Del Audio?” is displayed, select “Yes” or “No” using the knob.
(Bluetooth
® audio player →P. 316)
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
Changing the registered name of a cellular phone
Listing the registered cellular phones
Changing the passkey
Deleting a registered cellular phone
1
2
3
4
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 302 Friday, May 30, 2014 1 1:14 AM

303
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)
Security and system setup
To enter the menu of each setting, follow the steps below.
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “Security” using the knob.
Select one of the following items using the knob:
●Setting or changing the PIN (Personal Identification Number)
“Set PIN”
●Locking the phone book
“Phbk Lock”
●Unlocking the phone book
“Phbk Unlock”
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “System Setup” using the knob.
Select one of the following items using the knob:
●Setting voice guidance volume
“Guidance Vol”
●Displaying the Bluetooth® device address and name
“Device Name”
●Initializing the system
“Initialize”
Security setting items and operation procedures
System setup items an d operation procedures
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 303 Friday, May 30, 2014 1 1:14 AM

3045-7. Setup menu
CT200h_OM_OM76135E_(EE)
■Setting a PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter a PIN using the knob.
Input the code 1 digit at a time.
■Changing the PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter the registered PIN using the knob.
Enter a new PIN using the knob.
Input the code 1 digit at a time.
Select “Phbk Lock” or “Phbk Unlock” using the “TUNE•SEL” knob.
Input a PIN by using the knob and select “Confirm” using the knob.
Input the code 1 digit at a time.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Setting or changing the PIN
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
3
1
2
1
2
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 304 Friday, May 30, 2014 1 1:14 AM
